1 Watt Step up DC-DC White LED Driver ME2106 Series
Ver 07
1 Watt Step up DC-DC White LED Driver ME2106 Series
Description:
Features:
ME2106 Series is a PFM Step-up DC/DC
driver IC with invariant current, design for LED
applications. Thought the external resistance,
output current reach 0mA~500mA.
A low ripple, high efficiency step-up DC/DC
converter can be constructed of ME2106xx
with only three external components. Also
available is a CE (chip enable) function that
reduce power consumption.
Selection Guide:
Low start voltage:0.8V ( at Iout=1mA)
Output Current range:0~ 500mA
Output Current accuracy:±10%
Only inductors, capacitors, Schottky diodes,
resistors and so few external components
High Efficiency:82%(Type)

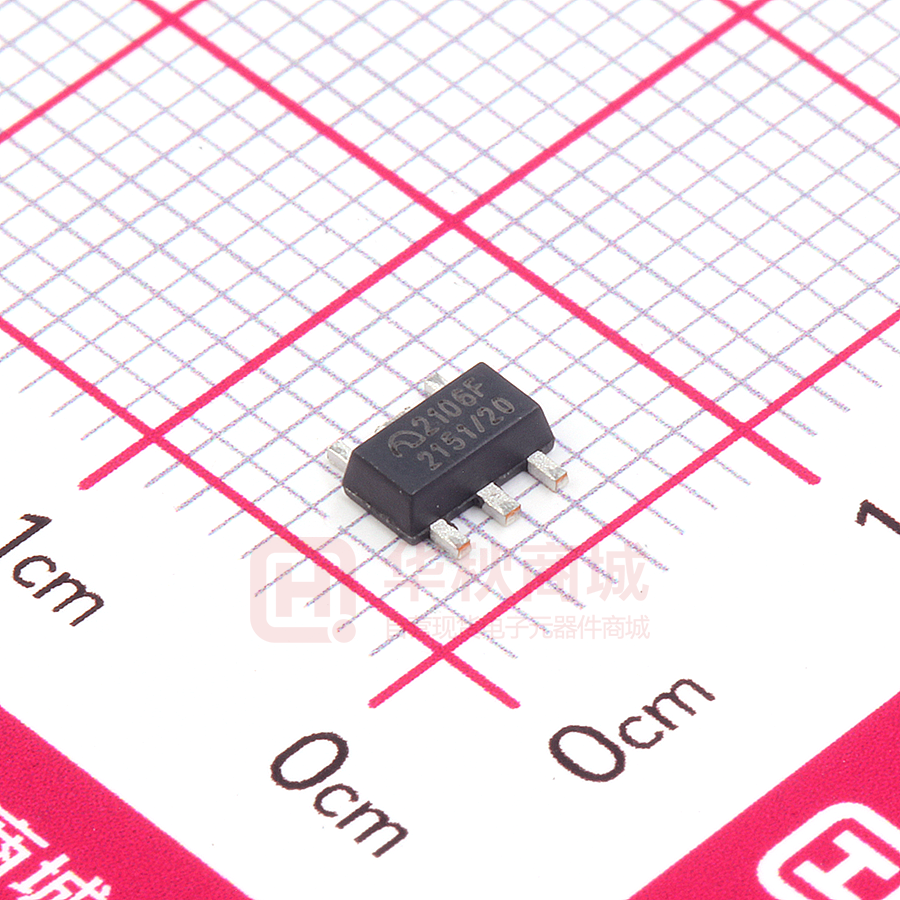

PACKAGE:SOT-23-5,SOT-89-5
Applications:
Nanjing Micro One Electronic Inc.
1/17
Power source for high-power LED
Power source for invariant current
www. microne. com. cn
Tel: 86-25-84731186
1 Watt Step up DC-DC White LED Driver ME2106 Series
Ver 07
Pin configuration :
Pin Assignment:
ME2106Fxx
PIN Number
SOT-23-5
SOT-89-5
1
3
2
2
3
1
4
5
5
4
PIN NAME
CE
Vout
FB
GND
Lx
FUNCTION
Chip enable
Output voltage monitor, IC internal power supply
Feedback
Ground
Switch
Block Diagram:
Nanjing Micro One Electronic Inc.
2/17
www. microne. com. cn
Tel: 86-25-84731186
1 Watt Step up DC-DC White LED Driver ME2106 Series
Ver 07
Absolute Maximum Ratings:
PARAMETER
VIN Input Voltage
Lx Pin voltage
CE Pin voltage
IFB output voltage
Lx Pin current
Continuous Total
SOT-23-5
Power Dissipation
SOT-89-5
Maximum Operating Ambient
Temperature
Operating Ambient Temperature
Storage Temperature
Soldering temperature and time
SYMBAL
VIN
VLX
VCE
VIFB
ILX
RATINGS
0.3~6.5
0.3~Vout+0.3
0.3~Vout+0.3
0.3~Vout+0.3
1.5
UNITS
V
V
V
V
mA
Pd
300
mW
Pd
500
mW
Tmax
150
℃
TOpr
Tstg
Tsolder
-20~+85
-40~+125
260℃, 10s
℃
℃
Recommend work conditions:
PARAMETER
Input voltage
Inductance
Input inductance
output inductance
Operating Ambient
Temperature
Nanjing Micro One Electronic Inc.
MIN
0.8
10
0
47
RECOMMEND
15
≥22
100
-20
3/17
MAX
Vout
100
220
UNITS
V
µH
µF
µF
85
℃
www. microne. com. cn
Tel: 86-25-84731186
1 Watt Step up DC-DC White LED Driver ME2106 Series
Ver 07
Electrical Characteristics:
ME2106F (Measuring conditions: VIN =2.5V,VCE = VOUT =3.3 V,R= 33Ω,TA = 25℃.Unless otherwise
specified )
SYMBOL
PARAMETER
CONDITIONS
MIN
TYP
MAX
UNITS
VOUT
feedback Voltage
IOUT=100mA
180
200
220
mV
Vstart
Starup Voltage
0.8
0.9
V
Vhold
holding Voltage
IDD2
Supply Current
VCE=VIFB=VOUT=3.3V
50
µA
ILXleak
Lx Leakage Current
VCE=VLX=VOUT=VIFB=3.3V
1
µA
Fosc
Oscillation
Frequency
VIFB=0
Maxdty
Duty Ratio
On(VLX“L”)side
η
Efficiency
IOUT=250mA
VCEH
CE is “H”,input
voltage
VCEL
CE is “L”,input
voltage
IOUT=1mA,
VIN:0→2V
IOUT=1mA,
VIN:2→0V
0.6
0.7
V
300
VCE:0→2V
(up to work slowly with the
chip)
VCE:2V→0
(down to work off slowly with
the chip)
77
79
kHz
82
82
%
%
0.6
V
0.4
V
Notes:
1、 Diode:Schottky diode(forward voltage drop : 0.3V,0.3A ),such as IN5817 or 1N5819
2、Inductor:15μH(R
