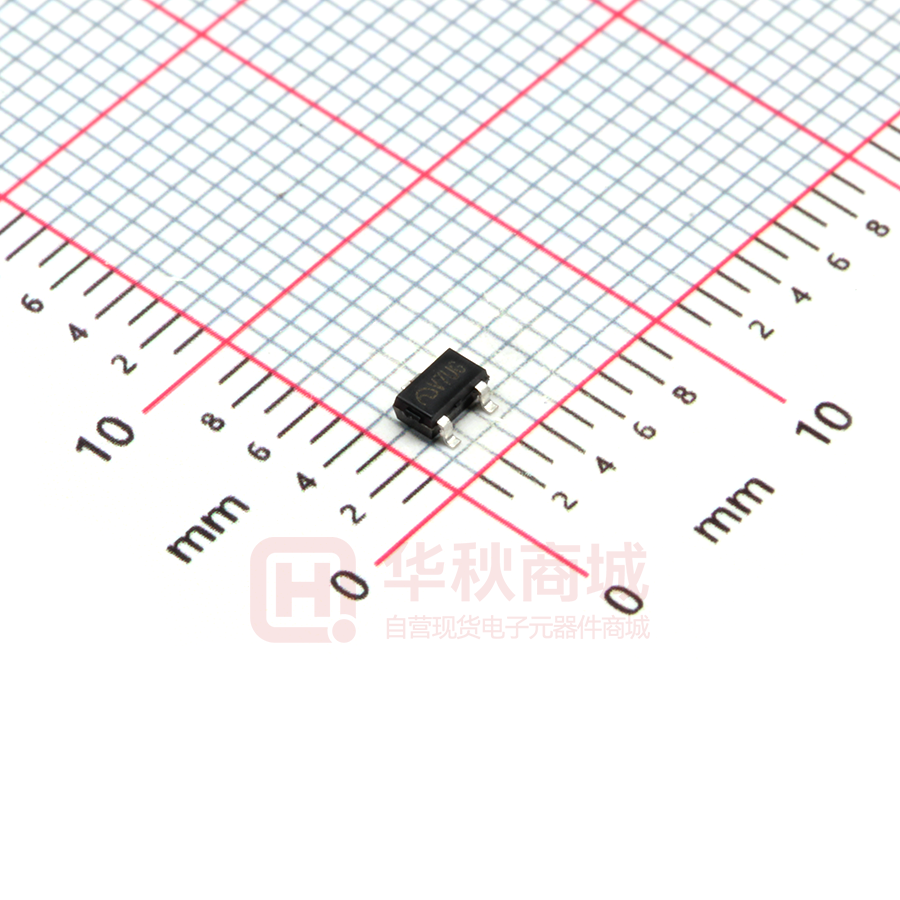

ME6209A40M3G

ME6209 Low Power Consumption LDO ME6209 Series General Description Features The ME6209 series are a group of positive  Ultra low quiescent current: 3.0uA(typ) voltage output, three –pin regulator, that provide a  High input voltage (up to 18V)  Low dropout voltage :80mV@Iout=40mA high current even when the input/output Voltage differential is small. Low power consumption and high accuracy is achieved through technology. They allow input voltages as high as 18V. Typical Application  Cameras, video recorders  Voltage regulator for microprocessor  Voltage regulator for LAN cards  Wireless communication equipment  Audio/Video equipment （VOUT=3.3V） CMOS  Output voltage accuracy： ±2％  Maximum output current：250mA (VOUT =3.3V）  Low temperature coefficient Package ● 3-pin SOT23-3、SOT89-3、TO-92 Typical Application Circuit V12 www.microne.com.cn Page 1 of 14 ME6209 Selection Guide ME 6209X X X X X G Environment mark Package: M3--SOT23-3 P--SOT89-3 T--TO92 Output Voltage Function Product Type Product Series Microne product series ME6209A18M3G ME6209A25TG NOTE: V12 product description VOUT =1.8V； Package：SOT23-3 VOUT =2.5V； Package：TO-92 ME6209A27M3G VOUT =2.7V； Package：SOT23-3 ME6209A33PG VOUT =3.3V； Package:：SOT89-3 ME6209A44PG VOUT =4.4V； Package:：SOT89-3 ME6209A50M3G VOUT =5.0V； Package：SOT23-3 At present ,there are five kinds of voltage value： 1.8V、2.5V、2.7V、2.8V、3.0V、3.3V、3.6V、4.0V、4.4V、4.5V、5.0V。 If you need other voltage and package, please contact our sales staff。 www.microne.com.cn Page 2 of 14 ME6209 Pin Configuration SOT23-3 SOT89-3 TO-92 Pin Assignment Pin Num Symbol Function 1 VSS Ground 2 3 VIN Input 3 2 VOUT Output SOT89-3/TO-92 SOT23-3 1 Block Diagram V12 www.microne.com.cn Page 3 of 14 ME6209 Absolute Maximum Ratings Parameter Input Voltage Output Voltage Output Current Operating Temperature Range Storage Temperature Range SOT89-3 Power Dissipation TO-92 SOT23-3 Symbol VIN VOUT IOUT TOPR TSTG PD Ratings 18 Vss-0.3～VIN +0.3 500 -45～＋150 －55～＋150 500 500 300 Units V V mA ℃ ℃ mW Electrical Characteristics ME6209A18 (VIN= VOUT+1.0V，CIN=CL=10uF，Ta=25OC, unless otherwise noted) Parameter Output Voltage Symbol Conditions VOUT(E) IOUT=10mA, (Note 2) VIN=VOUT+1V Min. X 0.98 Typ. VOUT (T) (Note 1) Max. Units X 1.02 V 18 V Input Voltage VIN Maximum Output Current IOUT _max VIN=VOUT+1V 250 ∆VOUT VIN=VOUT+1V, 1mA≤IOUT≤60mA 10 VDIF IOUT =40mA 150 ISS VIN=VOUT+1V 3 5 μ A ∆VOUT IOUT =10mA ∆VIN ×VOUT VOUT+1V ≤VIN≤18V 0.1 0.2 %/V Temperature VIN=VOUT+1V, IOUT =10mA Coefficient -40℃
