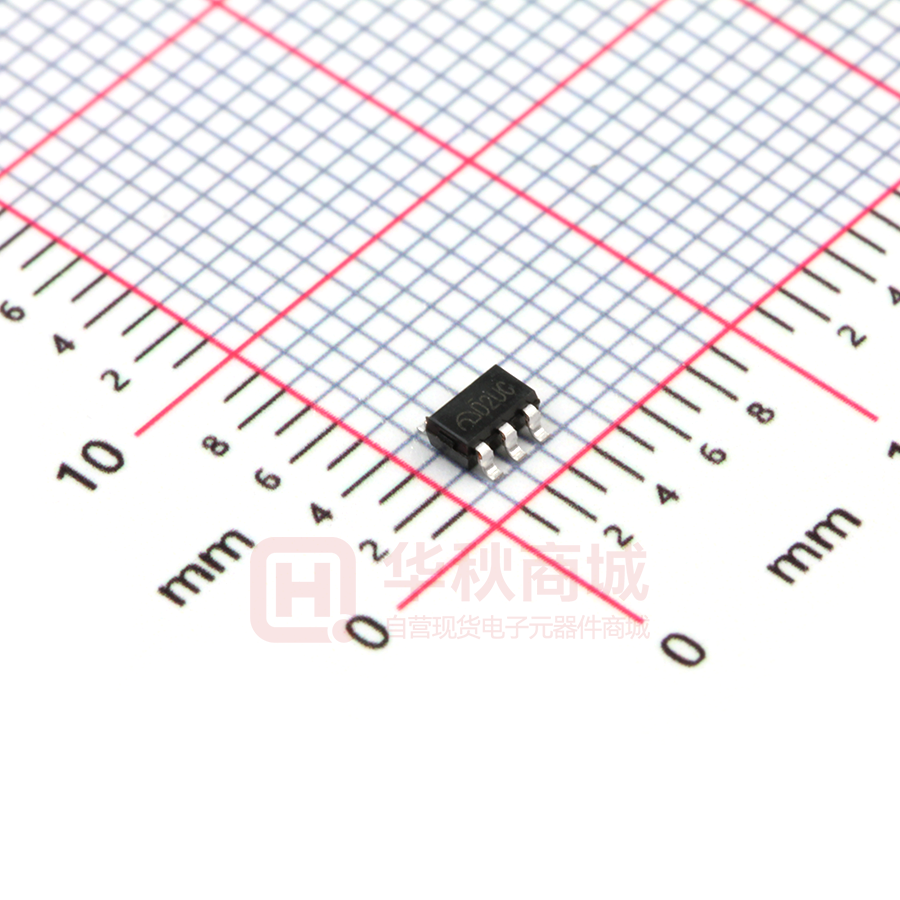

ME6213C30M5G

ME6213 ` Low power consumption, Low dropout voltage, With CE function General Description Features ME6213 series are highly precise, low power consumption, high voltage, positive voltage regulators manufactured using CMOS and laser trimming technologies .The series provides large currents with a significantly small dropout voltage. The current limiter’s foldback circuit also operates  Highly Accurate：±2%  Output voltage range：1.2V~5.0V  Low power consumption：7.5uA(TYP.)  Large output current：300mA (VIN＝3.8V,VOUT＝2.8V)  Input voltage: up to 6 V  Dropout voltage： as a short protect for the output current limiter and the output pin. The CE function allows the output of regulator to be turned off, resulting in greatly reduced power consumption. Typical Application        Battery powered equipment Communication tools Mobile phones Portable games Portable AV systems Cameras, Video systems Reference voltage sources V03 0.11V at 100mA and 0.23V at 200mA  CE Pin Function : Active High  Short-circuit Current：45mA(TYP.)  Excellent Input Stability  Be available to regulator and reference voltage Package  5-pin SOT23-5  6-pin DFN2×2-6L Typical Application Circuit www.microne.com.cn Page 1 of 10 ME6213 Selection Guide Pin Configuration V03 www.microne.com.cn Page 2 of 10 ME6213 Pin Assignment Pin Number Pin Name Functions 1 VIN Power Input 2 VSS Ground 3 CE ON / OFF Control 4 NC No Connect 5 VOUT Output Pin Name Functions 1 CE ON / OFF Control 2 VSS Ground 3 VIN Power Input 4 VOUT Output 5 NC No Connect 6 NC No Connect SOT23-5L Pin Number DFN2×2-6L Block Diagram V03 www.microne.com.cn Page 3 of 10 ME6213 Absolute Maximum Ratings Parameter Symbol Ratings Units Input Voltage VIN 6.5 V Output Current IOUT 420 mA Output Voltage VOUT Vss-0.3～VIN +0.3 V CE Pin Voltage VCE Vss-0.3～VIN +0.3 V PD 250 mW Operating Temperature Range TOPR －40～＋125 ℃ Storage Temperature Range TSTG －40～＋150 ℃ Power Dissipation SOT23-5 Lead Temperature 260℃，4sec Electrical Characteristics ME6213C28 (VIN= VOUT+1V，VCE＝VIN ，CIN=COUT=1uF，Ta=25OC，unless otherwise noted) Parameter Output Voltage Input Voltage Symbol VOUT(E) (Note 2) Conditions IOUT=30mA, VIN= VOUT+1V VIN Min. Typ. Max. Units X 0.98 VOUT (T) (Note 1) X 1.02 V 6 V 2.8 Maximum Output Current IOUTMAX VIN= VOUT+1V 300 mA Load Regulation ∆VOUT VIN= VOUT+1V , 1mA≤IOUT≤100mA 4 mV VDIF1 IOUT =100mA 110 mV VDIF2 IOUT =200mA 230 mV Supply Current ISS VIN= VOUT+1V 7.5 μA Stand-by Current ICEL VCE＝0V 0.02 μA 5 mV Dropout Voltage(Note 1) Line Regulation ∆VOUT IOUT =30mA VOUT+1V ≤VIN≤6V CE “High” Voltage VCEH Start up CE “Low” Voltage VCEL Shut down Short-circuit Current ISHORT VIN= VOUT+1V, VCE＝VIN, VOUT＝0V 45 mA VIN= 3.8V 430 mA Over Current Protection V03 Ilimit www.microne.com.cn 1.0 V 0.5 V Page 4 of 10 ME6213 ME6213C33 (VIN= VOUT+1V，VCE＝VIN ，CIN=COUT=1uF，Ta=25OC，unless otherwise noted) Parameter Output Voltage Input Voltage Symbol Conditions Min. Typ. Max. Units VOUT(E) (Note 2) IOUT=30mA, VIN= VOUT+1V X 0.98 VOUT (T) (Note 1) X 1.02 V 6 V VIN 3.3 Maximum Output Current IOUTMAX VIN= VOUT+1V 350 mA Load Regulation ∆VOUT VIN= VOUT+1V , 1mA≤IOUT≤100mA 4 mV VDIF1 IOUT =100mA 100 mV VDIF2 IOUT =200mA 200 mV Supply Current ISS VIN= VOUT+1V 7.5 μA Stand-by Current ICEL VCE＝0V 0.02 μA Line Regulation ∆VOUT IOUT =30mA VOUT+1V ≤VIN≤6V 4 mV CE “High” Voltage VCEH Start up CE “Low” Voltage VCEL Shut down Short-circuit Current ISHORT VIN= VOUT+1V, VCE＝VIN, VOUT＝0V 45 mA Ilimit VIN= 4.3V 440 mA Dropout Voltage (Note 1) Over Current Protection 1.0 V 0.5 V Note ： 1. VOUT (T) ：Specified Output Voltage 2.VOUT (E) ：Effective Output Voltage ( le. The output voltage when “VOUT (T)+1.0V”is provided at the Vin pin while maintaining a certain Iout value.) 3.VDIF：VIN1 –VOUT (E)’ VIN1 ：The input voltage when VOUT(E)’ appears as input voltage is gradually decreased. VOUT (E)’=A voltage equal to 98% of the output voltage whenever an amply stabilized Iout {VOUT (T)+1.0V} is input. V03 www.microne.com.cn Page 5 of 10 ME6213 Type Characteristics （1）Output Voltage VS. Output Current （VIN=VOUT+1, Ta = 25 °C） ME6213C28 ME6213C33 Output Voltage VS.Output Current 3 2.9 2.8 2.7 2.6 2.5 2.4 Output Voltage(V) Output Voltage(V) Output Voltage VS.Output Current 0 50 100 150 200 250 300 3.4 3.35 3.3 3.25 3.2 3.15 3.1 3.05 3 350 0 50 100 （2）Output Voltage VS. Input Voltage（Ta = 25 °C） ME6213C28 Output Voltage(V) Output Voltage(V) 10mA 1mA 0.5 1.5 2.5 3.5 300 350 400 Output Voltage VS.Input Voltage 100mA 0.5 0 250 ME6213C33 Output Voltage VS.Input Voltage 2 1.5 1 200 Output Current(mA) Output Current(mA) 3 2.5 150 4.5 5.5 3.5 3 2.5 2 1.5 1 0.5 0 1mA 10mA 100mA 0.5 6.5 1.5 2.5 Input Voltage(V) 3.5 4.5 5.5 6.5 Input Voltage(V) （3）Dropout Voltage VS. Output Current （VIN=VOUT+1V,Ta = 25 °C） ME6213C28 ME6213C33 Dropout Voltage VS.Output Current 500 Dropout Voltage(mV) Dropout Voltage(mV) Dropout Voltage VS.Output Current 400 300 200 100 0 0 50 100 150 200 250 300 0.45 0.4 0.35 0.3 0.25 0.2 0.15 0.1 0.05 0 350 50 100 150 200 250 300 350 Output Current(mA) Output Current(mA) V03 0 www.microne.com.cn Page 6 of 10 400 ME6213 （4）Supply Current VS. Input Voltage （Ta = 25 °C） ME6213C28 ME6213C33 Supply Current VS.Input Voltage Supply Current VS.Input Voltage 10 Supply Current(uA) Supply Current(uA) 10 8 6 4 2 0 3 3.5 4 4.5 5 5.5 6 8 6 4 2 0 4 6.5 4.5 5 Input Voltage (V) 5.5 6 6.5 Input Voltage (V) （5）Output Voltage VS. Temperature (VIN=VOUT+1V, IOUT =10mA) ME6213C28 ME6213C33 Output Voltage VS.Temperature 4.0 4.0 3.5 3.0 3.5 Output Voltage(V) Output Voltage(V) Output Voltage VS.Temperature 2.5 2.0 1.5 1.0 0.5 0.0 3.0 2.5 2.0 1.5 1.0 0.5 0.0 -40 -20 0 20 40 60 80 100 120 140 160 Temperature(℃) V03 -40 -20 0 20 40 60 80 100 120 140 Temperature(℃) www.microne.com.cn Page 7 of 10 160 ME6213 Packaging Information ● SOT23-5L DIM Millimeters Inches Min Max Min Max A 0.9 1.45 0.0354 0.0570 A1 0 0.15 0 0.0059 A2 0.9 1.3 0.0354 0.0511 B 0.25 0.5 0.0098 0.0196 C 0.10 0.23 0.0039 0.009 D 2.82 3.05 0.1110 0.1201 E 2.6 3.05 0.1024 0.1201 E1 1.50 1.75 0.0590 0.0688 e 0.95REF 0.0374REF e1 1.90REF 0.0748REF L 0.30 0.60 0.0118 0.0236 a0 00 80 00 80 V03 www.microne.com.cn Page 8 of 10 ME6213 ● DFN2x2-6L Dimension (mm) DIM Min Typ Max A 0.70 0.75 0.80 A1 0.00 0.02 0.05 A2 0.203 REF b 0.20 0.25 0.30 D 1.95 2.00 2.05 D1 1.20 1.30 1.40 E 1.95 2.00 2.05 E1 0.70 0.80 0.90 e L V03 0.65 REF 0.30 0.35 K 0.20 min N 6 aaa 0.08 bbb 0.10 www.microne.com.cn 0.40 Page 9 of 10 ME6213      The information described herein is subject to change without notice. Nanjing Micro One Electronics Inc is not responsible for any problems caused by circuits or diagrams described herein whose related industrial properties, patents, or other rights belong to third parties. The application circuit examples explain typical applications of the products, and do not guarantee the success of any specific mass-production design. Use of the information described herein for other purposes and/or reproduction or copying without the express permission of Nanjing Micro One Electronics Inc is strictly prohibited. The products described herein cannot be used as part of any device or equipment affecting the human body, such as exercise equipment, medical equipment, security systems, gas equipment, or any apparatus installed in airplanes and other vehicles, without prior written permission of Nanjing Micro One Electronics Inc. Although Nanjing Micro One Electronics Inc exerts the greatest possible effort to ensure high quality and reliability, the failure or malfunction of semiconductor products may occur. The user of these products should therefore give thorough consideration to safety design, including redundancy, fire-prevention measures, and malfunction prevention, to prevent any accidents, fires, or community damage that may ensue. V03 www.microne.com.cn Page 10 of 10
