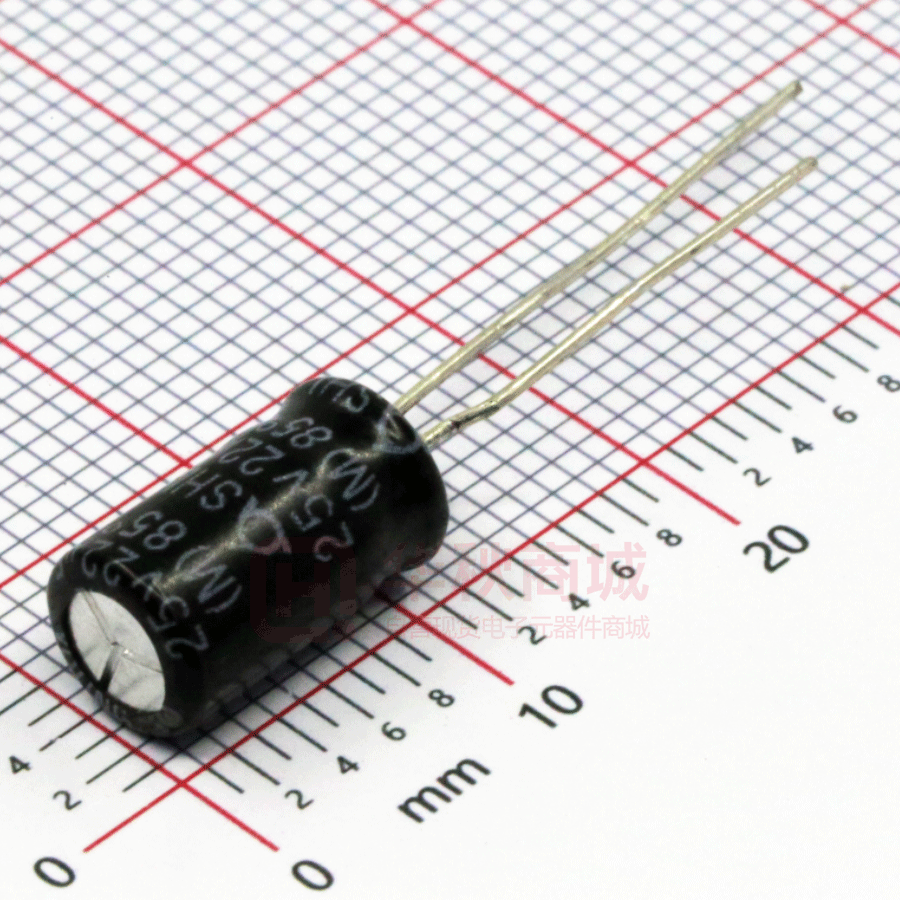

SHL-BP25VB22M6.3*11_5.0TP

RoHS MESSRS: APPROVAL NO 710 - 045 DATE 2014.11.20 ALUMINUM ELECTROLYTIC CAPACITOR APPROVAL SHEET CATALOG TYPE SHL-BP SERIES USER PART NO. 适 用 机 种 特 记 事 项 Halogen-Free QINGDAO SAMYOUNG ELECTRONICS CO.,LTD. MANAGER OF DEVELOPMENT DEPARTMENT GONG JANG SUG 长孔 硕 USER APPROVAL: APPROVAL NO.： SamYoung(Korea) : 47,SAGIMAKGOL-RO,JUNGWON-GU,SEONGNAM-SI,GYEONGGI-DO,KOREA SamYoung(China) : No.5 CHANGJIANG ROAD,PINGDU-CITY,SHANDONG-PROVINCE,CHINA A4 （210×297） 样式：H-1001-011 SamYoung Electronics Co., Ltd. APPROVAL NO. 710 - 045 PAGE: 1 OF 5 ALUMINUM ELECTROLYTIC CAPACITOR 2014.11.20 DATE: Specifications of SHL-BP Series Characteristics Item Rated Voltage Range 6.3 ~ 100 VDC 160 ~ 250 VDC Operating Temperature Range - 40 ~ + 85 ℃ - 25 ~ + 85 ℃ Capacitance Tolerance (at 20℃ 120HZ) ±20%（M） After 5 minutes:I = 0.03CV ( μA ) or 3 μA,whichever is greater, Leakage Current Where,I:Max.Leakage current（μA ） ( in both directions ) C:Nominal capacitance（μF ） V: Rated Voltage（VDC） Dissipation Factor ( TANδ) Rated voltage(VDC) ( 20℃，120Hz ) TANδ（Max） (at 20℃) 6.3 10 16~25 35 50 63~100 160 200~250 0.25 0.24 0.20 0.16 0.14 0.12 0.15 0.20 When the capacitance exceeds 1000μF,0.02shall be added every 1000μF increase. Temperature Characteristic (Impedance ratio at 120Hz) Rated voltage(VDC) 6.3 10 16 25-100 160 160-2500 Z-25℃/Z+20℃ 4 3 2 2 4 6 Z-40℃/Z+20℃ 10 8 6 4 _ _ The following specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage applied for 2,000 hours at 85℃. During this test , the raged voltage shall be reversed on the capacitor every 250 Hrs. Load Life Capacitance change :≤± 20% of the initial Value (where WV≤16VDC,±25%) TANδ :≤200% of the initial specified value Leakage current :≤The initial specified value The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them at 85℃ for a half assurance load life time without voltage applied. The rated voltage shall be appled to the capacitors for a minimum of 30 minutes,at least 24 Shelf Life hours and not more than 48 hours before the measurements. Capacitance change :≤± 20% of the initial Value Others (where WV≤16VDC,±25%) TANδ :≤200% of the initial specified value Leakage current :≤200% of the initial specified value Satisfied characteristics KS C IEC 60384-4 ← ← 李波 SamYoung Electronics Co., Ltd. ← 立范 波 阿吕 勇 PAGE： 2 OF 5 APPROVAL NO. ALUMINUM ELECTROLYTIC CAPACITORS 710 - 045 RATINGS OF SHL-BP Series WV 6.3 CAP 10 16 ØDXL(mm) 25 35 50 63 80 100 5×11 11 5×11 17 0.47 1 2.2 3.3 5×11 34 4.7 5×11 25 5×11 27 5×11 34 5×11 28 6.3×11 39 5×11 34 6.3×11 52 8×11.5 89 8×11.5 105 8×11.5 124 10×20 265 12.5×25 480 16×25 650 16×31.5 835 6.3×11 57 8×11.5 95 10×12.5 135 10×16 180 12.5×20 320 16×25 575 16×31.5 655 18×35.5 965 5×11 29 6.3×11 39 6.3×11 47 6.8 10 22 33 47 100 220 330 470 1000 2200 3300 4700 6800 5×11 64 5×11 76 6.3×11 125 8×11.5 215 8×11.5 265 10×12.5 370 10×20 650 12.5×25 1160 16×25 1570 16×31.5 2020 18×35.5 2607 5×11 37 5×11 45 5×11 54 6.3×11 90 8×11.5 150 10×16 240 10×16 290 12.5×20 510 16×25 940 16×31.5 1200 18×35.5 2160 5×11 27 5×11 40 5×11 49 6.3×11 67 8×11.5 110 10×12.5 195 10×16 265 10×20 345 12.5×25 605 16×31.5 1070 18×35.5 1400 5×11 42 6.3×11 65 6.3×11 80 6.3×11 95 8×11.5 160 10×16 305 12.5×20 450 12.5×20 540 16×25 950 18×35.5 1620 5×11 43 6.3×11 73 8×11.5 100 8×11.5 120 10×16 230 12.5×20 410 12.5×20 505 12.5×20 655 16×31.5 1140 8×11.5 71 10×16 135 12.5×20 220 12.5×20 240 16×25 425 18×35.5 720 200 250 10×16 49 10×16 59 10×16 42 10×20 55 10×20 46 12.5×20 65 12.5×20 109 12.5×25 177 16×25 240 16×35.5 329 18×35.5 425 12.5×20 95 16×25 170 16×35.5 239 18×40 321 12.5×25 103 16×31.5 186 18×35.5 256 Case Size ØD X L (mm) Permissible Ripple Current (mArms) at 85℃,120Hz DIMENSIONS OF SHL-BP Series 15MIN Marking: F±0.5 L' L 8×11.5 65 10×16 125 10×16 150 10×20 195 12.5×25 350 16×31.5 615 18×35.5 755 5×11 14 5×11 21 5×11 29 6.3×11 34 6.3×11 39 6.3×11 47 8×11.5 58 160 4MIN BLACK SLEEVE, WHITE INK ΦD' ΦD When ΦD≤8， ΦD'≤D+0.5,and,L' ≤L+1.5 When ΦD＞8， ΦD'≤D+0.5,and,L' ≤L+2.0 SLEEVE SAFETY VENT（≥6.3Φ） Φd±0.05 ≤Φ10 ≥Φ12.5 ΦD 5 6.3 8 10 12.5 16 18 F 2 2.5 3.5 5 5 7.5 7.5 Φd 0.5 0.5 0.6 0.6 0.6 0.8 0.8 SamYoung Electronics Co., Ltd. PAGE: 3 OF 5 APPROVAL NO. 710 - 045 ALUMINUM ELECTROLYTIC CAPACITORS STRUCTURE AND MATERIALS LEAD WIRE PACKING PAD LEAD WIRE AL LEAD AL FOIL ( - ) AL LEAD AL FOIL ( + ) SLEEVE AL CASE ADHESIVE TAPE ELEMENT SEPARATOR CE04 TYPE MINIATURE SIZED TYPE CAPACITORS COMPONENT PART NAME LEAD WIRE AL LEAD PACKING PAD SLEEVE MATERIALS TINNED COPPER - PLY WIRE(Pb-FREE) ALUMINUM 99.92 % OVER SYNTHETIC RUBBER VENDER KISTRON KOHOKU NANTONG HONG YANG KANG WON AUTO FITTING NAN TONG HUI FENG NANTONG HONG YANG KOHOKU KISTRON SUNG NAM CCW/ZHE JIANG TIAN TAI ZHE JIANG TIAN HUA (KOREA/CHINA) MOO DEUNG (KOREA/CHINA) P.E.T(Poly Ethlylene Terephthalate Resin) SUZHOU QILIAN YUN LIN PLASTIC ZHANG JIA GANG LIAN YI AL CASE AL FOIL AL FOIL SEPARATOR ALUMINUM 99.0 % OVER FORMED ALUMINUM 99.9 % OVER ETCHED ALUMINUM 98.0 % OVER INSULATION PAPER ADHESIVE TAPE POLY PROPYLENE OR POLY IMIDE FILM LIN AN AO XING NANTONG CHUANGJIA DONG NAM D.N TECH/HA NAM K.D.K/JCC/MATSUSHITA SAM YOUNG BECROMAL SATMA HEC XINJIANG JOINWORLD HUAFENG / HISTAR /RAOIO LUXON/LITON K-JCC K.D.K AFT/INCULCU/SHENGHONG ELECON/WU JIANG FEILO KAN/LUNAN SPO N.K.K NITTO/NICHIBAN DAEIL/SWECO SamYoung Electronics Co., Ltd. (JAPAN/CHINA) (CHINA) (CHINA) (JAPAN/CHINA) (KOREA/CHINA) (KOREA/CHINA) (CHINA) (CHINA) (CHINA) (KOREA/CHINA) (JAPAN) (KOREA) (ITALY) (FRANCE) (CHINA) (TAIWAN) (KOREA) (JAPAN) (CHINA) (CHINA) (GERMANY) (JAPAN) (JAPAN) (KOREA) PAGE： 4 OF 5 When using aluminum electrolytic capacitors,pay strict attention to the following: 1. Electrolytic capacitors for DC application require polarization. Confirm the polarity.If used in reversed polarity,the circuit life may be shortened or the capacitor may be damaged.For use on circuits whose polarity is occasionally reversed,or whose polarity is unknown,use bi-polarized capacitors (BPseries).Also,note that the electrolytic capacitor cannot be used for AC application. 2. Do not apply a voltage exceeding the capacitor`s voltage rating. If a voltage execeeding the capacitor`s voltage rating is applied,the capacitor may be damaged as leakage current increases. When using the capacitor with AC voltage superimposed on DC voltage,care must be exercised that the peak value of AC voltage does not exceed the rated voltage. 3. Do not allow excessive ripple current to pass. Use the electrolytic capacitor at current values within the permissible ripple range.If the ripple current exceeds the specified value,request capacitors for high ripple current applications. 4. Ascertain the operating temperature range. Use the electrolytic capacitors according to the specified operating temperature range.Usage at room temperature will ensure longer life. 5. The electrolytic capacitor is not suitable for circuits in which charge and discharge are frequently repeated. If used in circuits in which charge and discharge are frequently repeated,the capacitance value may drop,or the capacitor may be damaged.Please consult our engineering department for assistance in these applications. 6. Apply voltage treatment to the electrolytic capacitor which has been allowed to stand for a long time. If the electrolytic capacitor is allowed to stand for a long time,its withstand voltage is liable to drop,resulting in increased leakage current.If the rated voltage is applied to such a product,a large leakage current occurs and this generates internal heat,which damaged the capacitor.If the electrolytic capacitor is allowed to stand for a long time,therefore,use it after giving voltage treatment (Note 1).(However,no voltage treatment is required if the electrolytic capacitor is allowed to stand for less than 2 or 3 years at normal temperature.) 7. Be careful of temperature and time when soldering. When soldering a printed circuit board with various,components,care must be taken that the soldering temperature is not too high and that the dipping time is not too long.Otherwise,there will be adverse effects on the electrical characteristics and insulation sleeve of electrolytic capacitors in the case of small-sized electrolytic capacitors,nothing abnormal will occur if dipping is performed at less than 260℃ for less than 10 seconds. 8. Do not place a soldering iron on the body of the capacitor. The electrolytic capacitor is covered with a vinyl sleeve.If the soldering iron comes in contact with the electrolytic capacitor body during wiring,damage to the vinyl sleeve and/or case may result in defective insulation,or improper protection of the capacitor element. 9. Cleaning circuit boards after soldering. Some solvents have adverse effects on capacitors. Please refer to the next page. 10.Do not apply excessive force to the lead wires or terminals. If excessive force is applied to the lead wires and terminals,they may be broken or their connections with the internal elements may be affectde.(For strength of terminals,refer to KS C IEC 60384-4(JIS C5101-1,JIS C5101-4) 11.Care should be used in selecting a storage area. If electrolytic capacitors are exposed to high temperatures caused by such things as direct sunlight,the life of the capacitor may be adversely affected.Storage in a high humidity atmosphere may affect the solderability of lead wires and terminals. 12.Surge voltage. The surge voltage rating is the maximum DC over-voltage to which the capacitor may be subjected for short periods not exceeding approximately 30 seconds at infrequent intervals of not more than six minutes.According to KS C IEC 60384 -4,the test shall be conducted 1000 cycles at room temperature for the capacitors of characteristic KS C IEC 60384-4 or at the maximum operating temperature for the capacitors of characteristics B and C of KS C IEC 60384-4 with voltage applied through a series resistance of 1000 ohms without discharge.The electrical characteristics of the capacitor after the test are specified in KS C IEC 60384-4.Unless otherwise specified,the rated surge voltage are as follows: Rated Voltage(V) 2 4 6.3 10 16 25 35 50 63 80 100 160 200 250 315 350 400 450 500 Rated Surge Voltage(V) 2.5 5 8 13 20 32 44 63 79 100 125 200 250 300 365 400 450 500 550 Note 1 Voltage treatment … Voltage treatment shall be performed by increasing voltage up to the capacitor`s voltage rating gradually while lowering the leakage current.In this case,the impressed voltage shall be in the range where the leakage current of the electrolytic capacitor is less than specified value.Meanwhile,the voltage treatment time may be effectively shortened if the ambient temperature is increased (within the operating temperature range). Note 2 For methods of testing, refer to KS C IEC 60384-4，（JIS C 5101-1，JIS C 5101-4） SamYoung Electronics Co., Ltd. PAGE： 5 OF 5 CLEANING CONDITIONS Aluminum electrolytic capacitors that have been exposed to halogenated hydrocarbon cleaning and defluxing solvents are susceptible to attack by these solvents.This exposure can result in solvent penetration into the capacitors, leading to internal corrosion and potential failure. Common type of halogenated cleaning agents are listed below. Structural Form ula Chemical Name Representatice Brand Nam e Trichlorotrifluoroethane C 2CI3F3 Freon TF,Daiflon S-3 Fluorotrichlorom ethane CCI3F Freon-11,Daiflon S-1 1,1,1-Trichloroethane F2H 3CI3 Chloroethane Trichloroethylene C2HCI3 Trichiene Methyl Chloride CH3CI MC We would like to recommend you the below cleaning materials for your stable cleaning condition taking the place of previous materials. ◎Isopropyl Alcohol(IPA) or Water Cleaning method: One of immersion, ultrasonic or vapor cleaning. Maximum cleaning time: 5 minutes(Chip type: 2 minutes) ※Do not use AK225AES Aluminum electrolytic capacitors are easily affeceted by halogen ions,particularly by chloride ions. Excessive amounts of halogen ions,if happened to enter the inside of the capacitors, will give corrosion accidents-rapid capacitance drop and vent open. The extent of corrosion accidents varies with kinds of electrolytes and seal-materials. Therefore, the prevention of halogen ion contamination is the most improtant check point for quality control in our procuction lines. At present, halogenated hydrocarboncontained organic solvents such as Trichloroethylene, 1,1,1-Trichloroethane, and Freon are used to remove flux from circuit boards. If electroytic capacitors are cleaned with such solvents,they may gradually penetrate the seal portion and cause the eosion.When using latex-based adhesive on the capacitors rubber end seal for adhesion to a PCB, corrosion may occur depending on the kind of solvent in the adhesive. Select an adhesive as an organic solvent with dissolved polymer that is not halogenated hydrocarbon. Hot air drying is required for eliminating the solvent between the product and the PCB at 50℃~80℃ after coating. Followings are the penetration path of the halogenated solvent. ① Penetration between the rubber and the aluminum case ② Penetration between the rubber and the lead wire ③ Penetration through the rubber The inside of the capacitors,the mechanism of corrosion of aluminum electrolytic capacitors by halogen ions can be explainedas follows: Halides(RX) are absorbed and diffused into the seal portion. The halides then enter the inside of the capacitors and contact with the electrolyte of the capacitors. Where by halogen ions are made free by a hydrolysis with water in the electrolyte: + RX + H2O → ROH + H + X - The halogen ions (X ) react with the dielectric substance(Al2O3) of aluminum electrolytic capacitors: + - AI2O3 + 6H + 6X →2ALX3 + 3H2O AIX3 is dissociated with water: + - ALX3 + 3H2O → AL（OH）3 + 3H + 3X ※MANUFACTURING SITE ﹣SamYoung Electronics Co.,Ltd.(Korea/China) SamYoung Electronics Co., Ltd.
