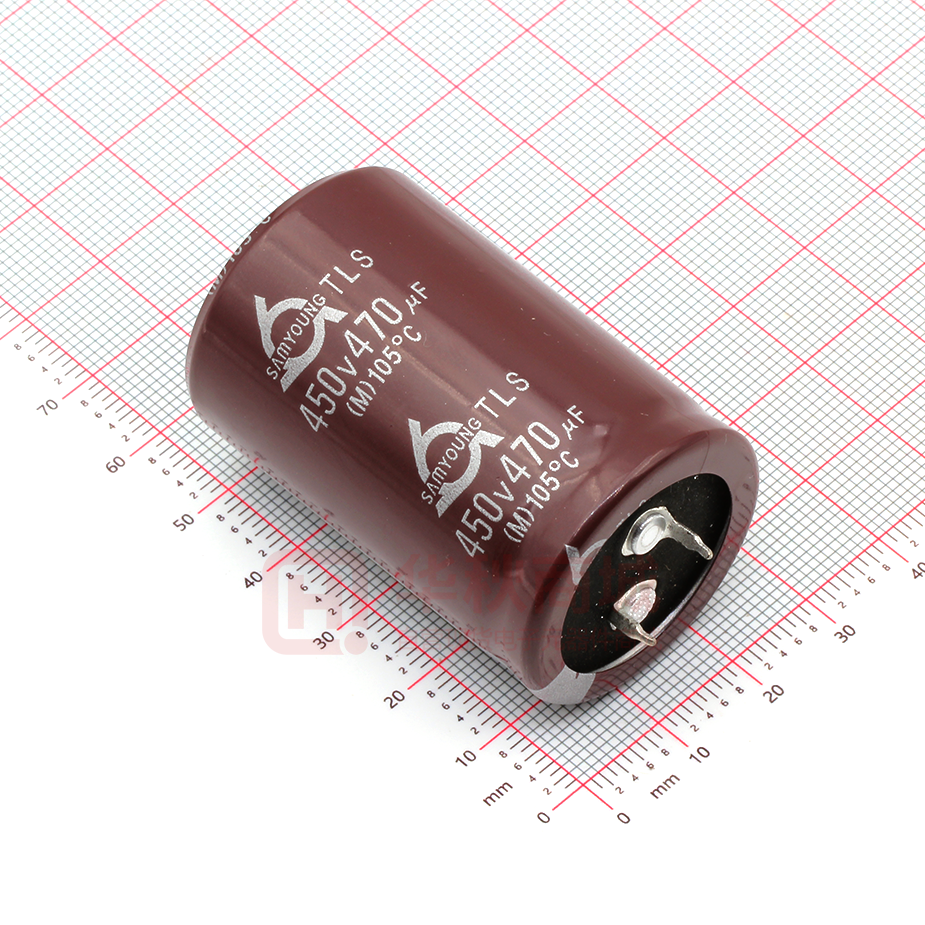

TLS450VS470M30*45_VS

LARGE SIZED ALUMINUM ELECTROLYTIC CAPACITORS TLS Series •105℃ 3,000Hrs assured. •Non-solvent proof. •Downsized. •High Ripple Capability. •For SMPS, Inverter. •RoHS compliant. •Halogen-free capacitors are also available. TLA TLS Downsized SPECIFICATIONS Item Characteristics Rated Voltage Range 1 6 0 ~ 5 5 0 VDC Operating Temperature Range -25 ~ +105℃ Capacitance Tolerance ±20%(M) (at 20℃, 120Hz) I=0.02CV or 3m A, whichever is smaller. Where, I:Leakage Current(μA), C:Nominal capacitance(μ F), V:Rated voltage(VDC) (at 20℃, 5minutes) Leakage Current ※ Dissipation Rated voltage(VDC) Factor(Tan δ) Tan δ(Max.) 160~400 450~550 0.15 0.20 (at 20℃, 120Hz) Temperature Characteristics (Max. Impedance ratio) Rated voltage(VDC) 160~400 450~550 4 8 Z(-25℃)/Z(20℃) (at 120Hz) The following specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage is applied for 3,000 hours at 105℃. Capacitance change ≦ ±20% of the initial value Tan δ ≦ 200% of the initial specified value Leakage current ≦ The initial specified value Load Life The following specifications shall be satisfied when the capacitors are restored to 20℃ after the exposing them at 105℃ for 1,000 hours without voltage applied. The rated voltage shall be applied to the capacitors for a minimum of 30 minutes, at least 24 hours and not more than 48 hours before the measurements. Capacitance change ≦ ±20% of the initial value Tan δ ≦ 200% of the initial specified value ≦ The initial specified value Leakage current Shelf Life Others Satisfied characteristics KS C IEC 60384-4 ※For capacitors with CV products ≻100,000 higher Tanδvalue may apply. When the capacitance exceeds 1,000μF, 0.01 shall be added every 1,000μF increase. DIMENSIONS OF TLS Series RATED RIPPLE CURRENT When capacitor are operated in any other condition at 120Hz, the maximum ripple current must be multiplied by the figure shown in the table. ØD=Ø22~Ø35 VN/VS type PC board pin-out Frequency multiplying factor Freq.(Hz) 60 120 300 1k 10k~ 160~250VDC 0.81 1.00 1.17 1.32 1.45 315~550VDC 0.77 1.00 1.16 1.30 1.41 VDC 220 Unit(mm) Marking : BROWN SLEEVE, SILVER INK The standard design has no bottom plate. LARGE SIZED ALUMINUM ELECTROLYTIC CAPACITORS RATINGS OF TLS Series VDC ØD μF 160 22 25.4 200 30 35 22 25.4 250 30 35 22×25 1.11 22×30 1.29 22×35 1.44 22×40 1.61 22×45 1.79 22×50 2.02 270 22×25 1.23 22×30 1.40 22×30 1.54 22×35 1.72 22×40 1.94 22×45 2.17 330 390 22×25 1.47 22×30 1.68 22×35 1.86 22×40 2.12 22×45 2.40 22×50 2.69 470 560 680 820 1,000 1,200 1,500 1,800 25.4×25 1.84 25.4×30 2.08 25.4×35 2.40 25.4×40 2.68 25.4×45 3.05 25.4×50 3.40 2,200 2,700 30×25 2.50 30×30 2.77 30×35 3.17 30×40 3.57 30×45 4.05 30×50 4.56 3,300 VDC ØD μF 35×25 2.91 35×30 3.30 35×30 3.62 35×35 4.07 35×40 4.67 35×50 5.40 25.4×25 1.67 25.4×30 1.89 25.4×35 2.17 25.4×40 2.45 25.4×45 2.78 315 22 25.4 30×25 2.05 30×30 2.28 30×30 2.52 30×35 2.83 30×40 3.26 30×50 3.72 35×25 2.66 35×30 2.96 35×35 3.36 35×40 3.81 35×45 4.32 35×50 4.88 30 35 22 25.4 22×25 0.77 22×30 0.90 22×35 1.02 22×40 1.15 22×45 1.29 22×50 1.47 120 150 220 270 330 390 470 560 680 820 1,000 1,200 22×25 0.95 22×30 1.10 22×35 1.24 22×40 1.40 22×45 1.56 22×50 1.70 25.4×25 1.21 25.4×30 1.38 25.4×35 1.57 25.4×40 1.76 25.4×45 1.96 25.4 30×25 1.43 30×30 1.57 30×30 1.73 30×35 1.93 30×40 2.19 30×45 2.47 35×25 1.82 35×30 2.02 35×30 2.20 35×35 2.48 35×40 2.83 35×45 3.18 25.4×25 0.99 25.4×30 1.13 25.4×35 1.30 25.4×40 1.47 25.4×45 1.63 25.4×50 1.82 30 25.4×25 1.40 25.4×30 1.57 25.4×35 1.79 25.4×40 2.02 25.4×45 2.26 25.4×50 2.53 400 30×25 1.87 30×30 2.08 30×35 2.34 30×40 2.66 30×45 2.99 35 35×25 2.19 35×30 2.44 35×30 2.70 35×35 3.00 35×40 3.48 35×50 3.98 450 30 35 22 22×25 0.70 22×30 0.81 22×35 0.92 22×40 1.02 22×45 1.17 100 180 22 30×25 1.29 30×30 1.45 30×35 1.61 30×40 1.82 30×45 2.04 30×50 2.30 35×25 1.65 35×30 1.85 35×35 2.05 35×40 2.34 35×45 2.63 35×50 2.96 25.4 25.4×25 0.90 25.4×35 1.05 25.4×35 1.16 25.4×40 1.32 25.4×45 1.48 25.4×50 1.65 30 30×25 1.06 30×30 1.18 30×30 1.30 30×35 1.51 30×40 1.65 30×45 1.86 35 35×25 1.37 35×30 1.54 35×30 1.67 35×35 1.87 35×40 2.05 35×50 2.44 Case Size ØD×L(mm) Rated Ripple Current(Arms/105℃, 120Hz) TLS Series 221 LARGE SIZED ALUMINUM ELECTROLYTIC CAPACITORS RATINGS OF TLS Series ㎌ VDC ØD 56 68 82 100 120 150 180 220 270 500 22 22×35 0.41 22×40 0.48 22×45 0.56 22×50 0.64 25.4 25.4×30 0.46 25.4×35 0.54 25.4×40 0.63 25.4×45 0.73 25.4×50 0.78 550 30 30×30 0.61 30×35 0.72 30×40 0.85 30×45 0.98 30×50 1.03 30×60 1.24 330 390 222 Case Size ØD×L(mm) Rated Ripple Current(Arms/105℃, 120Hz) 35 25.4 25.4×40 0.52 25.4×50 0.60 25.4×50 0.72 35×30 0.83 35×35 0.96 35×40 1.13 35×45 1.31 35×50 1.38 35×60 1.63 30 30×35 0.55 30×40 0.70 30×45 0.80 30×50 0.95 30×60 0.90 30×70 1.00 35 35×35 0.75 35×40 0.93 35×50 0.95 35×55 1.05 35×60 1.15 35×70 1.50
