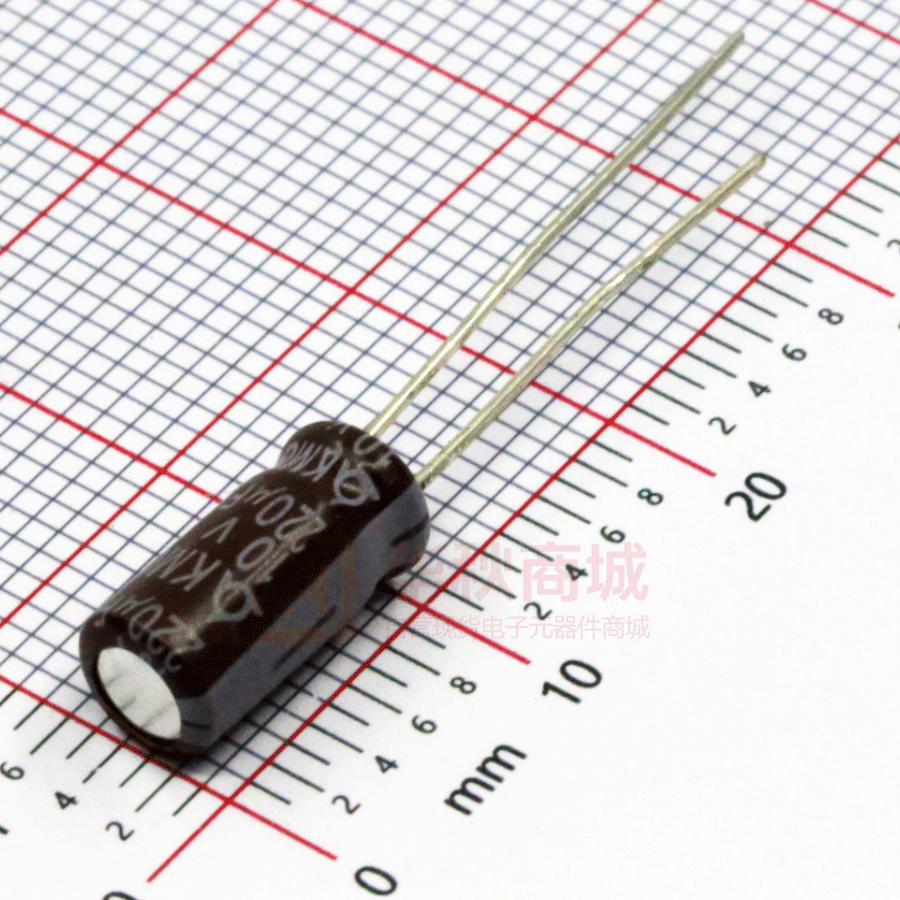

KMG10VB220M5*11_2.5TP

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS KMG Series ● 105℃ 1,000~2,000Hrs assured. Solventproof ● General ● RoHS compliant. ● Halogen-free capacitors are also available. WV≤100VDC SPECCIFICATIONS Characteristics Iteam Rated Voltage Range 6.3 ~ 100 VDC 160 ~ 400 VDC 450 VDC Operating Temperature Range -55 ~ +105℃ -40 ~ +105℃ -25 ~ +105℃ ±20% (M) Capacitance Tolerance Time After 1 minute : After 2 minute : I = 0.01CV or 3㎂, whichever is greater. Dissipation Factor ( tan δ ) After 1 minute C·V I = 0.03CV or 4㎂, whichever is greater. Leakage Current (at 20℃, 120㎐) After 5 minute ≤ 1000 I = 0.1CV + 40 I = 0.03CV + 15 ＞ 1000 I = 0.04CV + 100 I = 0.02CV + 25 Where, I : Max. Leakage current(㎂) C : Nominal capacitance(㎌) V : Rated voltage(VDC) (at 20℃) Rated Voltage(VDC) 6.3 10 16 25 35 50 63 100 160~250 350~450 Tanδ(Max.) 0.34 0.24 0.2 0.16 0.14 0.12 0.10 0.09 0.20 0.24 (at 20℃, 120㎐) Rated Voltage(VDC) Temperature Characteristics (Capacitance change ratio) 6.3 10 16 25 35 50 63~100 160 200~250 350~400 450 Z(-25℃) / Z(+20℃) 5 4 3 2 2 2 3 3 3 6 6 Z(-40℃) / Z(+20℃) 12 10 8 5 4 3 4 4 5 6 - (at 120㎐) The following specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage is applied for 2,000 hours at 105℃.(Where, 1,000 hours ≤ Φ8) Load Life Capacitance change ≤ tan δ ≤ 200 % of the initial specified value ≤ The initial specified value Leakage current ±20 % of the initial value The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000 hours at 105℃ without voltage applied. The rated volage shall be applied to the capacitors for a minimum of 30 minutes, at least 24 hours and Shelf Life Others not more than 48 hours before the measurements.(Where, 500 hours ≤ Φ8) Capacitance change ≤ ±20 % of the initial value tan δ ≤ 200 % of the initial specified value Leakage current ≤ The initial specified value (Where, 200% for ≥ WV 160VDC) Satisfied characteristics KS C IEC 60384-4 * Please refer each approval sheet for detail specification. DIMENSIONS OF KMG Series Unit (mm) Marking : BROWN SLEEVE , WHITE INK ΦD 5 6.3 8 10 12.5 16 18 Φd 0.5 0.5 0.6 0.6 0.6 0.8 0.8 F 2.0 2.5 3.5 5.0 5.0 7.5 7.5 ΦD + 0.5max. ΦD' L' L + 1.5max. L + 2.0max. MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS RATINGS OF KMG Series ㎌ VDC 6.3 10 16 25 35 50 5×11 25 5×11 31 5×11 37 5×11 56 5×11 75 5×11 80 5×11 113 6.3×11 159 8×11.5 277 8×11.5 340 10×12.5 471 5×11 27 5×11 33 5×11 40 5×11 57 5×11 80 5×11 101 6.3×11 138 6.3×11 168 8×11.5 294 10×12.5 419 10×16 547 5×11 2.1 5×11 3.2 5×11 6.3 5×11 10 5×11 12 5×11 13 5×11 18 5×11 30 5×11 37 5×11 44 5×11 54 5×11 79 5×11 97 6.3×11 133 8×11.5 189 8×11.5 229 10×12.5 395 10×16 529 10×20 690 5×11 5×11 3.2 3.6 5×11 5×11 4.3 4.8 5×11 5×11 7.2 7.8 5×11 5×11 6.3×11 11 12 12 5×11 5×11 6.3×11 13 14 14 5×11 5×11 6.3×11 15 16 16 5×11 5×11 6.3×11 19 21 22 5×11 1 6.3×11 33 34 35 5×11 5×11 6.3×11 39 40 41 5×11 5×11 8×11.5 48 49 52 5×11 6.3×11 10×12.5 59 61 71 5×11 6.3×11 10×20 87 100 117 6.3×11 8×11.5 10×20 122 144 156 6.3×11 10×12.5 12.5×20 146 199 218 8×11.5 10×16 12.5×25 207 264 287 10×12.5 10×20 12.5×25 251 349 360 10×16 12.5×25 16×31.5 474 662 680 10×20 16×20 18×35.5 633 810 863 12.5×20 16×25 886 1072 10×16 620 10×20 821 12.5×25 1297 16×25 1646 16 31 5 16×31.5 2012 18×35.5 2452 12.5×16 777 12.5×20 1023 16×25 1497 16×35.5 1950 18 35 5 18×35.5 2335 12.5×20 973 12.5×25 1287 16×35.5 1884 18×35.5 2260 12.5×25 18×31.5 1160 1410 16×25 18×40 1565 2020 0.1 0.22 0.33 0.47 0.68 1 2.2 3.3 4.7 6.8 10 22 5×11 52 5×11 61 5×11 69 5×11 90 5×11 153 6.3×11 216 6.3×11 258 33 47 68 100 220 330 470 680 1000 2200 3300 4700 6800 10000 15000 22000 8×11.5 365 8×11.5 443 10×20 817 10×20 1032 12 5 20 12.5×20 1280 12.5×25 1554 16×25 1897 16×35.5 2344 18×40 2787 5×11 48 5×11 56 5×11 66 5×11 83 5×11 100 5×11 170 6.3×11 239 6.3×11 286 10×12.5 472 10×12.5 571 10×20 886 12.5×20 1205 12 5 25 12.5×25 1492 16×25 1824 16×35.5 2201 18×35.5 2606 5×11 35 5×11 53 5×11 60 5×11 77 5×11 92 5×11 119 6.3×11 213 8×11.5 308 8×11.5 366 10×12.5 480 10×16 680 10×30 1170 12.5×25 1389 16 25 16×25 1740 16×31.5 2081 18×35.5 2527 63 100 160 Case Size ØD × L (mm) Rated Ripple Current (mArms/105℃,120㎐) RIPPLE CURRENT MULTIPLIERS Frequency Multiplires Freq.(㎐) 120 1k 10k 50k 0.1 ~ 6.8 1.00 1.75 2.30 2.40 2.50 10 ~ 68 1.00 1.50 1.75 1.77 1.80 100 ~ 1000 1 00 1.00 1 30 1.30 1 40 1.40 1 45 1.45 1 50 1.50 2200 ~22000 1.00 1.05 1.08 1.09 1.10 Cap.(㎌) 100k 200 250 350 6.3×11 12 6.3×11 15 6.3×11 17 6.3×11 24 6.3×11 36 8×11.5 42 10×12.5 59 10×12.5 72 10×20 119 10×20 158 12.5×20 220 16×20 293 16×25 386 18×35.5 705 6.3×11 12 6.3×11 15 6.3×11 17 6.3×11 27 8×11.5 37 8×11.5 45 10×12.5 60 10×16 74 10×20 127 12.5×20 184 12.5×25 238 16×25 318 16×31.5 422 18×40 730 6.3×11 12 6.3×11 15 6.3×11 18 8×11.5 29 8×11.5 38 10×12.5 47 10×16 62 10×20 79 12.5×20 150 16×25 200 16×25 265 16×31.5 348 18×31.5 450 400 450 6.3×11 19 8×11.5 30 10×12.5 41 10×16 49 10×16 65 10×20 86 12.5×25 163 16×25 222 16×31.5 290 18×35.5 392 8×11.5 16 10×12.5 28 10×16 38 10×20 45 12.5×16 59 12.5×20 84 16×25 151 16×31.5 203 16×35.5 254
