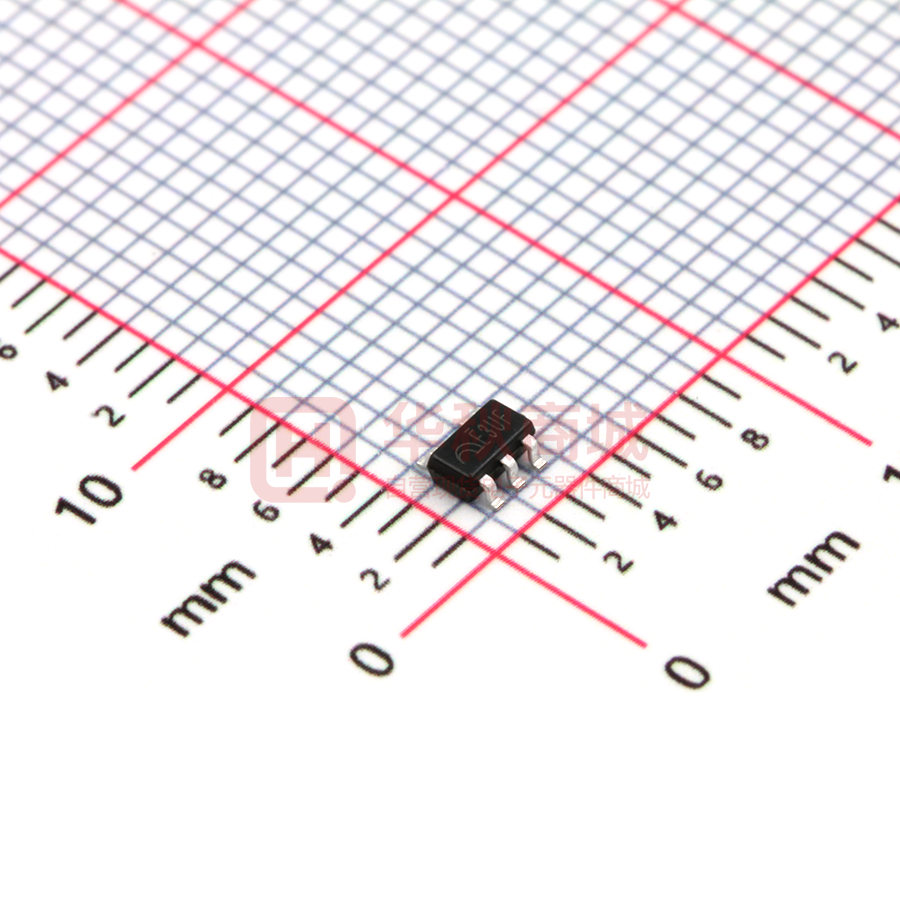

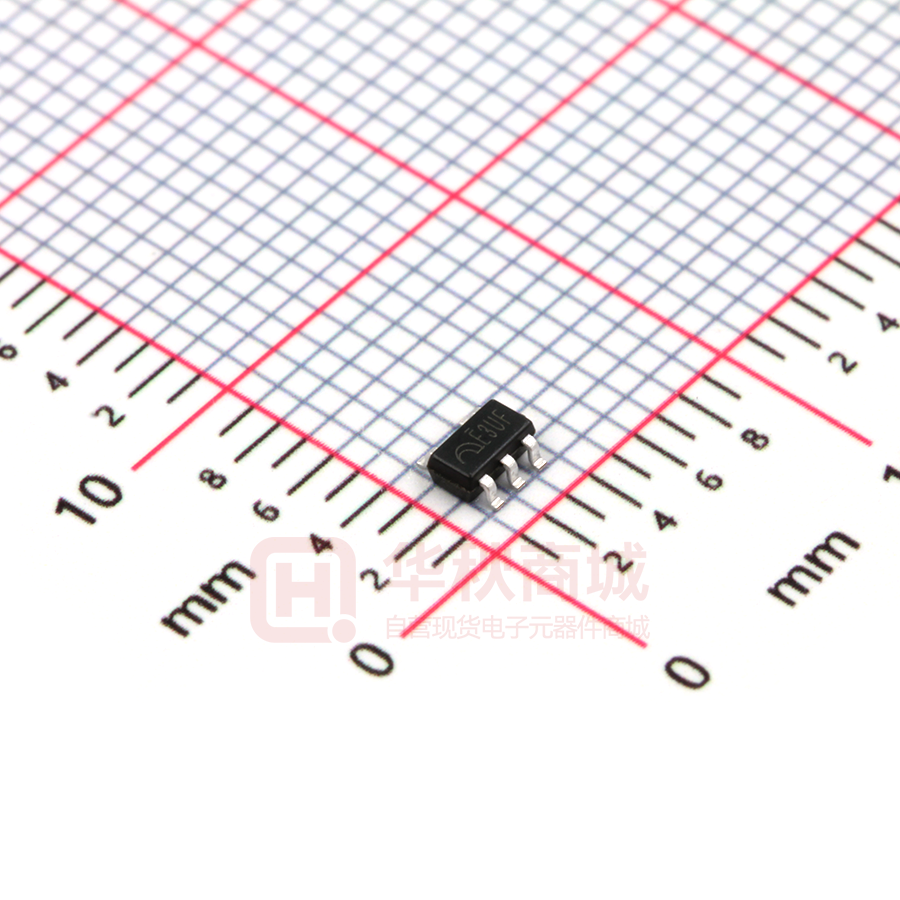

ME6215C33M5G

ME6215 Low power consumption, Low dropout voltage, With CE function ME6215 Series General Description Features ME6215 series are highly precise, low power consumption, high voltage, positive voltage regulators manufactured using CMOS and laser trimming technologies .The series provides large currents with a significantly small dropout voltage. The current limiter’s foldback circuit also operates  Highly Accurate：±2%  Output voltage range：1.5V~5.0V  Low power consumption：6uA(TYP.)  Large output current：300mA (VIN＝3.8V,VOUT＝2.8V)  Input voltage: up to 18V  Dropout voltage： as a short protect for the output current limiter and the output pin. The CE function allows the output of regulator to be turned off, resulting in greatly reduced power consumption. The ME6215 series can operate with up to 18V input. Applications  Battery powered equipment  Communication tools  Mobile phones  Portable games  Portable AV systems  Cameras, Video systems  Reference voltage sources V03 0.16V at 100mA and 0.32V at 200mA  CE Pin Function : Active High  Short-circuit Current：25mA(TYP.)  Excellent Input Stability  Be available to regulator and reference voltage Packages ● 5-pin SOT23-5 Typical www.microne.com.cn Application Page 1 of 7 ME6215 Selection Guide ME 6215X X X X X G Environment mark Package: M5--SOT23-5 Output Voltage Series:C Product Type Product Series Microne product series product description ME6215C25M5G VOUT =2.5V，带使能，封装形式 SOT23-5 ME6215C28M5G VOUT =2.8V，带使能，封装形式 SOT23-5 ME6215C30M5G VOUT =3.0V，带使能，封装形式 SOT23-5 ME6215C33M5G VOUT =3.3V，带使能，封装形式 SOT23-5 ME6215C50M5G VOUT =5.0V，带使能，封装形式 SOT23-5 Note：If you need other voltage and package, please contact our sales staff。 V03 www.microne.com.cn Page 2 of 7 ME6215 Pin Configuration Pin Assignment Pin Num Symbol Function 1 VIN Power Input 2 VSS Ground 3 CE ON / OFF Control 4 NC No Connect 5 VOUT Output SOT23-5 Block Diagram V03 www.microne.com.cn Page 3 of 7 ME6215 Absolute Maximum Ratings Parameter Symbol Ratings Units Input Voltage VIN 18 V Output Current IOUT 580 mA Output Voltage VOUT Vss-0.3～VIN +0.3 V CE Pin Voltage VCE Vss-0.3～VIN +0.3 V PD 250 mW Operating Temperature Range TOPR －40～＋125 ℃ Storage Temperature Range TSTG －40～＋150 ℃ Power Dissipation SOT23-5 Lead Temperature 260℃，4sec Electrical Characteristics (VIN= VOUT+1V，VCE＝VIN ，CIN=COUT=1uF，Ta=25OC，unless otherwise noted) Parameter Output Voltage Input Voltage Symbol VOUT(E) (Note 2) Conditions IOUT=10mA, VIN= VOUT+1V Min. Typ. Max. Units X 0.98 VOUT (T) (Note 1) X 1.02 V 18 V VIN Maximum Output Current IOUTMAX VIN= VOUT+1V 300 mA Load Regulation ∆VOUT VIN= VOUT+1V , 1mA≤IOUT≤100mA 4 mV Dropout Voltage (Note 1) VDIF1 IOUT =100mA 160 mV VDIF2 IOUT =200mA 320 mV Supply Current ISS VIN= VOUT+1V 6 10 μA Stand-by Current ICEL VCE＝0V 0 1 μA 20 Line Regulation ∆VOUT IOUT =30mA VOUT+1V ≤VIN≤18V CE “High” Voltage VCEH Start up CE “Low” Voltage VCEL Shut down Short-circuit Current ISHORT VIN= VOUT+1V, VCE＝VIN, VOUT＝0V 25 VIN= VOUT+1V 580 Over Current Protection Ilimit mV 1.3 V 0.8 V 50 mA mA Note ： 1. VOUT (T) ：Specified Output Voltage 2.VOUT (E) ：Effective Output Voltage ( le. The output voltage when “VOUT (T)+1.0V”is provided at the Vin pin while maintaining a certain Iout value.) 3.VDIF：VIN1 –VOUT (E)’ VIN1 ：The input voltage when VOUT(E)’ appears as input voltage is gradually decreased. VOUT (E)’=A voltage equal to 98% of the output voltage whenever an amply stabilized Iout {VOUT (T)+1.0V} is input. V03 www.microne.com.cn Page 4 of 7 ME6215 Type Characteristics ( ME6215C28 ) （1）Output Voltage VS. Output Current （VIN=VOUT+1, Ta = 25 °C） （2）Output Voltage VS. Input Voltage （VIN=VOUT+1, IOUT =10mA ,Ta = 25 °C） Output Voltage VS. Output Current Output Voltage VS. Input Voltage 2.90 3.50 3.00 2.80 Output Voltage(V) Output Voltage(V) 2.85 2.75 2.70 2.65 2.60 2.50 2.00 1.50 1.00 0.50 0.00 2.55 0 50 100 150 200 250 300 350 0 400 2 4 6 8 Output Current(mA) 12 14 16 18 20 Input Voltage(V) （3）Dropout Voltage VS. Output Current （VIN=VOUT+1V,Ta = 25 °C） （4）Supply Current VS. Input Voltage （Ta = 25 °C） Supply Current VS.Input Voltage Dropout Voltage VS. Output Current 800 8 700 7 Supply Current(uA) Dropout Voltage(v) 10 600 500 400 300 200 6 5 4 3 2 100 0 1 0 50 100 150 200 250 300 350 400 2 Output Current(mA) 4 6 8 10 12 14 16 18 Input Voltage(V) （5）Output Voltage VS. Temperature (VIN=VOUT+1V, IOUT =10mA) Output Voltage VS. Temperature 4.0 Output Voltage(V) 3.5 3.0 2.5 2.0 1.5 1.0 0.5 0.0 -40 -20 0 20 40 60 80 100 120 140 160 Temperature(℃) V03 www.microne.com.cn Page 5 of 7 20 ME6215 Packaging Information Packaging Type: SOT23-5 DIM V03 Millimeters Inches Min Max Min Max A 1.05 1.45 0.0413 0.0570 A1 0 0.15 0 0.0059 A2 0.9 1.3 0.0354 0.0511 B 0.25 0.5 0.0098 0.0196 C 0.10 0.23 0.0039 0.0090 D 2.82 3.05 0.1110 0.1200 E 2.60 3.05 0.1023 0.1200 E1 1.50 1.75 0.0590 0.0688 e 0.95REF 0.0374REF e1 1.90REF 0.0748REF L 0.10 0.60 0.0039 0.0236 a0 00 300 00 300 www.microne.com.cn Page 6 of 7 ME6215      V03 The information described herein is subject to change without notice. Nanjing Micro One Electronics Inc is not responsible for any problems caused by circuits or diagrams described herein whose related industrial properties, patents, or other rights belong to third parties. The application circuit examples explain typical applications of the products, and do not guarantee the success of any specific mass-production design. Use of the information described herein for other purposes and/or reproduction or copying without the express permission of Nanjing Micro One Electronics Inc is strictly prohibited. The products described herein cannot be used as part of any device or equipment affecting the human body, such as exercise equipment, medical equipment, security systems, gas equipment, or any apparatus installed in airplanes and other vehicles, without prior written permission of Nanjing Micro One Electronics Inc. Although Nanjing Micro One Electronics Inc exerts the greatest possible effort to ensure high quality and reliability, the failure or malfunction of semiconductor products may occur. The user of these products should therefore give thorough consideration to safety design, including redundancy, fire-prevention measures, and malfunction prevention, to prevent any accidents, fires, or community damage that may ensue. www.microne.com.cn Page 7 of 7
