Application Note: AN_SY7200A
30V High Current Boost LED Driver
Preliminary Specification
General Description
Features
SY7200A is DC/DC step-up converter that deliver an
accurate constant current for driving LEDs. Operation at
a fixed switching frequency of 1MHz allows the device
to be used with small value external ceramic capacitors
and inductor. LEDs connected in series are driven with a
regulated current set by the external resistor. The
SY7200A is ideal for driving up to eight white LEDs in
series or up to 30V.
•
•
•
•
•
•
•
•
Ordering Information
Input voltage range: 2.8 to 30V
Switch current limit 2A
Drives LED strings up to 30V
1MHz fixed frequency minimizes the external
components
Dimming frequency for EN/PWM pin:
20kHz~1MHz
Internal softstart limits the inrush current
Open LED over voltage protection
RoHS Compliant and Halogen Free
SY7200 □(□□)□
Temperature Code
Package Code
Optional Spec Code
Applications
•
•
•
Temperature Range: -40°C to 85°C
Ordering Number
SY7200AABC
Package type
SOT23-6
Dimming
20kHz~1MHz
GPS Navigation Systems
Handheld Devices
Portable Media Players
Typical Applications
L
D
Vin
Vout
Cin
IN
Dimming
EN/PWM
GND
Cout
LX
OVP
FB
R1
Figure 1. Schematic Diagram
AN_SY7200A Rev. 0.1
Silergy Corp. Confidential- Prepared for Customer Use Only
1
AN_SY7200A
Pinout (top view)
(SOT23-6)

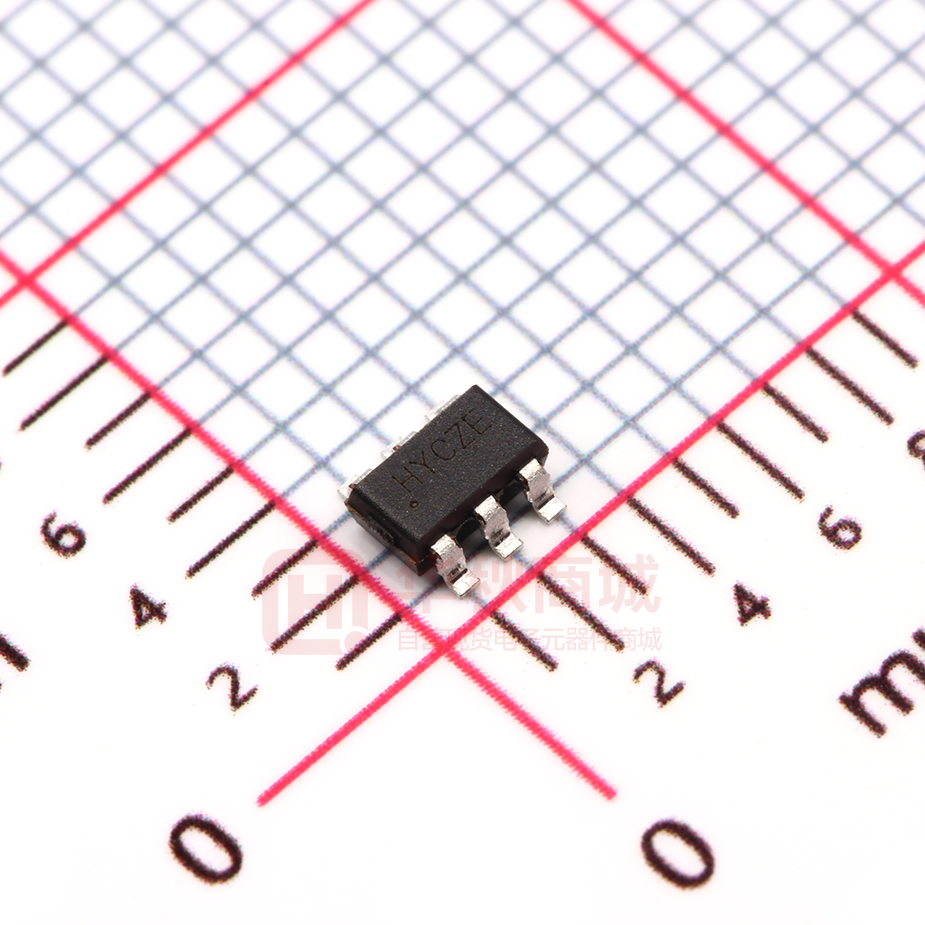

Top mark: HYxyz (Device code: HY, x=year code, y=week code, z= lot number code)
Pin Name
LX
GND
Pin Number
1
2
FB
3
EN/PWM
4
OVP
IN
5
6
Pin Description
Inductor node. Connect an inductor between IN pin and LX pin.
Ground pin.
Feedback pin. Connect a resistor R1 between FB and GND to program
the output current: IOUT=0.2V/R1.
Enable and dimming control. When used as enable input, pull high to
turn on IC. When used as dimming input, the first pulse should be
longer than 200ns to turn on IC. And the ecommend dimming
frequency range is 20kHz~1MHz.
Over voltage protection. The typical value is 30V.
Input pin. Decouple this pin to GND pin with ceramic capacitor.
Absolute Maximum Ratings (Note 1)
IN, EN ----------------------------------------------------------
---------------------------------------------------- 32V
36V
4V
All other pins --------------------------------------------------------------------------------------------------------0.6/0.55W
Power Dissipation, PD @ TA = 25°C, SOT23-6 ------------------------------------------------------Package Thermal Resistance (Note 2)
170/180°C/W
θJA ----------------------------------------------------------------------------------------------125°C
Junction Temperature Range ----------------------------------------------------------------------------------260°C
Lead Temperature (Soldering, 10 sec.) -----------------------------------------------------------------------65°C to 150°C
Storage Temperature Range ------------------------------------------------------------------------LX, OVP -----------------------------------------------------------------------------------------------------------
Recommended Operating Conditions (Note 3)
Input Voltage Supply-------------------------------------------------------------------------------------2.8V to 30V
Junction Temperature Range ------------------------------------------------------------------------ - 40°C to 125°C
Ambient Temperature Range ------------------------------------------------------------------------- -40°C to 85°C
AN_SY7200A Rev. 0.1
Silergy Corp. Confidential- Prepared for Customer Use Only
2
AN_SY7200A
Electrical Characteristics
(VIN = 3.6V, TA = 25°C, unless otherwise specified)
Parameter
Input Voltage Range
Quiescent Current
Shutdown Current
Feedback Reference Voltage
FB Input Current
Low Side Main FET RON
Main FET Current Limit
EN Rising Threshold
EN Falling Threshold
Input UVLO Threshold
UVLO Hysteresis
Oscillator Frequency
Min On Time
Max Duty Cycle
Thermal Shutdown
Thermal Hysteresis
Output Clamp voltage
PWM dimming frequency
Symbol
V
IN
I
Q
I
SHDN
V
REF
I
FB
R
DS(ON)
I
LIM
V
ENH
V
ENL
V
UVLO
V
HYS
F
OSC
T
SD
T
HYST
V
OCL
Conditions
Min
2.8
VFB=0.3V
EN=0
196
Typ
0.1
10
200
VFB=0.3V
Max
30
0.6
15
204
1
220
2
1.5
0.4
2.7
0.1
1.0
100
90
150
20
30
IOUT=100mA
“Open LED”
20k
1M
Unit
V
mA
uA
mV
uA
mΩ
A
V
V
V
V
MHz
ns
%
℃
℃
V
Hz
Note 1: Stresses beyond the “Absolute Maximum Ra ings” may cause permanent damage to the device. These are
stress ratings only. Functional operation of the device at these or any other conditions beyond those indicated in the
operational sections of the specification is not implied. Exposure to absolute maximum rating conditions for
extended periods may affect device reliability.
Note 2: θJA is measured in the natural co vection at TA = 25°C on a low effective single layer thermal
conductivity test board of JEDEC 51-3 thermal measurement standard. Test condition: Device mounted on 2” x 2”
FR-4 substrate PCB, 2oz copper, with minimum recommended pad on top layer and thermal vias to bottom layer
ground plane.
Note 3: The device is not guaranteed to function outside its operating conditions.
AN_SY7200A Rev. 0.1
Silergy Corp. Confidential- Prepared for Customer Use Only
3
AN_SY7200A
Typical Performance Characteristics
(VIN=5V, ILED=0.3A, 5PCS LED Series)
Efficiency vs. Input Voltage
96
LED Current (mA)
94
92
90
88
86
ILED=0.3A
84
4
5
6
7
8
9
10
11 12
Input Voltage (V)
Quiescent Current vs. Input
Voltage
150
140
130
120
110
100
90
80
3
6
9
12 15 18 21 24 27 30
Input Voltage (V)
AN_SY7200A Rev. 0.1
Silergy Corp. Confidential- Prepared for Customer Use Only
4
AN_SY7200A
Shutdown from VIN
VLX
10V/div
VIN
2V/div
I
LED
0.2A/div
Time (2ms/div)
AN_SY7200A Rev. 0.1
Silergy Corp. Confidential- Prepared for Customer Use Only
5
AN_SY7200A
Applications Information
1)
Because of the high integration in the SY7200A IC, the
application circuit based on this regulator IC is rather
simple. Only input capacitor CIN, output capacitor COUT,
inductor L, Schottky diode D and sense resistors R1 need
to be selected for the targeted applications specifications.
Sense resistor R1 :
Choose R1 to program the proper LED Current. The R1
can be calculated to be:
R1 =I 0.2
LED
Choose the inductance to provide the desired ripple
current. It is suggested to choose the ripple current
to be about 40% of the average input current. The
inductance is calculated as:
L=
VIN
2
(VOUT − VIN)
VOUT FSW × IOUT, MAX × 40%
where FSW is the switching frequency and IOUT,MAX
is the maximum load current.
The SY7200A regulator IC is quite tolerant of different
ripple current amplitude. Consequently, the final choice
of inductance can be slightly off the calculation value
without significantly impacting the performance.
ILED is the average LED current.
2)
Input capacitor CIN:
The ripple current through input capacitor is calculated
as:
I CIN_RMS = VIN ⋅ (VOUT − VIN)
ISAT, MIN >
2 3 ⋅ L ⋅ FSW ⋅ VOUT
A typical X7R or better grade ceramic capacitor with
larger than 4.7uF capacitance can handle this ripple
current well. To minimize the potential noise problem,
place this ceramic capacitor really close to the IN and
GND pins. Care should be taken to minimize the loop
area formed by CIN, and IN/GND pins.
Output capacitor COUT:
The output capacitor is selected to handle the output
ripple noise requirements. This ripple voltage s related
to the capacitor’s capacitance and its equivalent series
resistance (ESR). For the best performance, it is
recommended to use X7R or better grade low ESR
ceramic capacitor. The voltage rating of the output
capacitor should be higher than the maximum output
voltage. The minimum requi ed capacitance can be
calculated as:
COUT
= IOUT, MAX ⋅ (VOUT − VIN)
FSW ⋅ VOUT ⋅ VRIPPLE
VRIPPLE is the peak to peak output ripple.
For LED applications, the equivalent resistance of the
LED is typically low. The output capacitance should be
large enough to attenuate the ripple current through LED.
A capacitor larger than 2.2uF is recommended.
Inductor L:
There are several considerations in choosing this
inductor.
AN_SY7200A Rev. 0.1
The saturation current rating of the inductor must be
selected to be g eater than the peak inductor current
under full l ad conditions.
VOUT
VIN
3)
× IOUT, MAX +
VIN
2
(VOUT − VIN)
VOUT
2× FSW × L
The DCR of the inductor and the core loss at the
switching frequency must be low enough to achieve
the desired efficiency requirement. It is desirable to
choose an inductor with DCR
