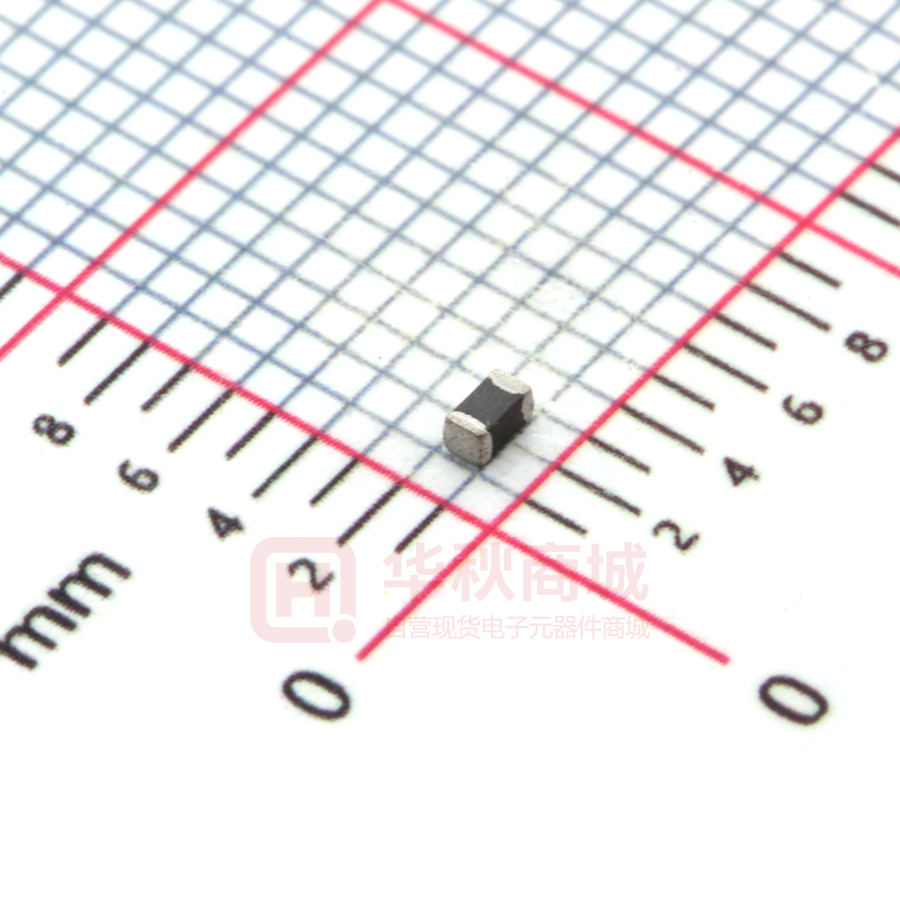

PZ1608U100-3R0TF

厂商：
SUNLORD(顺络)
封装：
0603
描述：
贴片磁珠 10Ω@100MHz 0Ω~15Ω 0603 20mΩ 3A

数据手册：

下载PZ1608U100-3R0TF.pdf

立即购买

详情介绍
数据手册
价格&库存

PZ1608U100-3R0TF 数据手册

Multilayer Chip Ferrite Bead – PZ Series Operating Temp. : -55℃~+125℃ FEATURES Internal silver printed layers and magnetic shielded structures to minimize crosstalk Large withstand current (allowable current: up to 6A) Can be used in a wide range of frequency to suppress EMI Three types material and wide range of impedance values for various applications ● ● ● ● APPLICATIONS Noise suppression for power line or large current signal of electric equipments such as computers and peripheral devices, DVD cameras, LCD TVs, communication equipments, OA equipments, etc. ● PRODUCT IDENTIFICATION PZ 1608 U 121 -2R0 T F ① ② ③ ④ ⑤ ⑥ ⑦ ① ② (L×W) (mm) External Dimensions (L×W) (mm) 0603[0201] 0.6×0.3 1005 [0402] 1.0×0.5 1608 [0603] 1.6×0.8 2012 [0805] 2.0×1.25 3216 [1206] 3.2×1.6 4516 [1806] 4.5×1.6 Type PZ Chip Ferrite Bead For Large Current ④ Nominal Impedance Example Nominal Value 300 30Ω 121 120Ω 102 1000Ω ③ Material Code D, E, U ⑤ ⑦ ⑥ T Packing Tape & Reel 1R0 2R5 R60 Rated Current 1.0A 2.5A 0.6A Hazardous Substance Free Products F SHAPE AND DIMENSIONS Unit: mm [inch] Sunlord Type PZ0603 [0201] PZ1005 [0402] PZ1608 [0603] PZ2012 [0805] L 0.6±0.05 [.024±.002] 1.0±0.15 [.039±.006] 1.6±0.15 [.063±.006] 2.0 (+0.3, -0.1) [.079 (+.012, -.004)] W 0.3±0.05 [.012±.002] 0.5±0.15 [.020±.006] 0.8±0.15 [.031±.006] 1.25±0.2 [.049±.008] PZ3216 [1206] 3.2±0.2 [.126±.008] 1.6±0.2 [.063±.008] PZ4516 [1806] 4.5±0.2 [.178±.008] 1.6±0.2 [.063±.008] T 0.3±0.05 [.012±.002] 0.5±0.15 [.020±.006] 0.8±0.15 [.031±.006] 0.85±0.2 [.033±.008] 0.85±0.2 [.033±.008] 1.1±0.2 [.043±.008] 1.6±0.2 [.063±.008] Specifications subject to change without notice. Please check our website for latest information. a 0.15±0.05 [.006±.002] 0.25±0.1 [.010±.004] 0.3±0.2 [.012±.008] 0.5±0.3 [.020±.012] 0.5±0.3 [.020±.012] 0.5±0.3 [.020±.012] Revised 2016/12/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS PZ0603 TYPE Part Number Impedance Z Test Frequency Max.DC Resistance Max.Rated Current Thickness Units Symbol PZ0603D600-R50TF PZ0603D800-R50TF PZ0603D121-R45TF PZ0603D241-R35TF PZ0603D601-R25TF PZ0603D102-R20TF Ω Z 60±25% 80±25% 120±25% 240±25% 600±25% 1000±25% MHz Freq. 100 100 100 100 100 100 Ω DCR 0.18 0.20 0.25 0.41 1.0 1.4 mA Ir 500 500 450 350 250 200 mm [inch] T Part Number Impedance Z Test Frequency Max.DC Resistance Max.Rated Current Thickness Units Symbol PZ1005D100-1R0TF PZ1005E100-1R8TF PZ1005E700-R80TF PZ1005E121-R70TF PZ1005E221-R60TF PZ1005E601-R45TF PZ1005U700-1R2TF PZ1005U121-1R0TF PZ1005U221-R80TF PZ1005U601-R45TF Ω Z 0~30 0~15 70±25% 120±25% 220±25% 600±25% 70±25% 120±25% 220±25% 600±25% MHz Freq. 100 100 100 100 100 100 100 100 100 100 Ω DCR 0.05 0.02 0.10 0.13 0.18 0.34 0.10 0.12 0.18 0.34 mA Ir 1000 1800 800 700 600 450 1200 1000 800 450 mm [inch] T Impedance Ω Z 30±25% 60±25% 75±25% 120±25% 220±25% 600±25% 60±25% 0~15 30±25% 60±25% 120±25% 220±25% 330±25% 390±25% 470±25% Z Test Frequency MHz Freq. 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 Max. DC Resistance Ω DCR 0.03 0.08 0.15 0.20 0.20 0.35 0.10 0.02 0.03 0.04 0.05 0.10 0.14 0.14 0.20 Max. Rated Current mA Ir 3000 2000 1000 1000 1000 500 1400 3000 3000 2500 2000 1400 1200 1000 1000 Impedance Ω Z 39±25% 80±25% 120±25% 220±25% Z Test Frequency MHz Freq. 100 100 100 100 Max. DC Resistance Ω DCR 0.02 0.04 0.06 0.08 Max. Rated Current mA Ir 4000 3000 2500 1500 0.3±0.05 [.012±.002] PZ1005 TYPE 0.5±0.15 [.020±.006] PZ1608 TYPE Part Number Units Symbol PZ1608D300-3R0TF PZ1608D600-2R0TF PZ1608D750-1R0TF PZ1608D121-1R0TF PZ1608D221-1R0TF PZ1608D601-R50TF PZ1608E600-1R4TF PZ1608U100-3R0TF PZ1608U300-3R0TF PZ1608U600-2R5TF PZ1608U121-2R0TF PZ1608U221-1R4TF PZ1608U331-1R2TF PZ1608U391-1R0TF PZ1608U471-1R0TF Thickness mm [inch] T 0.8±0.15 [.031±.006] PZ2012 TYPE Part Number Units Symbol PZ2012D390-4R0TF PZ2012D800-3R0TF PZ2012D121-2R5TF PZ2012D221-1R5TF Sunlord Specifications subject to change without notice. Please check our website for latest information. Thickness mm [inch] T 0.85±0.2 [.033±.008] Revised 2016/12/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS PZ2012 TYPE Part Number Units Symbol PZ2012D301-1R5TF PZ2012D471-R80TF PZ2012D601-R80TF PZ2012U300-3R0TF PZ2012U300-4R0TF PZ2012U600-3R0TF PZ2012U121-2R5TF PZ2012U221-2R0TF PZ2012U301-1R5TF PZ2012U421-1R0TF PZ2012U601-R80TF Impedance Ω Z 300±25% 470±25% 600±25% 30±25% 30±25% 60±25% 120±25% 220±25% 300±25% 420±25% 600±25% Z Test Frequency MHz Freq. 100 100 100 100 100 100 100 100 100 100 100 Max. DC Resistance Ω DCR 0.12 0.25 0.25 0.02 0.015 0.025 0.04 0.07 0.10 0.20 0.25 Max. Rated Current mA Ir 1500 800 800 3000 4000 3000 2500 2000 1500 1000 800 Thickness mm [inch] T 0.85±0.2 [.033±.008] PZ3216 TYPE Part Number Impedance Z Test Frequency Max. DC Resistance Max. Rated Current Thickness Units Ω MHz Ω mA mm [inch] Symbol Z Freq. DCR Ir T PZ3216D190-6R0TF 19±25% 100 0.010 6000 PZ3216D380-5R0TF 38±25% 100 0.015 5000 PZ3216D600-4R0TF 60±25% 100 0.02 4000 PZ3216D121-3R0TF 120±25% 100 0.03 3000 PZ3216D501-2R0TF 500±25% 100 0.07 2000 PZ3216D601-2R0TF 600±25% 100 0.07 2000 30±25% 100 0.01 6000 PZ3216U300-6R0TF 0.85±0.2 [.033±.008] 60±25% 100 0.025 4000 PZ3216U600-4R0TF 120±25% 100 0.03 3000 PZ3216U121-3R0TF 220±25% 100 0.08 2000 PZ3216U221-2R0TF PZ3216U301-2R0TF 300±25% 100 0.10 2000 390±25% 100 0.07 2000 PZ3216U391-2R0TF 600±25% 100 0.10 1500 PZ3216U601-1R5TF 1000±25% 100 0.30 500 PZ3216U102-R50TF Note: The thickness of PZ3216 series may be increased to 1.1±0.2 mm when the Ir of product increased. PZ4516 TYPE Part Number Units Symbol PZ4516U600-6R0TF PZ4516U720-6R0TF PZ4516U181-3R0TF PZ4516U471-2R0TF Impedance Ω Z 60±25% 72±25% 180±25% 470±25% Z Test Frequency MHz Freq. 100 100 100 100 Max. DC Resistance Ω DCR 0.01 0.01 0.025 0.05 Max. Rated Current mA Ir 6000 6000 3000 2000 Thickness mm [inch] T 1.6±0.2 [.063±.008] ※: Products with other electrical characteristics can be provided upon customer’s request. Please contact your local sales. Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2016/12/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com TYPICAL ELECTRICAL CHARACTERISTICS D, E, U Material Comparison Rated Current When operating temperatures exceed +85℃, derating of current is necessary for chip ferrite beads for which rated current is 1000mA and over. Please apply the derating curve shown in chart according to the operating temperature. 300 PZ1608D121-1R0TF 7 200 6 PZ1608U121-2R0TF 5 150 Derated Current[A] Impedance(Ω) 250 100 50 0 1 10 100 1000 3000 4 3 2.5 2 1.5 1 0.8 0 Frequency(MHz) 0 85 50 100 150 125 Operating Temperature[℃] DETAIL ELECTRICAL CHARACTERISTICS PZ0603 TYPE PZ0603D800-R50TF 300 500 240 400 Impedance(Ω) R 150 X 100 50 Z 180 R 120 60 1 10 100 1000 0 3000 1 10 100 Frequency(MHz) X 1000 0 3000 1 10 100 3000 1000 Frequency(MHz) PZ0603D102-R20TF PZ0603D601-R25TF 1500 1200 960 Z Impedance(Ω) Impedance(Ω) 200 Frequency(MHz) 1200 720 R 480 X 240 0 Z R 300 100 X Z 0 Impedance(Ω) 200 Impedance(Ω) PZ0603D241-R35TF PZ0603D121-R45TF 250 1 10 Z 900 600 R 300 100 1000 0 3000 X 1 10 100 1000 3000 Frequency(MHz) Frequency(MHz) PZ1005 TYPE PZ1005D100-1R0TF 20 PZ1005E100-1R8TF PZ1005E700-R80TF 20 Z Z 15 Impedance(Ω) R 10 5 X Z 90 Impedance(Ω) 15 Impedance(Ω) 120 R 10 X 5 R 60 X 30 0 1 10 100 Frequency(MHz) 1000 3000 0 1 10 100 Frequency(MHz) Sunlord 1000 3000 0 1 10 100 1000 3000 Frequency(MHz) Specifications subject to change without notice. Please check our website for latest information. Revised 2016/12/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com DETAIL ELECTRICAL CHARACTERISTICS PZ1005 TYPE PZ1005E121-R70TF 400 300 R 100 50 600 Z R 200 100 10 100 1000 0 3000 1 10 Frequency(MHz) PZ1005U700-1R2TF 1000 R 60 10 100 1000 PZ1005U221-R80TF 300 R 100 50 Z R 200 100 X X 0 100 1000 3000 3000 400 Z 30 10 1 Frequency(MHz) 150 Z 1 0 3000 PZ1005U121-1R0TF 200 Impedance(Ω) Impedance(Ω) 100 Frequency(MHz) 120 90 X X Impedance(Ω) 1 R 400 200 X 0 Impedance(Ω) Impedance(Ω) Impedance(Ω) 800 Z Z 150 0 PZ1005E601-R45TF PZ1005E221-R60TF 200 1 10 100 X 1000 3000 0 1 10 100 Frequency(MHz) Frequency(MHz) 1000 3000 Frequency(MHz) PZ1005U601-R45TF 800 Impedance(Ω) 600 Z R 400 200 X 0 1 10 100 1000 3000 Frequency(MHz) PZ1608 TYPE PZ1608D300-3R0TF PZ1608D600-2R0TF 45 R 30 15 1 10 Z 100 1000 30 0 3000 120 R 60 X 0 160 90 Z Impedance(Ω) Impedance(Ω) PZ1608D750-1R0TF 120 Impedance(Ω) 60 1 10 100 R 80 40 X Frequency(MHz) Z 1000 0 3000 X 1 10 Frequency(MHz) PZ1608D121-1R0TF PZ1608D221-1R0TF 240 100 1000 3000 1000 3000 1000 3000 Frequency(MHz) PZ1608D601-R50TF 400 1000 800 300 R 120 60 Z 200 R 0 R 400 1 10 100 200 X 1000 0 3000 1 10 Frequency(MHz) 100 X 1000 0 3000 PZ1608E600-1R4TF PZ1608U100-3R0TF PZ1608U300-3R0TF 30 45 Z Impedance(Ω) Impedance(Ω) R R 10 5 10 100 Frequency(MHz) Sunlord Z 30 R 15 X 1 100 60 15 Z 60 10 Frequency(MHz) 20 90 1 Frequency(MHz) 120 Impedance(Ω) Z 600 100 X 0 Impedance(Ω) Z Impedance(Ω) Impedance(Ω) 180 X 1000 3000 0 1 10 100 Frequency(MHz) X 1000 0 3000 1 10 100 Frequency(MHz) Specifications subject to change without notice. Please check our website for latest information. Revised 2016/12/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com DETAIL ELECTRICAL CHARACTERISTICS PZ1608 TYPE PZ1608U600-2R5TF PZ1608U121-2R0TF 100 PZ1608U221-1R4TF 200 300 80 R 40 Impedance(Ω) Impedance(Ω) Impedance(Ω) Z 150 Z 60 Z R 100 200 R 100 50 20 X 0 1 10 100 1000 0 3000 1 10 100 Frequency(MHz) 0 1000 3000 1 10 100 Frequency(MHz) PZ1608U331-1R2TF 400 PZ1608U471-1R0TF 300 R 200 100 Z 450 Z Impedance(Ω) Impedance(Ω) Z 300 R 200 150 X 100 R 300 X X 0 1 10 100 1000 0 3000 3000 600 500 400 1000 Frequency(MHz) PZ1608U391-1R0TF 500 Impedance(Ω) X X 1 10 100 Frequency(MHz) 1000 0 3000 1 10 100 Frequency(MHz) 1000 3000 Frequency(MHz) PZ2012 TYPE PZ2012D390-4R0TF PZ2012D800-3R0TF 80 PZ2012D121-2R5TF 160 200 Z 120 R 40 20 1 10 100 R 80 R 100 40 X 0 150 Z Impedance() Z Impedance() Impedance() 60 50 X X 1000 0 3000 1 10 100 Frequency(MHz) 1000 0 3000 1 10 100 Frequency(MHz) PZ2012D221-1R5TF PZ2012D301-1R5TF 400 1000 3000 1000 3000 Frequency(MHz) PZ2012D471-R80TF 500 800 400 R 200 600 Z Impedance() Z Impedance() Impedance() 300 300 R 200 Z R 400 100 200 100 0 1 10 100 X X X 1000 0 3000 1 10 100 Frequency(MHz) 1000 0 3000 PZ2012U300-4R0TF 50 40 R 40 Z 30 Impedance( ) Impedance(Ω) Impedance() 100 Frequency(MHz) 50 Z 400 10 PZ2012U300-3R0TF PZ2012D601-R80TF 800 600 1 Frequency(MHz) R 20 Z 30 R 20 200 10 0 1 10 100 1000 0 3000 10 X X 0 1 10 Frequency(MHz) 100 1000 3000 X 1 10 PZ2012U600-3R0TF 1000 3000 PZ2012U221-2R0TF PZ2012U121-2R5TF 100 100 Frequency(MHz) Frequency(MHz) 300 160 R 50 25 1 10 100 Frequency(MHz) Sunlord R 80 200 R 100 40 X 0 Z Z 120 Impedance(Ω) Z Impedance(Ω) Impedance(Ω) 75 X X 1000 3000 0 0 1 10 100 1000 1 10 3000 Frequency(MHz) Specifications subject to change without notice. Please check our website for latest information. 100 1000 Frequency(MHz) Revised 2016/12/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com 3000 DETAIL ELECTRICAL CHARACTERISTICS PZ2012 TYPE PZ2012U301-1R5TF PZ2012U421-1R0TF Z 800 400 Z Impedance(Ω) Impedance(Ω) 300 R 200 600 300 R 200 100 1 10 Z R 400 200 X 100 X 0 PZ2012U601-R80TF 500 Impedance(Ω) 400 X 100 0 3000 1000 1 10 Frequency(MHz) 100 1000 0 3000 1 10 Frequency(MHz) 100 1000 3000 1000 3000 Frequency(MHz) PZ3216 TYPE PZ3216D190-6R0TF PZ3216D380-5R0TF 30 120 60 Z Impedance(Ω) Impedance(Ω) PZ3216D600-4R0TF 80 R 20 X 10 90 Z Impedance(Ω) 40 R 40 X 20 Z 60 R 30 X 1 10 100 1000 0 3000 1 10 Frequency(MHz) 1000 3000 PZ3216D121-3R0TF PZ3216D501-2R0TF Impedance(Ω) R 60 100 PZ3216D601-2R0TF 800 600 Z 120 10 Frequency(MHz) 800 180 1 Frequency(MHz) 240 Impedance(Ω) 100 0 600 Impedance() 0 Z 400 R 200 Z R 400 200 X X X 0 1 10 100 0 3000 1000 1 10 Frequency(MHz) 100 1000 0 3000 1 10 PZ3216U300-6R0TF PZ3216U600-4R0TF 50 100 1000 3000 Frequency(MHz) Frequency(MHz) PZ3216U121-3R0TF 100 200 40 75 R 20 150 Z Impedance(Ω) 30 Impedance(Ω) impedance(Ω) Z R 50 25 10 1 10 100 X X 1000 0 3000 1 10 Frequency(MHz) 100 1000 0 3000 1 10 Frequency(MHz) PZ3216U221-2R0TF 100 300 Impedance(Ω) R 100 1000 3000 500 400 Z 3000 PZ3216U391-2R0TF 400 200 1000 Frequency(MHz) PZ3216U301-2R0TF 300 Impedance(Ω) R 100 50 X Z Z Impedance(Ω) 0 Z R 200 300 R 200 100 0 1 10 100 Frequency(MHz) Sunlord 100 X X 1000 3000 0 1 10 100 Frequency(MHz) 1000 3000 0 X 1 10 100 Frequency(MHz) Specifications subject to change without notice. Please check our website for latest information. Revised 2016/12/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com DETAIL ELECTRICAL CHARACTERISTICS PZ3216 TYPE PZ3216U601-1R5TF PZ3216U102-R50TF 800 1200 R 400 Z 900 Z Impedance(Ω) Impedance(Ω) 600 200 R 600 300 X 0 1 10 X 100 1000 0 3000 1 10 Frequency(MHz) 100 1000 3000 Frequency(MHz) PZ4516 TYPE PZ4516U600-6R0TF PZ4516U720-6R0TF Z R 50 25 240 Z 90 Impedance(Ω) 75 Impedance(Ω) PZ4516U181-3R0TF 120 R 60 30 X 180 impedance(Ω) 100 Z R 120 60 X X 0 1 10 100 1000 3000 Frequency(MHz) 0 1 10 100 Frequency(MHz) 1000 3000 0 1 10 100 1000 Frequency(MHz) PZ4516U471-2R0TF 600 Impedance(Ω) 450 Z R 300 150 X 0 1 10 100 1000 3000 Frequency(MHz) Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2016/12/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com 3000

下载 PDF

PZ1608U100-3R0TF

1. 物料型号：文档列出了不同尺寸和额定电流的型号，例如PZ0603、PZ1005、PZ1608、PZ2012、PZ3216和PZ4516。

2. 器件简介：PZ系列铁氧体珠用于大电流应用，具有内部银层和磁屏蔽结构以最小化串扰，并且能在宽频率范围内抑制电磁干扰（EMI）。

3. 引脚分配：文档中没有提供具体的引脚分配信息，因为铁氧体珠是无源元件，通常不需要引脚分配。

4. 参数特性： - 工作温度范围：-55℃至+125℃。 - 允许电流：不同型号的铁氧体珠允许的电流不同，最高可达6A。 - 阻抗值：提供三种材料类型和多种阻抗值以适应不同应用。

5. 功能详解：PZ系列铁氧体珠主要用于电源线或大电流信号的噪声抑制，适用于电脑及其外围设备、DVD摄像机、液晶电视、通信设备、办公自动化设备等。

6. 应用信息：适用于各种电子设备，以减少电磁干扰。

7. 封装信息：提供了不同型号的尺寸和厚度信息，例如PZ0603为0.6x0.3mm，PZ2012为2.0x1.25mm等。

8. 额定电流和标称阻抗：列出了不同型号的额定电流和标称阻抗值。

9. 无有害物质产品：标记为“F”，表示产品不含有害物质。

10. 形状和尺寸：提供了详细的尺寸数据，包括宽度、厚度和高度。
