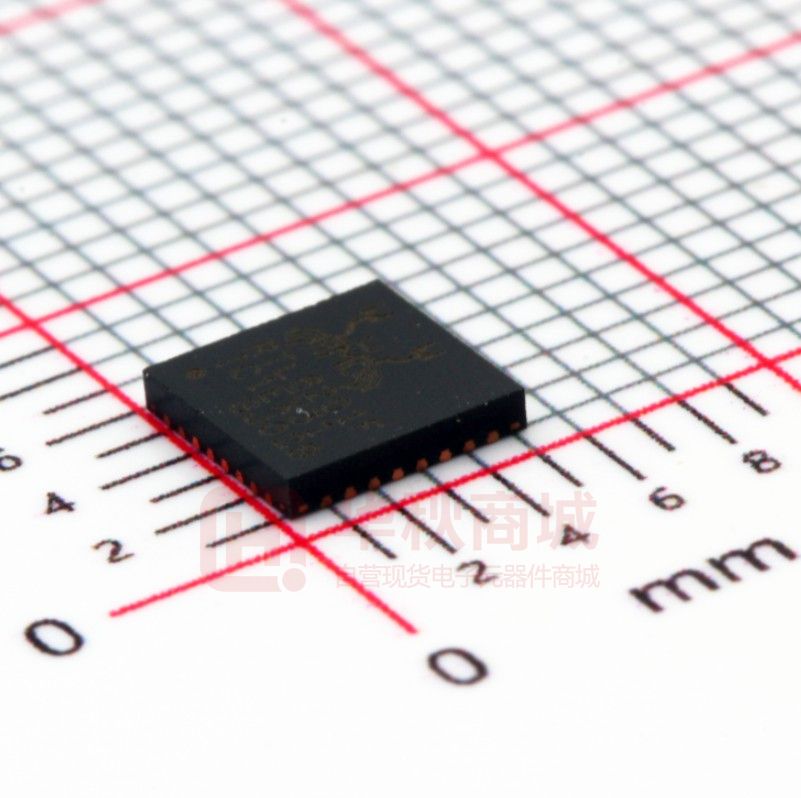

RTL8201F-VB-CG

RTL8201F-VB-CG RTL8201FL-VB-CG RTL8201FN-VB-CG SINGLE-CHIP/PORT 10/100M ETHERNET PHYCEIVER WITH AUTO MDIX DATASHEET (CONFIDENTIAL: Development Partners Only) Rev. 1.4 30 November 2011 Track ID: JATR-2265-11 Realtek Semiconductor Corp. No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan Tel.: +886-3-578-0211. Fax: +886-3-577-6047 www.realtek.com RTL8201F/RTL8201FL/RTL8201FN Datasheet COPYRIGHT ©2011 Realtek Semiconductor Corp. All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means without the written permission of Realtek Semiconductor Corp. DISCLAIMER Realtek provides this document ‘as is’, without warranty of any kind. Realtek may make improvements and/or changes in this document or in the product described in this document at any time. This document could include technical inaccuracies or typographical errors. TRADEMARKS Realtek is a trademark of Realtek Semiconductor Corporation. Other names mentioned in this document are trademarks/registered trademarks of their respective owners. LICENSE This product is covered by one or more of the following patents: US5,307,459, US5,434,872, US5,732,094, US6,570,884, US6,115,776, and US6,327,625. USING THIS DOCUMENT This document is intended for the software engineer’s reference and provides detailed programming information. Though every effort has been made to ensure that this document is current and accurate, more information may have become available subsequent to the production of this guide. Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX ii Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet REVISION HISTORY Revision Release Date Summary 1.0 2010/12/17 First release. 1.1 2011/02/18 Revised to VB model. Revised Table 22 Register 30 Interrupt Indicators and SNR Display Register, page 21. Added interrupt function. Added MMD Register Mapping and Definition section. Revised section 8.2 Interrupt, page 31. Revised Table 46 Absolute Maximum Ratings, page 44. Revised 9.1.3 Power On and PHY Reset Sequence, page 45. Revised Table 49 RMII Input Mode Power Dissipation (Whole System), page 46. 1.2 2011/04/21 Revised Figure 2 Block Diagram, page 4. Revised Table 3 RMII Interface, page 10. Revised Table 7 Device Configuration Interface, page 11. Revised Table 9 Reset and Other Pins, page 14. Revised Table 11 Register 0 Basic Mode Control Register, page 15. Revised Table 15 Register 4 Auto-Negotiation Advertisement Register (ANAR), page 17. Revised Table 20 Register 24, page 20. Revised Table 24 Page4 Register 16 EEE Capability Enable Register, page 22. Revised Table 25 Page4 Register 21 EEE Capability Register, page 22. Revised Table 30 Page7 Register 19 , page 24. Added section 7.21 Page 7 Register 24 Spread Spectrum Clock Register, page 25. Revised section 8.1.2 Serial Management Interface, page 29. Revised section 8.7 Reset and Transmit Bias, page 38. Added section 8.13 Spread Spectrum Clock (SSC), page 43. Added Figure 21 MII Interface Setup/Hold Time Definitions, page 47. Added Figure 26 RMII Interface Setup, Hold Time, and Output Delay Time Definitions, page 49. Added Figure 28 MDC/MDIO Interface Setup, Hold Time, and Valid from MDC Rising Edge Time Definitions, page 51. 1.3 2011/07/14 Added Figure 1 Application Diagram, page 3. Revised Table 30 Page7 Register 19 Interrupt, WOL Enable, and LEDs Function Registers, page 24. Added Table 34 EEEPC1R (PCS Control 1 Register, MMD Device 3, Address 0x00), page 25. Added Table 35 EEEPS1R (PCS Status 1 Register, MMD Device 3, Address 0x01), page 26. Added section 8.4.1 LED and PHY Address, page 32. Added section 8.4.8 EEE LED, page 36. Revised section 8.7 Reset and Transmit Bias, page 38. 1.4 2011/11/30 Revised Figure 2 Block Diagram, page 4. Revised Table 4 Clock Interface, page 10 (CKXTAL2 pin revised from I to IO). Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX iii Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet Table of Contents 1. GENERAL DESCRIPTION ..............................................................................................................................................1 2. FEATURES .........................................................................................................................................................................2 3. APPLICATIONS ................................................................................................................................................................3 3.1. APPLICATION DIAGRAM ...............................................................................................................................................3 4. BLOCK DIAGRAM ...........................................................................................................................................................4 5. PIN ASSIGNMENTS .........................................................................................................................................................5 5.1. 5.2. 5.3. 5.4. 5.5. 5.6. 6. PIN DESCRIPTIONS.........................................................................................................................................................8 6.1. 6.2. 6.3. 6.4. 6.5. 6.6. 6.7. 6.8. 6.9. 6.10. 7. RTL8201F (32-PIN).....................................................................................................................................................5 GREEN PACKAGE AND VERSION IDENTIFICATION ........................................................................................................5 RTL8201FL (48-PIN) ..................................................................................................................................................6 GREEN PACKAGE AND VERSION IDENTIFICATION ........................................................................................................6 RTL8201FN (48-PIN)..................................................................................................................................................7 GREEN PACKAGE AND VERSION IDENTIFICATION ........................................................................................................7 MII INTERFACE ............................................................................................................................................................8 SERIAL MANAGEMENT INTERFACE ............................................................................................................................10 RMII INTERFACE .......................................................................................................................................................10 CLOCK INTERFACE .....................................................................................................................................................10 10MBPS/100MBPS NETWORK INTERFACE .................................................................................................................11 TRANSMIT BIAS REFERENCE ......................................................................................................................................11 DEVICE CONFIGURATION INTERFACE ........................................................................................................................11 POWER AND GROUND PINS ........................................................................................................................................13 RESET AND OTHER PINS .............................................................................................................................................14 NC (NOT CONNECTED) PINS ......................................................................................................................................14 REGISTER DESCRIPTIONS.........................................................................................................................................15 7.1. REGISTER 0 BASIC MODE CONTROL REGISTER ..........................................................................................................15 7.2. REGISTER 1 BASIC MODE STATUS REGISTER .............................................................................................................16 7.3. REGISTER 2 PHY IDENTIFIER REGISTER 1..................................................................................................................17 7.4. REGISTER 3 PHY IDENTIFIER REGISTER 2..................................................................................................................17 7.5. REGISTER 4 AUTO-NEGOTIATION ADVERTISEMENT REGISTER (ANAR) ...................................................................17 7.6. REGISTER 5 AUTO-NEGOTIATION LINK PARTNER ABILITY REGISTER (ANLPAR)....................................................18 7.7. REGISTER 6 AUTO-NEGOTIATION EXPANSION REGISTER (ANER) ............................................................................19 7.8. PAGE 0 REGISTER 13 MACR (MMD ACCESS CONTROL REGISTER; ADDRESS 0X0D) ...............................................20 7.9. PAGE 0 REGISTER 14 MAADR (MMD ACCESS ADDRESS DATA REGISTER; ADDRESS 0X0E)...................................20 7.10. REGISTER 24 POWER SAVING MODE REGISTER (PSMR) ...........................................................................................20 7.11. REGISTER 28 FIBER MODE AND LOOPBACK REGISTER...............................................................................................21 7.12. REGISTER 30 INTERRUPT INDICATORS AND SNR DISPLAY REGISTER ........................................................................21 7.13. REGISTER 31 PAGE SELECT REGISTER .......................................................................................................................21 7.14. PAGE 4 REGISTER 16 EEE CAPABILITY ENABLE REGISTER .......................................................................................22 7.15. PAGE 4 REGISTER 21 EEE CAPABILITY REGISTER .....................................................................................................22 7.16. PAGE 7 REGISTER 16 RMII MODE SETTING REGISTER (RMSR) ................................................................................22 7.17. PAGE 7 REGISTER 17 CUSTOMIZED LEDS SETTING REGISTER ...................................................................................23 7.18. PAGE 7 REGISTER 18 EEE LEDS ENABLE REGISTER .................................................................................................23 7.19. PAGE 7 REGISTER 19 INTERRUPT, WOL ENABLE, AND LEDS FUNCTION REGISTERS ................................................24 7.20. PAGE 7 REGISTER 20 MII TX ISOLATE REGISTER ......................................................................................................25 7.21. PAGE 7 REGISTER 24 SPREAD SPECTRUM CLOCK REGISTER ......................................................................................25 7.22. MMD REGISTER MAPPING AND DEFINITION .............................................................................................................25 7.22.1. EEEPC1R (PCS Control 1 Register, MMD Device 3, Address 0x00) .............................................................25 Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX iv Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 7.22.2. 7.22.3. 7.22.4. 7.22.5. 7.22.6. 8. EEEPS1R (PCS Status 1 Register, MMD Device 3, Address 0x01) ................................................................26 EEECR (EEE Capability Register, MMD Device 3; Address 0x14)................................................................26 EEEWER (EEE Wake Error Register, MMD Device 3; Address 0x16) ..........................................................26 EEEAR (EEE Advertisement Register, MMD Device 7; Address 0x3c) ..........................................................27 EEELPAR (EEE Link Partner Ability Register, MMD Device 7; Address 0x3d) ............................................27 FUNCTIONAL DESCRIPTION.....................................................................................................................................28 8.1. MII AND MANAGEMENT INTERFACE ..........................................................................................................................29 8.1.1. Data Transition ....................................................................................................................................................29 8.1.2. Serial Management Interface ...............................................................................................................................29 8.2. INTERRUPT .................................................................................................................................................................31 8.3. AUTO-NEGOTIATION AND PARALLEL DETECTION .....................................................................................................31 8.3.1. Setting the Medium Type and Interface Mode to MAC.........................................................................................31 8.4. LED FUNCTIONS ........................................................................................................................................................32 8.4.1. LED and PHY Address .........................................................................................................................................32 8.4.2. Link Monitor.........................................................................................................................................................32 8.4.3. RX LED ................................................................................................................................................................33 8.4.4. TX LED.................................................................................................................................................................33 8.4.5. TX/RX LED...........................................................................................................................................................34 8.4.6. LINK/ACT LED ....................................................................................................................................................34 8.4.7. Customized LED...................................................................................................................................................35 8.4.8. EEE LED Behavior...............................................................................................................................................36 8.5. POWER DOWN AND LINK DOWN POWER SAVING MODES ..........................................................................................36 8.6. 10M/100M TRANSMIT AND RECEIVE.........................................................................................................................37 8.6.1. 100Base-TX Transmit and Receive Operation .....................................................................................................37 8.6.2. 100Base-FX Fiber Transmit and Receive Operation ...........................................................................................37 8.6.3. 10Base-T Transmit and Receive Operation..........................................................................................................37 8.7. RESET AND TRANSMIT BIAS .......................................................................................................................................38 8.8. 3.3V POWER SUPPLY AND VOLTAGE CONVERSION CIRCUIT......................................................................................38 8.9. AUTOMATIC POLARITY CORRECTION ........................................................................................................................39 8.10. FAR END FAULT INDICATION .....................................................................................................................................39 8.11. WAKE-ON-LAN (WOL)............................................................................................................................................39 8.11.1. Magic Packet and Wake-Up Frame Format....................................................................................................39 8.11.2. Active Low Wake-On-LAN...............................................................................................................................40 8.11.3. Pulse Low Wake-On-LAN................................................................................................................................41 8.11.4. Wake-On-LAN Pin Types (MII Mode) .............................................................................................................42 8.11.5. Wake-On-LAN Pin Types (RMII Mode)...........................................................................................................42 8.12. ENERGY EFFICIENT ETHERNET (EEE)........................................................................................................................43 8.13. SPREAD SPECTRUM CLOCK (SSC) .............................................................................................................................43 9. CHARACTERISTICS......................................................................................................................................................44 9.1. DC CHARACTERISTICS ...............................................................................................................................................44 9.1.1. Absolute Maximum Ratings ..................................................................................................................................44 9.1.2. Recommended Operating Conditions ...................................................................................................................44 9.1.3. Power On and PHY Reset Sequence.....................................................................................................................45 9.1.4. RMII Input Mode Power Dissipation ...................................................................................................................46 9.1.5. Input Voltage: Vcc................................................................................................................................................46 9.2. AC CHARACTERISTICS ...............................................................................................................................................47 9.2.1. MII Transmission Cycle Timing ...........................................................................................................................47 9.2.2. MII Reception Cycle Timing.................................................................................................................................48 9.2.3. RMII Transmission and Reception Cycle Timing .................................................................................................49 9.2.4. MDC/MDIO Timing .............................................................................................................................................51 9.2.5. Transmission without Collision ............................................................................................................................52 9.2.6. Reception without Error .......................................................................................................................................52 9.3. CRYSTAL CHARACTERISTICS .....................................................................................................................................53 Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX v Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 9.4. 9.5. 9.6. 10. 10.1. 10.2. 10.3. 11. 11.1. OSCILLATOR REQUIREMENTS ....................................................................................................................................53 CLOCK REQUIREMENTS .............................................................................................................................................54 TRANSFORMER CHARACTERISTICS ............................................................................................................................54 MECHANICAL DIMENSIONS.................................................................................................................................55 RTL8201F (QFN-32) ................................................................................................................................................55 RTL8201FL (LQFP-48) ............................................................................................................................................56 RTL8201FN (QFN-48) .............................................................................................................................................57 ORDERING INFORMATION ...................................................................................................................................58 RTL8201F SERIES SELECTION GUIDE .......................................................................................................................58 Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX vi Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet List of Tables TABLE 1. MII INTERFACE ..............................................................................................................................................................8 TABLE 2. SERIAL MANAGEMENT INTERFACE ..............................................................................................................................10 TABLE 3. RMII INTERFACE .........................................................................................................................................................10 TABLE 4. CLOCK INTERFACE .......................................................................................................................................................10 TABLE 5. 10MBPS/100MBPS NETWORK INTERFACE ....................................................................................................................11 TABLE 6. TRANSMIT BIAS REFERENCE ........................................................................................................................................11 TABLE 7. DEVICE CONFIGURATION INTERFACE...........................................................................................................................11 TABLE 8. POWER AND GROUND PINS ..........................................................................................................................................13 TABLE 9. RESET AND OTHER PINS ...............................................................................................................................................14 TABLE 10. NC (NOT CONNECTED) PINS ........................................................................................................................................14 TABLE 11. REGISTER 0 BASIC MODE CONTROL REGISTER............................................................................................................15 TABLE 12. REGISTER 1 BASIC MODE STATUS REGISTER ...............................................................................................................16 TABLE 13. REGISTER 2 PHY IDENTIFIER REGISTER 1 ...................................................................................................................17 TABLE 14. REGISTER 3 PHY IDENTIFIER REGISTER 2 ...................................................................................................................17 TABLE 15. REGISTER 4 AUTO-NEGOTIATION ADVERTISEMENT REGISTER (ANAR) .....................................................................17 TABLE 16. REGISTER 5 AUTO-NEGOTIATION LINK PARTNER ABILITY REGISTER (ANLPAR)......................................................18 TABLE 17. REGISTER 6 AUTO-NEGOTIATION EXPANSION REGISTER (ANER) ..............................................................................19 TABLE 18. PAGE 0 REGISTER 13 MACR (MMD ACCESS CONTROL REGISTER; ADDRESS 0X0D).................................................20 TABLE 19. PAGE 0 REGISTER 14 MAADR (MMD ACCESS ADDRESS DATA REGISTER; ADDRESS 0X0E) ....................................20 TABLE 20. REGISTER 24 POWER SAVING MODE REGISTER (PSMR) .............................................................................................20 TABLE 21. REGISTER 28 FIBER MODE AND LOOPBACK REGISTER ................................................................................................21 TABLE 22. REGISTER 30 INTERRUPT INDICATORS AND SNR DISPLAY REGISTER ..........................................................................21 TABLE 23. REGISTER 31 PAGE SELECT REGISTER .........................................................................................................................21 TABLE 24. PAGE4 REGISTER 16 EEE CAPABILITY ENABLE REGISTER ..........................................................................................22 TABLE 25. PAGE4 REGISTER 21 EEE CAPABILITY REGISTER ........................................................................................................22 TABLE 26. PAGE7 REGISTER 16 RMII MODE SETTING REGISTER (RMSR)...................................................................................22 TABLE 27. CUSTOMIZED LED MATRIX TABLE .............................................................................................................................23 TABLE 28. PAGE7 REGISTER 17 CUSTOMIZED LEDS SETTING REGISTER .....................................................................................23 TABLE 29. PAGE7 REGISTER 18 EEE LEDS ENABLE REGISTER ....................................................................................................23 TABLE 30. PAGE7 REGISTER 19 INTERRUPT, WOL ENABLE, AND LEDS FUNCTION REGISTERS ...................................................24 TABLE 31. PAGE7 REGISTER 20 MII TX ISOLATE REGISTER.........................................................................................................25 TABLE 32. PAGE7 REGISTER 24 SPREAD SPECTRUM CLOCK REGISTER ........................................................................................25 TABLE 33. MMD REGISTER MAPPING AND DEFINITION ...............................................................................................................25 TABLE 34. EEEPC1R (PCS CONTROL 1 REGISTER, MMD DEVICE 3, ADDRESS 0X00) ................................................................25 TABLE 35. EEEPS1R (PCS STATUS 1 REGISTER, MMD DEVICE 3, ADDRESS 0X01)....................................................................26 TABLE 36. EEECR (EEE CAPABILITY REGISTER, MMD DEVICE 3; ADDRESS 0X14) ...................................................................26 TABLE 37. EEEWER (EEE WAKE ERROR REGISTER, MMD DEVICE 3; ADDRESS 0X16).............................................................26 TABLE 38. EEEAR (EEE ADVERTISEMENT REGISTER, MMD DEVICE 7; ADDRESS 0X3C)...........................................................27 TABLE 39. EEELPAR (EEE LINK PARTNER ABILITY REGISTER, MMD DEVICE 7; ADDRESS 0X3D) ...........................................27 TABLE 40. MANAGEMENT FRAME FORMAT ..................................................................................................................................29 TABLE 41. SERIAL MANAGEMENT ................................................................................................................................................30 TABLE 42. SETTING THE MEDIUM TYPE AND INTERFACE MODE TO MAC....................................................................................31 TABLE 43. POWER SAVING MODE PIN SETTINGS ..........................................................................................................................36 TABLE 44. WAKE-ON-LAN PIN TYPES (MII MODE) ....................................................................................................................42 TABLE 45. WAKE-ON-LAN PIN TYPES (RMII MODE)..................................................................................................................42 TABLE 46. ABSOLUTE MAXIMUM RATINGS ..................................................................................................................................44 TABLE 47. RECOMMENDED OPERATING CONDITIONS ...................................................................................................................44 TABLE 48. POWER ON AND PHY RESET SEQUENCE ......................................................................................................................45 TABLE 49. RMII INPUT MODE POWER DISSIPATION (WHOLE SYSTEM)........................................................................................46 TABLE 50. INPUT VOLTAGE: VCC .................................................................................................................................................46 TABLE 51. MII TRANSMISSION CYCLE TIMING .............................................................................................................................48 TABLE 52. MII RECEPTION CYCLE TIMING ...................................................................................................................................49 Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX vii Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet TABLE 53. RMII TRANSMISSION AND RECEPTION CYCLE TIMING ................................................................................................50 TABLE 54. MDC/MDIO TIMING ...................................................................................................................................................51 TABLE 55. CRYSTAL CHARACTERISTICS .......................................................................................................................................53 TABLE 56. OSCILLATOR REQUIREMENTS ......................................................................................................................................53 TABLE 57. CLOCK REQUIREMENTS ...............................................................................................................................................54 TABLE 58. TRANSFORMER CHARACTERISTICS ..............................................................................................................................54 TABLE 59. ORDERING INFORMATION ............................................................................................................................................58 TABLE 60. RTL8201F SERIES SELECTION GUIDE .........................................................................................................................58 List of Figures FIGURE 1. APPLICATION DIAGRAM ................................................................................................................................................3 FIGURE 2. BLOCK DIAGRAM ..........................................................................................................................................................4 FIGURE 3. RTL8201F QFN-32 PIN ASSIGNMENTS ........................................................................................................................5 FIGURE 4. RTL8201FL LQFP-48 PIN ASSIGNMENTS ....................................................................................................................6 FIGURE 5. RTL8201FN QFN-48 PIN ASSIGNMENTS .....................................................................................................................7 FIGURE 6. READ CYCLE ...............................................................................................................................................................30 FIGURE 7. WRITE CYCLE .............................................................................................................................................................30 FIGURE 8. LED AND PHY ADDRESS CONFIGURATION ................................................................................................................32 FIGURE 9. RX LED......................................................................................................................................................................33 FIGURE 10. TX LED .....................................................................................................................................................................33 FIGURE 11. TX/RX LED...............................................................................................................................................................34 FIGURE 12. LINK/ACT LED ........................................................................................................................................................34 FIGURE 13. CUSTOMIZED LED WITH/WITHOUT LPI LED MODE...................................................................................................35 FIGURE 14. EEE LED BEHAVIOR ..................................................................................................................................................36 FIGURE 15. ACTIVE LOW WHEN RECEIVING A MAGIC PACKET ....................................................................................................40 FIGURE 16. ACTIVE LOW WHEN RECEIVING A WAKE-UP FRAME .................................................................................................40 FIGURE 17. PULSE LOW WHEN RECEIVING A MAGIC PACKET ......................................................................................................41 FIGURE 18. PULSE LOW WHEN RECEIVING A WAKE-UP FRAME ...................................................................................................41 FIGURE 19. SPECTRUM SPREAD CLOCK ........................................................................................................................................43 FIGURE 20. POWER ON AND PHY RESET SEQUENCE ....................................................................................................................45 FIGURE 21. MII INTERFACE SETUP/HOLD TIME DEFINITIONS .......................................................................................................47 FIGURE 22. MII TRANSMISSION CYCLE TIMING-1.........................................................................................................................47 FIGURE 23. MII TRANSMISSION CYCLE TIMING-2.........................................................................................................................47 FIGURE 24. MII RECEPTION CYCLE TIMING-1 ..............................................................................................................................48 FIGURE 25. MII RECEPTION CYCLE TIMING-2 ..............................................................................................................................48 FIGURE 26. RMII INTERFACE SETUP, HOLD TIME, AND OUTPUT DELAY TIME DEFINITIONS ........................................................49 FIGURE 27. RMII TRANSMISSION AND RECEPTION CYCLE TIMING ...............................................................................................50 FIGURE 28. MDC/MDIO INTERFACE SETUP, HOLD TIME, AND VALID FROM MDC RISING EDGE TIME DEFINITIONS .................51 FIGURE 29. MDC/MDIO TIMING ..................................................................................................................................................51 FIGURE 30. MAC TO PHY TRANSMISSION WITHOUT COLLISION ..................................................................................................52 FIGURE 31. PHY TO MAC RECEPTION WITHOUT ERROR .............................................................................................................52 Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX viii Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 1. General Description The RTL8201F-VB-CG, RTL8201FL-VB-CG, and RTL8201FN-VB-CG are single-chip/single-port 10/100Mbps Ethernet PHYceivers that support: • MII (Media Independent Interface) • RMII (Reduced Media Independent Interface) The RTL8201F/FL/FN implement all 10/100M Ethernet Physical-layer functions including the Physical Coding Sublayer (PCS), Physical Medium Attachment (PMA), Twisted Pair Physical Medium Dependent Sublayer (TP-PMD), 10Base-TX Encoder/Decoder, and Twisted-Pair Media Access Unit (TPMAU). The RTL8201F/FL/FN support auto MDIX. A PECL (Pseudo Emitter Coupled Logic) interface is supported to connect with an external 100Base-FX fiber optical transceiver. The chip utilizes an advanced CMOS process to meet low voltage and low power requirements. With on-chip DSP (Digital Signal Processing) technology, the chip provides excellent performance under all operating conditions. Note: Version differences are listed in section 11 Ordering Information, page 58. Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 1 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 2. Features „ Supports IEEE 802.3az-2010 (EEE) „ Automatic Polarity Correction „ 100Base-TX IEEE 802.3u Compliant „ LEDs „ 10Base-T IEEE 802.3 Compliant ‹ RTL8201F and RTL8201FL provide two network status LEDs „ Supports MII mode ‹ „ Supports RMII mode RTL8201FN provides three network status LEDs „ Full/half duplex operation „ Twisted pair or fiber mode output „ Supports Auto-Negotiation „ Supports power down mode „ „ „ Supports 25MHz external crystal or OSC „ Supports 50MHz external OSC Clock input „ Provides 50MHz clock source for MAC „ Low power supply 1.1V and 3.3V; 1.1V is generated by an internal regulator Supports Link Down Power Saving „ 0.11µm CMOS process Supports Base Line Wander (BLW) compensation „ Packages: „ Supports auto MDIX „ Supports Interrupt function „ Supports Wake-On-LAN (WOL) „ Adaptive Equalization Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX ‹ 32-pin MII/RMII QFN ‘Green’ package (RTL8201F) ‹ 48-pin MII/RMII LQFP ‘Green’ package (RTL8201FL) ‹ 48-pin MII/RMII QFN ‘Green’ package (RTL8201FN) 2 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 3. Applications „ DTV (Digital TV) „ Printer and Office Machine „ MAU (Media Access Unit) „ DVD Player and Recorder „ CNR (Communication and Network Riser) „ Ethernet Hub „ Game Console „ Ethernet Switch In addition, the RTL8201F/FL/FN can be used in any embedded system with an Ethernet MAC that needs a UTP physical connection or Fiber PECL interface to an external 100Base-FX optical transceiver module. Magnet ic s R J-45 3.1. Application Diagram Figure 1. Application Diagram Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 3 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 4. Block Diagram 100 M LPI Indication MII/RMII Interface PMEB Data Alignment 5B 4B Decoder ( LPI Detection) 10/ 100 Half /Full Switch Logic 4B 5B Encoder ( LPI Generation) WOL Descrambler TXD TXC 25M Scrambler 10/100 M Auto- Negotiation Control Logic (EEE Capability Exchange) RXD RXC 25M Link Pulse 10M TXC10 TXD10 Manchester Coded Waveform RXC10 RXD10 Data Recovery TXD TXC25M Supports TD+ EEE Quiet Parallel to Serial 10 M Output Waveform Shaping ( Amplitude Reduction) Receive Low Pass Filter 3 Level Driver TXO+ Adaptive Equalizer RXIN+ TXO- Variable Current 3Level Comparator MLT-3 to NRZI RXD RXC25M Serial to Parallel ck data Slave PLL RXIN- Master PLL 25 M or 50M Figure 2. Block Diagram Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 4 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 5. Pin Assignments PHYRSTB TXEN TXD[3] TXD[2] M DI - [0] M DI+[1] M DI - [1] AVDD33 RXDV TXD[1] MDC M DI+[0] AVDD10OUT RSET LED0 / PHYAD[ 0]/ P MEB MDI O 5.1. RTL8201F (32-Pin) Figure 3. RTL8201F QFN-32 Pin Assignments 5.2. Green Package and Version Identification Green package is indicated by the ‘G’ in GXXXV (Figure 3). The version is shown in the location marked ‘V’. Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 5 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet T X D[ 3] T X D[ 2] TXER TXEN NC PMEB NC A V D D33 GND PHYRST B D V D D1 0 M DI O MDC M DI - [ 1] NC L E D 0 / P H Y A D[ 0] GND INTB NC M DI + [ 1] M DI - [ 0] C RS/ CR S_DV L E D 1/ P H Y A D[ 1] M DI +[ 0] 5.3. RTL8201FL (48-Pin) Figure 4. RTL8201FL LQFP-48 Pin Assignments 5.4. Green Package and Version Identification Green package is indicated by the ‘G’ in GXXXV (Figure 4). The version is shown in the location marked ‘V’. Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 6 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 5.5. RTL8201FN (48-Pin) Figure 5. RTL8201FN QFN-48 Pin Assignments 5.6. Green Package and Version Identification Green package is indicated by the ‘G’ in GXXXV (Figure 5). The version is shown in the location marked ‘V’. Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 7 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 6. Pin Descriptions I: Input LI: Latched Input during Power up or Reset O: Output IO: Bi-directional input and output P: Power HZ: High impedance during power on reset PU: Internal Pull up during power on reset PD: Internal Pull down during power on reset OD: Open Drain output 6.1. MII Interface Name Type TXC O/PD Pin No. (8201F) 15 TXEN I/PD 20 TXER TXD[0] TXD[1] TXD[2] TXD[3] RXC I/PD I/PD I/PD I/PD I/PD O/PD 16 17 18 19 13 COL O/PD 27 CRS/ CRS_DV O/PD 26 Table 1. MII Interface Pin No. Pin No. Description (8201FL) (8201FN) 22 22 Transmit Clock. This pin provides a continuous clock as a timing reference for TXD [3:0] and TXEN signals. TXC is 25MHz in 100Mbps mode and 2.5MHz in 10Mbps mode. 27 27 Transmit Enable. The input signal indicates the presence of valid nibble data on TXD [3:0]. An internal weakly pulled low resistor prevents the bus floating. 12 12 Transmit Error. 23 Transmit Data. 23 24 The MAC will source TXD [0:3] synchronous with TXC 24 when TXEN is asserted. An internal weakly pulled low 25 25 resistor prevents the bus floating. 26 26 19 19 Receive Clock. This pin provides a continuous clock reference for RXDV and RXD [0:3] signals. RXC is 25MHz in 100Mbps mode and 2.5MHz in 10Mbps mode. 38 38 Collision Detect. COL is asserted high when a collision is detected on the media. 36 36 Carrier Sense. This pin’s signal is asserted high if the media is not in Idle state. Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 8 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet Name Type RXDV LI/O/PD Pin No. (8201F) 8 Pin No. (8201FL) 13 Pin No. (8201FN) 13 RXD[0] RXD[1] O/PD LI/O/PD 9 10 14 16 14 16 RXD[2] O/PD - 17 17 RXD[2]/ INTB O/PD 11 - - RXD[3]/ CLK_CTL LI/O/PD 12 18 18 RXER/ FXEN LI/O/PD 28 39 39 Description Receive Data Valid. This pin’s signal is asserted high when received data is present on the RXD[3:0] lines. The signal is de-asserted at the end of the packet. The signal is valid on the rising edge of the RXC. This pin should be pulled low when operating in MII mode. 0: MII mode 1: RMII mode An internal weakly pulled low resistor sets this to the default of MII mode. It is possible to use an external 4.7KΩ pulled high resistor to enable RMII mode. After power on, the pin operates as the Receive Data Valid pin. Receive Data. These are the four parallel receive data lines aligned on the nibble boundaries driven synchronously to the RXC for reception by the external physical unit (PHY). Note 1: An internal weakly pulled low resistor sets RXD[1] to the LED function (default). Use an external 4.7KΩ pulled high resistor to enable the WOL function for the RTL8201F. Note 2: The RTL8201F Pin11 is named RXD[2]/INTB. When in RMII mode, this pin is used for the interrupt function. See Table 9, page 14 for INTB descriptions. Receive Data. This is the parallel receive data line aligned on the nibble boundaries driven synchronously to the RXC for reception by the external physical unit (PHY). RXD[3]/CLK_CTL pin is the Hardware strap in RMII Mode. 1: REF_CLK input mode 0: REF_CLK output mode Note: An internal weakly pulled low resistor sets RXD[3]/CLK_CTL to REF_CLK output mode (default). Receive Error. If a 5B decode error occurs, such as invalid /J/K/, invalid /T/R/, or invalid symbol, this pin will go high. Fiber/UTP Enable. This pin’s status is latched at power on reset to determine the media mode to operate in. 1: Fiber mode 0: UTP mode An internal weakly pulled low resistor sets this to the default of UTP mode. It is possible to use an external 4.7KΩ pulled high resistor to enable fiber mode. After power on, the pin operates as the Receive Error pin. Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 9 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 6.2. Serial Management Interface Name Type MDC I/PU Pin No. (8201F) 22 MDIO IO/PU 23 Table 2. Serial Management Interface Pin No. Pin No. Description (8201FL) (8201FN) 30 30 Management Data Clock. This pin provides a clock synchronous to MDIO, which may be asynchronous to the transmit TXC and receive RXC clocks. The clock rate can be up to 2.5MHz. Use an internal weakly pulled high resistor to prevent the bus floating. 31 31 Management Data Input/Output. This pin provides the bi-directional signal used to transfer management information. 6.3. RMII Interface Name Type TXC IO/PD Pin No. (8201F) 15 CRS/ CRS_DV O/PD 26 TXEN TXD[0:1] RXD[0:1] RXER/ FXEN I/PD I/PD O/PD LI/O/PD 20 16, 17 9, 10 28 Table 3. RMII Interface Pin No. Pin No. Description (8201FL) (8201FN) 22 22 Synchronous 50MHz Clock Reference for Receive, Transmit, and Control Interface. The direction is decided by Page 7, Register 16. The default direction is reference clock output mode if RXD[3]/CLK_CTL pin floating. 36 36 Carrier Sense/Receive Data Valid. CRS_DV shall be asserted by the PHY when the receive medium is non-idle. 27 27 Transmit Enable. 23, 24 23, 24 Transmit Data. 14, 16 14, 16 Receive Data. 39 39 Receive Error. RX_ER is a required output of the PHY, but is an optional input for the MAC. 6.4. Clock Interface Name Type CKXTAL2 IO Pin No. (8201F) 32 CKXTAL1 I 31 Table 4. Clock Interface Pin No. Pin No. Description (8201FL) (8201FN) 43 43 25MHz Crystal Output. This pin provides the 25MHz crystal output. If an external 25MHz/50MHz oscillator or clock is used, connect CKXTAL2 to the oscillator or clock output (see section 9.4 Oscillator Requirements, page 53). 42 42 25MHz Crystal Input. This pin provides the 25MHz crystal input. Must be shorted to GND when an external 25MHz/50MHz oscillator or clock drives CKXTAL2. Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 10 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 6.5. 10Mbps/100Mbps Network Interface Name Type MDI+[0] MDI-[0] IO MDI+[1] MDI-[1] IO Table 5. 10Mbps/100Mbps Network Interface Pin No. Pin No. Pin No. Description (8201F) (8201FL) (8201FN) 3 1 1 Transmit Output. 4 2 2 Differential transmit output pair shared by 100Base-TX, 100Base-FX, and 10Base-T modes. When configured as 100Base-TX, output is an MLT-3 encoded waveform. When configured as 100Base-FX, the output is pseudoECL level. 5 4 4 Receive Input. 6 5 5 Differential receive input pair shared by 100Base-TX, 100Base-FX, and 10Base-T modes. 6.6. Transmit Bias Reference Name Type RSET I Pin No. (8201F) 1 Table 6. Transmit Bias Reference Pin No. Pin No. Description (8201FL) (8201FN) 46 46 Transmit Bias Resistor Connection. This pin should be pulled to GND by a 2.49KΩ (1%) resistor to define driving current for the transmit DAC. 6.7. Device Configuration Interface Name Type RXDV LI/O/PD Pin No. (8201F) 8 RXD[1] LI/O/PD 10 Table 7. Device Configuration Interface Pin No. Pin No. Description (8201FL) (8201FN) 13 13 Receive Data Valid. This pin’s signal is asserted high when received data is present on the RXD [3:0] lines. The signal is de-asserted at the end of the packet. The signal is valid on the rising edge of the RXC. This pin should be pulled low when operating in MII mode. 0: MII mode 1: RMII mode An internal weakly pulled low resistor sets this to the default of MII mode. It is possible to use an external 4.7KΩ pulled high resistor to enable RMII mode. After power on, the pin operates as the Receive Data Valid pin. 16 16 An internal weakly pulled low resistor sets RXD[1] to the LED function (default). Use an external 4.7KΩ pulled high resistor to enable the WOL function for the RTL8201F. Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 11 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet Name LED0/ PHYAD[0] Type LI/O/PU Pin No. (8201F) - LI/O/PU LED0/ PHYAD[0]/ PMEB 24 LED1/ PHYAD[1] LI/O/PD 25 LED2/ PHYAD[2] LI/O/PD - Pin No. Pin No. Description (8201FL) (8201FN) PHY Address and Customized LED Settings. 34 34 The default available PHY addresses are: RTL8201F: 00000~00011. RTL8201FL: 00100~00111 (when PMEB pin is pulled high) 00000~00011 (when PMEB pin is pulled low) RTL8201FN: 00000~00111. 35 35 Traditional LED Function Selection LED 00 01 10 11 _Sel 32 LinkALL/ Link10/ LINK10 LED0 ACTALL ACTALL ACTALL /ACT10 LINK100/ LED1 LINK100 LINK100 LINK100 ACT100 LED2 Reserved Reserved Reserved Reserved Note 1: For Customized LED Settings, see section 7.17, page 23. Note 2: LED_Sel default is 11. Refer to section 7.19, page 24. An internal weakly pulled low resistor sets RXD[1] to the LED function for RTL8201F (default). Use an external 4.7KΩ pulled high resistor to enable the WOL function for RTL8201F. Traditional LED Function Selection for the RTL8201F with WOL Enabled With the RTL8201F WOL function enabled, the PHY address must be 00001 or 00011. LED 00 01 10 11 _Sel LINK100/ LED1 LINK100 LINK100 LINK100 ACT100 RXD[3]/ CLK_CTL LI/O/PD 12 18 18 Receive Data. This is the parallel receive data line aligned on the nibble boundaries driven synchronously to the RXC for reception by the external physical unit (PHY). RXD [3]/CLK_CTL pin is the Hardware strap in RMII Mode. 1: REF_CLK input mode 0: REF_CLK output mode Note: An internal weakly pulled low resistor sets RXD[3]/CLK_CTL to REF_CLK output mode (default). Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 12 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet Name Type RXER/ FXEN LI/O/PD Pin No. (8201F) 28 EN_LDO_ OUT LI/O/PU - Pin No. Pin No. Description (8201FL) (8201FN) 39 39 Fiber/UTP Interface. This pin’s status is latched at power on reset to determine the media mode to operate in. 1: Fiber mode 0: UTP mode An internal weakly pulled low resistor sets this to the default of UTP mode. It is possible to use an external 4.7KΩ pulled high resistor to enable fiber mode. 11 LDO Mode Strap. 1: LDO enable 2: LDO disable 6.8. Power and Ground Pins Name Type AVDD33 P Pin No. (8201F) 7, 30 DVDD33 P 14 DVDD10 AVDD10OUT P O 2 DVDD10OUT O 29 GND P E-PAD Table 8. Power and Ground Pins Pin No. Pin No. Description (8201FL) (8201FN) 6, 41 6, 41 3.3V Analog Power Input. 3.3V power supply for analog circuit; should be well decoupled. 15, 21, 37 15, 21, 37 3.3V Digital Power Input. 3.3V power supply for digital circuit. 28 28 1.1V Digital Power. 48 48 Power Output. Be sure to connect a 0.1µF ceramic capacitor for decoupling purposes. The connection method is outlined in section 8.8 3.3V Power Supply and Voltage Conversion Circuit, page 38. 40 40 Power Output. Be sure to connect a 0.1µF ceramic capacitor for decoupling purposes. The connection method is outlined in section 8.8 3.3V Power Supply and Voltage Conversion Circuit, page 38. E-PAD Ground. Should be connected to a larger GND plane. 7, 20, 33, 47 Exposed Pad (E-Pad) is Analog and Digital Ground. Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 13 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 6.9. Reset and Other Pins Name Type PHYRSTB I/HZ Pin No. (8201F) 21 INTB O/OD - RXD[2]/INTB O/PD 11 PMEB O/OD 24 Table 9. Reset and Other Pins Pin No. Pin No. Description (8201FL) (8201FN) 29 29 RESETB. Set low to reset the chip. For a complete reset, this pin must be asserted low for at least 10ms. Note: When the WOL function is enabled, keep the pin high (RTL8201FN only). 32 20 Interrupt. Set low if link status changed, duplex changed, or auto negotiation failed. Active Low. This pin is an open-drain design, and for default value should be pulled high by an external 4.7KΩ. If not used, keep floating. Interrupt. Set low if link status changed, duplex changed, or auto negotiation failed. Active Low. This pin is an open-drain design, and for default value should be pulled high by an external 4.7KΩ. If not used, keep floating. Note: This pin is used for the interrupt function only when in the RMII mode. 10 33 Power Management Enable. Set low if received a magic packet or wake up frame; active low. 6.10. NC (Not Connected) Pins Name NC Type - Pin No. (8201F) - Table 10. NC (Not Connected) Pins Description Pin No. Pin No. (8201FL) (8201FN) 3, 8, 9, 11, 3, 7, 8, 9, 10, Not Connected. 44, 45 44, 45, 47 Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 14 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 7. Register Descriptions This section describes the functions and usage of the registers available in this file. In this section the following abbreviations are used. RW: Read/Write RW/EFUS: Read/Write/eFUSE Burnable RO: Read Only RW/LI: Read/Write/Latch In RC: Read Clear RW/SC: Read/Write/Self-Clearing SC: Self-Clear Note: RW/EFUS and RW/LI types will return to default values after a software reset (set Reg.0 Bit15 to 1). 7.1. Register 0 Basic Mode Control Register Address Name 0:15 Reset 0:14 Loopback 0:13 Speed Selection 0:12 Auto Negotiation Enable 0:11 Power Down 0:10 Isolate Table 11. Register 0 Basic Mode Control Register Description This bit sets the status and control registers of the PHY in the default state. This bit is self-clearing. 1: Software reset 0: Normal operation Register 0 and register 1 will return to default values after a software reset (set Bit15 to 1). This action may change the internal PHY state and the state of the physical link associated with the PHY. This bit enables loopback of transmit data nibbles TXD3:0 to the receive data path. 1: Enable loopback 0: Normal operation This bit sets the network speed. 1: 100Mbps 0: 10Mbps After completing auto negotiation, this bit will reflect the speed status. 1: 100Base-T 0: 10Base-T When 100Base-FX mode is enabled, this bit=1 and is read only. This bit enables/disables the NWay auto-negotiation function. 1: Enable auto-negotiation; bits 0:13 and 0:8 will be ignored 0: Disable auto-negotiation; bits 0:13 and 0:8 will determine the link speed and the data transfer mode, respectively When 100Base-FX mode is enabled, this bit=0 and is read only. This bit turns down the power of the PHY chip, including the internal crystal oscillator circuit. The MDC, MDIO is still alive for accessing the MAC. 1: Power down 0: Normal operation 1: Electrically isolate the PHY from MII/GMII/RGMII/RSGMII. PHY is still able to respond to MDC/MDIO. 0: Normal operation Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 15 Mode RW/ SC Default 0 RW 0 RW 1 RW 1 RW 0 RW 0 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet Address Name 0:9 Restart Auto Negotiation 0:8 Duplex Mode 0:7 Collision Test 0:6 Speed Selection[1] 0:5~0 Reserved Description This bit allows the NWay auto-negotiation function to be reset. 1: Re-start auto-negotiation 0: Normal operation This bit sets the duplex mode if auto-negotiation is disabled (bit 0:12=0). 1: Full duplex 0: Half duplex After completing auto-negotiation, this bit will reflect the duplex status. 1: Full duplex 0: Half duplex Collision Test. 1: Collision test enabled 0: Normal operation When set, this bit will cause the COL signal to be asserted in response to the TXEN assertion within 512-bit times. The COL signal will be de-asserted within 4-bit times in response to the TXEN de-assertion. Speed Select Bit 1. Refer to bit 0.13. Reserved. Mode RW/ SC RW Default 0 RW 0 RW 0 - - 1 7.2. Register 1 Basic Mode Status Register Table 12. Register 1 Basic Mode Status Register Address Name Description 1:15 100Base-T4 1: Enable 100Base-T4 support 0: Suppress 100Base-T4 support 1:14 100Base_TX_FD 1: Enable 100Base-TX full duplex support 0: Suppress 100Base-TX full duplex support 1:13 100Base_TX_HD 1: Enable 100Base-TX half duplex support 0: Suppress 100Base-TX half duplex support 1:12 10Base_T_FD 1: Enable 10Base-T full duplex support 0: Suppress 10Base-T full duplex support 1:11 10_Base_T_HD 1: Enable 10Base-T half duplex support 0: Suppress 10Base-T half duplex support 1:10~7 Reserved Reserved. 1:6 MF Preamble Suppression The RTL8201F/FL/FN will accept management frames with preamble suppressed. A minimum of 32 preamble bits are required for the first management interface read/write transaction after reset. One idle bit is required between any two management transactions as per IEEE 802.3u specifications. 1:5 Auto Negotiation Complete 1: Auto-negotiation process completed 0: Auto-negotiation process not completed 1:4 Remote Fault 1: Remote fault condition detected (cleared on read) 0: No remote fault condition detected When in 100Base-FX mode, this bit means an in-band signal Far-End-Fault has been detected (see 8.10 Far End Fault Indication, page 39). Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 16 Mode RO Default 0 RO 1 RO 1 RO 1 RO 1 RO 1 RO 0 RC 0 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet Address Name 1:3 Auto-Negotiation Ability 1:2 Link Status 1:1 Jabber Detect 1:0 Extended Capability Description 1: PHY is able to perform auto-negotiation 0: PHY is not able to perform auto-negotiation 1: Valid link established 0: No valid link established This bit indicates whether the link was lost since the last read. For the current link status, read this register twice. 1: Jabber condition detected 0: No jabber condition detected 1: Extended register capable (permanently=1) 0: Not extended register capable Mode RO Default 1 RO 0 RO 0 RO 1 7.3. Register 2 PHY Identifier Register 1 Address Name 2:15~0 OUI Table 13. Register 2 PHY Identifier Register 1 Description Composed of the 6th to 21st bits of the Organizationally Unique Identifier (OUI), respectively. Mode Default RO 001Ch Mode RO RO RO Default 110010 000001 0110 7.4. Register 3 PHY Identifier Register 2 Address 3:15~10 3:9~4 3:3~0 Name OUI_LSB Model Number Revision Number Table 14. Register 3 PHY Identifier Register 2 Description Assigned to the 0 through 5th bits of the OUI. Model Number Revision Number 7.5. Register 4 Auto-Negotiation Advertisement Register (ANAR) This register contains the advertised abilities of this device as they will be transmitted to its link partner during auto-negotiation. Address 4:15 4:14 4:13 4:12 4:11 4:10 Table 15. Register 4 Auto-Negotiation Advertisement Register (ANAR) Name Description Mode Next Page Next Page Bit. RW 0: Transmitting the primary capability data page 1: Transmitting the protocol specific data page Acknowledge 1: Acknowledge reception of link partner capability data word RO 0: Do not acknowledge reception Remote Fault 1: Advertise remote fault detection capability RW 0: Do not advertise remote fault detection capability Reserved Reserved. 1: Advertise asymmetric pause support RW Asymmetric PAUSE 0: No support of asymmetric pause Pause Reserved. RW Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 17 Track ID: JATR-2265-11 Default 0 0 0 0 0 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet Address 4:9 Name 100Base-T4 4:8 100Base-TX-FD 4:7 100Base-TX 4:6 10Base-T-FD 4:5 10Base-T 4:4~0 Selector Field Description 1: 100Base-T4 is supported by local node 0: 100Base-T4 not supported by local node 1: 100Base-TX full duplex is supported by local node 0: 100Base-TX full duplex not supported by local node 1: 100Base-TX is supported by local node 0: 100Base-TX not supported by local node 1: 10Base-T full duplex supported by local node 0: 10Base-T full duplex not supported by local node 1: 10Base-T is supported by local node 0: 10Base-T not supported by local node Binary Encoded Selector Supported by This Node. Currently only CSMA/CD 00001 is specified. No other protocols are supported. Mode RO Default 0 RW 1 RW 1 RW 1 RW 1 RO 00001 7.6. Register 5 Auto-Negotiation Link Partner Ability Register (ANLPAR) This register contains the advertised abilities of the Link Partner as received during auto-negotiation. The content changes after a successful auto-negotiation if Next-pages are supported. Address 5:15 5:14 5:13 5:12 5:11 5:10 5:9 5:8 Table 16. Register 5 Auto-Negotiation Link Partner Ability Register (ANLPAR) Name Description Mode Next Page Next Page Bit. RO 0: Transmitting the primary capability data page 1: Transmitting the protocol specific data page Acknowledge RO 1: Link partner acknowledges reception of local node’s capability data word 0: No acknowledgement Remote Fault 1: Link partner is indicating a remote fault RO 0: Link partner is not indicating a remote fault Reserved Reserved. Asymmetric Pause 1: Asymmetric Flow control supported by Link Partner RO 0: No Asymmetric flow control supported by Link Partner When auto-negotiation is enabled, this bit reflects Link Partner ability. Pause 1: Flow control supported by Link Partner RO 0: No flow control supported by Link Partner When auto-negotiation is enabled, this bit reflects Link Partner ability (read only). 100Base-T4 1: 100Base-T4 is supported by link partner RO 0: 100Base-T4 not supported by link partner 100Base-TX-FD 1: 100Base-TX full duplex is supported by link partner RO 0: 100Base-TX full duplex not supported by link partner Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 18 Track ID: JATR-2265-11 Default 0 0 0 0 0 0 0 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet Address 5:7 Name 100Base-TX 5:6 10Base-T-FD 5:5 10Base-T 5:4~0 Selector Field Description 1: 100Base-TX is supported by link partner 0: 100Base-TX not supported by link partner This bit will also be set if the link in 100Base-TX is established by parallel detection. 1: 10Base-T full duplex is supported by link partner 0: 10Base-T full duplex not supported by link partner 1: 10Base-T is supported by link partner 0: 10Base-T not supported by link partner This bit will also be set if the link in 10Base-T is established by parallel detection. Link Partner’s Binary Encoded Node Selector. Currently only CSMA/CD 00001 is specified. Mode RO Default 0 RO 0 RO 0 RO 00001 7.7. Register 6 Auto-Negotiation Expansion Register (ANER) This register contains additional status for NWay auto-negotiation. Table 17. Register 6 Auto-Negotiation Expansion Register (ANER) Address Name Description 6:15~5 Reserved Reserved. 6:4 Parallel Detection 1: A fault has been detected via the Parallel Detection function Fault 0: No fault has been detected via the Parallel Detection function 6:3 Link Partner Next 1: Link Partner is Next Page able Page Ability 0: Link Partner is not Next Page able 6:2 Local Next Page 1: Next Page is able Ability 0: Not Next Page able 6:1 Page Received 1: A New Page has been received 0: A New Page has not been received 6:0 If Auto-Negotiation is Enabled, This Bit Means: Link Partner Auto-Negotiation 1: Link Partner is Auto-Negotiation able Ability 0: Link Partner is not Auto-Negotiation able Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 19 Mode RC Default 0 RO 0 RO 0 RC 0 RO 0 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 7.8. Page 0 Register 13 MACR (MMD Access Control Register; Address 0x0D) Table 18. Page 0 Register 13 MACR (MMD Access Control Register; Address 0x0D) Bit Name RW Default Description 13.15:14 Function WO 0 00: Address 01: Data; no post increment 10: Data; post increment on reads and writes 11: Data; post increment on writes only 13.13:5 RSVD RO 000000000 Reserved. 13.4:0 DEVAD WO 0 Device Address. Note 1: Used in conjunction with the MAADR (Register 14) to provide access to the MMD address space. Note 2: If the access of MAADR is for address (Function=00) then it is directed to the address register within the MMD associated with the value in the DEVAD field. Note 3: If the access of MAADR is for data (Function=00) then both the DEVAD field and the MMD address register direct the MAADR data accesses to the appropriate registers within the MMD. 7.9. Page 0 Register 14 MAADR (MMD Access Address Data Register; Address 0x0E) Table 19. Page 0 Register 14 MAADR (MMD Access Address Data Register; Address 0x0E) Bit Name RW Default Description 14.15:0 Address Data RW 0x0000 13.15:14=00 Æ MMD DEVAD’s address register 13.15:14=01, 10, or 11 Æ MMD DEVAD’s data register as indicated by the contents of its address register Note: Used in conjunction with the MACR (Register 13) to provide access to the MMD address space. 7.10. Register 24 Power Saving Mode Register (PSMR) Table 20. Register 24 Power Saving Mode Register (PSMR) Address Name Description Mode Default 24:15 Enpwrsave Enable Power Saving Mode. RW 1 The bit will return to default value by software reset. 24:14~0 Reserved Reserved. Note: If the REF_CLK output is needed in RMII output mode, LDPS (Link Down Power Saving) must be disabled (see Table 43, page 36). Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 20 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 7.11. Register 28 Fiber Mode and Loopback Register Address 28:15~6 28:5 28:4~3 28:2 28:1 28:0 Table 21. Register 28 Fiber Mode and Loopback Register Name Description Reserved Reserved. Fxmode Enable Fiber Mode. Reserved Reserved. En_autoMDIX Enable Auto MDIX Function. Force_MDI Force MDI/MDIX Mode. If enable auto MDIX function is disabled: 1: Force MDI 0: Force MDIX Reserved Reserved. Mode RW RW RW Default 0 1 1 - - 7.12. Register 30 Interrupt Indicators and SNR Display Register Address 30:15 30:14 30:13 30:12 30:11 30:10~4 30:3~0 Table 22. Register 30 Interrupt Indicators and SNR Display Register Name Description Mode Anerr Auto-Negotiation Error Interrupt. RC 1: Enable 0: Disable Spdchg Speed Mode Change Interrupt. RC 1: Enable 0: Disable Duplexchg Duplex Mode Change Interrupt. RC 1: Enable 0: Disable Reserved Reserved. Linkstatuschg Link Status Change Interrupt. RC 1: Enable 0: Disable Reserved Reserved. SNR_O These 4-Bits Show the Signal to Noise Ratio Value. RO Default 0 0 0 0 0000 7.13. Register 31 Page Select Register Address 31:15~8 31:7~0 Name Reserved PAGE SEL Table 23. Register 31 Page Select Register Description Reserved for Internal Testing. Select Page Address: 00000000~11111111. Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 21 Mode RW Default 00000000 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 7.14. Page 4 Register 16 EEE Capability Enable Register Address 16:15~14 16:13 16:12 Table 24. Page4 Register 16 EEE Capability Enable Register Name Description Reserved Reserved. EEE_10_cap Enable EEE 10M Capability. EEE_nway_en Enable Next Page Exchange in NWay for EEE 100M. 16:11~10 16:9 Reserved Tx_quiet_en 16:8 Rx_quiet_en 16:7:0 Reserved Reserved. Enable Ability to Turn Off Power 100TX when TX in Quiet State. This bit is recommended to be set to 1 when EEE is enabled. Enable Ability to Turn Off Power 100RX when RX in Quiet state. This bit is recommended to be set to 1 when EEE is enabled. Reserved. Mode RW RW/ EFUS RW/ EFUS RW/ EFUS - Default 1 1 Mode RW RO Default 0 0 1 1 - 7.15. Page 4 Register 21 EEE Capability Register Address 21:15~13 21:12 21:11~1 21:0 Table 25. Page4 Register 21 EEE Capability Register Name Description Reserved Reserved. Rg_dis_ldvt Set to 1 to Disable the Line Driver of the Analog Circuit. Reserved Reserved. EEE_100_cap NWay Result to Indicate Link Partner Supports EEE 100M. 7.16. Page 7 Register 16 RMII Mode Setting Register (RMSR) Table 26. Page7 Register 16 RMII Mode Setting Register (RMSR) Name Description Mode Default Reserved Reserved. Rg_rmii_clkdir This Bit Sets the Type of TXC in RMII Mode. RW/LI 0 0: Output 1: Input 16:11~8 Rg_rmii_tx_offset Adjust RMII TX Interface Timing. RW/EFUS 1111 16:7~4 Rg_rmii_rx_offset Adjust RMII RX Interface Timing. RW/EFUS 1111 16:3 0: MII Mode RW/LI 0 RMII Mode 1: RMII Mode 16:2 0: CRS/CRS_DV pin is CRS_DV signal RW/EFUS 0 Rg_rmii_rxdv_sel 1: CRS/CRS_DV pin is RXDV signal 16:1 Rg_rmii_rxdsel 0: RMII data only RW/EFUS 1 1: RMII data with SSD Error 16:0 Reserved Reserved. Note: Set Page7, Register 16 to ‘7FFB’ when an external clock (25MHz and 50MHz) inputs to the CKXTAL2 pin. Address 16:15~13 16:12 Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 22 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 7.17. Page 7 Register 17 Customized LEDs Setting Register This register is for setting customized LEDs. Table 27 shows the customized LED matrix table. LED0 LED1 LED2 Table 27. Customized LED Matrix Table LINK 10M 100M Bit0 Bit1 Bit4 Bit5 Bit8 Bit9 ACT Bit3 Bit7 Bit11 LED Pin ACT=0 ACT=1 LINK=0 Floating All Speed ACT LINK>0 Selected Speed LINK Selected Speed LINK+ACT Note: The RTL8201F/FL only supports LED0 and LED1. The RTL8201FN supports LED0, LED1, and LED2. Address 17:15~12 17:11~8 17:7~4 17:3~0 Table 28. Page7 Register 17 Customized LEDs Setting Register Name Description Reserved Reserved. LED_sel2 Customized LED2 Setting. Set Bit3 (Page7 Register 19; Table 30, page 24) to 1 to enable customized LED function. LED_sel1 Customized LED1 Setting. Set Bit3 (Page7 Register 19; Table 30, page 24) to 1 to enable customized LED function. LED_sel0 Customized LED0 Setting. Set Bit3 (Page7 Register 19; Table 30, page 24) to 1 to enable customized LED function. Mode RW/ EFUS Default 0000 RW/ EFUS 0000 RW/ EFUS 0000 Mode RW RW RW Default 0 0 0 7.18. Page 7 Register 18 EEE LEDs Enable Register Address 18:15~3 18:2 18:1 18:0 Table 29. Page7 Register 18 EEE LEDs Enable Register Name Description Reserved Reserved. EEE_LED_en2 Enable LED2 in EEE/LPI Mode. EEE_LED_en1 Enable LED1 in EEE/LPI Mode. EEE_LED_en0 Enable LED0 in EEE/LPI Mode. Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 23 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 7.19. Page 7 Register 19 Interrupt, WOL Enable, and LEDs Function Registers Table 30. Page7 Register 19 Interrupt, WOL Enable, and LEDs Function Registers Address Name Description Mode 19:15~14 Reserved Reserved. 19:13 Int_linkchg Link Change Interrupt Mask. RW 1: Interrupt pin Enable 0: Interrupt pin Disable This bit set to 0 only masks the link change interrupt event in the INTB pin. Reg30 Bit11 always reflects the link change interrupt behavior (see Table 22, page 21). 19:12 Int_dupchg Duplex Change Interrupt Mask. RW 1: Interrupt pin Enable 0: Interrupt pin Disable This bit set to 0 only masks the duplex change interrupt event in the INTB pin. Reg30 Bit13 always reflects the duplex change interrupt behavior (see Table 22, page 21). 19:11 Int_anerr NWay Error Interrupt Mask. RW 1: Interrupt pin Enable 0: Interrupt pin Disable This bit set to 0 only masks the NWay Error interrupt event in the INTB pin.Reg30 Bit15 always reflects the NWay Error interrupt behavior (see Table 22, page 21). 19:10 Rg_led0_wol_sel LED and Wake-On-LAN Function Selection (RTL8201F Only). RW/LI 1: Wake-On-LAN Function Enable 0: LED Function Enable An internal weakly pulled low resistor sets RXD[1] to the LED function (default). Use an external 4.7KΩ pulled high resistor to enable the WOL function for the RTL8201F. 19:9~6 Reserved Reserved. 19:5~4 LED_sel[1:0] Traditional LED Function Selection. RW/ EFUS LED_sel 00 01 10 11 19:3 19:2~1 19:0 Customized_LED Reserved En10mlpi LED0 ACTALL LinkALL/ ACTALL Link10/ ACTALL LED1 LINK100 LINK100 LINK100 LED2 Reserved Reserved Reserved 24 0 0 0 11 LINK10 /ACT10 LINK100/A CT100 Reserved Customized LED Enable. 1: Customized LED function enable 0: Customized LED function disable See the section 8.4.7 Customized LED, page 35 for detail. Reserved. Enable 10M LPI LED Function. Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX Default 0 RW/ EFUS 0 RW 0 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 7.20. Page 7 Register 20 MII TX Isolate Register Address 20:15 20:14~0 Table 31. Page7 Register 20 MII TX Isolate Register Name Description Rg_tx_isolate_en Isolate MII TX Path Signals when TX Idle. Reserved Reserved. Mode RW - Default 0 - 7.21. Page 7 Register 24 Spread Spectrum Clock Register Address 24:15~1 24:0 Table 32. Page7 Register 24 Spread Spectrum Clock Register Name Description Reserved Reserved. Rg_dis_ssc 0: SSC function is enabled 1: SSC function is disabled Mode RW Default 0 7.22. MMD Register Mapping and Definition Note: MMD registers are placed at Page 0 Register 13 and Register 14. Table 33. MMD Register Mapping and Definition Device Offset Access Name Description 3 0 RW EEEPC1R EEE PCS Control 1 Register 3 1 RO/RO, LH EEEPS1R EEE PCS Status Control 1 Register 3 20 RO EEECR EEE Capability Register 3 22 RC EEEWER EEE Wake Error Register 7 60 RW EEEAR EEE Advertisement Register 7 61 RO EEELPAR EEE Link Partner Ability Register Note: LH: Latching High. 7.22.1. EEEPC1R (PCS Control 1 Register, MMD Device 3, Address 0x00) Table 34. EEEPC1R (PCS Control 1 Register, MMD Device 3, Address 0x00) Bit Name RW Default Description 3.0.15:11 RSVD RW 0 Reserved. 3.0.10 Clock Stop Enable RW 0 1: PHY stops RXC in LPI 0: RXC not stoppable 3.0.9:0 RSVD RW 0 Reserved. Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 25 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 7.22.2. EEEPS1R (PCS Status 1 Register, MMD Device 3, Address 0x01) Table 35. EEEPS1R (PCS Status 1 Register, MMD Device 3, Address 0x01) Bit Name RW Default Description 3.1.15:12 RSVD RO 0 Reserved. 3.1.11 TX LPI Received RO, LH 0 1: TX PCS has received LPI 0: LPI not received 3.1.10 RX LPI Received RO, LH 0 1: RX PCS has received LPI 0: LPI not received 3.1.9 TX LPI Indication RO 0 1: TX PCS is currently receiving LPI 0: TX PCS is not currently receiving LPI 3.1.8 RX LPI Indication RO 0 1: RX PCS is currently receiving LPI 0: RX PCS is not currently receiving LPI 3.1.7 RSVD RO 0 Reserved. 3.1.6 Clock Stop Capable RO 1 1: MAC stops TXC in LPI 0: TXC not stoppable 3.1.5:0 RSVD RO 0 Reserved. 7.22.3. EEECR (EEE Capability Register, MMD Device 3; Address 0x14) Table 36. EEECR (EEE Capability Register, MMD Device 3; Address 0x14) Bit Name RW Default Description 3.20.15:2 RSVD RO 0 Reserved. 3.20.1 100Base-TX EEE RO 1 1: EEE is supported for 100Base-TX EEE 0: EEE is not supported for 100Base-TX EEE 3.20.0 RSVD RO 1 Reserved. 7.22.4. EEEWER (EEE Wake Error Register, MMD Device 3; Address 0x16) Table 37. EEEWER (EEE Wake Error Register, MMD Device 3; Address 0x16) Bit Name RW Default Description 3.22.15:0 EEE Wake Error Counter RC 0 Used by PHY types that support EEE to count wake time faults where the PHY fails to complete its normal wake sequence within the time required for the specific PHY type. Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 26 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 7.22.5. EEEAR (EEE Advertisement Register, MMD Device 7; Address 0x3c) Table 38. EEEAR (EEE Advertisement Register, MMD Device 7; Address 0x3c) Bit Name RW Default Description 7.60.15:3 RSVD RW 0 Reserved. 7.60.1 100Base-TX EEE RW 1 Advertise 100Base-TX EEE Capability. 1: Advertise 0: Do not advertise 7.60.0 RSVD RW 0 Reserved. 7.22.6. EEELPAR (EEE Link Partner Ability Register, MMD Device 7; Address 0x3d) Table 39. EEELPAR (EEE Link Partner Ability Register, MMD Device 7; Address 0x3d) Bit Name RW Default Description 7.61.15:3 RSVD RO 0 Reserved. 7.61.1 LP 100Base-TX EEE RO 0 1: Link Partner is capable of 100Base-TX EEE 0: Link Partner is not capable of 100Base-TX EEE 7.61.0 RSVD RO 0 Reserved. Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 27 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 8. Functional Description The RTL8201F/FL/FN PHYceiver is a physical layer device that integrates 10Base-T and 100Base-TX/100Base-FX functions, and some extra power management features. This device supports the following functions: • MII interface with MDC/MDIO management interface to communicate with the MAC • IEEE 802.3u clause 28 Auto-Negotiation ability • Speed, duplex, auto-negotiation ability configurable by hard wire or MDC/MDIO • Power Down mode support • 4B/5B transform • Scrambling/De-scrambling • NRZ to NRZI, NRZI to MLT-3 • Manchester Encode and Decode for 10Base-T operation • Clock and Data recovery • Adaptive Equalization • Automatic Polarity Correction • Far End Fault Indication (FEFI) in fiber mode • Network status LEDs • Wake-On-LAN (WOL) • Energy Efficient Ethernet (EEE) • Spread Spectrum Clock (SSC) for RMII REF_CLK output mode Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 28 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 8.1. MII and Management Interface 8.1.1. Data Transition The MII (Media Independent Interface) is an 18-signal interface (as described in IEEE 802.3u) supplying a standard interface between the PHY and MAC layer. This interface operates at two frequencies; 25MHz and 2.5MHz, to support 100Mbps/10Mbps bandwidth for both transmit and receive functions. Transmission The MAC asserts the TXEN signal. It then changes byte data into 4-bit nibbles and passes them to the PHY via TXD[3:0]. The PHY will sample TXD[3:0] synchronously with TXC – the transmit clock signal supplied by the PHY – during the interval TXEN is asserted. Reception The PHY asserts the RXDV signal. It passes the received nibble data RXD[3:0] clocked by RXC. CRS and COL signals are used for collision detection and handling. In 100Base-TX mode, when the decoded signal in 5B is not IDLE, the CRS signal will assert. When 5B is recognized as IDLE it will be de-asserted. In 10Base-T mode, CRS will assert when the 10M preamble has been confirmed and will be de-asserted when the IDLE pattern has been confirmed. The RXDV signal will be asserted when decoded 5B are /J/K/ and will be de-asserted if the 5B are /T/R/ or IDLE in 100Mbps mode. In 10Mbps mode, the RXDV signal is the same as the CRS signal. The RXER (Receive Error) signal will be asserted if any 5B decode errors occur, e.g., an invalid J/K, invalid T/R, or invalid symbol. This pin will go high for one or more clock periods to indicate to the reconciliation sublayer that an error was detected somewhere in the frame. 8.1.2. Serial Management Interface The MAC layer device can use the MDC/MDIO management interface to control a maximum of 4 (RTL8201F/FL) or 8 (RTL8201FN) devices, configured with different PHY addresses (00b to 11b for the RTL8201F/FL; 000b to 111b for the RTL8201FN). Frames transmitted on the MDC/MDIO Management Interface should have the frame structure shown in Table 40. Read Write Preamble 1…1 1…1 ST 01 01 Table 40. Management Frame Format Management Frame Fields OP PHYAD REGAD TA DATA 10 AAAAA RRRRR Z0 DDDDDDDDDDDDDDDD 01 AAAAA RRRRR 10 DDDDDDDDDDDDDDDD IDLE Z Z During a hardware reset, the logic levels of pins 34/24, 35/25, and 32/22 (only RTL8201FN) are latched to be set as the PHY address for management communication via the serial interface. The read and write frame structure for the management interface is illustrated in Figure 6 and Figure 7, page 30. Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 29 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet Figure 6. Read Cycle MDC MDIO(MAC) z 1...1 0 1 0 Pre Start 1 0 0 0 0 Write OP (Code) PHY Address 0x01 1 0 0 0 0 0 Reg. Address 0x00(BMCR) 1 0 0 0 0 Turn 1 0 0 1 1 0 1 0 0 0 0 0 0 z Reg. Data 0x 1340 Around Idle Figure 7. Write Cycle Name Preamble ST OP PHYAD REGAD TA DATA IDLE Table 41. Serial Management Description 32 Contiguous Logical 1’s Sent by the MAC on MDIO, along with 32 Corresponding Cycles on MDC. This provides synchronization for the PHY. Start of Frame. Indicated by a 01 pattern. Operation Code. Read: 10 Write: 01 PHY Address. Up to 4 PHYs can be connected to one MAC. This 2-bit field selects which PHY the frame is directed to. Register Address. This is a 5-bit field that sets which of the 32 registers of the PHY this operation refers to. Turnaround. This is a 2-bit-time spacing between the register address and the data field of a frame to avoid contention during a read transaction. For a read transaction, both the STA and the PHY remain in a high-impedance state for the first bit time of the turnaround. The PHY drives a zero bit during the second bit time of the turnaround of a read transaction. Data. These are the 16 bits of data. Idle Condition. Not truly part of the management frame. This is a high impedance state. Electrically, the PHY’s pull-up resistor will pull the MDIO line to a logical ‘1’. Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 30 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 8.2. Interrupt Whenever there is a status change on the media detected by the RTL8201F/FL/FN, they will drive the interrupt pin (INTB) low to issue an interrupt event. The MAC senses the status change and accesses the page0 register30 through the MDC/MDIO interface in response. Once these status registers page0 register30 have been read by the MAC through the MDC/MDIO, the INTB is de-asserted. The RTL8201FN/FL interrupt function removes the need for continuous polling through the MDC/MDIO management interface. Note 1: The RTL8201F RXD[2]/INTB pin (Pin11) is used for the interrupt function only when in the RMII mode. Note 2: The Interrupt function is disabled by default. To enable this function, refer to Table 30, page 24 (Page7 Register 19 Bit[13:11]). 8.3. Auto-Negotiation and Parallel Detection The RTL8201F/FL/FN supports IEEE 802.3u clause 28 Auto-negotiation for operation with other transceivers supporting auto-negotiation. The RTL8201F/FL/FN can auto-detect the link partner’s abilities and determine the highest speed/duplex configuration possible between the two devices. If the link partner does not support auto-negotiation, then the RTL8201F/FL/FN will enable half-duplex mode and enter parallel detection mode. The RTL8201F/FL/FN will default to transmitting FLP (Fast Link Pulse) and wait for the link partner to respond. If the RTL8201F/FL/FN receives a FLP, then the autonegotiation process will continue. If it receives an NLP (Normal Link Pulse), then the RTL8201F/FL/FN will change to 10Mbps and half-duplex mode. If it receives a 100Mbps IDLE pattern, it will change to 100Mbps and half-duplex mode. 8.3.1. Setting the Medium Type and Interface Mode to MAC FXEN H H H L L L Table 42. Setting the Medium Type and Interface Mode to MAC RXDV Operation Mode L Fiber Mode and MII Mode H Fiber Mode and RMII Mode X Fiber Mode and MII Mode L UTP Mode and MII Mode H UTP Mode and RMII Mode X UTP Mode and MII Mode Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 31 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 8.4. LED Functions The RTL8201FN supports three LED signals, and the RTL8201F and RTL8201FL support two LED signals, in four configurable operation modes. The following sections describe the various LED actions. 8.4.1. LED and PHY Address As the PHYAD strap options share the LED output pins, the external combinations required for strapping and LED usage must be considered in order to avoid contention. Specifically, when the LED outputs are used to drive LEDs directly, the active state of each output driver is dependent on the logic level sampled by the corresponding PHYAD input upon power-up/reset. For example, as Figure 8 (left-side) shows, if a given PHYAD input is resistively pulled high then the corresponding output will be configured as an active low driver. On the right side, we can see that if a given PHYAD input is resistively pulled low then the corresponding output will be configured as an active high driver. The PHY address configuration pins should not be connected to GND or VCC directly, but must be pulled high or low through a resistor (e.g., 4.7KΩ). If no LED indications are needed, the components of the LED path (LED+510Ω) can be removed. PHY Address[:] = Logical 1 PHY Address[:] Logical 0 = LED Indication = Active low LED Indication Active high = Figure 8. LED and PHY Address Configuration 8.4.2. Link Monitor The Link Monitor senses link integrity, such as LINK10, LINK100, LINK10/ACT, or LINK100/ACT. Whenever link status is established, the specific link LED pin is driven low. Once a cable is disconnected, the link LED pin is driven high, indicating that no network connection exists. Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 32 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 8.4.3. RX LED In 10/100M mode, blinking of the RX LED indicates that receive activity is occurring. Figure 9. RX LED 8.4.4. TX LED In 10/100M mode, blinking of the TX LED indicates that transmit activity is occurring. Figure 10. TX LED Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 33 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 8.4.5. TX/RX LED In 10/100M mode, blinking of the TX/RX LED indicates that both transmit and receive activity is occurring. Figure 11. TX/RX LED 8.4.6. LINK/ACT LED In 10/100M mode, blinking of the LINK/ACT LED indicates that the RTL8201F/FL/FN is linked and operating properly. When this LED is high for extended periods, it indicates that a link problem exists. Figure 12. LINK/ACT LED Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 34 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 8.4.7. Customized LED The RTL8201F/FL/FN supports programmable LEDs in 10/100Mbps mode. This function can be enabled/disabled via page7, reg19[3] register (Figure 13). Refer to section 7.17, page 23 for customized LED register setting. Figure 13. Customized LED with/without LPI LED Mode Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 35 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 8.4.8. EEE LED Behavior EEE Idle mode: LED continuous slow blinking. EEE Active mode: LED fast and slow blinking (on packet transmission and reception). Refer to Table 29, page 23 for EEE LED enable setting. Figure 14. EEE LED Behavior 8.5. Power Down and Link Down Power Saving Modes Two types of Power Saving mode operation are supported. This section describes how to implement each mode through software. Table 43. Power Saving Mode Pin Settings Mode PWD LDPS Description Setting bit 11 of register 0 to 1 puts the RTL8201F/FL/FN into Power Down Mode (PWD). This is the maximum power saving mode while the RTL8201F/FL/FN is still ‘live’. In PWD mode, the RTL8201F/FL/FN will turn off all analog/digital functions except the MDC/MDIO management interface. Therefore, if the RTL8201F/FL/FN is put into PWD mode and the MAC wants to recall the PHY, it must create the MDC/MDIO timing by itself (this is done by software). Setting bit 15 of register 24 to 1 will put the RTL8201F/FL/FN into LDPS (Link Down Power Saving) mode. In LDPS mode, the RTL8201F/FL/FN will detect the link status to decide whether or not to turn off the transmit function. If the link is off, FLP or 100Mbps IDLE/10Mbps NLP will not be transmitted. However, some signals similar to NLP will be transmitted. Once the receiver detects leveled signals, it will stop the signal and transmit FLP or 100Mbps IDLE/10Mbps NLP again. This can cut power used by 60%~80% when the link is down. Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 36 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 8.6. 10M/100M Transmit and Receive 8.6.1. 100Base-TX Transmit and Receive Operation 100Base-TX Transmit Transmit data in 4-bit nibbles (TXD[3:0]) clocked at 25MHz (TXC) is transformed into 5B symbol code (4B/5B encoding). Scrambling, serializing, and conversion to 125MHz, and NRZ to NRZI then takes place. After this process, the NRZI signal is passed to the MLT-3 encoder, then to the transmit line driver. The transmitter will first assert TXEN. Before transmitting the data pattern, it will send a /J/K/ symbol (Start-of-frame delimiter), the data symbol, and finally a /T/R/ symbol known as the End-Of-Frame delimiter. For better EMI performance, the seed of the scrambler is based on the PHY address. In a hub/switch environment, each RTL8201F/FL/FN will have different scrambler seeds and so spread the output of the MLT-3 signals. 100Base-TX Receive The received signal is compensated by the adaptive equalizer to make up for signal loss due to cable attenuation and Inter Symbol Interference (ISI). Baseline Wander Correction monitors the process and dynamically applies corrections to the process of signal equalization. The Phase Locked Loop (PLL) then recovers the timing information from the signals and from the receive clock. With this, the received signal is sampled to form NRZI (Non-Return-to-Zero Inverted) data. The next steps are the NRZI to NRZ (NonReturn-to-Zero) process, unscrambling of the data, serial to parallel and 5B to 4B conversion, and passing of the 4B nibble to the MII interface. 8.6.2. 100Base-FX Fiber Transmit and Receive Operation The RTL8201F/FL/FN can be configured to 100Base-FX mode via hardware configuration. The hardware 100Base-FX setting takes priority over NWay settings. A scrambler is not required in 100Base-FX. 100Base-FX Transmit Di-bits of TXD are processed as 100Base-TX except without a scrambler before the NRZI stage. Instead of converting to MLT-3 signals, as in 100Base-TX, the serial data stream is driven out as NRZI PECL signals, which enter the fiber transceiver in differential-pair form. 100Base-FX Receive The signal is received through PECL receiver inputs from the fiber transceiver and directly passed to the clock recovery circuit for data/clock recovery. The scrambler/de-scrambler is bypassed in 100Base-FX. 8.6.3. 10Base-T Transmit and Receive Operation 10Base-T Transmit Transmit data in 4-bit nibbles (TXD[3:0]) clocked at 2.5MHz (TXC) is first fed to a parallel-to-serial converter, then the 10Mbps NRZ signal is sent to a Manchester encoder. The Manchester encoder converts the 10Mbps NRZ data into a Manchester Encoded data stream for the TP transmitter and adds a Start of Idle pulse (SOI) at the end of the packet as specified in IEEE 802.3. Finally, the encoded data stream is shaped by a band-limited filter embedded in the RTL8201F/FL/FN and then transmitted. Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 37 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 10Base-T Receive In 10Base-T receive mode, the Manchester decoder in the RTL8201F/FL/FN converts the Manchester encoded data stream into NRZ data by decoding the data and stripping off the SOI pulse. The serial NRZ data stream is then converted to a parallel 4-bit nibble signal (RXD[0:3]). 8.7. Reset and Transmit Bias There are two RTL8201F/FL/FN reset types: 1. Hardware Reset: Pull the PHYRSTB pin high for at least 150ms to access the RTL8201F/FL/FN registers. Pull the PHYRSTB pin low for at least 10ms and then pull high. All registers will return to default values after a hardware reset. The media interface will disconnect and restart the autonegotiation/parallel detection process. 2. Software Reset: Set register 0 bit 15 to 1 for at least 20ms to access the RTL8201F/FL/FN registers. A Software reset will only partially reset the registers, and will reset the chip status to ‘initializing’. The RSET pin must be pulled low by a 2.49KΩ resistor with 1% accuracy to establish an accurate transmit bias. This will affect the signal quality of the transmit waveform. Keep its circuitry away from other clock traces and transmit/receive paths to avoid signal interference. 8.8. 3.3V Power Supply and Voltage Conversion Circuit The RTL8201F/FL/FN is fabricated in a 0.11µm process. The core circuit needs to be powered by 1.1V, however, the digital IO and DAC circuits need a 3.3V power supply. Regulators are embedded in the RTL8201F/FL/FN to convert 3.3V to 1.1V. Note: The internal linear regulator output voltage is 1.1V. A 1.05V is supplied when using external core power. The external 1.05V power supply is not suggested for the RTL8201F/FL as the internal regulators cannot be disabled (the RTL8201F/FL does not have an EN_LDO_OUT pin to disable the internal 1.1V power supply), and the internal and external power sources may conflict. As with many commercial voltage conversion devices, the 1.1V output pin of this circuit requires the use of an output capacitor (0.1µF X5R low-ESR ceramic capacitor) as part of the device frequency compensation. The analog and digital ground planes should be as large and intact as possible. If the ground plane is large enough, the analog and digital grounds can be separated, which is the ideal configuration. However, if the total ground plane is not sufficiently large, partition of the ground plane is not a good idea. In this case, all the ground pins can be connected together to a larger single and intact ground plane. Note: The embedded 1.1V LDO is designed for PHYceiver device internal use only. Do not provide this power to other devices. Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 38 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 8.9. Automatic Polarity Correction The RTL8201F/FL/FN automatically corrects polarity errors on the receive pairs in 10Base-T mode (polarity is irrelevant in 100Base-TX mode). In 10Base-T mode, polarity errors are corrected based on the detection of validly spaced link pulses. Detection begins during the MDI crossover detection phase and locks when the 10Base-T link is up. The polarity becomes unlocked when the link goes down. 8.10. Far End Fault Indication The MII Reg.1.4 (Remote Fault) is the Far End Fault Indication (FEFI) bit when 100FX mode is enabled, and indicates when a FEFI has been detected. FEFI is an alternative in-band signaling method that is composed of 84 consecutive ‘1’s followed by one ‘0’. When the RTL8201F/FL/FN detects this pattern three times, Reg.1.4 is set, which means the transmit path (the Remote side’s receive path) has a problem. On the other hand, if an incoming signal fails to cause a ‘Link OK’, the RTL8201F/FL/FN will start sending this pattern, which in turn causes the remote side to detect a Far End Fault. This means that the receive path has a problem from the point of view of the RTL8201F/FL/FN. The FEFI mechanism is used only in 100Base-FX mode. 8.11. Wake-On-LAN (WOL) 8.11.1. Magic Packet and Wake-Up Frame Format The RTL8201F/FL/FN can monitor the network for a Wake-Up Frame or a Magic Packet, and notify the system via the PMEB (Power Management Event; ‘B’ means low active) pin when such a packet or event occurs. The system can then be restored to a normal state to process incoming jobs. The PMEB pin must be connected with a 4.7k-ohm resistor and pulled up to 3.3V. When the Wake-Up Frame or a Magic Packet is sent to the PHY, the PMEB pin will be set low to notify the system to wake up. Refer to the WOL application note for details. Magic Packet Wake-Up occurs only when the following conditions are met: • The destination address of the received Magic Packet is acceptable to the RTL8201F/FL/FN, e.g., a broadcast, multicast, or unicast packet addressed to the current RTL8201F/FL/FN. • The received Magic Packet does not contain a CRC error. • The Magic Packet pattern matches; i.e., 6 * FFh + MISC (can be none) + 16 * DID (Destination ID) in any part of a valid Ethernet packet. A Wake-Up Frame event occurs only when the following conditions are met: • The destination address of the received Wake-Up Frame is acceptable to the RTL8201F/FL/FN, e.g., a broadcast, multicast, or unicast address to the current RTL8201F/FL/FN. • The received Wake-Up Frame does not contain a CRC error. Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 39 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet • The 16-bit CRC of the received Wake-Up Frame matches the 16-bit CRC of the sample Wake-Up Frame pattern given by the local machine’s OS. Or, the RTL8201F/FL/FN is configured to allow direct packet wake up, e.g., a broadcast, multicast, or unicast network packet. Note 1: 16-bit CRC: The RTL8201F/FL/FN supports eight long-Wake-Up frames (covering 128 mask bytes from offset 0 to 127 of any incoming network packet). CRC16 polynomial=x16+x12+x5+1. Note 2: Refer to the WOL Application Note for detailed Wake-On-LAN register settings and waveform timings. 8.11.2. Active Low Wake-On-LAN When the PHY receives a Wake-Up Frame or a Magic Packet from the link partner, the PMEB pin will go low and the MAC will wake up after a T cycle. The PMEB pin will be reset to high via the system or MAC (Figure 15 and Figure 16). Refer to the WOL Application Note for details. Figure 15. Active Low When Receiving a Magic Packet Figure 16. Active Low When Receiving a Wake-Up Frame Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 40 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 8.11.3. Pulse Low Wake-On-LAN When the PHY receives a Wake-Up Frame or a Magic Packet from the link partner, the PMEB pin will go low for a period (84ms, 168ms (default), 336ms, or 672ms; set through the MDC/MDIO), and will wake up after a T cycle (Figure 17 and Figure 18). Refer to the WOL Application Note for details. WOL Enable From Link Partner Magic Packet PMEB T Period controlled by the PHY Figure 17. Pulse Low When Receiving a Magic Packet WOL Enable From Link Partner Wake Up Frame PMEB T Period controlled by the PHY Figure 18. Pulse Low When Receiving a Wake-Up Frame Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 41 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 8.11.4. Wake-On-LAN Pin Types (MII Mode) Table 44. Wake-On-LAN Pin Types (MII Mode) Name Type Normal 100M 10M Idle TXC O/PD 25M CLK Output 2.5M CLK Output 2.5M CLK Output TXEN I/PD I I I TXD[0:3] I/PD I I I RXC O/PD 25M CLK Output 2.5M CLK Output 2.5M CLK Output COL LI/O/PD O O O CRS LI/O/PD O O O RXDV LI/O/PD O O O RXD[0:2] O/PD O O O RXD[3] LI/O/PD O O O RXER LI/O/PD O O O MDC I/PU I I I MDIO IO/PU IO IO IO Note 1: If TX Isolate=1, the TXC is halted and the pin type is ‘L’. Set page0, register0, and bit10=1 to change the TXC pin type to ‘PD’. Note 2: If RX Isolate=1, all the MII RX interfaces are halted and the pin types are ‘PD’. WOL Enable O (2.5M/25M)/L/PD1 I/PD I/PD O (2.5M/25M)/PD2 O or PD2 O or PD2 O or PD2 O or PD2 O or PD2 O or PD2 I/PU IO/PU 8.11.5. Wake-On-LAN Pin Types (RMII Mode) Table 45. Wake-On-LAN Pin Types (RMII Mode) Normal WOL Enable 100M 10M Idle 50M CLK 50M CLK 50M CLK I/O (50M)2 TXC (REF_CLK)1 IO/PD Input/Output Input/Output Input/Output TXEN I/PD I I I I/PD TXD[0:1] I/PD I I I I/PD CRS_DV LI/O/PD O O O O or PD3 RXD[0:1] O/PD O O O O or PD3 RXER LI/O/PD O O O O or PD3 MDC I/PU I I I I/PU MDIO IO/PU IO IO IO IO/PU Note 1: If TXC (REF_CLK) is in input mode (MAC to PHY), the REF_CLK cannot halt at WOL Enable. Note 2: When REF_CLK is in output mode (PHY to MAC), the REF_CLK cannot halt (always toggles 50MHz out). To set the TXC pin type to ‘PD’, set page0, register0, bit10=1. Note 3: If RX Isolate=1, all RMII RX interfaces are halted and the pin types are ‘PD’. Name Type Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 42 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 8.12. Energy Efficient Ethernet (EEE) The RTL8201F/FL/FN supports IEEE 802.3az-2010, also known as Energy Efficient Ethernet (EEE), at 10Mbps and 100Mbps. It provides a protocol to coordinate transitions to/from a lower power consumption level (Low Power Idle mode) based on link utilization. When no packets are being transmitted, the system goes to Low Power Idle mode to save power. When packets need to be transmitted, the system returns to normal mode, and does this without changing the link status and without dropping/corrupting frames. To save power, when the system is in Low Power Idle mode, most of the circuits are disabled; however, the transition time to/from Low Power Idle mode is kept small enough to be transparent to upper layer protocols and applications. EEE also specifies a negotiation method to enable link partners to determine whether EEE is supported. Refer to http://www.ieee802.org/3/az/index.html for more details. Refer to the ‘RTL8201(F_FL_FN)_Ethernet_Transceiver_(R)MII_EEE_App_Note’ for EEE MII/RMII power saving mode register settings. 8.13. Spread Spectrum Clock (SSC) The RMII REF_CLK path can be a source of EMI noise. Spread Spectrum Clock (SSC) spreads the REF_CLK signal across a wider bandwidth, reducing the peak radiated energy at any one frequency, and lowering unwanted EMI noise. The SSC function is enabled by default when using RMII REF_CLK output mode (see section 7.21 Page 7 Register 24 Spread Spectrum Clock Register, page 25). Figure 19. Spectrum Spread Clock Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 43 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 9. Characteristics 9.1. DC Characteristics 9.1.1. Absolute Maximum Ratings Table 46. Absolute Maximum Ratings Symbol Description Minimum Maximum DVDD33, AVDD33 Supply Voltage 3.3V -0.4 +3.7 -0.1 +1.26 DVDD10, DVDD10OUT, Supply Voltage 1.05V* AVDD10OUT DC Input Input Voltage -0.3 Corresponding Supply Voltage +0.5V DC Output Output Voltage -0.3 Corresponding Supply Voltage +0.5V Storage Temperature N/A -55 +125 Note: The internal linear regulator output voltage is 1.1V. 9.1.2. Unit V V V V °C Recommended Operating Conditions Table 47. Recommended Operating Conditions Description Pins Minimum Typical Supply Voltage VDD DVDD33, AVDD33 2.97 3.30 DVDD10, DVDD10OUT, 1.00 1.05* AVDD10OUT Ambient Operating Temperature TA 0 Maximum Junction Temperature Note: The internal linear regulator output voltage is 1.1V. Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 44 Maximum 3.63 1.16 70 125 Track ID: JATR-2265-11 Unit V V °C °C Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 9.1.3. Power On and PHY Reset Sequence The RTL8201F/FL/FN needs 150ms power on time. After 150ms it can access the PHY register from MDC/MDIO. Figure 20. Power On and PHY Reset Sequence Table 48. Power On and PHY Reset Sequence Symbol Description Minimum Rt1 3.3V Rise Time@ Power On Sequence 100µs Rt2 1.05V Rise Time@ Power On and PHY Reset Sequence 100µs Rt3 PHYRSTB De-Assert after PHY_3.3V Stable 80µs Note: Rt2 requires 100µs Rise Time only when using an external 1.05V power supply. Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 45 Maximum - Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 9.1.4. RMII Input Mode Power Dissipation The whole system power dissipation (including regulator loss) is shown in Table 49. Table 49. RMII Input Mode Power Dissipation (Whole System) Symbol Condition RTL8201F RTL8201FN RTL8201FL P10IDLE 10Base-T Idle (EEE not Enabled) 36.3 36.3 36.3 P10F 10Base-T Full Duplex 108.9 118.8 108.9 P100IDLE 100Base-T Idle (EEE not Enabled) 148.5 151.8 155.1 P100IDLEEEE 100Base-T Idle with EEE 56.1 56.1 62.7 P100F 100Base-T Full Duplex 174.9 178.2 178.2 PLDPS Link Down Power Saving 20.328 17.985 23.1 PPHYRST PHY Reset 3.3 3.3 3.3 Note: Setting page 4 register 21 bit12 to ‘1’ will reduce power consumption when the system is idle. 9.1.5. Unit mW mW mW mW mW mW mW Input Voltage: Vcc Table 50. Input Voltage: Vcc Symbol TTL VIH TTL VIL TTL VOH TTL VOL TTL IOZ IIN IPL IPH PECL VIH PECL VIL PECL VOH PECL VOL Condition Input High Voltage Input Low Voltage Output High Voltage Output Low Voltage Tri-State Leakage Input Current Input Current with Internal Weakly Pulled Low Resistor Input Current with Internal Weakly Pulled High Resistor PECL Input High Voltage PECL Input Low Voltage PECL Output High Voltage PECL Output Low Voltage IOH=-8mA IOL=8mA Vout=Vcc or GND Vin=Vcc or GND Vin=Vcc or GND Minimum 0.5*Vcc -0.5V 0.65*Vcc -110µA -1µA -1µA Maximum Vcc+0.5V 0.7V Vcc 0.7V 10µA 10µA 100µA Vin=Vcc or GND -110µA 10µA - Vdd-1.16V Vdd-1.81V Vdd-1.02V - Vdd-0.88V Vdd-1.47V Vdd-1.62V Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 46 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 9.2. AC Characteristics All output timing assumes equivalent loading between 10pF and 25pF that includes PCB layout traces and other connected devices (e.g., MAC). 9.2.1. MII Transmission Cycle Timing Figure 21. MII Interface Setup/Hold Time Definitions Figure 22 and Figure 23 and show an example of a packet transfer from MAC to PHY on the MII interface. t3 VI H(min) VI L(max) TXCLK t4 t5 t1 t2 VI H(min) VI L(max) TXD[0:3] TXEN Figure 22. MII Transmission Cycle Timing-1 TXCLK TXEN TXD[0:3] t6 t7 CRS Figure 23. MII Transmission Cycle Timing-2 Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 47 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet Symbol t1 t2 t3 t4 t5 t6 t7 9.2.2. Table 51. MII Transmission Cycle Timing Description Minimum TXCLK High Pulse Width 100Mbps 14 10Mbps 140 TXCLK Low Pulse Width 100Mbps 14 10Mbps 140 TXCLK Period 100Mbps 10Mbps TXEN, TXD[0:3] 100Mbps 10 Setup to TXCLK Rising Edge 10Mbps 5 TXEN, TXD[0:3] 100Mbps 0 Hold After TXCLK Rising Edge 10Mbps 0 TXEN Sampled to CRS High 100Mbps 10Mbps TXEN Sampled to CRS Low 100Mbps 10Mbps - Typical 20 200 20 200 40 400 - Maximum 26 260 26 260 40 400 160 2000 Unit ns ns ns ns ns ns ns ns ns ns ns ns ns ns MII Reception Cycle Timing Figure 24 and Figure 25 show an example of a packet transfer from PHY to MAC on the MII interface. t3 V RXCLK V t4 t1 t5 I H(min) I L(max) t2 RXD[0:3] RXDV RXER V V I H(min) I L(max) Figure 24. MII Reception Cycle Timing-1 RXCLK t9 t8 RXDV RXD[0:3] t6 t7 CRS TPRX+Figure 25. MII Reception Cycle Timing-2 Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 48 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet Symbol t1 t2 t3 t4 t5 t6 t7 t8 t9 9.2.3. Table 52. MII Reception Cycle Timing Minimum 100Mbps 14 10Mbps 140 RXCLK Low Pulse Width 100Mbps 14 10Mbps 140 RXCLK Period 100Mbps 10Mbps RXER, RXDV, RXD[0:3] 100Mbps 10 Setup to RXCLK Rising Edge 10Mbps 10 RXER, RXDV, RXD[0:3] 100Mbps 10 Hold After RXCLK Rising Edge 10Mbps 10 Receive Frame to CRS High 100Mbps 10Mbps End of Receive Frame to CRS Low 100Mbps 10Mbps Receive Frame to Sampled Edge of RXDV 100Mbps 10Mbps End of Receive Frame to Sampled Edge of RXDV 100Mbps 10Mbps - Description RXCLK High Pulse Width Typical 20 200 20 200 40 400 - Maximum 26 260 26 260 130 2000 240 1000 150 3200 120 1000 Unit ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns ns RMII Transmission and Reception Cycle Timing MAC to PHY Setup/Hold Time RMII TX RTL8201F-VB/ RTL8201FL-VB/ RTL8201FN-VB REFCLK MAC RMII RX PHY to MAC Output Delay Time Figure 26. RMII Interface Setup, Hold Time, and Output Delay Time Definitions Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 49 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet Figure 27. RMII Transmission and Reception Cycle Timing Table 53. RMII Transmission and Reception Cycle Timing Description Minimum Typical Maximum Unit Frequency of Reference Clock 50 MHz Duty Cycle of Reference Clock 35 65 % TXD[1:0]/TXEN Setup Time to REFCLK 4 ns TXD[1:0]/TXEN Hold Time from REFCLK 2 ns 2 ns RXD[1:0]/CRS_DV/RXER Output Delay Time from REFCLK Note 1: RMII TX timing can be adjusted by setting page7, register16[11:8]; the minimum adjustable resolution is 2ns. Any changes for these bits are not recommended as the default value is the optimum setting. Note 2: RMII RX timing can be adjusted by setting page7, register16[7:4]; the minimum adjustable resolution is 2ns. Any changes for these bits are not recommended as the default value is the optimum setting. Symbol REFCLK Frequency REFCLK Duty Cycle T_ipsu_tx_rmii T_iphd_tx_rmii T_ophd_rx_rmii Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 50 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 9.2.4. MDC/MDIO Timing Figure 28. MDC/MDIO Interface Setup, Hold Time, and Valid from MDC Rising Edge Time Definitions Figure 29. MDC/MDIO Timing Symbol t1 t2 t3 t4 t5 t6 Table 54. MDC/MDIO Timing Description Minimum MDC High Pulse Width 160 MDC Low Pulse Width 160 MDC Period 400 MDIO Setup to MDC Rising Edge 10 MDIO Hold Time from MDC Rising Edge 10 MDIO Valid from MDC Rising Edge 0 Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 51 Maximum 300 Unit ns ns ns ns ns ns Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 9.2.5. Transmission without Collision Figure 30 shows an example of a packet transfer from MAC to PHY. Figure 30. MAC to PHY Transmission without Collision 9.2.6. Reception without Error Figure 31 shows an example of a packet transfer from PHY to MAC. Figure 31. PHY to MAC Reception Without Error Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 52 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 9.3. Crystal Characteristics Table 55. Crystal Characteristics Symbol Description/Condition Minimum Fref Parallel Resonant Crystal Reference Frequency, Fundamental Mode, AT-Cut Type. -30 Fref Stability Parallel Resonant Crystal Frequency Stability, Fundamental Mode, AT-Cut Type. Ta=0°C~70°C. -50 Fref Tolerance Parallel Resonant Crystal Frequency Tolerance, Fundamental Mode, AT-Cut Type. Ta=25°C. Fref Duty Cycle Reference Clock Input Duty Cycle. 40 ESR Equivalent Series Resistance. DL Drive Level. Jitter Broadband Peak-to-Peak Jitter1, 2 Note 1: 25KHz to 25MHz RMS < 3ps. Note 2: Broadband RMS < 9ps. 9.4. Typical 25 Maximum - Unit MHz - +30 ppm - +50 ppm - 60 30 0.3 500 % Ω mW ps Oscillator Requirements Parameter Frequency Frequency Stability Frequency Tolerance Duty Cycle Broadband Peak-to-Peak Jitter1, 2 Vpeak-to-peak Rise Time (10%~90%) Fall Time (10%~90%) Operating Temperature Range Note 1: 25KHz to 25MHz RMS < 3ps. Note 2: Broadband RMS < 9ps. Table 56. Oscillator Requirements Condition Minimum Typical 25/50 Ta = 0°C~+70°C -30 Ta = 25°C -50 40 3.15 3.3 0 - Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 53 Maximum 30 50 60 500 3.45 10 10 70 Track ID: JATR-2265-11 Unit MHz ppm ppm % ps V ns ns °C Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 9.5. Clock Requirements Parameter Frequency Frequency Stability Frequency Tolerance Duty Cycle Broadband Peak-to-Peak Jitter1, 2 Vpeak-to-peak Rise Time (10%~90%) Fall Time (10%~90%) Note 1: 25KHz to 25MHz RMS < 3ps. Note 2: Broadband RMS < 9ps. Table 57. Clock Requirements Minimum Typical 25/50 -30 -50 40 3.15 3.3 - Maximum 30 50 60 500 3.45 10 10 Unit MHz ppm ppm % ps V ns ns 9.6. Transformer Characteristics Parameter Turn Ratio Inductance (min.) Table 58. Transformer Characteristics Transmit End 1:1 CT 350µH @ 8mA Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 54 Receive End 1:1 CT 350µH @ 8mA Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 10. Mechanical Dimensions 10.1. RTL8201F (QFN-32) Symbol A A1 A3 b c D/E D2/E2 e L Min 0.75 0.00 0.18 3.10 0.30 Dimension in mm Nom 0.85 0.02 0.20REF 0.25 5.00BSC 3.35 0.50BSC 0.40 Max 1.00 0.05 Min 0.030 0.000 0.30 0.6 0.007 - 3.60 0.122 0.50 0.012 Dimension in inch Nom 0.034 0.001 0.008REF 0.010 0.197BSC 0.132 0.020BSC 0.016 Max 0.039 0.002 0.012 0.024 0.142 0.020 Note 1: CONTROLLING DIMENSION: MILLIMETER (mm). Note 2: REFERENCE DOCUMENT: JEDEC MO-220. Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 55 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 10.2. RTL8201FL (LQFP-48) Symbol Min Dimension in mm Nom Min Dimension in inch Nom Max Max A - - 1.60 - - 0.063 A1 0.05 - 0.15 0.002 - 0.006 A2 1.35 1.40 1.45 0.053 0.055 0.057 b 0.17 0.22 0.27 0.007 0.009 0.011 D/E 9.00BSC 0.354BSC D1/E1 7.00BSC 0.276BSC e 0.50BSC 0.020BSC L 0.45 0.60 0.75 0.018 L1 1.00REF Note 1: CONTROLLING DIMENSION: MILLIMETER (mm). Note 2: REFERENCE DOCUMENT: JEDEC MS-026. Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 0.024 0.030 0.039REF 56 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 10.3. RTL8201FN (QFN-48) Symbol Dimension in mm Nom Max A 0.85 1.00 A1 0.02 0.05 A3 0.20REF b 0.15 0.20 0.25 D/E 6.00BSC D2/E2 4.05 4.4 4.65 e 0.40BSC L 0.30 0.40 0.50 Notes 1: CONTROLLING DIMENSION: MILLIMETER (mm). Note 2: REFERENCE DOCUMENT: JEDEC MO-220. Min 0.75 0.00 Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX Min 0.030 0.000 0.006 0.163 0.012 57 Dimension in inch Nom 0.034 0.001 0.008REF 0.008 0.236BSC 0.173 0.016BSC 0.016 Max 0.039 0.002 0.010 0.183 0.020 Track ID: JATR-2265-11 Rev. 1.4 RTL8201F/RTL8201FL/RTL8201FN Datasheet 11. Ordering Information Table 59. Ordering Information Part Number Package RTL8201F-VB-CG 32-Pin QFN ‘Green’ Package (for details see Table 60 below) RTL8201FL-VB-CG 48-Pin LQFP ‘Green’ Package (for details see Table 60 below) RTL8201FN-VB-CG 48-Pin QFN ‘Green’ Package (for details see Table 60 below) Note: See page 5, 6, and 7 for package identification. Status 11.1. RTL8201F Series Selection Guide Part Number RTL8201F-VB-CG RTL8201FL-VB-CG RTL8201FN-VB-CG Table 60. RTL8201F Series Selection Guide REF_CLK WOL Interface Package Direction EEE INTB (PMEB Pin) H/W Strap RMII QFN32 Yes Yes Yes Yes* MII RMII LQFP48 Yes Yes Yes Yes MII RMII MII QFN48 Yes Yes Yes Number of LEDs Co-Layout Solution 2 RTL8201E-VC Yes 2 3 RTL8201EL RTL8201EL-VC RTL8211D-VB RTL8211E-VB RTL8201EN-VC Note: The RTL8201F INTB pin is used for the interrupt function only when in the RMII mode. Realtek Semiconductor Corp. Headquarters No. 2, Innovation Road II, Hsinchu Science Park, Hsinchu 300, Taiwan. Tel: 886-3-578-0211 Fax: 886-3-577-6047 www.realtek.com Single-Chip/Port 10/100M Ethernet PHYceiver with Auto MDIX 58 Track ID: JATR-2265-11 Rev. 1.4
