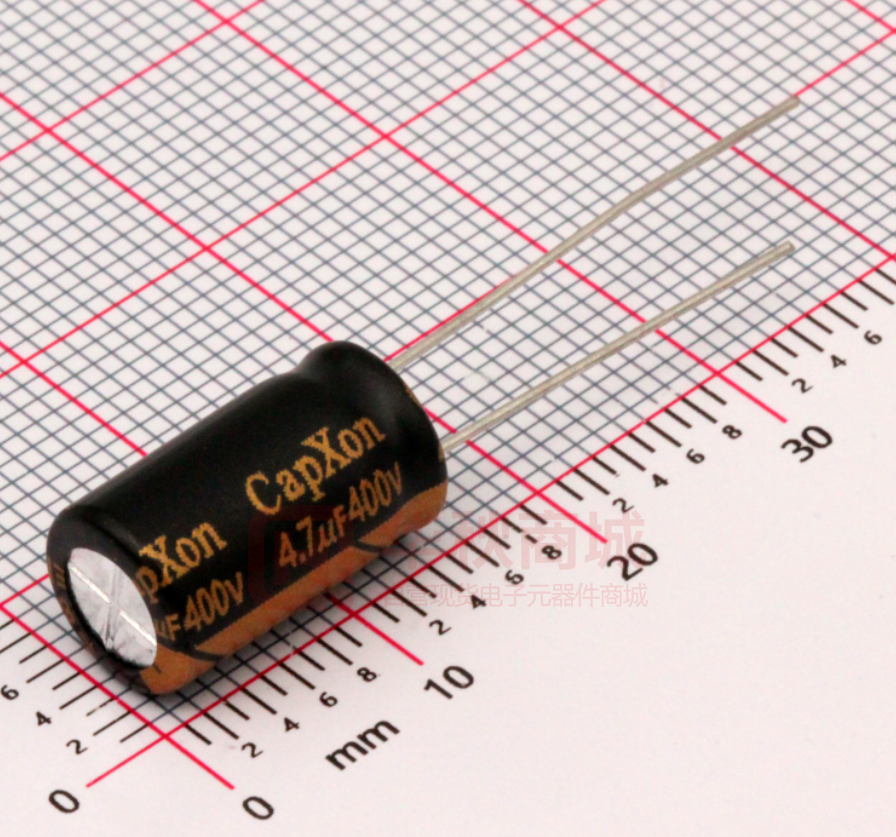

FK4R7M400F140A

FK Series FK Series Long Life for ballast 105℃ Features ◆ Specially designed for electronic ballast and energy-save lamp ◆ Load life 6000~8000 hrs at 105℃ ◆ Safety vent construction design. ◆ For detail specifications, please refer to Engineering Bulletin NO. E167 ◆ RoHS Compliant Specifications Item Performance Characteristics Operating Temperature Range -25~+105℃ Rated Voltage Range 160~450 VDC Capacitance Range 1 to 330μF Capacitance Tolerance ±20%(120Hz,+20℃) Leakage Current (+20℃,max.) Dissipation Factor (tanδ，at 20℃，120Hz) I≦0.04 CV +100 (μA)After 1 minute with rated working voltage applied. Working Voltage(VDC) 160 200 250 350 400 450 D.F.(%)max. 10 10 10 12 12 12 160 200 250 350 400 450 3 3 3 6 6 6 Impedance ratio max Low Temperature Characteristics (at 120Hz) Working voltage(VDC) Z-25℃ / Z+20℃ Test condition Duration time :As right Ambient temperature :+105℃ Applied voltage :Rated DC working voltage After test requirement at +20℃ Capacitance change : with±20% of the initial measured value Dissipation factor : ≦200% of the initial specified value Leakage current : ≦The initial specified value Load Life Test condition Duration time Ambient temperature Applied voltage Shelf Life Dφ Life (hours) 8φ 6000 ≧10φ 8000 :1000Hrs :+105℃ :None After test requirement at +20℃:Same limits as Load life. Pre-treatment for measurements shall be conducted after application of DC working voltage for 30 minutes. Multiplier for Ripple Current vs. Frequency Frequency (Hz) 120 1K 10K 10K≦ Multiplier 1.0 1.5 1.70 1.90 Diagram of Dimensions:(unit:mm) Dφ F dφ 8 3.5 L＜20 0.5 L≧20 0.6 D＜18 α 148 1.5 10 5.0 13 5.0 16 7.5 0.6 D＝18 L＜35.5 L≧35.5 1.5 2.0 18 7.5 0.8 D＞18 2.0 FK Series Case Size φDxL(mm) 160 (200) WV(SV) Cap(μF) Size 200 (250) Ripple Size 250 (300) Ripple Size 350 (400) Ripple 1.0 400 (450) 450 (500) Size Ripple Size Ripple Size Ripple 8X11.5 75 8X11.5 65 8X11.5 85 2.2 8X11.5 70 8X11.5 80 8X11.5 85 10X12.5 90 3.3 8X11.5 75 10X12.5 85 10X12.5 95 10X16 105 4.7 8X11.5 80 10X12.5 100 10X12.5 100 10X16 110 10X16 115 6.8 8X11.5 100 10X12.5 105 10X16 110 10X16 115 10X20 125 10 10X12.5 105 10X12.5 115 10X16 130 10X20 140 10X20 160 13X20 175 22 10X16 170 10X16 170 10X20 190 13X20 245 13X20 230 16X21 275 33 10X20 235 10X20 245 13X20 305 13X25 340 13X25 310 16X25 370 47 13X20 285 13X20 370 13X25 370 16X25 410 16X31.5 445 18X25 455 68 13X20 445 13X 25 425 16X25 495 18X25 530 18X31.5 550 18X31.5 600 100 16X21 550 16X25 600 16X31.5 645 18X35.5 665 18X41 750 150 16X25 655 16X31.5 825 18X31.5 775 220 18X31.5 875 18X31.5 1000 330 18X35.5 1190 Radial Ripple Current ( mA, rms ) at 105℃ 120Hz 149
