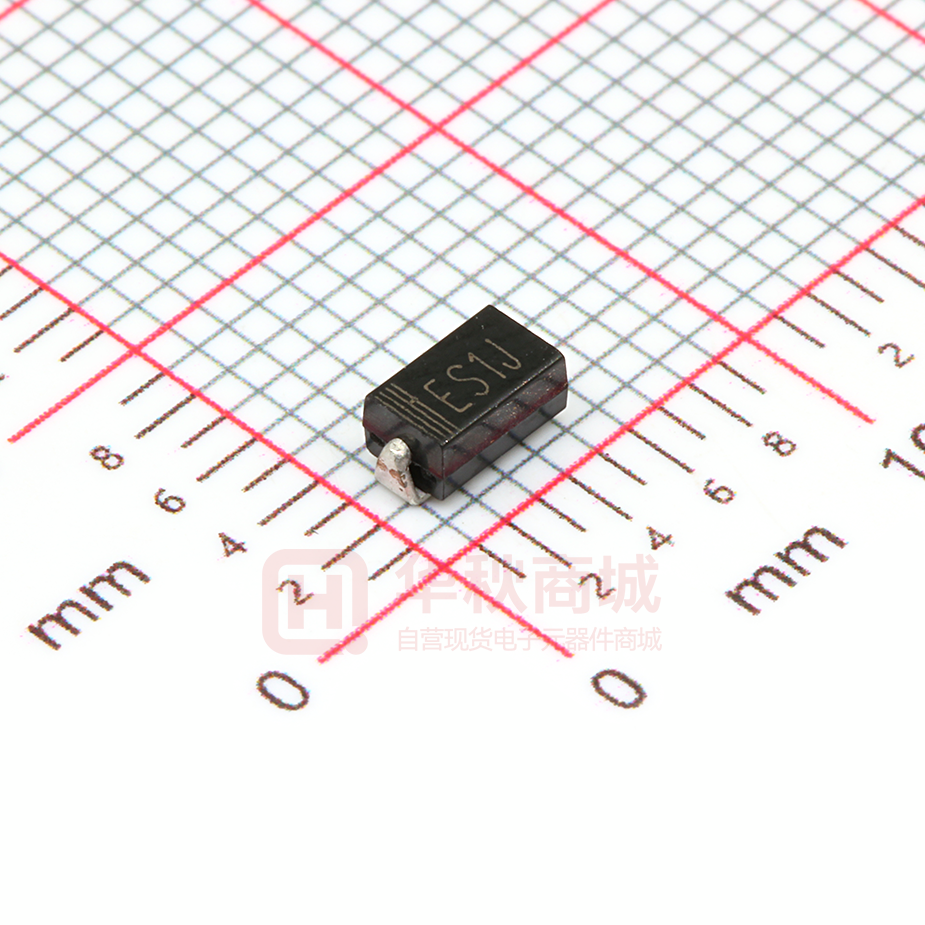

ES1J

Plastic-Encapsulate Diodes SUPERFAST RECOVERY RECTIFIERS ES1A---ES1J 10 FEATURES 52 Plastic package has Underwriters Laboratories Flammability 0 32 Classification 94V-0 7 Easy pick and place 4.50 For surface mounted applications Low profile package Built-in strain relief Superfast recovery times for high efficiency MECHANICAL DATA SMA (DO-214AC) molded plastic DO-214AC (SMA) Polarity: Color band denotes cathode end MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS O Ratings at 25 C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%. Symbols ES1A ES1B ES1C ES1D ES1E ES1G ES1J Parameter Unit Maximum Recurrent Peak Reverse Voltage VRRM 50 100 150 200 300 400 600 V Maximum RMS Voltage VRMS 35 70 105 140 210 280 420 V Maximum DC Blocking Voltage VDC 50 100 150 200 300 400 600 V Maximum Average Forward Rectified Current TL= 100 OC IF(AV) 1 A IFSM 30 A Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load (JEDEC Method) VF Maximum Forward Voltage at 1 A Maximum Reverse Current at TA = 25 OC IR at Rated DC Blocking Voltage Typical Junction Capacitance at at TA = 100 OC IR 0.95 1.25 1.7 V 5 µA 100 10 CJ pF VR = 4 V, f = 1 MHZ Typical Reverse Recovery Time at IF = 0.5 A, IR = 1 A, Irr = 0.25 A Typical Thermal Resistance 1) Operating Junction and Storage Temperature Range trr 35 R TJ ,TS 35 - 55 to + 150 1) Thermal resistance from junction to lead mounted on P.C.B. with 0.3 X 0.3" (8.0 X 8.0 mm ) copper pad areas. GUANGDONG HOTTECH INDUSTRIAL CO,. LTD. nS 50 O C/W O C/W C Page:P2-P1 Plastic-Encapsulate Diodes ES1A---ES1J Typical Characteristics GUANGDONG HOTTECH INDUSTRIAL CO,. LTD. Page:P2-P2
