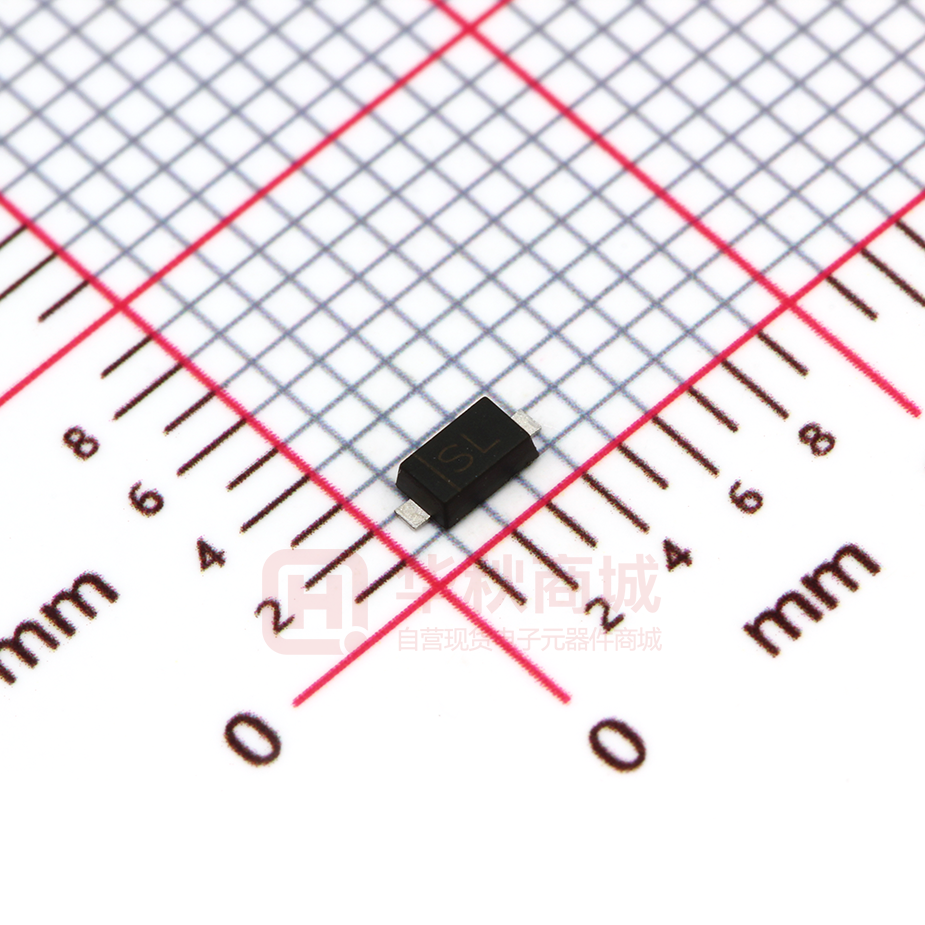

B5819W
Schottky Diodes
◇ Low Forward Voltage Schottky Rectifier
◇ RoHS compliant / Green EMC
SOD-123
◇ Matte Tin (Sn) Lead finish
F
◇ Moisture Level Sensitivity 1
◇ Cathode Band / Device marking
Device Marking Code
B5819W
※Mark: refer to Device Marking
Maximum Ratings (Ta = 25 ℃)
Symbol
Value
Units
VRM
Non-Repetitive Peak Reverse Voltage
40
V
VRRM
Repetitive Peak Reverse Voltage
40
V
RMS Reverse Voltage
28
V
1
A
9
A
VR(RMS)
IO
*1
Parameter
Average Rectified Output Current
IFSM
Non-Repetitive Peak Forward Surge Current
IFRM
Repetitive Peak Forward Current
1.5
A
PD
Power Dissipation
500
mW
TJ
Junction Temperature
125
℃
TSTG
Storage Temperature
-65 to +150
℃
*1
8.3 ms single half sine-wave
Electrical Characteristics (Ta = 25 ℃)
Symbol
Parameter
Test Conditions
Min
VF
Forward Voltage
VBR
Reverse breakdown voltage
IR=1mA
IR
Reverse voltage leakage current
VR=20V
1
mA
CD
Diode capacitance
VR=4V, f=1MHz
120
pF
IF=1A
IF=3A
1
Max
Units
0.6
0.9
V
40
V
V
B5819W
Schottky Diodes
Ordering Information
Device
Package
Shipping
B5819W
SOD-123
Tape & Reel
3000pcs /7” Reel
Tape
wide
Emboss
pitch
Tape
specification
8 mm
4 mm
Conductive
Notes
Package Dimensions
Package outline : SOD-123
Unit
SOD123 Package Outline
Dimensions are exclusive of Burrs,Mold Flash and Tie
A
A1
A2
b
c
D
E
E1
Max.
1.25 0.10 1.15 0.65 0.15 1.70 2.80 3.85
Min.
1.05 0.00 1.05 0.45 0.08 1.50 2.60 3.55
L
0.500
REF.
Note:
1. Halogen free,EMC
2. Pb
free solder
Bar
extrusions
3. Lead thickness includes solder plating
4. Lead frame: A42
5. Other Tolerance: ±0.05
6. Dimensions are exclusive of Burrs,Mold Flash and Tie Bar extrusions
7. Unit: mm
Land Pattern Recommendation
2
L1
θ
0.45
8°
0.25
0°
