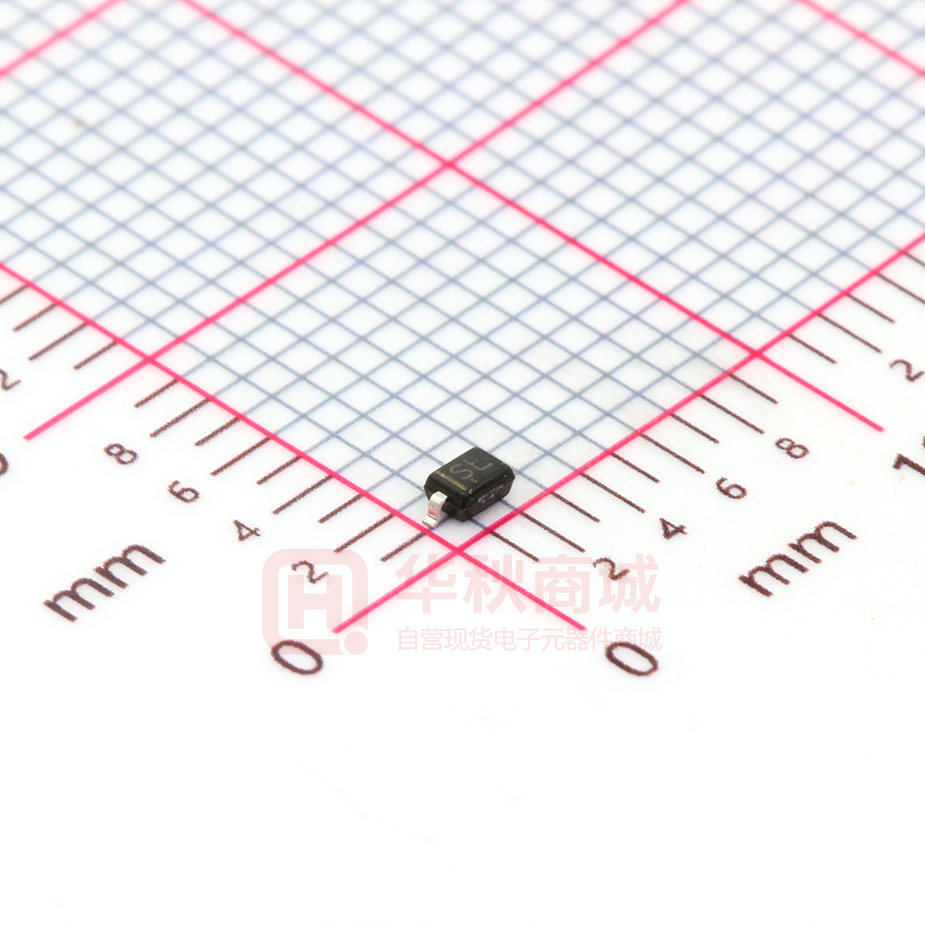

B5819WS

B5819WS Schottky Diodes ◇ Low Forward Voltage Schottky Rectifier ◇ RoHS compliant / Green EMC ◇ Matte Tin (Sn) Lead finish ◇ Moisture Level Sensitivity 1 ◇ Cathode Band / Device marking Device Marking Code B5819WS ※Mark: refer to Device Marking Maximum Ratings （Ta = 25 ℃） Symbol Value Units VRM Non-Repetitive Peak Reverse Voltage 40 V VRRM Repetitive Peak Reverse Voltage 40 V RMS Reverse Voltage 28 V 1 A 9 A VR(RMS) IO *1 Parameter Average Rectified Output Current IFSM Non-Repetitive Peak Forward Surge Current IFRM Repetitive Peak Forward Current 1.5 A PD Power Dissipation 250 mW TJ Junction Temperature 125 ℃ TSTG Storage Temperature -65 to +150 ℃ *1 8.3 ms single half sine-wave Electrical Characteristics （Ta = 25 ℃） Symbol Parameter Test Conditions VF Forward Voltage VBR Reverse breakdown voltage IR=1mA IR Reverse voltage leakage current VR=40V 1 mA CD Diode capacitance VR=4V, f=1MHz 120 pF 1 Min Max Units IF=1A 0.6 V IF=3A 0.9 V 40 V B5819WS Schottky Diodes Ordering Information Device Package Shipping B5819WS SOD-323 Tape & Reel 3000pcs /7” Reel Package Dimensions 2 Tape wide Emboss pitch Tape specification 8 mm 4 mm Conductive Notes
