NUP2105L
2-Line Bi-directional TVS Diode Array
General description
NUP2105L in small SOT23 SMD plastic package designed to
protect two automotive Control Area Network (CAN) bus lines
from the damage caused by ElectroStatic Discharge ( ESD )
and other transients.

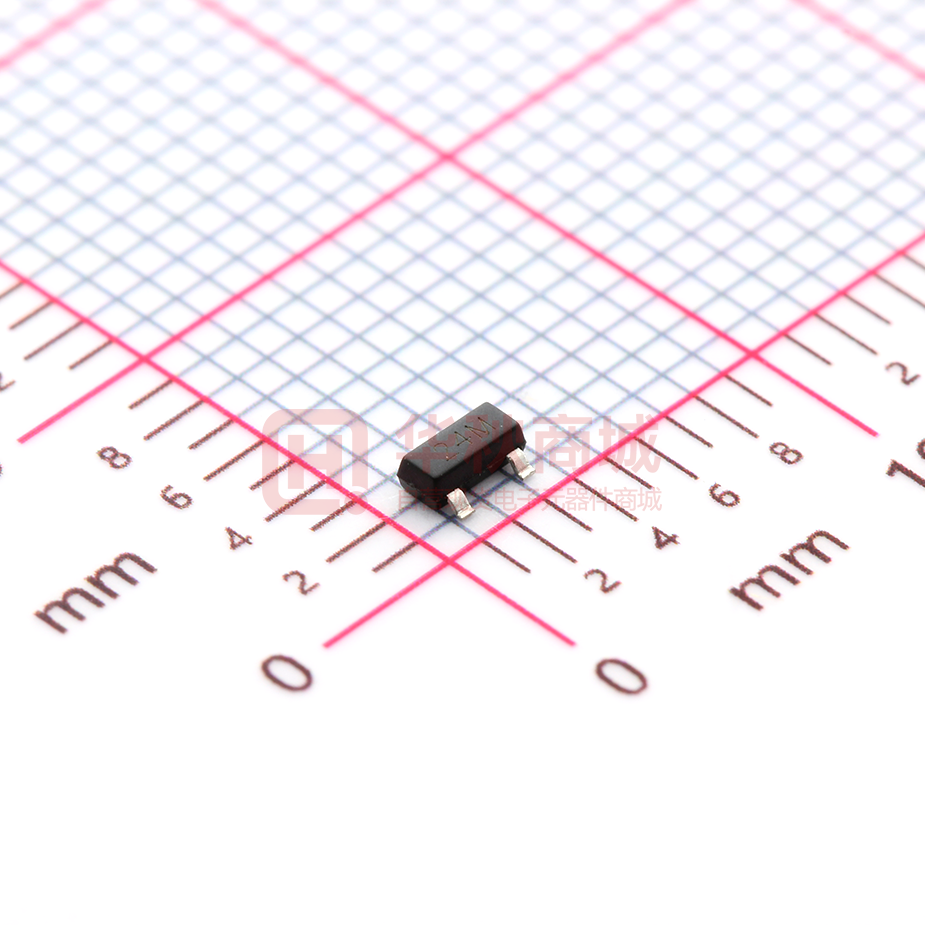

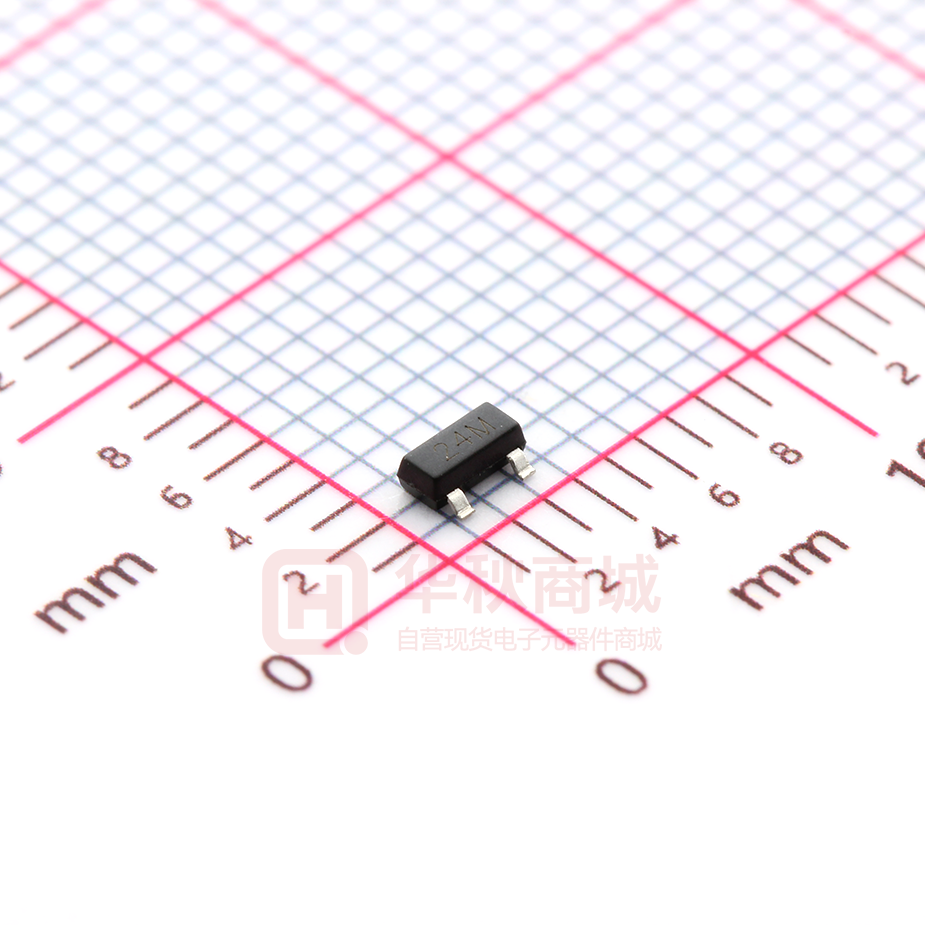

SOT-23
Features
■ Due to the integrated diode structure only one small
SOT23 package is needed to protect two CAN bus lines
■ Max. peak pulse power: Ppp = 300 W at t p = 8/20 µs
■ Low clamping voltage: V (CL)R = 40 V at Ipp = 1 A
■ Ultra low leakage current: IRM < 1 nA
■ ESD protection of up to 30 kV
■ IEC 61000-4-2, level 4 (ESD)
■ IEC 61000-4-5 (surge); I pp = 4A at t p = 8/20 µ s
■ Small SMD plastic package
Pin Configuration
Applications
line 1 to be protected
■ Industrial Control Networks
line 2 to be protected
Smart Distribution Systems (SDS)
DeviceNet
■ Automotive Networks
Low and High−Speed CAN
Fault Tolerant CAN
GND
Typical application: ESD protection of two automotive CAN bus lines
1/4
NUP2105L
2-Line Bi-directional TVS Diode Array
Absolute Maximum Ratings (TA=25°C unless otherwise specified)
Parameter
Peak Pulse Power (8/20µs)
ESD per IEC 61000−4−2 (Air)
Symbol
Value
Unit
Ppk
300
W
±15
VESD
ESD per IEC 61000−4−2 (Contact)
kV
TJ
−55 to +125
°C
Tstg
−55 to +150
°C
Operating Temperature Range
Storage Temperature Range
±8
Electrical Characteristics (T A=25°C unless otherwise specified)
NUP2105L
Parameter
Reverse Working Voltage
Breakdown Voltage
Symbol
Min
Typ
VRWM
VBR
Max
Unit
24
V
27
Test Condition
V
IT = 1mA
Reverse Leakage Current
IR
0.2
uA
VRWM = 24V
Clamping Voltage
VC
42
V
IPP = 1A (8 x 20µs pulse)
Clamping Voltage
VC
70
V
IPP = 4A (8 x 20µs pulse)
Peak Pulse Current
I PP
4
A
tp= 8/20μs
Junction Capacitance
CJ
pF
VR = 0V, f = 1MHz, Pin 1 to Pin 3
or Pin 2 to Pin 3
20
2/4
NUP2105L
2-Line Bi-directional TVS Diode Array
Typical Performance Characteristics (T A=25°C unless otherwise Specified)
120
100
% of Rated Power
Peak Power_Ppp(W)
10
1
0.1
80
60
40
20
0.01
0
0.1
1
10
100
Pulse Duration_tp(uS)
1000
0
Power Derating Curve
Peak Pulse Power vs. Pulse Time
100
% of Peak Pulse Current
90
80
70
60
50
40
30
20
10
0
0
20
40
Time_t(uS)
60
25
50
75
100 125
Ambient Temperature_Ta(℃)
80
8 X 20us Pulse Waveform
3/4
150
NUP2105L
2-Line Bi-directional TVS Diode Array
PACKAGE DIMENSIONS
Dimension SOT23
Symbol
Millimeters
Inches
Min.
Max.
Min.
Max.
A
0.08
0.18
0.003
0.007
B
0.15
-
0.006
-
C
-
0.13
-
0.005
D
0.89
1.09
0.035
0.043
E
2.80
3.05
0.110
0.120
F
1.90
0.075
G
0.95
0.037
H
1.19
1.40
0.047
0.055
I
2.10
2.49
0.083
0.098
J
0.35
0.50
0.014
0.020
Packaging
Tape
Reel
Symbol
Dimension (mm)
W
8.00±0.30
P0
4.00±0.10
P1
4.00±0.10
P2
2.00±0.10
D0
Φ1.55±0.10
D1
Φ1.00±0.05
E
1.75±0.10
F
3.50±0.10
A
3.10±0.10
A0
2.10±0.10
B
2.75±0.10
B0
0.65±0.10
K
1.10±0.10
t
0.20±0.05
D
Φ178.0±2.0
D2
Φ13.0
W1
9.5
Quantity: 3000PCS
4/4
