PESD3V3L2BT

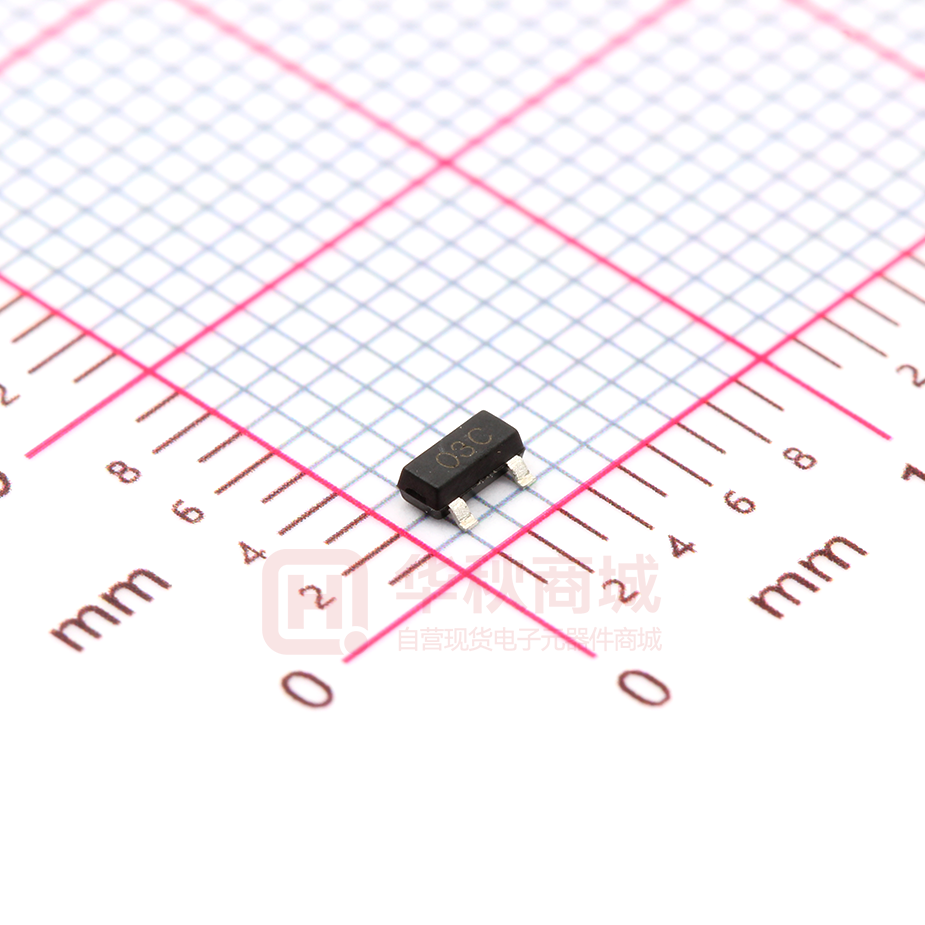

PESD3V3L2BT TVS Protection Array RoHS Device Halogen Free Features - 350 watts peak pulse power (tp = 8/20μs) Low clamping voltages Low Leakage Current SOT-23 Response Time is Typically < 1 ns AEC-Q101 Qualified Mechanical Characteristics - JEDEC SOT-23 package Molding compound flammability rating: UL 94V-0 Marking : Marking Code Packaging : Tape and Reel per EIA 481 Pin Configuration Applications - RS-232, RS-422 & RS-485 Cellular Handsets and Accessories Control & Monitoring Systems Portable Electronics IEC COMPATIBILITY (EN61000-4) - IEC 61000-4-2 (ESD) ± 30kV (air), ± 30kV (contact) - IEC 61000-4-4 (EFT) 40A (5/50ns) - IEC 61000-4-5 (Lightning) 32A (8/20μs) Set-Top Box Servers, Notebook, and Desktop PC Wireless Bus Protection Absolute Maximum Rating Parameter P eak Pulse Power(8/20µs) ESD per IEC 61000−4−2 (Air) Symbol Value Unit Ppk 350 W V ESD ESD per IEC 61000−4−2 (Contact) Operating Temperature Range Storage Temperature Range 1 ±30 ±30 kV TJ −55 to +125 °C Tstg −55 to +150 °C PESD3V3L2BT TVS Protection Array Electrical Parameters (T=25℃) Parameter Symbol I IPP Maximum Reverse Peak Pulse Current VC Clamping Voltage @ I PP VRWM IR IPP Working Peak Reverse Voltage VC V BR V RWM Maximum Reverse Leakage Current @ V RWM IT IR IR V RWM VBR VC IT VBR Breakdown Voltage @ I T IT Test Current IF Forward Current VF Forward Voltage @ I F IPP Electrical Characteristics Parameter Reverse Working Voltage Breakdown Voltage Symbol Min Typ VRWM V BR Max Unit 3.3 V V 4 0.5 Test Condition IT = 1mA V RWM = 3.3V Reverse Leakage Current IR 0.01 Clamping Voltage VC 5 V IPP = 1A (8 x 20µs pulse) Clamping Voltage VC 10 V IPP = 32A (8 x 20µs pulse) Peak Pulse Current I PP 32 A tP=8/20µs Junction Capacitance CJ 100 pF µA VR=0, f=1MHz, Pin 1 to Pin 3 or Pin 2 to Pin 3 2 V PESD3V3L2BT TVS Protection Array Typical Characteristics Power Derating Curve Peak Pulse Power vs. Pulse Time 110 100 1,000 % of Rated Power or IPP 90 350W 8/20µs Waveform 100 80 70 60 50 40 30 20 10 10 0.1 1 10 100 1000 10000 0 0 25 50 75 100 ESD Pulse Waveform (Per IEC 61000-4-2) Pulse Waveform 110 Waveform Paramters tr=8µs td=20µs 100 90 80 70 e-t 60 50 40 td=Ipp/2 30 20 10 R1 0 0 5 10 15 25 125 Ambient Temprature -TA(°C) td–Pulse Duration–µs Percent of Ipp Ppp–Peak Pulse Power–Watts 10,000 30 35 Time (µs) Ref1 500mV 10.0ns 3 150 PESD3V3L2BT TVS Protection Array Outline Drawing – SOT-23 DIMENSIONS PACKAGE OUTLINE SYMBOL D 3 E1 E 0.25 θ 1 L 2 e MIN MAX MIN MAX A 0.89 1.13 0.035 0.044 A1 0.015 0.11 0.0006 0.0043 A2 0.60 0.70 0.0236 0.0275 D 2.72 3.12 0.1070 0.1228 E 2.60 3.00 0.1024 0.118 E1 1.40 1.80 0.0551 0.0709 e b INCHES MILLIMETER L θ 0.0374 BSC 0.95 BSC 0.30 0 0.60 8 。 0.0118 0.0236 0 8 A A2 A1 b DIMENSIONS M Z C e e1 DIM INCHES MILLIMETERS M 0.101 2.60 C 0.0058 0.15 Z 0.109 2.80 e 0.037 BSSC 0.95 BSC e1 0.074 BSC 1.9 BSC b 0.0389 0.35 4 Notes 1. Dimensioning and tolerances per ANSI Y14.5M, 1985. 2. Controlling Dimension: Inches 3. Pin 3 is the cathode (Unidirectional Only). 4. Dimensions are exclusive of mold flash and metal burrs. 。
