SRV05-4

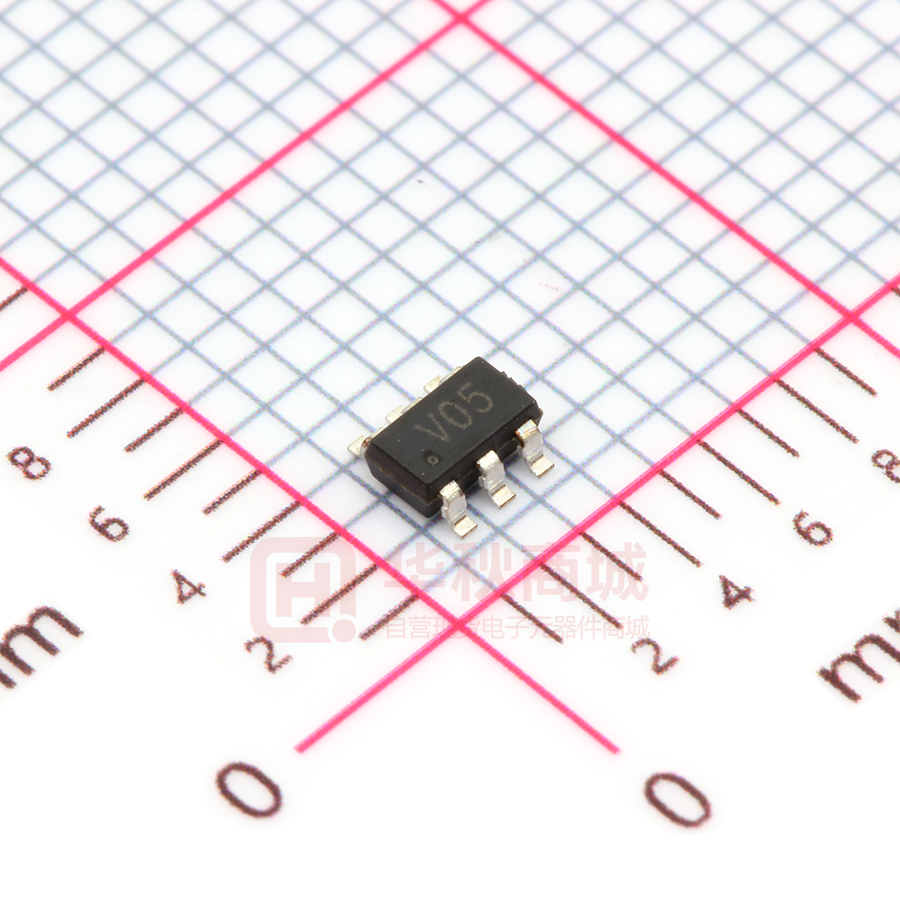

SRV05-4 Low Capacitance TVS Diode Array FEATURES z ESD protection for high-speed data lines to z z z z z z z IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 12A (8/20μs) Array of surge rated diodes with internal TVS Diode Small package saves board space Protects four I/O lines Low capacitance: 3pF typical Low clamping voltage Low operating voltage: 5.0V Solid-state silicon-avalanche technology SOT23-6L APPLICATIONS z z z z z z z z USB 2.0 Power and Data Line Protection Video Graphics Cards Monitors and Flat Panel Displays Digital Video Interface (DVI) 10/100/1000 Ethernet Notebook Computers SIM Ports ATM Interfaces z IEEE 1394 Firewire Ports DEVICE CHARACTERISTICS Absolute Maximum Rating Rating Symbol Value Units Peak Pulse Power (tp = 8/20μs) Ppk 300 Watts Peak Pulse Current (tp = 8/20μs) IPP 12 A ESD per IEC 61000-4-2 (Air) VESD ESD per IEC 61000-4-2 (Contact) 15 8 kV Lead Soldering Temperature TL 260 (10 sec.) ℃ Operating Temperature TJ -55 to +125 ℃ TSTG -55 to +150 ℃ Storage Temperature 1/4 SRV05-4 Low Capacitance TVS Diode Array Electrical Characteristics SRV05-4 Parameter Symbol Conditions Reverse Stand-Off Voltage VRWM Pin 5 to 2 Reverse Breakdown Voltage VBR It = 1mA Pin 5 to 2 Reverse Leakage Current IR VRWM = 5V, T=25℃ Pin 5 to 2 5 Forward Voltage VF If =15mA 1.2 Clamping Voltage VC IPP = 1A, tp = 8/20μs Any I/O pin to Ground 12.5 Clamping Voltage VC IPP = 5A, tp = 8/20μs Any I/O pin to Ground 17.5 Junction Capacitance Cj Minimum Typical 5 V V 3 VR = 0V, f = 1MHz Between I/O pins 1.5 2/4 Units 6 VR = 0V, f = 1MHz Any I/O pin to Ground GRAPHS Maximum μA V V V pF pF SRV05-4 Low Capacitance TVS Diode Array 3/4 SRV05-4 Low Capacitance TVS Diode Array PACKAGE OUTLINE & DIMENSIONS (SOT23-6L) 4/4
