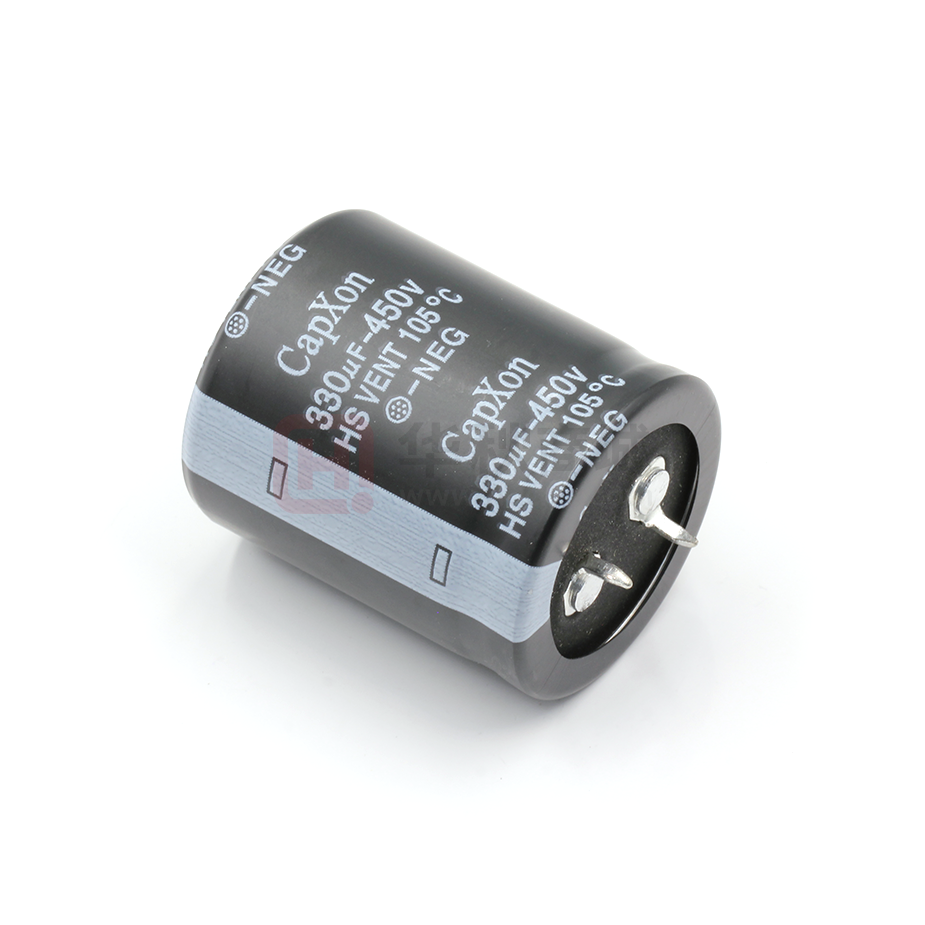

HS331M450O350A

承認書編號 NO: SCAK1-1712001314 系列 SER.NO.: HS 承 TO: 認 格能 台照 書 APPROVAL SHEET FOR AL. 承 APPROVED 料号 (Customer) ELECTROLYTIC CAPACITORS 認 BY： 料号 (CapXon) 规格 Description HS331M450O350A 330uF/450V Dφ*L 加工形式 (mm) 30x35 簽認後，請送回一份。 PLEASE RETURN US ONE COPY YOUR SIGNED SPECIFICATION AFTER YOU APPROVED OF IT. 核 准 APPROVED BY: 校 對 CHECKED BY: 經 辦 DESIGNED BY: 凯 普 松 贸 易（深 圳）有 限 公 司 CAPXON TRADING （SHEN ZHEN）CO.,LTD 廣東省深圳市光明新區公明鎮塘尾村 TANG WEI VILLAGE ,GONG MING COUNTYGUANG MING HSIEN,SHEN ZHEN CITY,CHINA TEL:86-755-27177888 FAX:86-755-27177802 CAPXON ELECTRONIC (SHEN ZHEN) CO., LTD FOR APPROVAL Aluminum Electrolytic Capacitors HS Type 1.Electric Characteristics CAPXON P/N Cap (μF) Cap Tol (%) Ripple Current Rate Surge Max.LC Max.D.F 120Hz/105℃ W.V Volt (μA) (%) (VDC) (VDC) (mA) HS331M450O350A 330 ±20 450 495 20 1305 Oper. Temp. (℃) 2970 -25~+105 Case Size DФ*L (mm) USER P/N 30x35 2.Diagram of Dimensions (Unit=mm): Negative mark BottomPlate P...ET. Sleeve Negative 10±0.2 0.8±0.1 10±0.2 2mm×2 F 2.5±0.1 6±1 6±1 Safety Device L±2 D ±1 1.5±0.1 Mounting Holes On P. C.B. TERMINALS 3.Remarks: 3.1 Leakage Current Test: I≦0.02CV(μA) for 160 to 450VDC After 5 minutes whichever is greater measured with rated working voltage applied. 3.2 Operating temperature: 160～450VDC,33～2700μF for -25℃～105℃ 3.3 Cap and Dissipation factor (D.F) Test: At +20℃,120Hz 3.4 Load Life Test: At +105℃,2000Hrs 3.5 Shelf Life Test: At +105℃,1000Hrs 3.6 Such spec. capacitors are just fit for this electric model , if you have some other application, please contact with us in advance. Part Number System When placing and order for Aluminum Electrolytic Capacitors. Please observe following Catalog Part Number format that describes. 3 2 1 5 4 6 7 8 11 10 9 1. Series 12 14 13 16 15 17 19 18 20 6. Height (L) 2. Capacitance 7. Product type 3. Capacitance tolerance 8. Lead Treatment 4. Rated Voltage 9. Special requirement 5. Case φD (1).Series The series name. (2).Capacitance Capacitance is show in microfarad (µF) Capacitance (µF) 0.1 0.47 1 4.7 10 100 1000 10000 Code 0R1 R47 010 4R7 100 101 102 103 (3).Capacitance tolerance Tolerance% ±5 ±10 ±20 ±30 -10to+30 -10to+50 -10to+20 -10to100 0to+20 -30to+0 ±15 Code H K M N Q T V W Z U S Tolerance% 0to+30 0to+40 0to+50 -5to+20 -8to+5 +5to+20 0to-20 -15to+20 -25to+20 Code Y X A J E I B P L -50to+0 -5to+30 O C For tolerance other than these and specified capacitance tolerance, please specify the value on the order sheet. (4).Voltage (W.V) Voltage (W.V) 6.3 10 Code 6R3 010 16 25 35 50 63 80 100 160 200 220 250 350 400 420 450 500 016 025 035 050 063 080 100 160 200 220 250 350 400 420 450 500 (5).Case (φD: mm) Diameter 3 4 5 Code A B C 6.3 7.3 8 E 7 F 10 12 13 16 18 20 22 25 30 35 40 42 45 51 G H I J K L M N O P Q U V R 63.5 S 76.2 89 14.5 12.5 T X Y Z (6). Height (L: mm) Description 5 Code 5.5 7 7.7 8 11 11.5 12 12.5 14 16 20 21 25 25.5 31.5 35 35.5 41 47 52 83 98 118 141 151 050 055 070 077 080 110 115 120 125 140 160 200 210 250 255 315 350 355 410 470 520 830 980 A18 A41 A51 (7). Product type Type Without Lead Treatment Code With Lead Treatment A E (8). Lead Treatment (Radial type) Description Taping Taping (Ammo (Reel Package) Package) TA、TB、 Code TC、TD、 TE、TF、 ETC. Lead Cutting Lead Lead Lead Lead Forming Forming Crimping Cutting & Cutting only & Forming Kink CF FA KF CK Kink Bending & Forming Cutting &Kink CR、CL EF RA、RB、 RC、RD、 CA RE、 Etc. Remarks: The product of V- chip sticks a dish to process form is “TR”. KA th th th th (9) Special & appearance requirement (the 17 , 18 , 19 , 20 code) Code A Special Terminals of Snap-in request Code Special Code H Height requirement R Ripple current countermeasure B Rubber I L.C. S C Lead wire K Vent line T D D.F. L Life V characteristic Code U Special Package & label Temperature characteristic Vt, Electrolyte paper Solder, technics, E Electrolyte N Nude M form, Case with pillar, F Pitch P G Fill glue Q Sleeve, tray, print, PVC sleeve Capacitance, CV, Break Y Z clip loop Impedance & ESR Remarks: 1. If it’s without lead treatment & special requirement, the 15th code is blank. 2. If it’s with lead treatment & without require special requirement, the 17th, 18th, 19th, 20th code is blank. 3. If it’s without lead treatment, but with special requirement, the 15th, 16th code filled with 0. 4. If it’s without lead treatment, but with special requirement, also exceeds 4 kinds, keystone characteristic is 4 codes. 5. If it’s with lead treatment, but with 1 special requirement, only remark 17th code, latter three codes is blank. 6. If it’s with lead treatment, but with 1 special requirement, and it is different from former data, the 17th is 0, the 18th code is characteristic. HS series Information 1. Maximum ripple current 1.1 Maximum RMS ripple current at +105°C , 120Hz. 1.2 When capacitors are operated at temperatures other than +105°C, and frequency other than 120Hz, the maximum RMS ripple currents must be multiplied by the factors shown in below table. Multiplier for Ripple Current vs. Frequency: CAP (uF) \ Frequency(Hz) 50(60) 120 400 1K 10K 50K～100K 10
