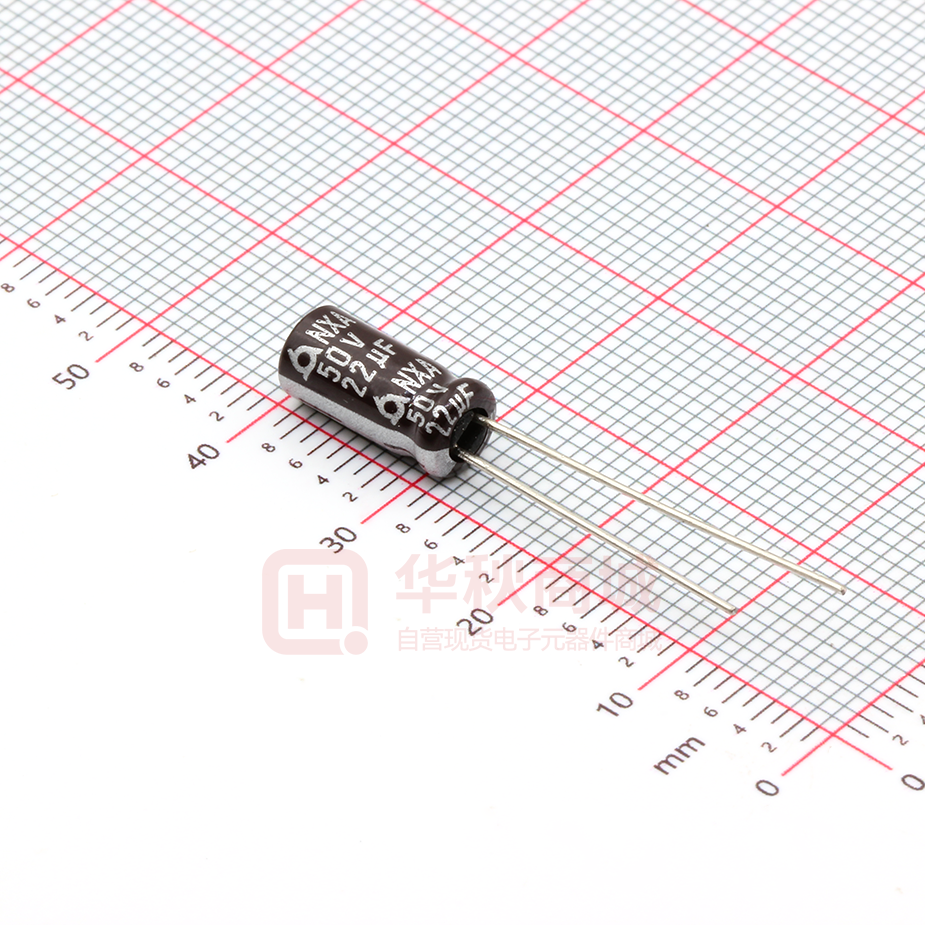

NXA 50V22 5*11

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS NXA Series •105℃ 4,000 ~ 10,000Hrs assured. •Non-solvent proof. •Low Impedance, Long Life. •For SMPS, IP-Board, Adaptor, Noise Filter, Charger. •RoHS compliant. •Halogen-free capacitors are also available. KMG NXA Low Imp. Long Life SPECIFICATIONS ltem Characteristics Rated Voltage Range 6.3 ~ 100 VDC Operating Temperature Range -40 ~ +105℃ Capacitance Tolerance ±20%(M) Leakage Current I=0.01CV(μA) or 3 μA, whichever is greater. Where, I:Max. Leakage current(μA), C:Nominal capacitance(μ F), V:Rated voltage(VDC) (at 20℃, 2 minutes) Dissipation Factor(Tan δ) Rated Voltage(VDC) Tan δ(Max.) 6.3 0.22 10 0.19 16 0.16 25 0.14 (at 20℃, 120Hz) 35 0.12 50 0.10 63 0.09 When the capacitance exceeds 1,000㎌, 0.02 shall be added every 1,000㎌ increase. Temperature Characteristics (Max. Impedance ratio) Rated Voltage(VDC) Z(-25℃)/Z(+20℃) Z(-40℃)/Z(+20℃) 6.3 4 8 10 3 6 16 2 4 25 2 3 35 2 3 50 2 3 63 2 3 80 0.09 100 0.08 (at 20℃, 120Hz) 80 2 3 100 2 3 (at 120Hz) Load Life Shelf Life The following specifications shall be satisfied when the capacitors are restored to 20℃ after the rated voltage with the rated ripple current is applied (the peak voltage shall not exceed the rated voltage) at 105℃ for the specified period of time. VDC Ø5~Ø6.3 Ø8~Ø10 Ø12.5~Ø18 Capacitance change ≦ ±25% of the initial value 6.3~10(V) 4,000 hours 6,000 hours 8,000 hours Tan δ ≦ 200% of the initial specified value 16~100(V) 5,000 hours 7,000 hours 10,000 hours Leakage current ≦ The initial specified value The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 500 hours at 105℃ without voltage applied. The rated voltage shall be applied to the capacitors for a minimum of 30 minutes, at least 24 hours and not more than 48 hours before the measurements. Capacitance change Tan δ Leakage current Others DIMENSIONS OF NXA Series ≦ ±25% of the initial value ≦ 200% of the initial specified value ≦ The initial specified value Satisfied characteristics KS C IEC 60384-4 Unit(mm) Marking : DARK BROWN SLEEVE, SILVER INK ØD 18 10 12.5 16 8 6.3 5 Ød 0.5 0.5 0.6 0.6 0.6 0.8 0.8 F 2.0 2.5 3.5 5.0 5.0 7.5 7.5 ØD′ ØD+0.5 max. L′ L+1.5 max. L+2.0 max. ※Ø10 x 12L, L′ ≦ L+1.5 120 MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS RATINGS OF NXA Series V DC ㎌ ØD×L(mm) 5×11 6.3×11 8×11.5 8×15 8×20 10×12 10×12.5 10×16 10×20 10×25 10×30 12.5×16 12.5×20 12.5×25 12.5×30 12.5×35 16×15 16×20 16×25 16×31.5 16×35.5 16×40 18×20 18×25 18×31.5 18×35.5 18×40 150 330 680 1,000 1,200 820 820 1,200 1,500 2,200 2,700 1,800 3,300 3,900 4,700 5,600 2,700 5,600 6,800 8,200 10,000 12,000 6,800 10,000 12,000 15,000 18,000 ㎌ 10 16 IMP. IMP. Ripple 20℃ -10℃ 0.58 0.22 0.130 0.087 0.069 0.080 0.080 0.060 0.046 0.042 0.031 0.049 0.035 0.027 0.024 0.020 0.042 0.027 0.021 0.017 0.015 0.013 0.026 0.019 0.017 0.016 0.015 2.3 0.87 0.52 0.35 0.27 0.32 0.32 0.24 0.18 0.17 0.12 0.16 0.12 0.089 0.078 0.065 0.12 0.078 0.060 0.050 0.044 0.038 0.067 0.049 0.047 0.045 0.043 V DC ØD×L(mm) 6.3 IMP. 20℃ 210 340 640 840 1,050 865 865 1,210 1,400 1,650 1,910 1,450 1,900 2,230 2,650 2,880 1,940 2,530 2,930 3,450 3,610 4,080 2,860 3,140 4,170 4,220 4,280 ㎌ 100 220 470 680 1,000 680 680 1,000 1,200 1,500 2,200 1,500 2,200 3,300 3,900 4,700 2,200 3,900 5,600 6,800 8,200 10,000 5,600 6,800 8,200 10,000 12,000 Ripple 20℃ -10℃ 0.58 0.22 0.130 0.087 0.069 0.080 0.080 0.060 0.046 0.042 0.031 0.049 0.035 0.027 0.024 0.020 0.042 0.027 0.021 0.017 0.015 0.013 0.026 0.019 0.017 0.016 0.015 2.3 0.87 0.52 0.35 0.27 0.32 0.32 0.24 0.18 0.17 0.12 0.16 0.12 0.089 0.078 0.065 0.12 0.078 0.06 0.05 0.044 0.038 0.067 0.049 0.047 0.045 0.043 210 340 640 840 1,050 865 865 1,210 1,400 1,650 1,910 1,450 1,900 2,230 2,650 2,880 1,940 2,530 2,930 3,450 3,610 4,080 2,860 3,140 4,170 4,220 4,280 ㎌ 56 120 330 470 680 470 470 680 1,000 1,200 1,500 1,000 1,500 2,200 2,700 3,300 1,500 2,700 3,900 4,700 5,600 6,800 3,900 4,700 5,600 8,200 10,000 -10℃ 0.58 0.22 0.130 0.087 0.069 0.080 0.080 0.060 0.046 0.042 0.031 0.049 0.035 0.027 0.024 0.020 0.042 0.027 0.021 0.017 0.015 0.013 0.026 0.019 0.017 0.016 0.015 2.3 0.87 0.52 0.35 0.27 0.32 0.32 0.24 0.18 0.17 0.12 0.16 0.12 0.089 0.078 0.065 0.12 0.078 0.06 0.05 0.044 0.038 0.067 0.049 0.047 0.045 0.043 25 35 50 IMP. IMP. IMP. Ripple -10℃ ㎌ 20℃ Ripple -10℃ 0.58 2.3 210 33 0.58 2.3 210 6.3×11 100 0.22 0.87 340 56 0.22 0.87 340 8×11.5 8×15 8×20 10×12 10×12.5 10×16 10×20 10×25 10×30 12.5×16 12.5×20 12.5×25 12.5×30 12.5×35 16×15 16×20 16×25 16×31.5 16×35.5 16×40 18×20 18×25 18×31.5 18×35.5 18×40 220 330 470 330 330 470 680 820 1,000 680 1,000 1,500 1,800 2,200 1,000 1,800 2,700 3,300 3,900 4,700 2,200 3,300 3,900 4,700 5,600 0.13 0.087 0.069 0.080 0.080 0.060 0.046 0.042 0.031 0.049 0.035 0.027 0.024 0.020 0.042 0.027 0.021 0.017 0.015 0.013 0.026 0.019 0.017 0.016 0.015 0.52 0.35 0.27 0.32 0.32 0.24 0.18 0.17 0.12 0.16 0.12 0.089 0.078 0.065 0.12 0.078 0.060 0.050 0.044 0.038 0.067 0.049 0.047 0.045 0.043 640 840 1,050 865 865 1,210 1,400 1,650 1,910 1,450 1,900 2,230 2,650 2,880 1,940 2,530 2,930 3,450 3,610 4,080 2,860 3,140 4,170 4,220 4,280 150 220 270 220 220 330 470 560 680 470 680 1,000 1,200 1,500 680 1,200 1,800 2,200 2,700 3,300 1,800 2,200 2,700 3,300 3,900 0.13 0.087 0.069 0.080 0.080 0.060 0.046 0.042 0.031 0.049 0.035 0.027 0.024 0.020 0.042 0.027 0.021 0.017 0.015 0.013 0.026 0.019 0.017 0.016 0.015 0.52 0.35 0.27 0.32 0.32 0.24 0.18 0.17 0.12 0.16 0.12 0.089 0.078 0.065 0.12 0.078 0.060 0.050 0.044 0.038 0.067 0.049 0.047 0.045 0.043 640 840 1,050 865 865 1,210 1,400 1,650 1,910 1,450 1,900 2,230 2,650 2,880 1,940 2,530 2,930 3,450 3,610 4,080 2,860 3,140 4,170 4,220 4,280 Ripple 20℃ -10℃ 4.0 2.5 2.2 3.0 1.5 0.70 0.30 0.30 0.17 0.12 0.090 0.12 0.12 0.084 0.060 0.055 0.043 0.061 0.045 0.034 0.030 0.025 0.055 0.034 0.025 0.022 0.019 0.016 0.036 0.026 0.021 0.017 0.016 16.0 10.0 8.8 12.0 6.0 2.8 1.2 1.2 0.68 0.48 0.36 0.48 0.48 0.34 0.24 0.22 0.17 0.20 0.15 0.11 0.10 0.083 0.17 0.10 0.075 0.066 0.057 0.048 0.097 0.070 0.057 0.046 0.045 50 51 53 80 100 180 295 340 555 730 910 760 760 1,050 1,220 1,440 1,690 1,260 1,660 1,950 2,310 2,510 1,690 2,210 2,555 3,010 3,150 3,710 2,490 2,740 3,635 3,680 3,800 121 Series 47 1 2.2 3.3 4.7 10 22 22 47 100 120 180 150 150 220 270 330 470 270 470 560 680 820 470 820 1,000 1,200 1,500 1,800 1,000 1,200 1,800 2,200 2,700 210 340 640 840 1,050 865 865 1,210 1,400 1,650 1,910 1,450 1,900 2,230 2,650 2,880 1,940 2,530 2,930 3,450 3,610 4,080 2,860 3,140 4,170 4,220 4,280 NXA 5×11 ㎌ Ripple 20℃ MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS RATINGS OF NXA Series V DC ㎌ ØD×L(mm) 20℃ 63 80 IMP. IMP. Ripple -10℃ ㎌ 20℃ 100 Ripple -10℃ 5×11 15 0.88 3.5 165 6.3×11 8×15 8×20 10×12 10×12.5 10×16 33 47 56 82 120 82 82 120 0.35 0.22 0.22 0.16 0.12 0.11 0.11 0.076 1.4 0.88 0.88 0.64 0.48 0.44 0.44 0.31 265 500 500 665 820 690 690 950 68 68 100 0.17 0.17 0.11 0.66 0.66 0.47 480 480 600 10×20 180 0.056 0.23 1,150 120 0.084 0.34 800 10×25 220 0.046 0.19 1,350 150 0.069 0.28 900 12.5×16 12.5×20 12.5×25 12.5×30 180 270 390 470 0.072 0.041 0.031 0.028 0.29 0.13 0.093 0.084 1,150 1,500 1,900 2,300 150 220 330 390 0.11 0.062 0.047 0.042 0.34 0.18 0.14 0.13 750 1,100 1,250 1,500 12.5×35 560 0.024 0.072 2,500 470 0.036 0.11 1,650 16×20 16×25 16×31.5 16×35.5 16×40 18×20 18×25 18×31.5 18×35.5 18×40 470 680 820 1,000 1,200 680 1,000 1,200 1,500 1,800 0.032 0.025 0.021 0.019 0.018 0.030 0.024 0.020 0.018 0.017 0.096 0.075 0.063 0.057 0.054 0.090 0.072 0.060 0.054 0.051 2,000 2,600 2,850 2,900 3,400 2,500 2,800 3,300 3,400 3,500 330 470 680 820 1,000 470 680 820 1,000 1,200 0.048 0.038 0.032 0.029 0.027 0.038 0.036 0.030 0.027 0.026 0.15 0.12 0.095 0.086 0.081 0.12 0.11 0.090 0.081 0.077 1,350 1,700 1,850 2,000 2,200 1,700 1,750 1,900 2,200 2,700 8×11.5 IMP. ㎌ Ripple 20℃ -10℃ 4.7 6.8 15 22 27 39 68 47 47 68 82 100 1.5 1.4 0.57 0.50 0.36 0.25 0.19 0.17 0.17 0.11 0.084 0.084 6.0 5.6 2.3 1.9 1.4 1.0 0.76 0.66 0.66 0.47 0.34 0.34 105 125 205 310 355 450 565 480 480 600 800 800 100 0.069 0.28 900 120 100 150 220 270 330 390 220 330 470 560 680 330 470 560 680 820 0.069 0.11 0.062 0.047 0.042 0.036 0.036 0.048 0.036 0.032 0.029 0.027 0.045 0.036 0.030 0.027 0.026 0.28 0.34 0.18 0.14 0.13 0.11 0.11 0.15 0.11 0.095 0.086 0.081 0.14 0.11 0.90 0.81 0.077 900 750 1,100 1,250 1,500 1,650 1,650 1,350 1,650 1,850 2,000 2,200 1,500 1,750 1,900 2,200 2,700 Rated Ripple Current (mArms/105℃, 100kHz) Impedance (Ωmax./100kHz) Nominal Capacitance(㎌) RATED RIPPLE CURRENT MULTIPLIERS Frequency Multipliers Freq.(Hz) Cap.(㎌) 120 1k 10k 50K 100k 1 ~ 180 0.40 0.75 0.90 0.95 1.00 220 ~ 560 0.50 0.85 0.94 0.96 1.00 680 ~ 1,800 0.60 0.87 0.95 0.97 1.00 2,200 ~ 3,900 0.75 0.90 0.95 0.97 1.00 4,700 ~ 18,000 0.85 0.95 0.98 0.99 1.00 122
