MOLDING POWER INDUCTOR.
Features
Low profile and low DCR.
Shielded construction.
handles high transient current spikes without saturation
frequency up to 3MHz
Ultra Low buzz noise, due to composite construction
100% lead (Pb) free meet RoHS standard
Applications
PDA/Notebook/Desktop, and server applications.
low profile,high current power supplies.
Battery powered devices.
DC/DC converters.
Product Dimensions [unit: inch/ mm]
xxx
Product Dimensions
ITEM
P/N
A
B
C
D
E
SMMS0420
4.60±0.30
4.2±0.20
2.0 Max
1.50 Typ
0.80 Typ
SMMS0520
5.50±0.40
5.20±0.20
2.0 Max
2.30 Typ
1.20 Typ
SMMS0530
5.5±0.40
5.20±0.20
3.0 Max
2.30 Typ
1.20 Typ
SMMS0624
7.10±0.30
6.60±0.20
2.40 Max
3.0 Typ
1.60 Typ
SMMS0630
7.10±0.30
6.60±0.20
3.0 Max
3.0 Typ
1.60 Typ
SMMS0650
7.10±0.30
6.60±0.20
5.0 Max
3.0 Typ
1.60 Typ
SMMS1040
11.5 Max
10.0±0.30
4.0 Max
3.0 Typ
2.0 Typ
SMMS1050
11.5 Max
10.0±0.30
5.0 Max
3.0 Typ
2.0 Typ
SMMS1350
13.80±0.50
12.6±0.20
5.0 Max
3.7 Typ
2.5 Typ
SMMS1360
13.80±0.50
12.6±0.20
6.0 Max
3.7 Typ
2.5 Typ
• All test data is referenced to 25°C ambient
• DC current (Irms) that will cause an approximate △ T of 40℃
• DC current (Isat) that will cause Lo to drop approximately 30%
• Operating temperature Range: –55°C to +125°C
• Absolute maximum voltage 30VDC
• Operating temperature range-55℃~125℃(Including self - temperature rise)
第1页
MOLDING POWER INDUCTOR.
Electrical characteri stics for SMMS0420 series
100KHz 1.0V
P/N
L0(μH) ±20%
'@0A
D.C.R (mΩ)
Saturation Current
Heat Rating Current
Typical
Max
I sat (Amp)
Typical
I rms (Amp)
Typical
SMMS0420-R10M
0.10
3.00
3.50
25.00
13.00
SMMS0420-R22M
0.22
5.50
6.00
13.00
9.50
SMMS0420-R47M
0.47
9.00
12.00
9.50
8.00
SMMS0420-R56M
0.56
14.00
16.00
9.00
7.00
SMMS0420-R68M
0.68
12.00
15.00
9.00
7.00
SMMS0420-1R0M
1.00
19.00
24.00
7.00
6.00
SMMS0420-1R2M
1.20
24.00
27.00
6.00
5.50
SMMS0420-1R5M
1.50
25.00
28.00
6.00
5.50
SMMS0420-2R2M
2.20
39.00
45.00
5.00
4.50
SMMS0420-3R3M
3.30
70.00
80.00
4.00
3.50
SMMS0420-4R7M
4.70
92.00
110.00
3.00
2.80
SMMS0420-6R8M
6.80
125.00
135.00
2.50
2.40
SMMS0420-100M
10.00
220.00
240.00
2.00
1.60
Electrical characteri stics for SMMS0520 series
100KHz 1.0V
P/N
L0(μH) ±20%
'@0A
D.C.R (mΩ)
Saturation Current
Heat Rating Current
Typical
Max
I sat (Amp)
Typical
I rms (Amp)
Typical
SMMS0520-R10M
0.10
2.70
2.90
25.00
21.00
SMMS0520-R22M
0.22
4.10
4.50
17.00
13.00
SMMS0520-R33M
0.33
5.50
5.90
13.00
7.50
SMMS0520-R47M
0.47
7.10
7.70
12.50
8.00
SMMS0520-1R0M
1.00
16.80
18.00
7.50
7.00
SMMS0520-1R5M
1.50
30.00
35.00
6.00
5.50
SMMS0520-2R2M
2.20
34.90
37.70
5.50
5.00
SMMS0520-3R3M
3.30
58.50
68.00
4.70
4.10
SMMS0520-4R7M
4.70
75.30
81.30
3.20
3.00
SMMS0520-5R6M
5.60
85.20
92.00
3.00
2.20
SMMS0520-6R8M
6.80
114.00
121.00
2.80
2.10
SMMS0520-100M
10.00
200.00
220.00
2.20
2.00
第2页
MOLDING POWER INDUCTOR.
Electrical characteri stics for SMMS0530 series
100KHz 1.0V
P/N
L0(μH) ±20%
'@0A
D.C.R (mΩ)
Saturation Current
Heat Rating Current
Typical
Max
I sat (Amp)
Typical
I rms (Amp)
Typical
3.50
3.90
15.00
14.00
SMMS0530-R20M
0.20
SMMS0530-R47M
0.47
7.40
8.50
14.00
11.00
SMMS0530-R68M
0.68
11.00
12.00
12.00
9.00
SMMS0530-1R0M
1.00
11.00
15.00
10.00
9.00
SMMS0530-1R2M
1.20
15.00
16.00
11.00
9.00
SMMS0530-1R5M
1.50
13.00
18.00
9.00
8.50
SMMS0530-2R2M
2.20
21.00
24.00
7.00
6.50
SMMS0530-3R3M
3.30
33.00
38.00
6.00
5.00
SMMS0530-4R7M
4.70
50.00
60.00
4.50
4.50
SMMS0530-6R8M
6.80
75.00
90.00
3.50
3.50
SMMS0530-100M
10.00
100.00
125.00
3.20
3.20
Electrical characteri stics for SMMS0624 series
100KHz 1.0V
P/N
L0(μH) ±20%
'@0A
D.C.R (mΩ)
Saturation Current
Heat Rating Current
Typical
Max
I sat (Amp)
Typical
I rms (Amp)
Typical
SMMS0624-R22M
0.22
2.90
3.20
34.00
21.00
SMMS0624-R33M
0.33
3.70
4.10
22.00
18.00
SMMS0624-R47M
0.47
6.00
6.50
21.00
13.50
SMMS0624-R68M
0.68
8.70
9.40
18.00
11.00
SMMS0624-R82M
0.82
10.60
11.80
17.00
10.00
SMMS0624-1R0M
1.00
13.00
14.20
16.00
9.00
SMMS0624-1R5M
1.50
18.50
21.20
15.00
7.50
SMMS0624-2R2M
2.20
28.00
34.00
14.00
6.50
SMMS0624-3R3M
3.30
36.50
51.60
13.00
5.00
SMMS0624-4R7M
4.70
45.00
63.00
9.00
4.50
SMMS0624-5R6M
5.60
66.00
73.00
8.00
4.00
SMMS0624-6R8M
6.80
72.50
95.00
7.00
3.60
SMMS0624-8R2M
8.20
84.00
106.00
6.50
3.00
SMMS0624-100M
10.00
116.00
129.00
6.00
2.50
第 3页
MOLDING POWER INDUCTOR.
Electrical characteri stics for SMMS0630 series
100KHz 1.0V
P/N
L0(μH) ±20%
'@0A
D.C.R (mΩ)
Saturation Current
Heat Rating Current
Typical
Max
I sat (Amp)
Typical
I rms (Amp)
Typical
SMMS0630-R15M
0.15
1.55
2.30
41.00
30.00
SMMS0630-R22M
0.22
1.60
2.50
35.00
25.00
SMMS0630-R47M
0.47
4.00
4.50
20.00
18.00
SMMS0630-R68M
0.68
4.75
5.30
19.00
16.00
SMMS0630-1R0M
1.00
6.60
7.25
15.50
13.00
SMMS0630-1R5M
1.50
13.20
16.00
18.00
12.50
SMMS0630-2R2M
2.20
16.50
20.00
14.00
8.50
SMMS0630-3R3M
3.30
24.50
35.00
12.00
7.00
SMMS0630-4R7M
4.70
35.00
40.00
9.00
6.00
SMMS0630-5R6M
5.60
36.00
42.00
7.00
5.70
SMMS0630-6R8M
6.80
44.30
48.00
6.00
5.10
SMMS0630-8R2M
8.20
60.00
64.90
6.00
5.00
SMMS0630-100M
10.00
64.50
68.00
5.50
4.50

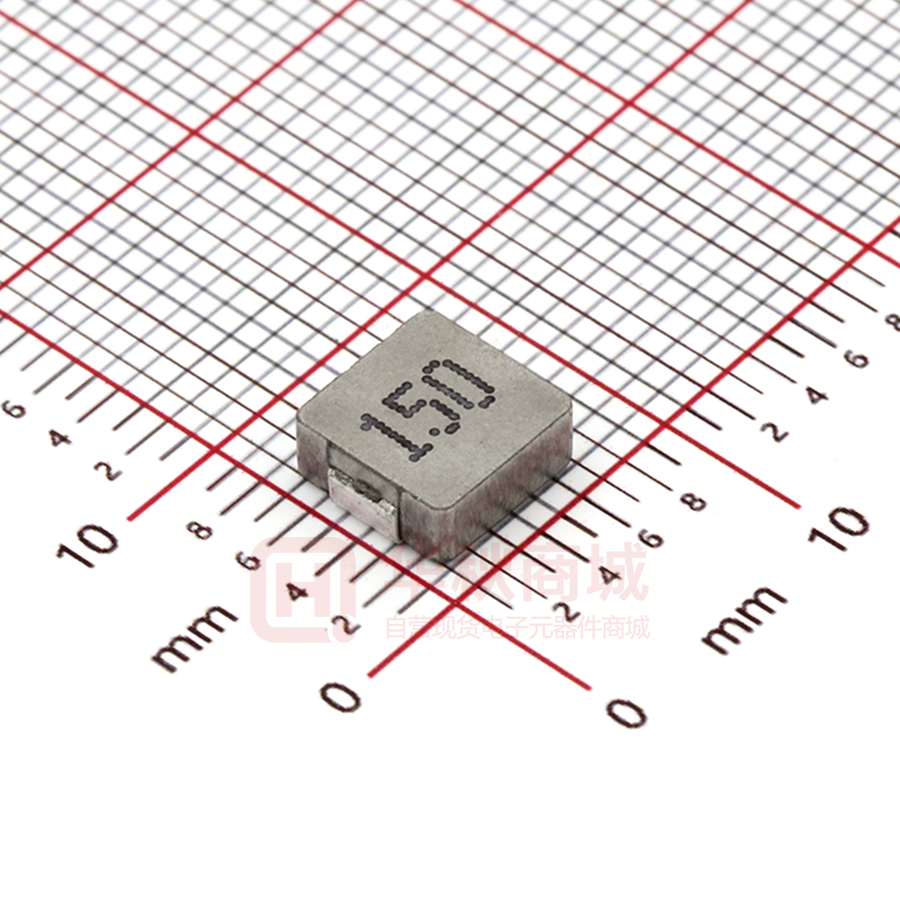

SMMS0630-150M
15.00
103.00
115.00
4.60
3.10
SMMS0630-220M
22.00
126.00
135.00
3.50
2.60
SMMS0630-330M
33.00
250.00
270.00
3.00
2.00
Electrical characteri stics for SMMS0650 series
100KHz 1.0V
P/N
L0(μH) ±20%
'@0A
D.C.R (mΩ)
Saturation Current
Heat Rating Current
Typical
Max
I sat (Amp)
Typical
I rms (Amp)
Typical
SMMS0650-R22M
SMMS0650-R47M
SMMS0650-R56M
SMMS0650-R68M
SMMS0650-R82M
SMMS0650-1R0M
SMMS0650-1R5M
SMMS0650-2R2M
SMMS0650-3R3M
SMMS0650-4R7M
SMMS0650-6R8M
SMMS0650-100M
0.22
0.47
0.56
0.68
0.82
1.00
1.50
2.20
3.30
4.70
6.80
10.00
1.10
3.20
3.40
3.90
4.60
6.50
7.00
11.20
20.00
26.00
36.50
48.00
1.30
3.80
3.90
4.20
4.90
8.50
8.50
12.50
22.00
30.00
41.00
55.00
35.00
21.00
18.00
16.00
15.00
13.00
12.00
10.00
9.00
8.00
7.00
6.00
30.00
20.00
18.00
16.00
14.00
12.00
10.00
9.50
8.50
6.00
5.50
4.50
SMMS0650-150M
15.00
77.00
85.00
4.00
3.10
SMMS0650-220M
22.00
125.00
140.00
3.50
2.50
SMMS0650-330M
33.00
150.00
200.00
3.00
2.30
SMMS0650-470M
47.00
260.00
300.00
2.80
2.00
第4页
MOLDING POWER INDUCTOR.
Electrical characteri stics for SMMS1040 series
100KHz 1.0V
P/N
L0(μH) ±20%
'@0A
D.C.R (mΩ)
Saturation Current
Heat Rating Current
Typical
Max
I sat (Amp)
Typical
I rms (Amp)
Typical
SMMS1040-R22M
0.22
1.20
1.50
60.00
35.00
SMMS1040-R36M
0.36
1.70
1.90
50.00
30.00
SMMS1040-R47M
0.47
1.90
2.20
40.00
30.00
SMMS1040-R56M
0.56
2.10
2.40
33.00
25.00
SMMS1040-R68M
0.68
2.30
3.00
30.00
23.00
SMMS1040-1R0M
1.00
3.00
4.00
28.00
18.00
SMMS1040-1R5M
1.50
4.80
5.40
23.00
16.00
SMMS1040-2R2M
2.20
7.20
9.00
18.00
12.00
SMMS1040-3R3M
3.30
10.80
11.80
16.00
10.00
SMMS1040-4R7M
4.70
17.00
20.00
15.00
8.50
SMMS1040-6R8M
6.80
22.50
25.00
12.00
7.00
SMMS1040-100M
10.00
34.00
37.00
8.50
5.50
SMMS1040-150M
15.00
50.00
55.00
7.00
5.00
SMMS1040-220M
22.00
60.00
66.00
5.00
4.00
SMMS1040-330M
33.00
85.00
92.00
4.50
3.50
SMMS1040-470M
47.00
141.00
155.00
3.50
3.00
Electrical characteri stics for SMMS1050 series
100KHz 1.0V
P/N
L0(μH) ±20%
'@0A
D.C.R (mΩ)
Saturation Current
Heat Rating Current
Typical
Max
I sat (Amp)
Typical
I rms (Amp)
Typical
SMMS1050-R82M
SMMS1050-1R0M
SMMS1050-1R2M
SMMS1050-1R5M
SMMS1050-2R2M
SMMS1050-3R3M
SMMS1050-4R7M
SMMS1050-5R6M
SMMS1050-6R8M
SMMS1050-8R2M
SMMS1050-100M
SMMS1050-150M
0.82
1.00
1.20
1.50
2.20
3.30
4.70
5.60
6.80
8.20
10.00
15.00
2.50
2.80
2.80
3.90
6.50
9.20
12.40
18.90
20.60
27.40
30.20
48.00
3.20
3.50
3.50
4.80
8.20
12.00
18.00
25.00
28.00
35.00
40.00
55.00
39.00
28.00
28.00
25.00
20.00
18.00
14.00
13.00
12.00
10.00
8.50
7.00
22.00
18.00
18.00
16.00
13.00
10.00
9.50
8.50
8.00
7.00
5.50
4.50
SMMS1050-220M
22.00
60.00
72.00
5.50
4.00
SMMS1050-330M
33.00
89.00
105.00
5.50
3.50
SMMS1050-470M
47.00
110.00
130.00
4.50
3.00
SMMS1050-680M
68.00
190.00
210.00
3.00
2.00
第5页
MOLDING POWER INDUCTOR.
Electrical characteri stics for SMMS1350 series
100KHz 1.0V
P/N
L0(μH) ±20%
'@0A
D.C.R (mΩ)
Saturation Current
Heat Rating Current
Typical
Max
I sat (Amp)
Typical
I rms (Amp)
Typical
SMMS1350-R36M
0.36
0.85
1.10
60.00
41.00
SMMS1350-R47M
0.47
1.10
1.30
52.00
39.00
SMMS1350-R68M
0.68
1.20
1.50
40.00
32.00
SMMS1350-R82M
0.82
1.50
1.70
42.00
30.00
SMMS1350-1R0M
1.00
1.90
2.20
35.00
26.00
SMMS1350-1R5M
1.50
2.70
3.20
30.00
23.00
SMMS1350-2R2M
2.20
4.00
5.00
26.00
20.00
SMMS1350-3R3M
3.30
7.00
9.00
22.00
15.00
SMMS1350-4R7M
4.70
9.00
11.00
17.00
12.00
SMMS1350-6R8M
6.80
15.00
18.00
14.00
11.00
SMMS1350-100M
10.00
20.00
23.00
12.00
8.00
SMMS1350-150M
15.00
28.00
32.00
10.00
6.00
SMMS1350-220M
22.00
45.00
52.00
7.00
4.50
SMMS1350-330M
33.00
66.00
75.00
4.00
4.00
SMMS1350-470M
47.00
100.00
120.00
5.00
3.00
SMMS1350-680M
68.00
115.00
135.00
4.50
2.50
Electrical characteri stics for SMMS1360 series
100KHz 1.0V
P/N
L0(μH) ±20%
'@0A
D.C.R (mΩ)
Saturation Current
Heat Rating Current
Typical
Max
I sat (Amp)
Typical
I rms (Amp)
Typical
SMMS1360-R68M
SMMS1360-1R0M
SMMS1360-2R2M
SMMS1360-3R3M
SMMS1360-4R7M
SMMS1360-6R8M
SMMS1360-8R2M
SMMS1360-100M
SMMS1360-220M
SMMS1360-270M
SMMS1360-330M
SMMS1360-470M
0.68
1.00
2.20
3.30
4.70
6.80
8.20
10.00
22.00
27.00
33.00
47.00
1.20
1.50
2.60
4.20
6.80
10.00
13.50
18.00
34.00
36.00
47.00
58.00
1.40
1.70
3.00
5.00
8.00
14.00
16.00
21.00
38.00
42.00
56.00
70.00
55.00
35.00
25.00
22.00
18.00
15.00
14.00
12.50
8.00
7.00
7.00
6.00
33.00
30.00
20.00
16.00
13.00
12.00
11.00
10.00
5.00
4.50
4.50
4.00
SMMS1360-680M
68.00
105.00
125.00
5.00
3.50
SMMS1360-820M
82.00
115.00
140.00
4.00
3.00
SMMS1360-101M
100.00
130.00
200.00
4.30
2.50
第6页
很抱歉,暂时无法提供与“SMMS0630-150M”相匹配的价格&库存,您可以联系我们找货
免费人工找货- 国内价格
- 5+0.57046
- 50+0.46235
- 150+0.40824
- 1000+0.36774
- 2000+0.33534
- 5000+0.31904
- 国内价格
- 10+0.51082
- 100+0.46521
- 500+0.41960
- 1000+0.37399
- 2000+0.34358
- 4000+0.33446
- 国内价格
- 1+0.50710
- 200+0.45080
- 500+0.39450
