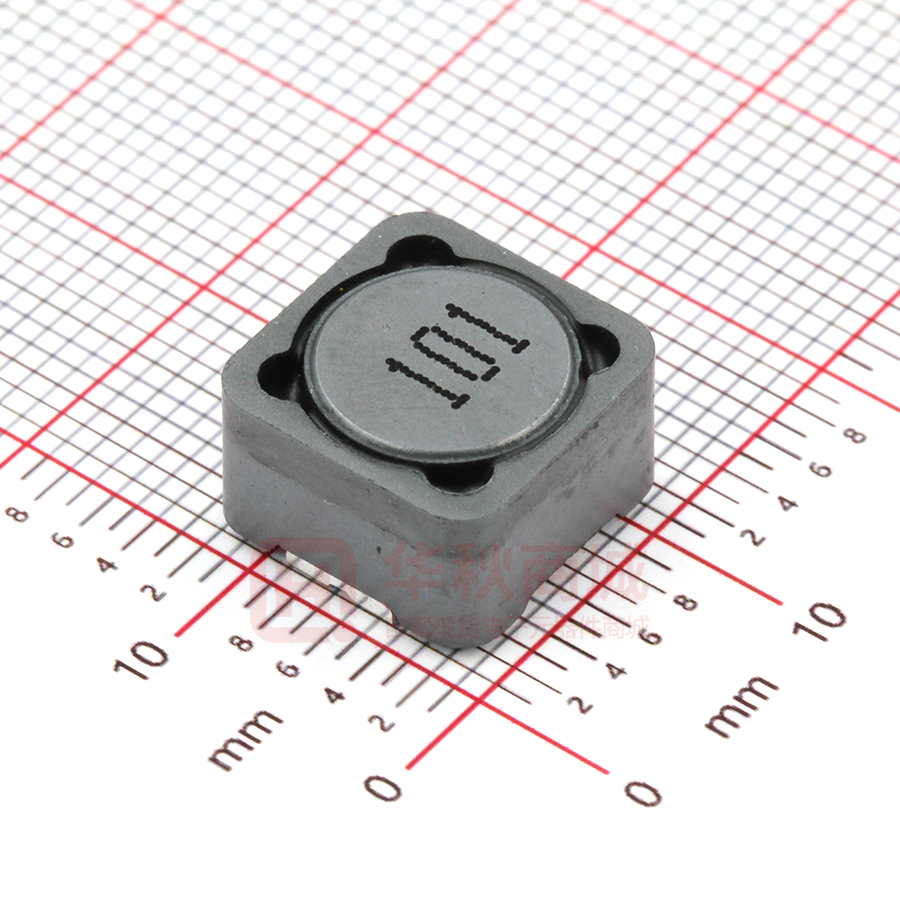

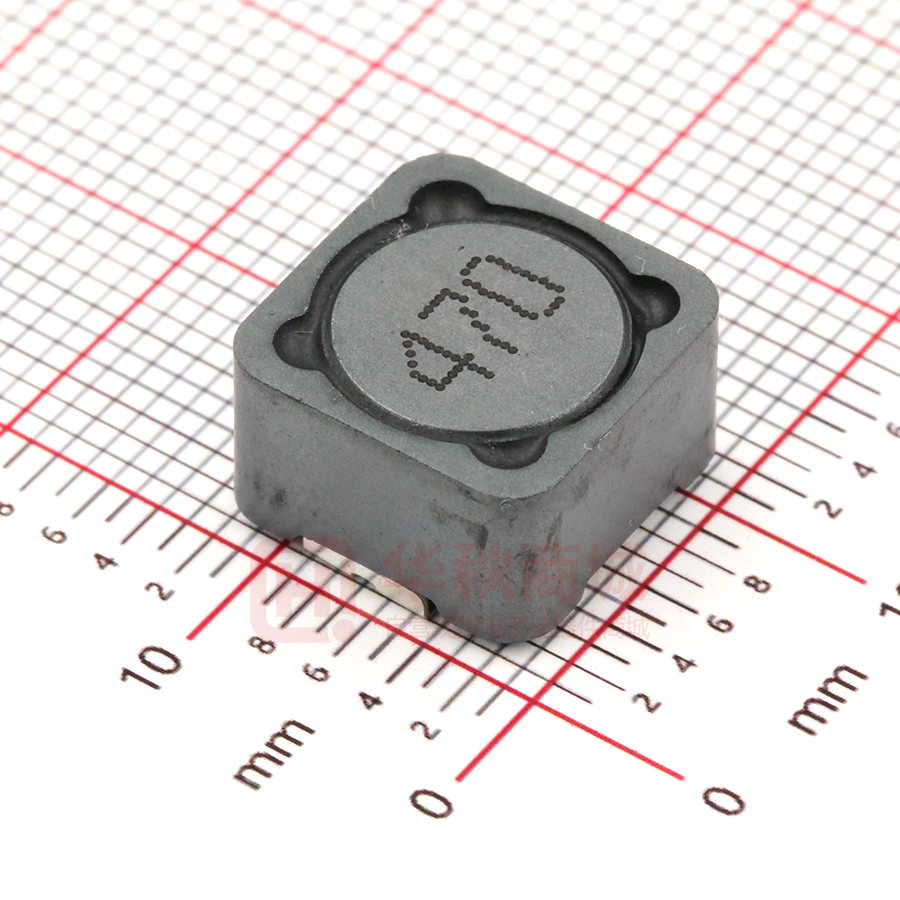

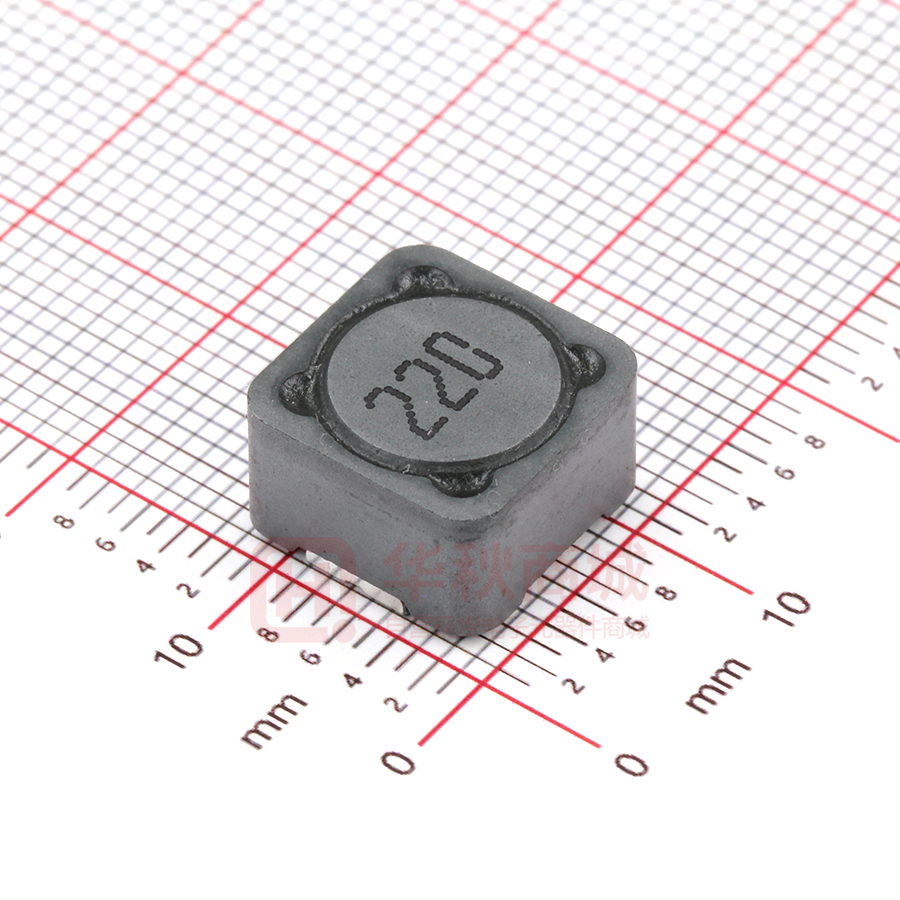

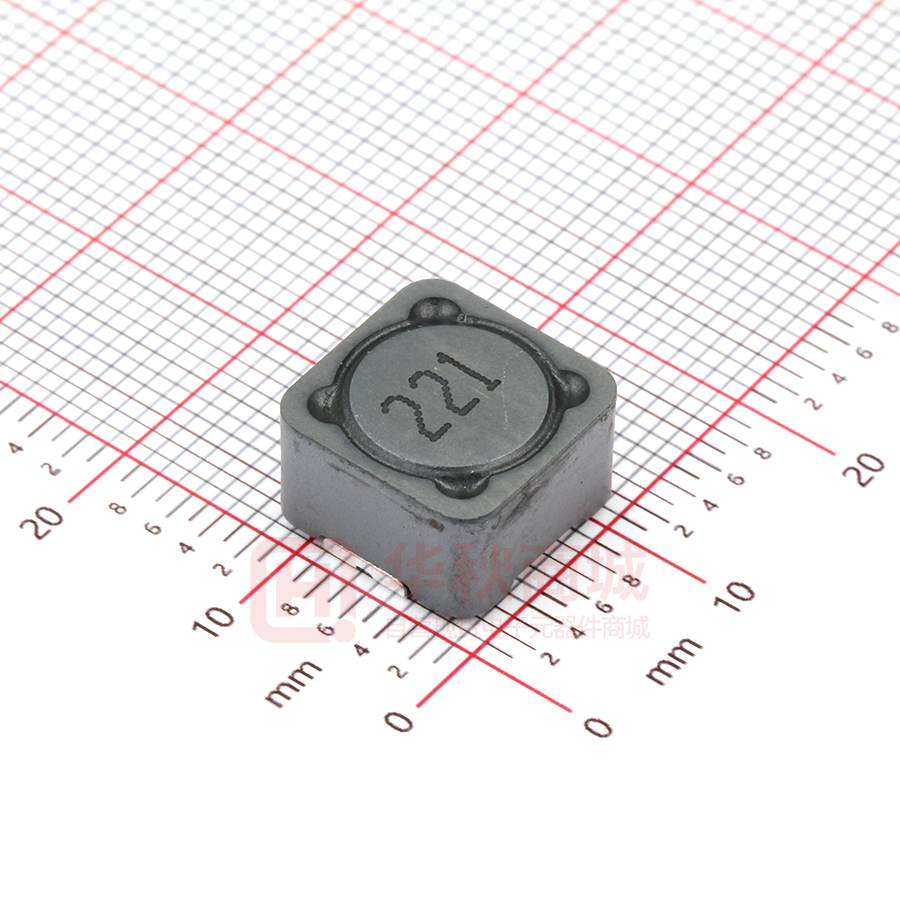

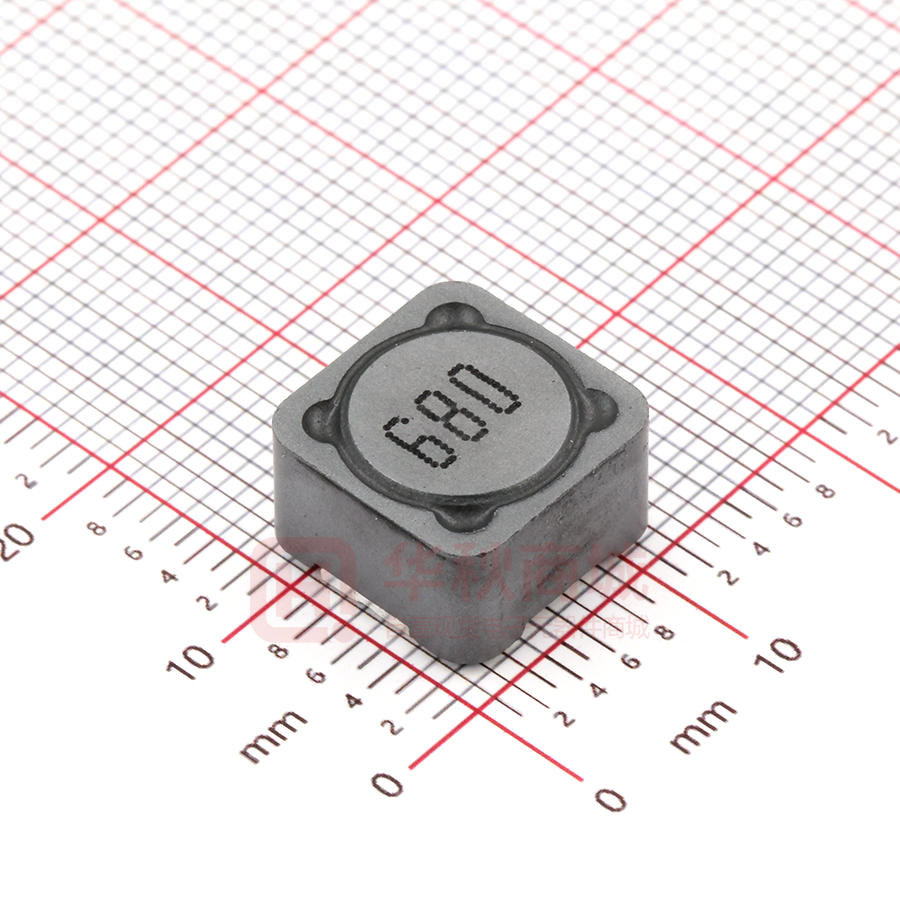

SMDRI127-101MT

MINIATURE SMD CHIP CHOKE COILS 闭 磁 路 贴 片 电 感 Shielded SMD Power Inductors O p e r a t i n g Te m p : - 3 0 ℃ ～ 1 0 0 ℃ 特征: FEATURES:  具有具有抗电磁干扰。 ● High power,High saturation inductors.  高功率，强力高饱和电感器。 ● With magnetic shield against radiation.  直接连接电极对铁芯。 ● Directly connected electrodeon ferrite core.  自动装备的尺度非常精确。 ● Highly accuratedimensions for automatic mounting. 用途： APPLICATIONS:  录影机。 ● Power supply for VTRs.  液晶电视。 ● LCD televisions.   笔记本电脑。 ● Notebook PCs. 小型通信机器。 ● Portable communication equipment.  DC/DC 变压器之电源供应器等。 ● PRODUCT 产品型号: SMDRI ① IDENTIFICATION: 125 470 K T ② ③ ④ ⑤ ① ② 闭磁路贴片电感 Shielded SMT Power Inductors ④ ③ 外形尺寸(L×H) (mm) External Dimensions (L×H) (mm) 类型 Type SMDRI DC/DC converters, etc. 125 12×6.0 Inductance 47 uH ⑤ 包装 Packing Tolerance J:±5%,K: ±10%, L: ±15% B 散装 Bulk Package M: ±20%,P: ±25%, N: ±30% T 编带Tape & Reel Shape and Size(Dimension are in mm)： ※40.0 MINIATURE SMD CHIP CHOKE COILS Part No A max B max C max D E H I J SMDRI62 6.5 6.8 3.0 4.6 1.5 1.9 1.4 4.6 SMDRI64 6.5 6.8 5.0 4.6 1.5 1.9 1.4 4.6 SMDRI73 7.5 7.5 3.4 5.0 1.8 2.2 1.6 4.8 SMDRI74 7.5 7.5 4.5 5.0 1.8 2.2 1.6 4.8 SMDRI124 12.3 12.3 4.5 7.6 5.0 5.4 2.9 7.0 SMDRI125 12.3 12.3 6.0 7.6 5.0 5.4 2.9 7.0 SMDRI127 12.3 12.3 8.0 7.6 5.0 5.4 2.9 7.0 SMDRI62 Series Inductance(uH) Part No. Nominal Value Tole. Quality Factor Test Spec. Test Freq. Min Freq. DCR Rated DC (OHM) Current Max (Amp)Max SMDRI62-2R9N 2.9 N 100KHz 20 1MHz 0.068 1.94 SMDRI62-4R0N 4.0 N 100KHz 20 1MHz 0.080 1.63 SMDRI62-5R5N 5.5 N 100KHz 30 1MHz 0.096 1.40 SMDRI62-100N 10 N 100KHz 35 1MHz 0.150 1.10 SMDRI62-120M 12 M 100KHz 35 1MHz 0.200 1.00 SMDRI62-150M 15 M 100KHz 35 1MHz 0.230 0.90 SMDRI62-180M 18 M 100KHz 35 1MHz 0.270 0.80 SMDRI62-220M 22 M 100KHz 35 1MHz 0.340 0.74 SMDRI62-270M 27 M 100KHz 35 1MHz 0.380 0.66 SMDRI62-330M 33 M 100KHz 35 1MHz 0.450 0.59 SMDRI62-390M 39 M 100KHz 35 1MHz 0.490 0.54 SMDRI62-470M 47 M 100KHz 35 1MHz 0.690 0.50 SMDRI62-560M 56 M 100KHz 35 1MHz 0.780 0.46 SMDRI62-680M 68 M 100KHz 35 1MHz 1.070 0.42 SMDRI62-820M 82 M 100KHz 35 1MHz 1.210 0.38 SMDRI62-101M 100 M 100KHz 40 0.796MHz 1.390 0.34 SMDRI62-121M 120 M 100KHz 40 0.796MHz 1.900 0.31 SMDRI62-151M 150 M 100KHz 40 0.796MHz 2.180 0.28 SMDRI62-181M 180 M 100KHz 40 0.796MHz 2.770 0.26 SMDRI62-221M 220 M 100KHz 40 0.796MHz 3.120 0.23 SMDRI62-271M 270 M 100KHz 40 0.796MHz 4.380 0.22 SMDRI62-331M 330 M 100KHz 40 0.796MHz 4.940 0.19 ※41.0 MINIATURE SMD CHIP CHOKE COILS SMDRI64 Series Inductance(uH) Part No. Nominal Value Tole. Quality Factor Test Spec. Test Freq. Min Freq. DCR Rated DC (OHM) Current Max (Amp)Max SMDRI64-100N 10 N 100KHz 35 1MHz 0.12 1.35 SMDRI64-120M 12 M 100KHz 35 1MHz 0.13 1.22 SMDRI64-150M 15 M 100KHz 35 1MHz 0.18 1.11 SMDRI64-180M 18 M 100KHz 35 1MHz 0.24 1.02 SMDRI64-220M 22 M 100KHz 35 1MHz 0.27 0.91 SMDRI64-270M 27 M 100KHz 35 1MHz 0. 30 0.82 SMDRI64-330M 33 M 100KHz 35 1MHz 0.33 0.74 SMDRI64-390M 39 M 100KHz 35 1MHz 0.37 0.69 SMDRI64-470M 47 M 100KHz 35 1MHz 0.52 0.62 SMDRI64-560M 56 M 100KHz 35 1MHz 0.56 0.58 SMDRI64-680M 68 M 100KHz 35 1MHz 0.63 0.51 SMDRI64-820M 82 M 100KHz 35 1MHz 0.71 0.46 SMDRI64-101M 100 M 100KHz 40 0.796MHz 1.03 0.42 SMDRI64-121M 120 M 100KHz 40 0.796MHz 1.15 0.38 SMDRI64-151M 150 M 100KHz 40 0.796MHz 1.68 0.35 SMDRI64-181M 180 M 100KHz 40 0.796MHz 1.87 0.32 SMDRI64-221M 220 M 100KHz 40 0.796MHz 2.08 0.29 SMDRI64-271M 270 M 100KHz 40 0.796MHz 2.37 0.26 SMDRI64-331M 330 M 100KHz 40 0.796MHz 2.67 0.23 SMDRI64-391M 390 M 100KHz 40 0.796MHz 2.94 0.22 SMDRI64-471M 470 M 100KHz 40 0.796MHz 3.93 0.20 SMDRI64-561M 560 M 100KHz 40 0.796MHz 5.43 0.18 SMDRI64-681M 680 M 100KHz 40 0.796MHz 7.32 0.17 SMDRI64-821M 820 M 100KHz 40 0.796MHz 8.24 0.15 SMDRI64-102M 1000 M 100KHz 40 0.796MHz 9.26 0.14 ※42.0 MINIATURE SMD CHIP CHOKE COILS SMDRI73 Series Inductance (uH) Part No. Nominal Value Tole. Quality Factor Test Spec. Test Freq. Min Freq. DCR Rated DC (OHM) Current Max (Amp)Max SMDRI73-2R2N 2.2 N 100KHz 20 1MHz 0.025 3.00 SMDRI73-3R3N 3.3 N 100KHz 20 1MHz 0.035 2.50 SMDRI73-4R7N 4.7 N 100KHz 30 1MHz 0.051 2.00 SMDRI73-100N 10 N 100KHz 35 1MHz 0.072 1.68 SMDRI73-120M 12 M 100KHz 35 1MHz 0. 098 1.52 SMDRI73-150M 15 M 100KHz 35 1MHz 0.130 1.33 SMDRI73-180M 18 M 100KHz 35 1MHz 0.140 1.20 SMDRI73-220M 22 M 100KHz 35 1MHz 0. 190 1.07 SMDRI73-270M 27 M 100KHz 35 1MHz 0.210 0.96 SMDRI73-330M 33 M 100KHz 35 1MHz 0.240 0.91 SMDRI73-390M 39 M 100KHz 35 1MHz 0.320 0.77 SMDRI73-470M 47 M 100KHz 35 1MHz 0.360 0.76 SMDRI73-560M 56 M 100KHz 35 1MHz 0.470 0.68 SMDRI73-680M 68 M 100KHz 35 1MHz 0.520 0.61 SMDRI73-820M 82 M 100KHz 35 1MHz 0.690 0.57 SMDRI73-101M 100 M 100KHz 40 0.796MHz 0.790 0.50 SMDRI73-121M 120 M 100KHz 40 0.796MHz 0.890 0.49 SMDRI73-151M 150 M 100KHz 40 0.796MHz 1.270 0.43 SMDRI73-181M 180 M 100KHz 40 0.796MHz 1.450 0.39 SMDRI73-221M 220 M 100KHz 40 0.796MHz 1. 650 0.35 SMDRI73-271M 270 M 100KHz 40 0.796MHz 2.310 0.32 SMDRI73-331M 330 M 100KHz 40 0.796MHz 2.620 0.28 SMDRI73-391M 390 M 100KHz 40 0.796MHz 2.940 0.26 SMDRI73-471M 470 M 100KHz 40 0.796MHz 4.180 0.24 SMDRI73-561M 560 M 100KHz 40 0.796MHz 4.670 0.22 SMDRI73-681M 680 M 100KHz 40 0.796MHz 5.730 0.19 SMDRI73-821M 820 M 100KHz 40 0.796MHz 6.540 0.18 SMDRI73-102M 1000 M 100KHz 40 0.796MHz 9.440 0.16 ※43.0 MINIATURE SMD CHIP CHOKE COILS SMDRI74 Series Inductance (uH) Part No. Nominal Value Tole. Quality Factor Test Spec. Test Freq. Min Freq. DCR Rated DC (OHM) Current Max (Amp)Max SMDRI74-100N 10 N 100KHz 35 1MHz 0.049 1.84 SMDRI74-120M 12 M 100KHz 35 1MHz 0.058 1.71 SMDRI74-150M 15 M 100KHz 35 1MHz 0.081 1.47 SMDRI74-180M 18 M 100KHz 1MHz 0.091 1.31 SMDRI74-220M 22 M 100KHz 35 1MHz 0.110 1.23 SMDRI74-270M 27 M 100KHz 35 1MHz 0.150 1.12 SMDRI74-330M 33 M 100KHz 35 1MHz 0.170 0.96 SMDRI74-390M 39 M 100KHz 35 1MHz 0.230 0.91 SMDRI74-470M 47 M 100KHz 35 1MHz 0. 260 0.88 SMDRI74-560M 56 M 100KHz 35 1MHz 0.350 0.75 SMDRI74-680M 68 M 100KHz 35 1MHz 0.380 0.69 SMDRI74-820M 82 M 100KHz 35 1MHz 0.430 0.61 SMDRI74-101M 100 M 100KHz 40 0.796MHz 0.610 0.60 SMDRI74-121M 120 M 100KHz 40 0.796MHz 0. 660 0.52 SMDRI74-151M 150 M 100KHz 40 0.796MHz 0.880 0.46 SMDRI74-181M 180 M 100KHz 40 0.796MHz 0.980 0.42 SMDRI74-221M 220 M 100KHz 40 0.796MHz 1.170 0.36 SMDRI74-271M 270 M 100KHz 40 0.796MHz 1.640 0.34 SMDRI74-331M 330 M 100KHz 40 0.796MHz 1.860 0.32 SMDRI74-391M 390 M 100KHz 40 0.796MHz 2.850 0.29 SMDRI74-471M 470 M 100KHz 40 0.796MHz 3.010 0.26 SMDRI74-561M 560 M 100KHz 40 0.796MHz 3.620 0.23 M 100KHz 40 0.796MHz 4.630 0.22 SMDRI74-681M 680 35 SMDRI74-821M 820 M 100KHz 40 0.796MHz 5.200 0.20 SMDRI74-102M 1000 M 100KHz 40 0.796MHz 6. 000 0.18 ※44.0 MINIATURE SMD CHIP CHOKE COILS SMDRI124 Series Inductance (uH) Part No. Nominal Value Tole. Quality Factor Test Spec. Test Freq. Min Freq. DCR Rated DC (OHM) Current Max (Amp)Max SMDRI124-1R0N 1.0 N 100KHz 20 1MHz 0.010 7.0 SMDRI124-2R2N 2.2 N 100KHz 20 1MHz 0.014 5.7 SMDRI124-3R3N 3.3 N 100KHz 20 1MHz 0.015 5.2 SMDRI124-3R9N 3.9 N 100KHz 20 1MHz 0.015 6.5 SMDRI124-4R7N 4.7 N 100KHz 30 1MHz 0.018 4.9 SMDRI124-6R8N 6.8 N 100KHz 30 1MHz 0.023 4.2 SMDRI124-8R2N 8.2 N 100KHz 30 1MHz 0.026 4.0 SMDRI124-100N 10 N 100KHz 35 1MHz 0.028 3.8 SMDRI124-120M 12 M 100KHz 35 1MHz 0.038 3.5 SMDRI124-150M 15 M 100KHz 35 1MHz 0.050 3.2 SMDRI124-180M 18 M 100KHz 35 1MHz 0.057 3.1 SMDRI124-220M 22 M 100KHz 35 1MHz 0.066 2.9 SMDRI124-270M 27 M 100KHz 35 1MHz 0.080 2.8 SMDRI124-330M 33 M 100KHz 35 1MHz 0.097 2.7 SMDRI124-390M 39 M 100KHz 35 1MHz 0.132 2.1 SMDRI124-470M 47 M 100KHz 35 1MHz 0.150 1.9 SMDRI124-560M 56 M 100KHz 35 1MHz 0.190. 1.8 SMDRI124-680M 68 M 100KHz 35 1MHz 0.220 1.5 SMDRI124-820M 82 M 100KHz 35 1MHz 0.260 1.3 SMDRI124-101M 100 M 100KHz 40 0.796MHz 0.308 1.2 SMDRI124-121M 120 M 100KHz 40 0.796MHz 0.380 1.1 SMDRI124-151M 150 M 100KHz 40 0.796MHz 0.530 0.95 SMDRI124-181M 180 M 100KHz 40 0.796MHz 0.620 0.85 SMDRI124-221M 220 M 100KHz 40 0.796MHz 0.700 0.8 SMDRI124-271M 270 M 100KHz 40 0.796MHz 0.876 0.6 SMDRI124-331M 330 M 100KHz 40 0.796MHz 0.990 0.5 ※45.0 MINIATURE SMD CHIP CHOKE COILS SMDRI125 Series Inductance (uH) Part No. Nominal Value Tole. Quality Factor Test Spec. Test Freq. Min Freq. DCR Rated DC (OHM) Current Max (Amp)Max SMDRI125-1R0N 1.0 N 100KHz 20 1MHz 0.010 8.0 SMDRI125-2R2N 2.2 N 100KHz 20 1MHz 0.014 7.8 SMDRI125-2R4N 2.4 N 100KHz 20 1MHz 0.014 7.5 SMDRI125-3R3N 3.3 N 100KHz 20 1MHz 0.017 6.8 SMDRI125-4R7N 4.7 N 100KHz 30 1MHz 0.020 5.6 SMDRI125-5R8N 5.8 N 100KHz 30 1MHz 0.021 5.2 SMDRI125-8R2N 8.2 N 100KHz 30 1MHz 0.023 4.4 SMDRI125-100N 10 N 100KHz 35 1MHz 0.025 4.00 SMDRI125-120M 12 M 100KHz 35 1MHz 0.027 3.50 SMDRI125-150M 15 M 100KHz 35 1MHz 0.030 3.30 SMDRI125-180M 18 M 100KHz 35 1MHz 0.034 3.00 SMDRI125-220M 22 M 100KHz 35 1MHz 0.036 2.80 SMDRI125-270M 27 M 100KHz 35 1MHz 0.051 2.30 SMDRI125-330M 33 M 100KHz 35 1MHz 0.057 2.10 SMDRI125-390M 39 M 100KHz 35 1MHz 0.068 2.00 SMDRI125-470M 47 M 100KHz 35 1MHz 0.075 1.80 SMDRI125-560M 56 M 100KHz 35 1MHz 0.110 1.70 SMDRI125-680M 68 M 100KHz 35 1MHz 0.120 1.50 SMDRI125-820M 82 M 100KHz 35 1MHz 0.140 1.40 SMDRI125-101M 100 M 100KHz 40 0.796MHz 0.160 1.30 SMDRI125-121M 120 M 100KHz 40 0.796MHz 0.170 1.10 SMDRI125-151M 150 M 100KHz 40 0.796MHz 0.230 1.00 SMDRI125-181M 180 M 100KHz 40 0.796MHz 0.290 0.90 SMDRI125-221M 220 M 100KHz 40 0.796MHz 0.400 0.80 SMDRI125-271M 270 M 100KHz 40 0.796MHz 0.460 0.75 SMDRI125-331M 330 M 100KHz 40 0.796MHz 0.510 0.68 SMDRI125-391M 390 M 100KHz 40 0.796MHz 0.690 0.65 SMDRI125-471M 470 M 100KHz 40 0.796MHz 0.770 0.58 SMDRI125-561M 560 M 100KHz 40 0.796MHz 0.860 0.54 SMDRI125-681M 680 M 100KHz 40 0.796MHz 1.200 0.48 SMDRI125-821M 820 M 100KHz 40 0.796MHz 1.340 0.43 SMDRI125-102M 1000 M 100KHz 40 0.796MHz 1.530 0.40 ※46.0 MINIATURE SMD CHIP CHOKE COILS SMDRI127 Series Inductance (uH) Part No. Nominal Value Tole. Quality Factor DCR Rated DC Test Spec. Test (OHM) Current Freq. Min Freq. Max (Amp)Max SMDRI127-1R0N 1.0 N 100KHz 20 1MHz 0.009 10.00 SMDRI127-2R2N 2.2 N 100KHz 20 1MHz 0.012 8.00 SMDRI127-2R7N 2.7 N 100KHz 20 1MHz 0.013 8.00 SMDRI127-3R3N 3.3 N 100KHz 20 1MHz 0.013 8.00 SMDRI127-3R5N 3.5 N 100KHz 20 1MHz 0.013 7.50 SMDRI127-3R9N 3.9 N 100KHz 20 1MHz 0.014 7.50 SMDRI1274R7N 4.7 N 100KHz 30 1MHz 0.016 6.80 SMDRI127-6R1N 6.1 N 100KHz 30 1MHz 0.018 6.60 SMDRI127-6R8N 6.8 N 100KHz 30 1MHz 0.019 6.60 SMDRI127-7R6N 7.6 N 100KHz 30 1MHz 0.020 5.90 SMDRI127-8R2N 8.2 N 100KHz 30 1MHz 0.020 5.60 SMDRI127-100N 10 N 100KHz 35 1MHz 0.021 5.40 SMDRI127-120M 12 M 100KHz 35 1MHz 0.240 4.90 SMDRI127-150M 15 M 100KHz 35 1MHz 0.027 4.50 SMDRI127-180M 18 M 100KHz 35 1MHz 0.090 3.90 SMDRI127-220M 22 M 100KHz 35 1MHz 0.043 3.60 SMDRI127-270M 27 M 100KHz 35 1MHz 0.045 3.40 SMDRI127-330M 33 M 100KHz 35 1MHz 0.064 3.00 SMDRI127-390M 39 M 100KHz 35 1MHz 0.072 2.75 SMDRI127-470M 47 M 100KHz 35 1MHz 0.100 2.50 SMDRI127-560M 56 M 100KHz 35 1MHz 0.110 2.35 SMDRI127-680M 68 M 100KHz 35 1MHz 0.140 2.10 SMDRI127-820M 82 M 100KHz 35 1MHz 0.160 1.95 SMDRI127-101M 100 M 100KHz 40 0.796MHz 0.220 1.70 SMDRI127-121M 120 M 100KHz 40 0.796MHz 0.250 1.60 SMDRI127-151M 150 M 100KHz 40 0.796MHz 0.280 1.42 SMDRI127-181M 180 M 100KHz 40 0.796MHz 0.350 1.30 SMDRI127-221M 220 M 100KHz 40 0.796MHz 0.390 1.16 SMDRI127-271M 270 M 100KHz 40 0.796MHz 0.560 1.06 SMDRI127-331M 330 M 100KHz 40 0.796MHz 0.640 0.95 SMDRI127-391M 390 M 100KHz 40 0.796MHz 0.700 0.88 SMDRI127-471M 470 M 100KHz 40 0.796MHz 0.980 0.79 SMDRI127-561M 560 M 100KHz 40 0.796MHz 1.070 0.73 SMDRI127-681M 680 M 100KHz 40 0.796MHz 1.460 0.67 SMDRI127-821M 820 M 100KHz 40 0.796MHz 1.640 0.60 SMDRI127-102M 1000 M 100KHz 40 0.796MHz 1.820 0.55 ※47.0
