Aluminum Electrolytic Capacitor
MV series
Part number
Capacitance
Voltage
Surge Voltage
Capacitance Tolerance (@120Hz, +20°C)
Ripple current (max, @120Hz,+105°C)
Dissipation factor (tanδ @120Hz, +20°C)
Leakage Current (max, @ +20°C)*
Size
Operating temperature
Endurance

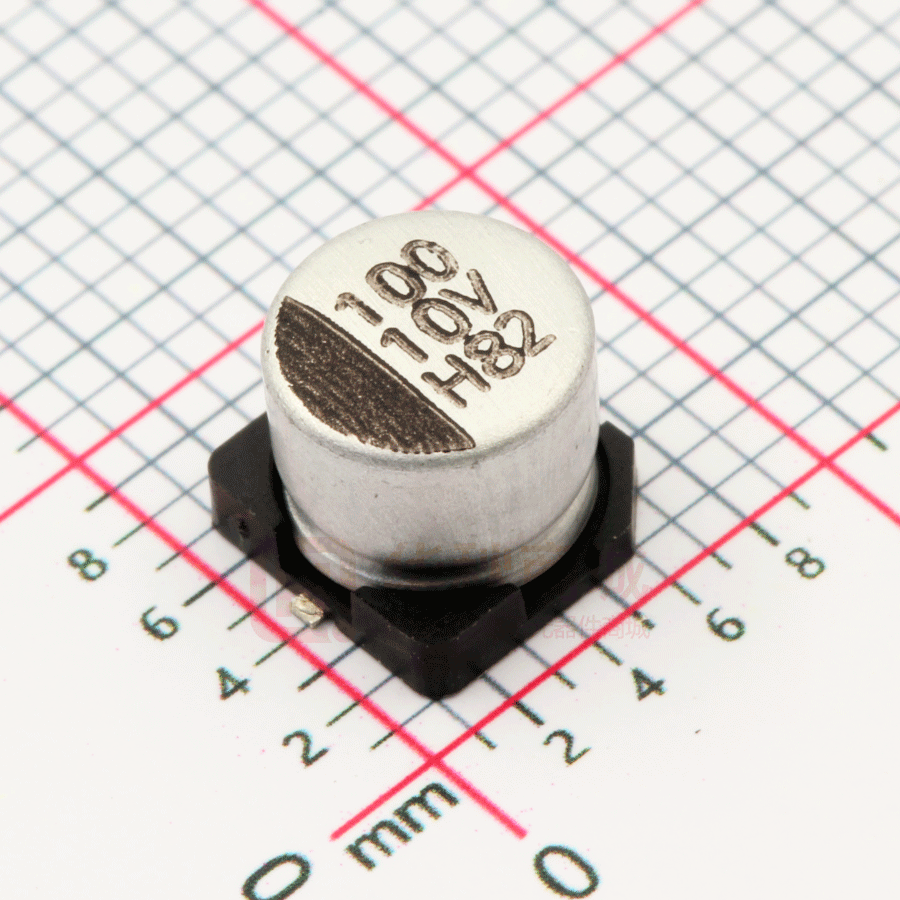

MV101M016E077ETR
100
16
18
±20
81
22
16
6.3x7.7
‐40 to 105
5000
µF
VDC
VDC
%
mA
%
µA
mm
°C
h
*L.C. I≦ 0.01CV or 3µA (C = CAP., V = W.V.)
After 2 minutes, whichever is greater measured with rated working voltage applied.
Test conditions
Duration time
Applied voltage
After test requirements (+20°C):
Capacitance change
Dissipation factor change
Leakage current
comment
Endurance
Shelf Life
5000h @ 105°C
1000h @ 105°C
Rated DC working voltage,IR
None
≤ ±30% of initial measured value
≤ 300% of the initial specified value
≤ the initial specified value
Pre‐treatment for measurements shall
be conducted after application of DC
working voltage for 30 min.
L max
D
L
A
B
C
W
P±0.2
6.3
7.7
6.6
6.6
7.2
0.5~0.8
2.2
Series
1_2
Cap
3_4_5
Tol.
6
Voltage
7_8_9
MV
101
M
016
=100µF
…
=±20%
=16V
Case D
10
Case L
11_12_13
Type
14_15_16
Cust.
17_18_19_20
E
077
ETR
=6.3mm
=7.7mm
=tape and reel
no request
