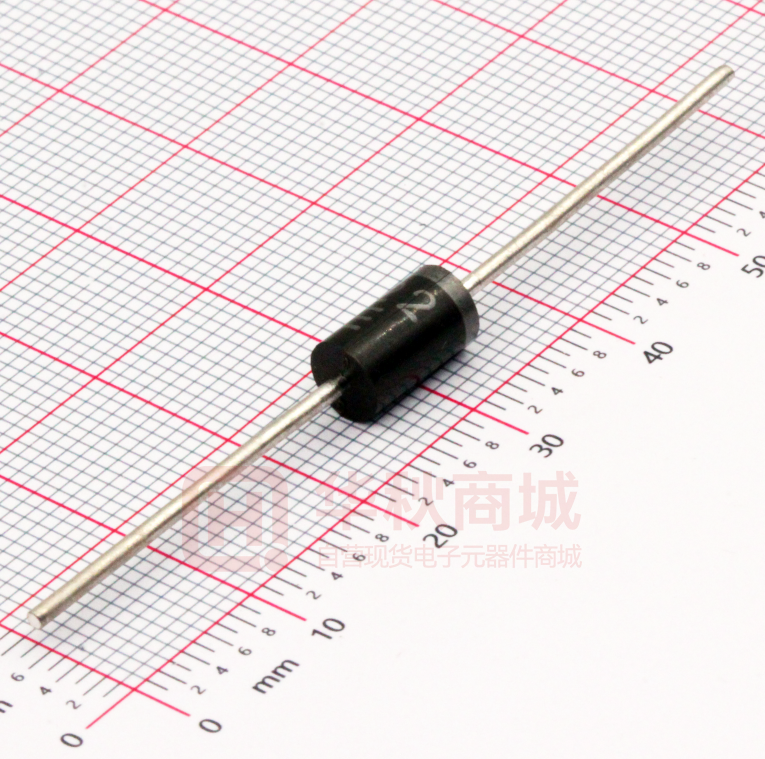

1N5822

1N5820-1N5822 3.0 AMP. Schottky Barrier Rectifiers DO-201AD Features






Low power loss, high efficiency. High current capability, Low VF. High reliability High surge current capability. Epitaxial construction. Guard-ring for transient protection. For use in low voltage, high frequency inventor, free wheeling, and polarity protection application. Mechanical Data




Cases: DO-201AD molded plastic Epoxy: UL 94V-0 rate flame retardant Polarity: Color band denotes cathode end High temperature soldering guaranteed: 260oC/10 seconds/.375”,(9.5mm) lead lengths at 5 lbs., (2.3kg) tension Weight: 1.2 grams Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics Rating at 25 oC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20% Symbol 1N5820 Type Number VRRM VRMS VDC Maximum Recurrent Peak Reverse Voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum Average Forward Rectified Current .375 (9.5mm) Lead Length @TL = 90℃ Peak Forward Surge Current, 8.3 ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method ) Maximum Instantaneous Forward Voltage @ 3.0A Maximum Instantaneous Forward Voltage @ 9.0A o Maximum DC Reverse Current @ TA=25 C o at Rated DC Blocking Voltage @ TA=100 C Typical Junction Capacitance (Note 2) Typical Thermal Resistance (Note 1) Storage Temperature Range Revision:20170701-P1 1N5822 Units 30 40 V 14 21 28 V 30 40 V 20 I(AV) 3.0 A IFSM 80 A VF VF 0.475 0.500 0.525 V 0.850 0.900 0.5 10 200 0.950 V mA mA pF IR Cj RθJA TJ Operating Temperature Range Notes: 1N5821 20 TSTG 40 -65 to +125 -65 to +125 o C/W o C o C 1. Mount on Cu-Pad Size 16mm x 16mm on P.C.B. 2. Measured at 1 MHz and Applied Reverse Voltage of 4.0 V D.C. ht t p : // www.lgesemi .c o m mail:lge@lgesemi.com 1N5820-1N5822 3.0 AMP. Schottky Barrier Rectifiers RATINGS AND CHARACTERISTIC CURVES (1N5820 THRU 1N5822) FIG.1- MAXIMUM FORWARD CURRENT DERATING CURVE 3 2 Resistive of Inductive Load 0.375"(9.5mm) Lead Length 1 0 20 40 60 80 100 o LEAD TEMPERATURE. ( C) 120 70 60 40 30 20 10 1 2 5 10 20 NUMBER OF CYCLES AT 60Hz 50 100 FIG.4- TYPICAL REVERSE CHARACTERISTICS 10 FIG.3- TYPICAL FORWARD CHARACTERISTICS 20 8.3ms Single Half Sine Wave JEDEC Method 50 140 1.0 Tj=25oC Pulse Width=300 s 1% Duty Cycle 0.1 .2 1000 .3 .4 .5 .6 FORWARD VOLTAGE. (V) .7 .8 .9 INSTANTANEOUS REVERSE CURRENT. (mA) 58 21 ~1 N 1N 58 22 58 20 10 1N FIG.5- TYPICAL JUNCTION CAPACITANCE 0 Tj=100 C 1.0 0 Tj=75 C .10 0 Tj=25 C .01 400 .001 100 80 60 100 20 10 0.1 0.4 1.0 4 10 REVERSE VOLTAGE. (V) 40 100 TRANSIENT THERMAL IMPEDANCE. (OC/W) INSTANTANEOUS FORWARD CURRENT. (A) 0 JUNCTION CAPACITANCE.(pF) 80 PEAK FORWARD SURGE CURRENT. (A) AVERAGE FORWARD CURRENT. (A) 4 FIG.2- MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT 0 20 40 60 80 100 120 140 PERCENT OF RATED PEAK REVERSE VOLTAGE. (%) FIG.6- TYPICAL TRANSIENT THERMAL CHARACTERISTICS 10 1 0.1 0.01 0.1 1 10 T, PULSE DURATION. (sec) 100 PACKAGE SPQ/PCS CARTON SPQ/PCS CARTON SIZE/CM CARTON GW/KG CARTON NW/KG DO-27 1250/AMMO 12500 40X26.5X30 14.00 12.00 Revision:20170701-P1 ht t p : // www.lgesemi .c o m mail:lge@lgesemi.com
