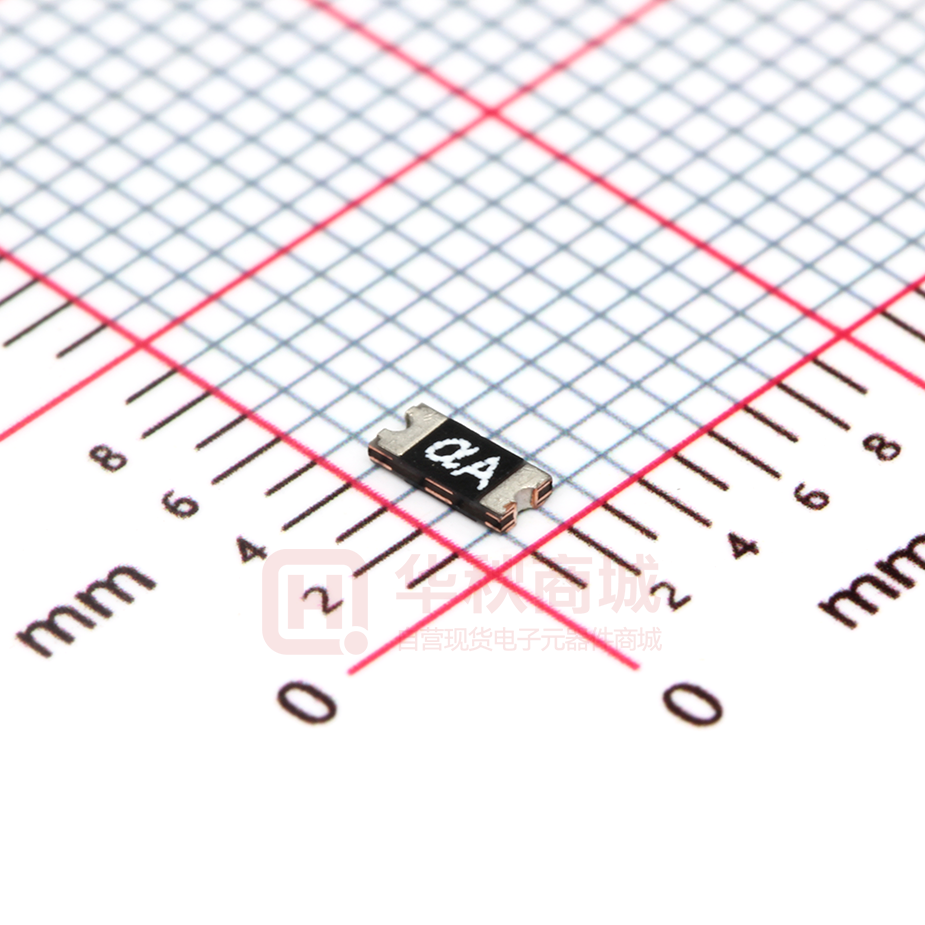

nSMD025-24V

SEA&LAND ELECTRONIC CORP. 13F., No.120-10, Sec. 3, Zhongshan Rd., Zhonghe Dist.,New Taipei City 235, Taiwan Techfuse Tel.: 886-2-8221-2567 PTC Devices Fax.: 886-2-2225-7268 PRODUCT: DOCUMENT: ECN. NO.: REV LETTER: REV DATE: PAGE NO.: Resettable Fuse nSMD025 QR0429 2013-4-2 1 of 1 Specification Sheet Terminal Pad Solderability: Meets EIA Specification RS186-9E And ANSI/J-STD-002 Category 3. A Terminal Pad Materials: Tin-plated Nickel-Copper A B Lead-Free, RoHS Compliant Marking: Part Identification nSMD025 = αA E D TABLE I. DIMENSIONS: Model Marking nSMD025 αA A B C Min. Max. Min. Max. Min. Max. D Min. 3.00 3.50 1.50 1.80 0.40 0.90 0.15 E Min. 0.10 Unit:mm TABLE II. PERFORMANCE RATINGS: Model Marking nSMD025 αA Vmax Imax (Vdc) (A) 16.0 100 Ihold Itrip @25°C @25°C (A) (A) 0.25 0.50 Pd Typ. Current Time (W) (A) (Sec) 0.6 Order Information SMD1206 025 Hold Max Current voltage SMD：surface mount device Recognitio UL Approved. 8.0 0.08 Resistance Rimin () R1max () 0.350 2.500 Packaging Product name Size 3216 mm / 1206 mils Maximum Time To Trip 0.25A E201504/E319079 Tape & Reel Quantity 5000 pcs/reel C
