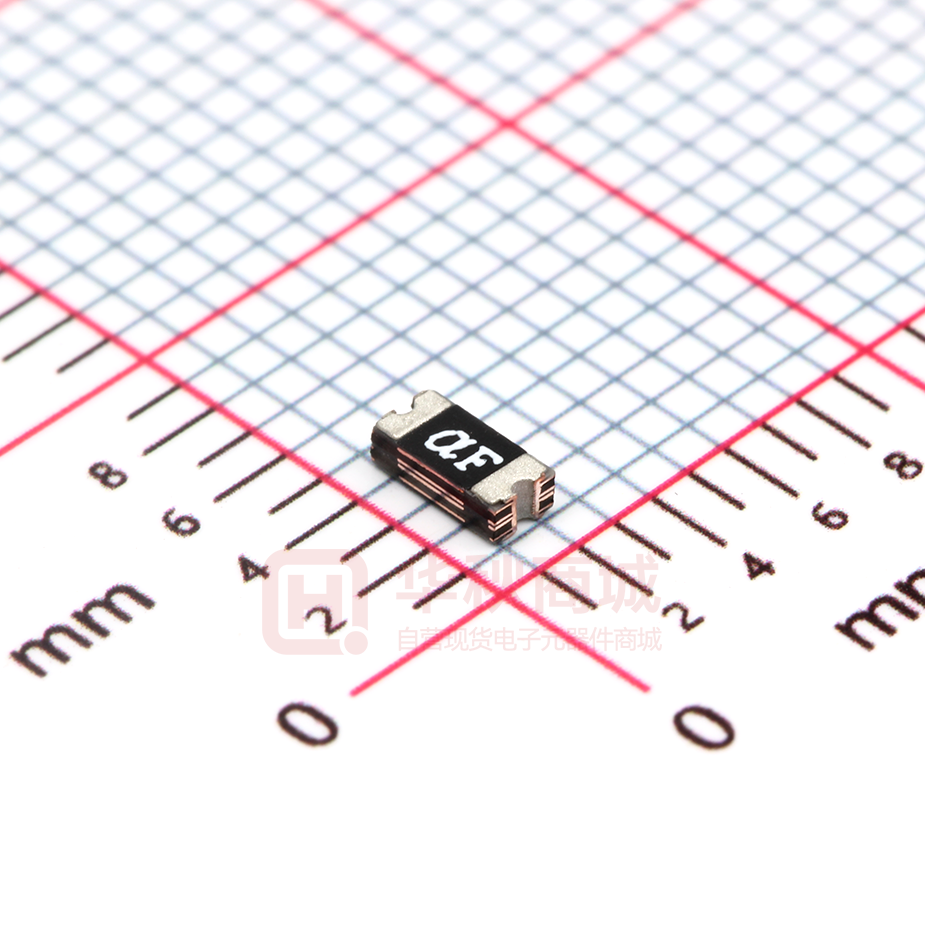

nSMD050-24V

SEA&LAND ELECTRONIC CORP. 13F., No.120-10, Sec. 3, Zhongshan Rd., Zhonghe Dist.,New Taipei City 235, Taiwan Techfuse Tel.: 886-2-8221-2567 PTC Devices Fax.: 886-2-2225-7268 PRODUCT: nSMD050 DOCUMENT: QR0429 ECN. NO.: REV LETTER: REV DATE: PAGE NO.: Resettable Fuse 2014/12/26 1 of 1 Specification Sheet Terminal Pad Solderability: Meets EIA Specification RS186-9E And ANSI/J-STD-002 Category 3. A Terminal Pad Materials: Tin-plated Nickel-Copper F B Lead-Free, RoHS Compliant Marking: Part Identification D αF nSMD050 = E TABLE I. DIMENSIONS: Model Marking nSMD050 αF A B C Min. Max. Min. Max. Min. Max. D Min. E Min. 3.00 3.50 1.50 1.80 0.50 1.20 0.15 0.10 Unit:mm Ihold Itrip Pd TABLE II. PERFORMANCE RATINGS: Model Marking Vmax Imax @25°C @25°C nSMD050 αF (Vdc) (A) (A) (A) 6.0 100 0.50 1.00 Typ. Current Time (W) (A) (Sec) 0.6 Order Information SMD1206 Product name Size 3216 mm / 1206 mils SMD：surface mount device Recognition: UL Approved. Maximum Time To Trip 8.0 0.10 Resistance Rimin (W) R1max (W) 0.150 0.700 Packaging 050 Tape & Reel Quantity Hold Max Current voltage 0.50A E201504/E319079 5000 pcs/reel C
