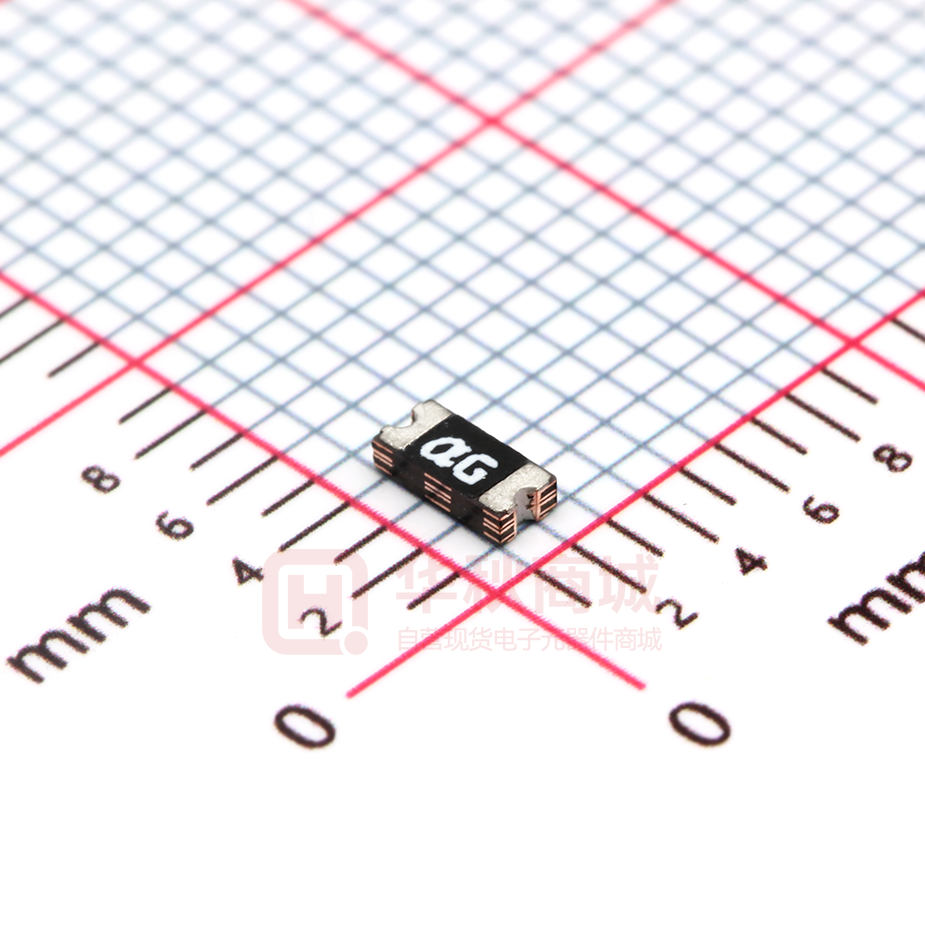

nSMD075-16V

SEA&LAND ELECTRONIC CORP. 13F., No.120-10, Sec. 3, Zhongshan Rd., Zhonghe Dist.,New Taipei City 235, Taiwan Techfuse Tel.: 886-2-8221-2567 PTC Devices Fax.: 886-2-2225-7268 PRODUCT: DOCUMENT: ECN. NO.: REV LETTER: REV DATE: PAGE NO.: Resettable Fuse nSMD075 QR0429 2014/12/26 1 of 1 Specification Sheet Terminal Pad Solderability: Meets EIA Specification RS186-9E And ANSI/J-STD-002 Category 3. A Terminal Pad Materials: Tin-plated Nickel-Copper G B Lead-Free, RoHS Compliant Marking: Part Identification nSMD075 = D E αG TABLE I. DIMENSIONS: Model Marking nSMD075 αG A B C Min. Max. Min. Max. Min. Max. D Min. E Min. 3.00 3.50 1.50 1.80 0.50 1.20 0.15 0.10 Unit:mm Ihold Itrip Pd TABLE II. PERFORMANCE RATINGS: Model Vmax Marking Imax @25°C @25°C nSMD075 (Vdc) (A) (A) (A) 6.0 100 0.75 1.50 αG Rimin (W) R1max (W) 0.6 0.090 0.500 075 Product name Hold Max Current voltage Recognition: UL Approved. 8.0 0.20 Packaging SMD1206 Size 3216 mm / 1206 mils Resistance Typ. Current Time (W) (A) (Sec) Order Information SMD：surface mount device Maximum Time To Trip 0.75A E201504/E319079 Tape & Reel Quantity 5000 pcs/reel C
