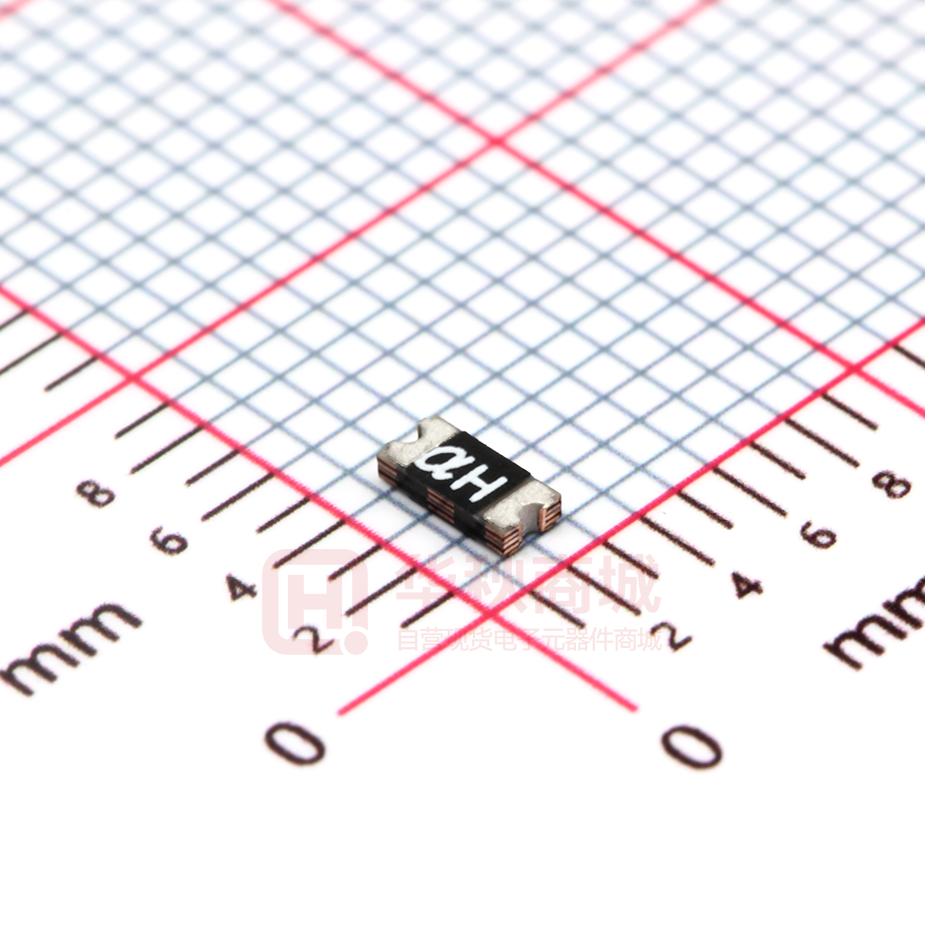

nSMD100-13.2V

SEA&LAND ELECTRONIC CORP. 13F., No.120-10, Sec. 3, Zhongshan Rd., Zhonghe Dist.,New Taipei City 235, Taiwan Techfuse Tel.: 886-2-8221-2567 PTC Devices Fax.: 886-2-2225-7268 PRODUCT: DOCUMENT: ECN. NO.: REV LETTER: REV DATE: PAGE NO.: Resettable Fuse nSMD100 QR0429 2014/12/26 1 of 1 Specification Sheet Terminal Pad Solderability: Meets EIA Specification RS186-9E And ANSI/J-STD-002 Category 3. A Terminal Pad Materials: Tin-plated Nickel-Copper H B Lead-Free, RoHS Compliant Marking: Part Identification D E nSMD100 = αH TABLE I. DIMENSIONS: Model Marking nSMD100 αH A Min. 3.00 B Max. 3.50 C Min. 1.50 Max. 1.80 Min. 0.50 Ihold Itrip Pd Max. 1.20 D Min. 0.15 E Min. 0.10 Unit:mm TABLE II. PERFORMANCE RATINGS: Model Vmax Imax (Vdc) (A) (A) (A) 6.0 100 1.00 1.80 Marking @25°C @25°C nSMD100 αH Rimin (W) R1max (W) 0.6 0.055 0.270 8.0 0.30 Packaging SMD1206 100 Product name Hold Max Current voltage SMD：surface mount device Resistance Typ. Current Time (W) (A) (Sec) Order Information Size 3216 mm / 1206 mils Maximum Time To Trip Tape & Reel Quantity 1.00A Recognition: UL / TÜV, Approved.E201504/E319079/R50141892 5000 pcs/reel C
