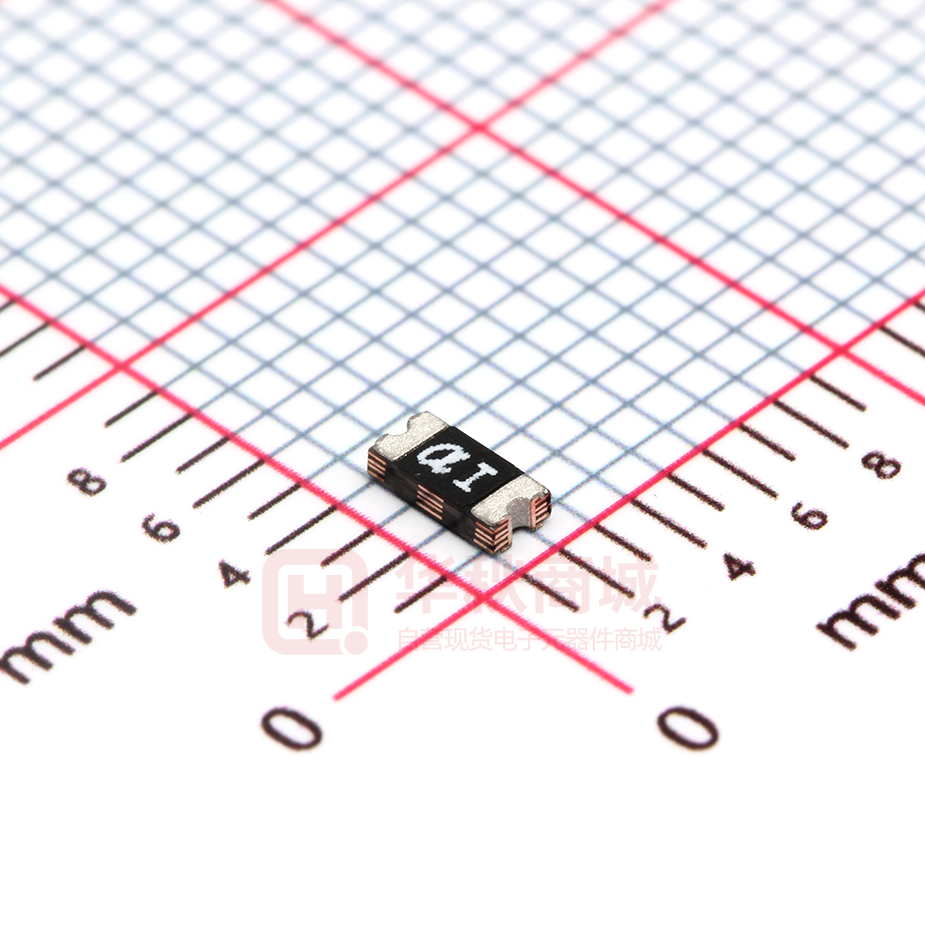

nSMD150-13.2V

SEA&LAND ELECTRONIC CORP. 13F., No.120-10, Sec. 3, Zhongshan Rd., Zhonghe Dist.,New Taipei City 235, Taiwan Techfuse Tel.: 886-2-8221-2567 PTC Devices Fax.: 886-2-2225-7268 PRODUCT: DOCUMENT: ECN. NO.: REV LETTER: REV DATE: PAGE NO.: Resettable Fuse nSMD150 QR0429 2014/8/6 1 of 1 Specification Sheet Terminal Pad Solderability: Meets EIA Specification RS186-9E And ANSI/J-STD-002 Category 3. A Terminal Pad Materials: Tin-plated Nickel-Copper I B Lead-Free, RoHS Compliant Marking: Part Identification nSMD150 = D αI E TABLE I. DIMENSIONS: Model Marking nSMD150 αI A B C Min. Max. Min. Max. Min. Max. D Min. E Min. 3.00 3.50 1.50 1.80 0.50 1.20 0.15 0.10 Unit:mm TABLE II. PERFORMANCE RATINGS: Model Vmax Imax (Vdc) (A) (A) (A) 6.0 100 1.50 3.00 Marking Ihold Itrip Pd @25°C @25°C nSMD150 αI Typ. Current Time (W) (A) (Sec) 0.8 Order Information 150 Product name Hold Max Current voltage SMD：surface mount device 8.0 1.00 Resistance Rimin (W) R1max (W) 0.040 0.130 Packaging SMD1206 Size 3216 mm / 1206 mils Maximum Time To Trip Tape & Reel Quantity 1.50A Recognition: UL TUV Approved. E201504/E319079/R50265895 3500 pcs/reel C
