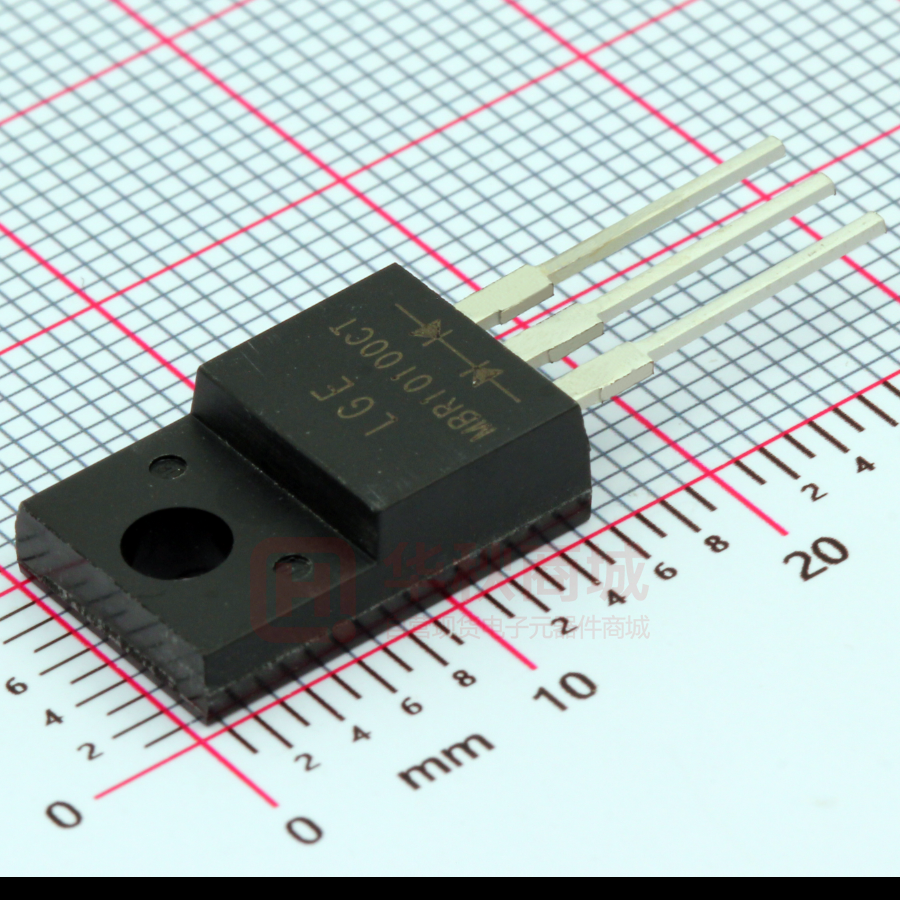

MBR10100CTP

MBR1030CTP-MBR10100CTP Schottky Barrier Rectifiers VOLTAGE RANGE: 30 - 100 V CURRENT: 10 A ITO-220AB Features 4.5± 0.2 10.2± 0.2 1 Guard ring for over voltage protection. PIN 2 3 4.0± 0.3 13.5± 0.5 Mechanical Data φ 3 .2± 0.2 High current capacity, low forward voltage drop. 16.5± 0.3 Metal s ilicon junction, m ajority carrier conduction. φ 3 .3± 0.1 For us e in low voltage, high frequency inverters , free wheeling, and polarity protection applications . 15.0± 0.5 111 3.1+0.2 -0.1 8.2± 0.2 High s urge capacity. 2.6± 0.2 1.4± 0.1 0.6± 0.1 Cas e:JEDEC ITO-220AB,molded plastic body 0.6± 0.1 2.6± 0.15 Polarity: As m arked Pos ition: Any Weight: 0.06ounce, 1.67 grams Dimensions in millimeters MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 am bient tem perature unles s otherwis e s pecified. Single phase,half wave,60Hz,resistive or inductive load.For capactive load,derate current by 20%. MBR MBR MBR MBR MBR MBR MBR MBR 1030CTP 1035CTP 1040CTP 1045CTP 1050CTP 1060CTP 1090CTP 10100CTP UNITS Maximum recurrent peak reverse voltage V RRM 30 35 40 45 50 60 90 100 V Maximum RMS V oltage V RMS 21 25 28 32 35 42 63 70 V Maximum DC blocking voltage V DC 30 35 40 45 50 60 90 100 V Maximum average forw ard total device m rectified current @TC = 105°C IF(AV) 10 A Peak forw ard surge current 8.3ms single half b sine-w ave superimposed on rated load IFSM 125 A Maximum forward (I F=5.0A,TC=125 ) voltage (I F=5.0A,TC=25 ) (Note 1) (I F=10A ,TC=25 ) Maximum reverse current at rated DC blocking voltage VF @TC =25 @TC =125 IR 0.57 0.70 - 0.70 0.80 0.85 0.84 0.95 - 0.1 15 6.0 3) 6.8 4.4 Maximum thermal resistance (Note2) R θJC Operating junction temperature range TJ - 55 ---- + 150 TSTG - 55 ---- + 150 Storage temperature range V mA /W NOTE: 1. Pulse test:300μs pulse width,1% duty cy cle. 2. Thermal resistance from junction to case. 3.T C =100 ht t p : // Revision:20170701-P1 www.lgesem i .c o m mail:lge@lgesemi.com MBR1030CTP-MBR10100CTP Schottky Barrier Rectifiers Ratings AND Charactieristic Curves AVERAGE FORWARD OUTPUT CURRENT, AMPERES FIG.2 -- FORWARD DERATING CURVE 125 100 AMPERES PEAK FORWARD SURGE CURRENT, FIG.1 -- PEAK FORWARD SURGE CURRENT 8.3ms Single Half Sine Wave TJ=125 75 50 25 0 1 100 10 10 8 6 4 2 0 25 50 MBRF1030CT-MBRF1045CT MBRF1090CT-MBRF10100CT MBRF1050CT-MBRF1060CT Pulse width=300µ s 1% Duty Cycle 0.1 .3 .4 .5 .6 .7 .8 .9 1.0 1.1 1.2 1.3 INSTANTANEOUS FORWARD VOLTAGE, VOLTS ht t p : // Revision:20170701-P1 125 150 FIG.4 -- TYPICAL REVERSE CHARACTERISTIC INSTANTANEOUS REVERSE CURRENT, MILLIAMPERES 20 AMPERES INSTANTANEOUS FORWARD CURRENT, FIG.3 -- TYPICAL FORWARD CHARACTERISTIC 1.0 100 CASE TEMPERATURE, NUMBER OF CYCLES AT 60HZ 10 75 10 MBRF1090CT-MBRF10100CT MBRF1030CT-MBRF1060CT 1 MBRF1030CTMBRF10100CT .1 .01 TC=125℃ TC=25℃ 0 20 40 60 80 100 120 140 PERCENT OF RATED PEAK REVERSE VOLTAGE,% www.lgesem i .c o m mail:lge@lgesemi.com
