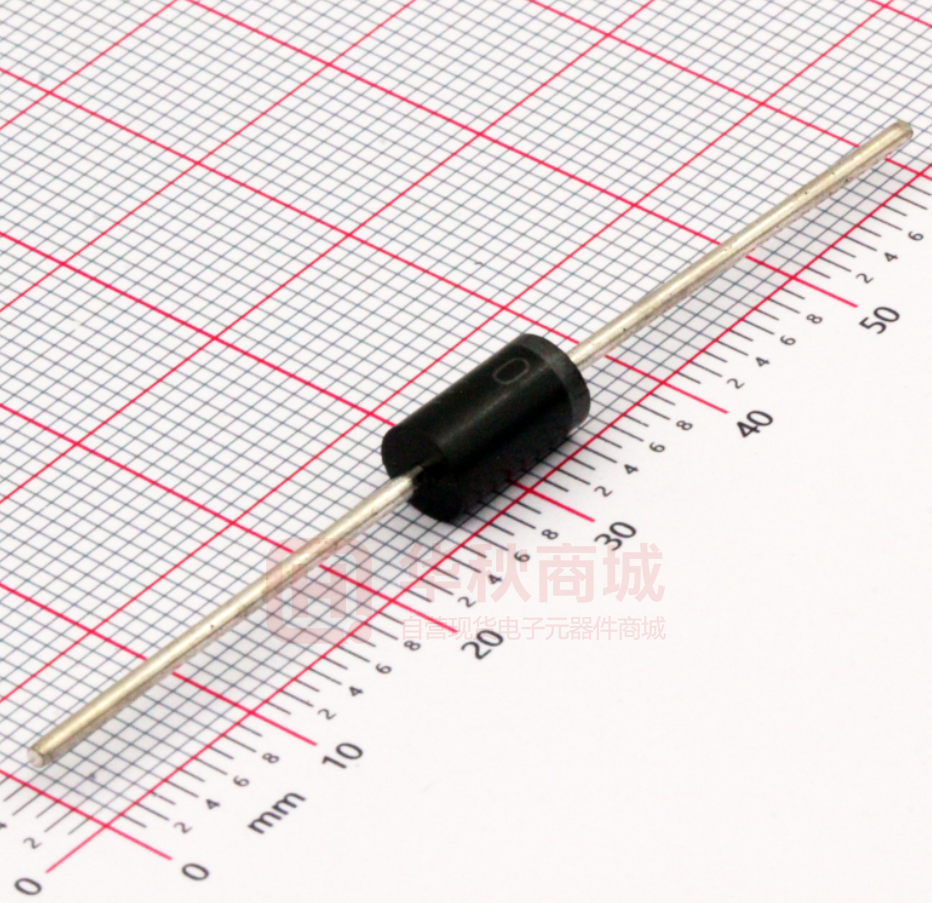

SR10100

SR102 0 THRU SR102 00 10.0 AMP.Schottky Barrier Rectifiers Features · Metal silicon rectifier,majority carrier conduction DO-201AD · Guard ring for transient protection · Low power loss,high efficiency · High surge capability ０．９６（２４．５） MIN. · High current capability,low VF · For use in low voltage,high frequency inverters,free DIA. wheeling,and polarity protection applications · Plastic material-UL flammability 94V-0 Mechanical Data ０．９６（２４．５） DIA. MIN. · Case: Molded plastic DO-201AD · Polarity: Color band dentes cathode end · Mounting Position: Any Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics Rating at 25℃ ambient temperature unless otherwise specified Single phase,half wave,60Hz,resistive or inductive load For capacitive load derate current by 20% Type Number SYMBOL Maximum Recurrent Peak Reverse Voltage VRRM SR SR SR SR SR SR SR SR SR SR Unit 1020 1030 1040 1045 1050 1060 1080 10100 10150 10200 20 30 40 45 50 60 80 100 150 200 V 28 31.5 35 42 56 70 105 140 V 40 45 50 60 80 100 150 200 V Maximum RMS Voltage VRMS 14 21 Maximum DC Blocking Voltage VDC 20 30 Maximum Average Forward Rectified IF(AV) Current.375"(9.5mm) lead length@TL =100℃ Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on rated load (JEDEC IFSM Method) I2t Rating for Fusing (t < 8.3ms) I 2t Forward Voltage @IF=10.0A(Note 1) Peak Reverse Current @TA=25℃ At Rated DC Blocking Voltage @TA=100℃ Typical Junction Capacitance (Note2) Typical Thermal Resistance Junction to case Operating Temperature Range /Storage Temperature Range VFM A 150 A 93.375 A2s 0.7 0.55 IR 10.0 0.92 0.85 0.3 0.05 10 5 V mA CJ 450 pF RθJA 3.0 ℃/W TJ -55 to +150 ℃ T STG -55 to +150 ℃ Note:1. 300us Pulse Width,2%Duty Cycle 2. Measured at 1.0 MHz and Applied reverse Voltage of 4.0V D.C ht t p : // Revision:20170701-P1 www.lgesemi .c o m mail:lge@lgesemi.com SR102 0 THRU SR102 00 10.0 AMP.Schottky Barrier Rectifiers FIG.2-TYPICAL FORWARD CHARACTERISTICS 100 12 INSTANTANEOUS FORWARD CURRENT(A) AVERAGE FORWARD CURRENT AMPERES (A) FIG.1-FORWARD CURRENT DERATING CURVE 10 8 6 4 2 0 20 50 75 100 125 150 175 SR1020-SR1045 10 SR1050-SR106 SR1080-SR10100 1 SR10150-SR1020 TJ=25℃ PULSE WIDTH 300US 2%DUTY CYCLE 0.1 0.2 LEAD TEMPERATURE( OC) 160 120 80 8.3Single Half-Sine-Wave (JEDEC METOD) 0 5 10 20 50 100 INSTANTANEOUS REVERSE CURRENT(mA) PEAK FORWARD SURGE CURRENT AMPERES (A) 200 2 0.7 0.8 1.2 1.0 0.9 100 10 TA=100℃ 1 0.1 TA=50℃ 0.01 TA=25℃ 0 NUMBER OF CYCLES AT 60Hz ht t p : // Revision:20170701-P1 0.6 FIG.4-TYPICAL REVERSE CHARACTERISTICS 240 1 0.5 INSTANTANEOUS FORWARD ( V ) FIG.3-MAXIMUM NON-REPETITVE SURGE 40 0.4 0.3 20 50 75 100 125 150 175 PERCENT OF RATED PEAK REVERSE ( % ) www.lgesemi .c o m mail:lge@lgesemi.com
