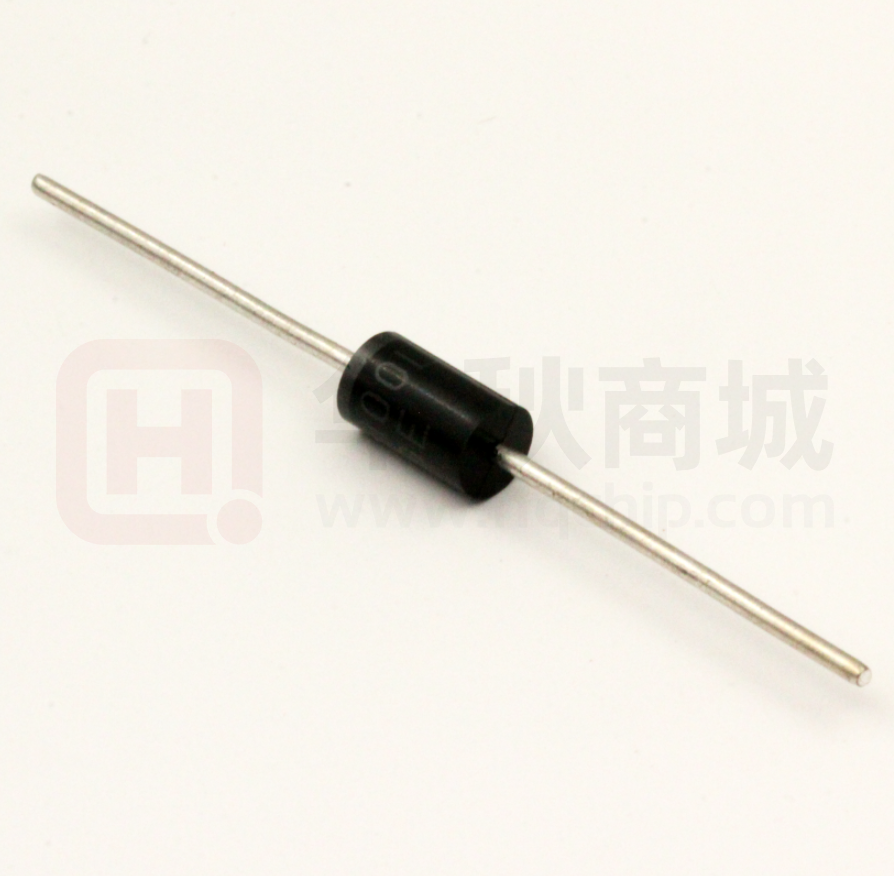

SR10100L

SR104 5L THRU SR10100L 10.0 AMP. L O W V F Schottky Barrier Rectifiers Features •Plastic package has Underwriters Laboratory DO-201AD/DO-27 Flammability Classification 94V-0 utilizing Flame Retardant Epoxy Molding Compound. • Guard ring for overvoltage protection • High current capability, low forward voltage drop ０．９６（２４．５） MIN. • Low power loss, high efficiency • High surge capability DIA. Mechanical Data ·Case: Molded plastic D0-201AD/DO-27 · Terminals: Plated leads solderable per MIL-STD-202,Method 208 guaranteed ０．９６（２４．５） DIA. MIN. · Polarity: Color band dentes cathode end · Mounting Position: Any · Making: Type Number · Lead Free: For RoHS/Lead Free Version Dimensions in inches and (millimeters) Maximum Ratings and Electrical Characteristics Rating at 25℃ ambient temperature unless otherwise specified Single phase,half wave,60Hz,resistive or inductive load For capacitive load derate current by 20% Symbol SR1045L SR1050L SR1060L SR1080L SR10100L Unit Parameter Peak Repetitive Reverse Voltage VRRM Working Peak Reverse Voltage VRWM 45 50 60 80 100 V 32 35 42 56 70 V VDC DC blocking voltage VR(RMS) RMS Rectified Voltage Average Rectified Output Current (Note1) IF(AV) 10 A IFSM 150 A I2t Rating for Fusing (t < 8.3ms) I 2t 93.375 A2s Forward Voltage Drop TA =25 ℃ @IF=10A VFM Non-Repetitive Peak Forward Surge8.3ms Single Half Sine-Wave Superimposed on rated load(JEDEC Method) (Note2) Peak Reverse Curent TA =25℃ At Rated DC Blocking Voltage TA =100℃ 0.45 0.55 IR 0.3 15 Typical Thermal Resistance RθJA 80 Junctionto Ambient RθJL 10 Operating junction temperature range storage temperature range 0.75 V mA ℃/W TJ -55 to +150 ℃ TSTG -55 to +150 ℃ Note: 1. Leads maintained at ambient temperature at a distance of 9.5mm from the case 2. Measured at 1.0 MHz and Applied reverse Voltage of 4.0V D.C Revision:20170701-P1 ht t p : // www.lgesemi .c o m mail:lge@lgesemi.com SR104 5L THRU SR10100L Fig2 : Instantaneous Forward Voltage IF(A) AVERAGE FORWARD CURRENT (A) FIG. 1 - FORWARD CURRENT DERATING CURVE 10 .0 100 SR1045L-SR1050L 8.0 SR1060L 10 6.0 4.0 1.0 2.0 TA =25 ℃ SR1080L-SR10100L 0 25 50 75 100 125 150 175 0.1 0 0.2 0.4 0.6 0.8 1.0 VF(V) O LEAD TEMPERATURE( C) Fig4: Typical Reverse Characteristics IRRM(mA) IFSM(A) Fig3: Surge Forward Current Capadility 300 250 100 10 ℃ TA =100 200 150 1.0 100 0.1 50 ℃ TA =25 0 1 2 10 20 100 Number of Cycles 0.01 0 20 40 60 80 100 VRM(%) Revision:20170701-P1 ht t p : // www.lgesemi .c o m mail:lge@lgesemi.com
