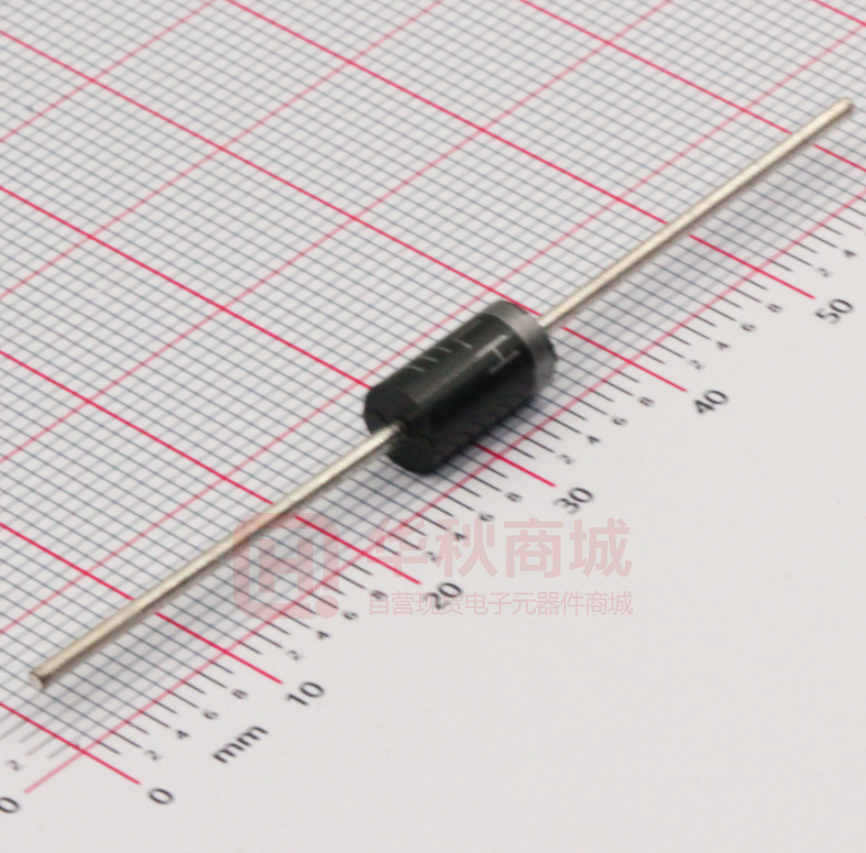

SR5100LH

SR520LH-SR5100LH Low VF Schottky Barrier Rectifiers VOLTAGE RANGE: 20 --- 100 V CURRENT: 5.0A DO-201AD/DO - 27 Features Metal-semiconductor junction with guard ring Epitaxial construction Low forward voltage drop,low switching losses High surge capability For use in low voltage,high frequency inverters free wheeling,and polarity protection applications The plastic material carries U/L recognition 94V-0 Mechanical Data Case:JEDEC DO-201AD/DO--27,molded plastic Polarity: Color band denotes cathode Weight: 0.041ounces,1.15 grams Mounting position: Any Dimensions in millimeters MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 ambient temperature unless otherwise specified. Single phase,half wave,60 Hz,resistive or inductive load. For capacitive load,derate by 20%. SR520LH SR530LH SR540LH SR550LH R560LH SR580LH SR5100LH UNITS Maximum recurrent peak reverse voltage VRRM 20 30 40 50 60 80 100 V Maximum RMS voltage VRMS 14 21 28 35 42 56 70 V Maximum DC blocking voltage VDC 20 30 40 50 60 80 100 V Maximum average forw ard rectified current 9.5mm lead length, (see fig.1) IF(AV) 5.0 A IFSM 150.0 A Peak forw ard surge current 8.3ms single half-sine-w ave superimposed on rated load @TJ=125 Maximum instantaneous forw ard voltage @ 5.0A (Note 1) Maximum reverse current @TA=25 VF( 25 ) 0.45 0.60 0.65 VF(125 ) 0.36 0.50 0.60 2.5 IR at rated DC blocking voltage @TA=100 Typical junction capacitance (Note2) CJ Typical thermal resistance (Note3) RθJA TSTG Storage temperature range 25.0 500 400 25 - 55 ---- + 125 TJ Operating junction temperature range 50.0 V mA pF /W - 55 ---- + 150 - 55 ---- +150 NOTE: 1. Pulse test:300us pulse width,1% duty cy cle. 2. Measured at 1.0MHz and applied rev erse v oltage of 4.0V DC. 3.Thermal resistance junction to ambient Revision:20170701-P1 ht t p : // www.lgesem i .c o m mail:lge@lgesemi.com SR520LH-SR5100LH Schottky Barrier Rectifiers Ratings AND Charactieristic Curves SR550LH - SR5100LH 4.0 3.0 Resistive or Inductive Load 0.375"(9.5mm) Lead Length 2.0 1.0 0 0 25 50 75 100 125 150 175 125 TJ =TJ MAX 8.3ms Single Half Sine-Wave 100 75 50 25 0 1 LEAD TEMPERATURE, 10 100 NUMBER OF CYCLES AT 60Hz FIG.3 -- TYPICAL INSTANTANEOUS FORWARD XXXXXXX----CHARACTERISTICS FIG.4 -- TYPICAL JUNCTION CAPACITANCE 50 SR520LH - SR540LH 10 CAPACITANCE,pF 4000 SR550LH - SR560LH AMPERES INSTANTANEOUS FORWARD CURRENT 150 AMPERES SR520LH- SR540LH FIG.2 -- PEAK FORWARD SURGE CURRENT PEAK FORWARD SURGE CURRENT 5.0 AMPERES AVERAGE FORWARD RECTIFIED CURRENT FIG.1 -- FORWARD CURRENT DERATING CURVE 1 SR580LH-SR5100LH 0.1 TJ=25 Pulse Width=300 µ s 1% DUTY CYCLE 1000 SR520LH - SR540LH SR550LH - SR5100LH 100 0.1 0.01 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 ht t p : // 1 10 100 1.6 INSTANTANEOUS FORWARD VOLTAGE, VOLTS Revision:20170701-P1 TJ=25℃ f=1.0MHz Vsig=50mVp-p REVERSE VOLTAGE,VOLTS www.lgesem i .c o m mail:lge@lgesemi.com
