SR5100T

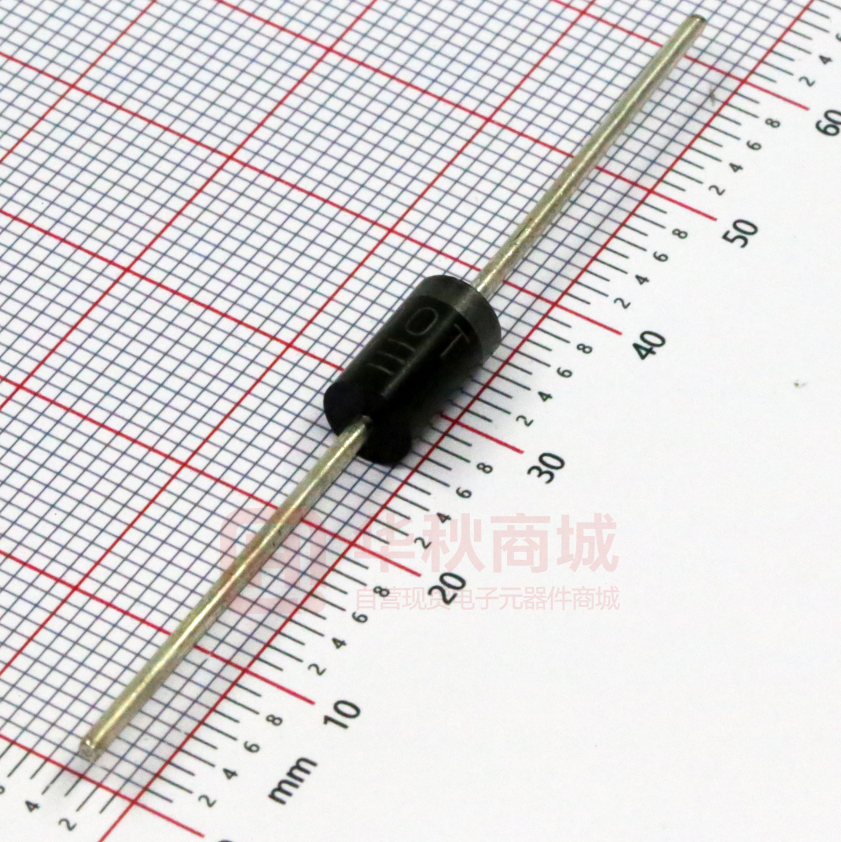

SR5100T 5A Lead Type Low Barrier Diode ■ Features ■ Outline • Axial lead type devices for through hole design. • Low forward voltage drop. • Excellent high temperature stability. • Fast switching capability. • Suffix "H" indicates Halogen-free part, ex.SR5100TH. • Lead-free parts meet environmental standards of MIL-STD-19500 /228 DO-27(DO-201AD) 1.0 (25.4) MIN. .220 (5.6) .197 (4.8) DIA. Marking code ■ Mechanical data • Epoxy:UL94-V0 rated flame retardant • Case : Molded plastic, DO-201AD / DO-27 • Lead : Axial leads, solderable per MIL-STD-202, Method 208 guranteed • Polarity : Color band denotes cathode end • Weight : Approximated 1.10 gram .375 (9.6) .285 (7.2) 1.0 (25.4) MIN. .052 (1.3) .048 (1.2) DIA. Dimensions in inches and (millimeters) ■ Maximum ratings and electrical characteristics Rating at 25 O C ambient temperature unless otherwise specified. Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%. Parameter Conditions SR5100T Symbol Peak repetitive reverse voltage VRRM Working peak reverse voltage V RW M DC blocking voltage VRM Forward rectified current 100 V IO 5 A IFSM 200 A Forward surge current 8.3ms single half sine-wave superimposed on rate load (JEDEC method) Peak repetitive reverse surge current 2us - 1kHz IRRM 1 Thermal resistance Junction to case RθJC 20 TJ, TSTG -65 ~ +175 Operating and Storage temperature Parameter Conditions Symbol I F = 2A, T J = 25 O C Forward voltage drop I F = 5A, T J = 25 O C VF I F = 5A, T J = 125 C TYP. C/W O C MAX. UNIT 700 mV 600 V R = V R R M T J = 25 O C O V R = V R R M T J = 125 C ht t p : // Revision:20170701-P1 MIN. A O 510 O Reverse current UNIT SR5100T Marking code www.lgesemi .c o m IR 0.1 100 mA mail:lge@lgesemi.com SR5100T 5A Lead Type Low Barrier Diode ■ Rating and characteristic curves Fig. 2 - Instantaneous Forward Characteristics 100 Instantaneous Forward Current,I F (A) Average Forward Current,I F ( AV ) (A) Fig.1 - Forward Current Derating Curve 6 4 2 0 25 50 75 100 125 150 175 T A =150°C T A =125°C 10 T A =100°C 1 T A =85°C 0.1 T A =50°C T A =25°C 0.01 0 Case Temperature,T C ( O C) 0.2 0.4 0.6 0.8 1.0 Instantaneous Forward Voltage,V F (Volts) Fig. 3 - Reverse Characteristics Instantaneous Reverse Current,I R (mA) 100 T A =150 O C 10 T A =125 O C O T A= 1 0 0 1 C T A =85 O C 0.1 T A =50 O C T A =25 O C 0.01 0 20 40 60 80 100 120 Reverse Voltage,V R (V) ht t p : // Revision:20170701-P1 www.lgesemi .c o m mail:lge@lgesemi.com
