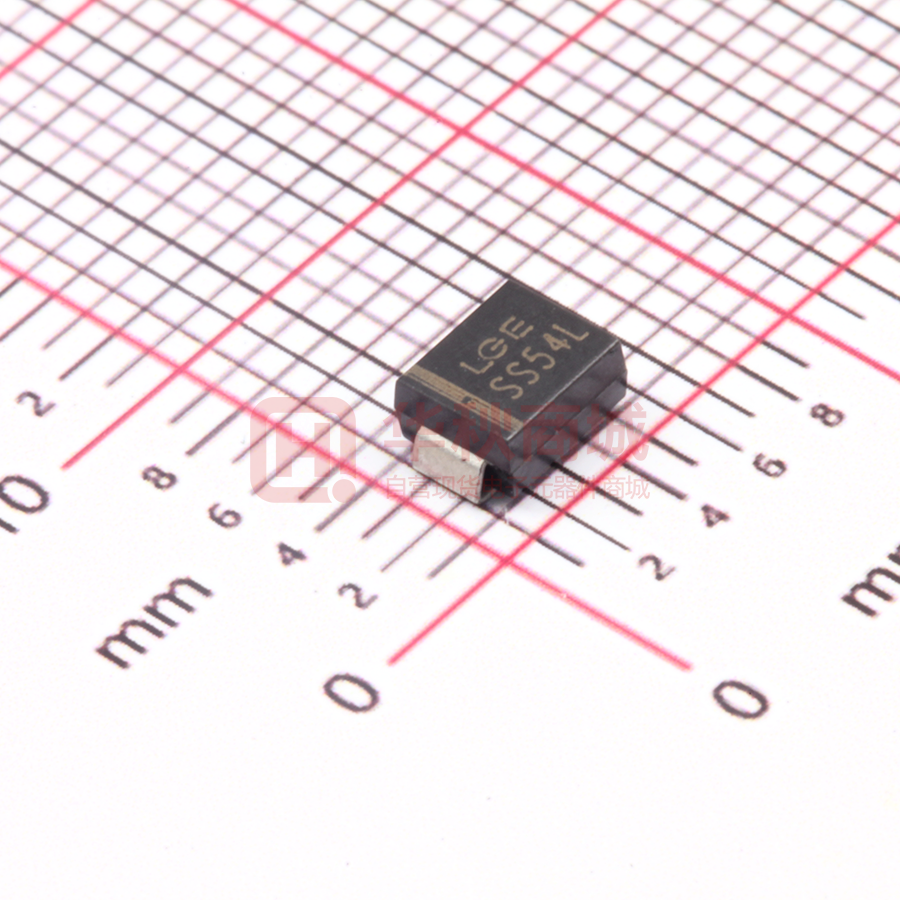

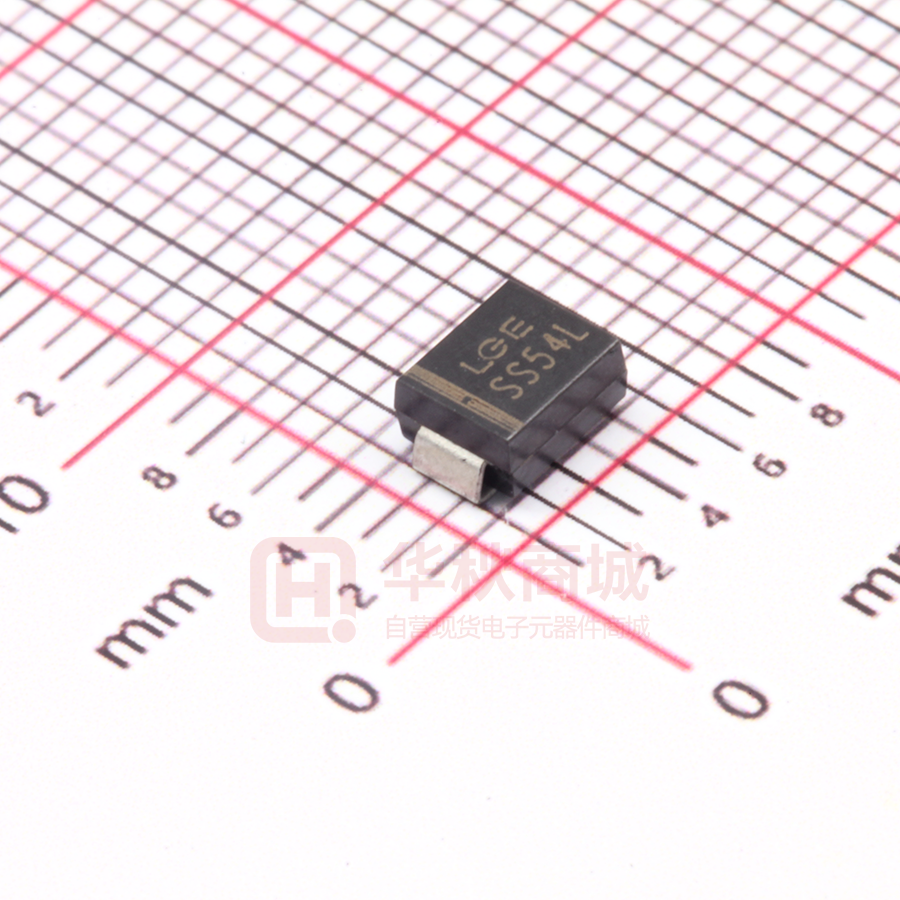

SS54L

SS52-SS520 5.0AMP. Schottky Barrier Rectifiers VOLTAGE RANGE:20-200V CURRENT:5.0A Fetures ◇ Plastic package has Underwriters Laboratory SMB Flammability Classification 94V-0 utilizing Flame Retardant Epoxy Molding Compound. ◇ Guard ring for overvoltage protection ◇ High current capability, low forward voltage drop ◇ Low power loss, high efficiency ◇ High surge capability Mechanicla Data ◇ Case: Molded plastic SMB ◇ Terminals: Plated leads solderable per MIL-STD-202,Method 208 guaranteed ◇ Polarity: Color band dentes cathode end ◇ Mounting Position: Any ◇ Weight: 0.093 gram Dimensions in inches and (millimeters) ◇ Lead Free: For RoHS/Lead Free Version ◇ Marking: LGE SS5XX MAXIMUM RATINGS AND ELECTRICAL CHARACTERS Ratings at 25℃ ambient temperature unless otherwise specified. Single phase,half wave,60HZ,resistive or inductive load.For capacitive load,derate by 20%. Type Numger Symbol SS SS SS SS SS SS5 SS5 SS5 52 54 55 56 58 10 15 20 UNITS Maximum Recurrent Peak Reverse Voltage VRRM 20 40 50 60 80 100 150 200 V Maxium RMS Voltage VRMS 14 28 35 42 56 70 105 140 V Maxium DC Blocking Voltage VDC 20 40 50 60 80 100 150 200 V Average Rectified Output Current (Note 1) @TL=100℃ IF(AV) 5.0 A IFSM 175 A I2t 127 A2S Peak forward surge current:8.3ms single half-sine-wave superimposed on rated load (JEDEC Method) I2t Rating for Fusing (t < 8.3ms) Forward Voltage @IF= 5.0A VFM Peak Reverse Current @TA=25℃ At Rated DC Blocking Voltage @TA=100℃ Typical Junction Capacitance (Note 2) Typical Thermal Resistance Junction toAmbient(Note 1) Operating Temperature Range Storage Temperature Range 0.45 0.55 IR IR 0.5 20 CJ 500 0.7 0.85 0.85 0.5 V Ma 10 350 pF ℃/W RθJA 55 TJ -55 to +150 ℃ TSTG -55 to +150 ℃ Note: 1.Pulse test:300¦ÌS pulse width,1%duty cycle. 2.P.C.B.mounted with 0.55"X0.55"(14.0X14.0mm2)copper pad areas. Revision:20170701-P1 ht t p : // www.lgesem i .c o m mail:lge@lgesemi.com SS52-SS520 5.0 AMP. Schottky Barrier Rectifiers VOLTAGE RANGE:20-200V CURRENT:5.0A F i g . 2 Ty p i c a l R e v e r s e C h a r a c t e r i s t i c s 6.0 100LFM 5.0 4.0 3.0 2.0 Single phase half wave resistive or inductive P.C.B mounted on 0.55×0.55"(14mm×14mm pad) areas 1.0 0.0 25 75 50 100 125 Instaneous Reverse Current ( μA) Average Forward Current (A) Fig.1 Forward Current Derating Curve 10 4 T J =100°C 10 3 SS54B/SS520B 10 1 0 40 60 100 80 F i g . 4 Ty p i c a l J u n c t i o n C a p a c i t a n c e T J =25°C Junction Capacitance ( pF) 20 10 1 SS52B SS54B SS56B/SS58B SS510B/SS520B 0.1 0 0.5 1.0 1.5 500 100 SS52B/SS54B SS54F/SS520F SS56B-SS520B 20 10 0.1 10 1 100 Instaneous Forward Voltage (V) Reverse Voltage (V) Fig.5 Maximum Non-Repetitive Peak Forward Surage Current F i g . 6 - Ty p i c a l Tr a n s i e n t T h e r m a l I m p e d a n c e 250 8.3 ms Single Half Sine Wave (JEDEC Method) 200 150 SS54B~SS520B 100 50 00 1 1000 2.0 10 100 Number of Cycles at 60Hz ht t p : // Transient Thermal Impedance（ °C /W） Instaneous Forward Current (A) 20 Percent of Rated Peak Reverse Voltage（%） F i g . 3 Ty p i c a l F o r w a r d C h a r a c t e r i s t i c Peak Forward Surage Current (A) T J =25°C 10 0 Lead Temperature (°C) Revision:20170701-P1 T J =75°C 10 2 100 10 1 0.01 0.1 1 10 100 t, Pulse Duration（sec） www.lgesem i .c o m mail:lge@lgesemi.com
