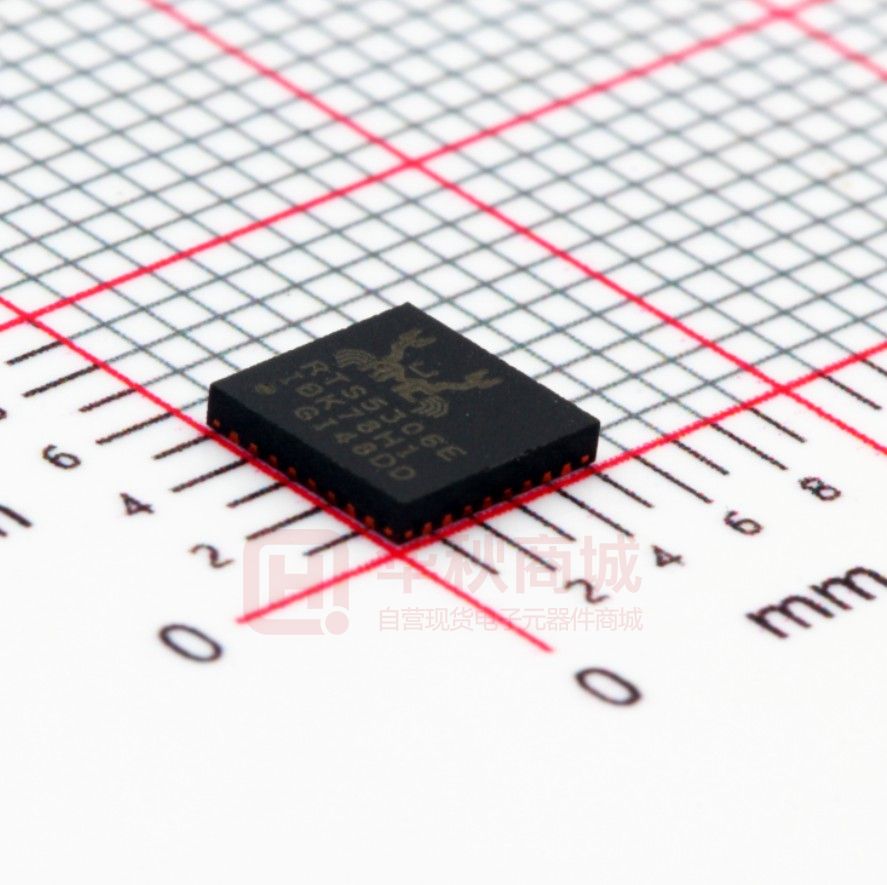

RTS5306E-GR

RTS5306E USB 3.0 SD/MMC Card Reader Controller DATASHEET Doc Rev. 1.0 12 October 2012 th i Rev 1.00 TRADEMARKS Realtek is a trademark of Realtek Semiconductor Corporation. All other names mentioned in this document are trademarks/registered trademarks of their respective owners. Realtek provides this document “as is”, without warranty of any kind, neither expressed nor implied, including, but not limited to the particular purpose. Realtek may make improvements and/or changes in this manual or in the product(s) and/or the program(s) described in this manual at any time. This document could include technical inaccuracies or typographical errors. Revision History Revision Description Page 1.00 Correct the package type for ordering information 9 0.90 First release Date 2012/10/12 2012/7/17 ii Rev 1.00 Table of Contents 1. GENERAL DESCRIPTION ......................................................................................................................................................... 1 2. FEATURES............................................................................................................................................................................... 1 3. BLOCK DIAGRAM ................................................................................................................................................................... 3 4. PIN DESCRIPTION ................................................................................................................................................................... 4 5. PIN ASSIGNMENT ................................................................................................................................................................... 5 6. ELECTRICAL CHARACTERISTICS ............................................................................................................................................. 6 7. PACKAGE DIMENSIONS ........................................................................................................................................................... 7 8. ORDERING INFORMATION ....................................................................................................................................................... 9 iii Rev 1.00 RTS5306E 1. General Description The Realtek RTS5306E USB3.0 Card Reader controller is based upon Universal Serial Bus 3.0 Specification, which integrates USB 3.0 and USB2.0 Transceivers, MCU, SIE, regulators and memory card access units into a single chip. It can be linked in Super Speed, High Speed or Full Speed operation and supports USB2.0/USB3.0 power saving mode. It provides 1LUN (Logic Unit Number) for Secure Digital MultiMediaCard TM TM and . The Realtek USB3.0 Card Reader supports both the internal MCU program ROM and external Serial Flash interface. With the external Serial flash interface, the control firmware could be easily re-configured through USB link. This could ease the software developing works and squeeze the prototyping schedule. The Realtek RTS5306E USB3.0 Card Reader integrates all regulators, clock generation circuitry and MOSFET components for switching card power, and could dramatically reduce the system BOM cost. 2. Features
Compliant with Universal Serial Bus 3.0 Specification Revision 1.0
Compliant with USB Mass Storage Class Bulk only Transport Specification Rev. 1.0
Compliant with SD Part 1 Physical Layer Specification Version 3.01
Compliant with MultiMediaCard System Specification version 4.4 with 4-bit data bus
Support Super-Speed(5Gpbs), High-speed (480Mbps) and Full-speed (12Mbps) Data Transfer
USB bus power operation
Support USB2.0 LPM / USB3.0 U1/U2/U3 power saving mode
Support Control, Bulk IN / OUT data pipes
Support the following memory card interfaces: -Secure Digital TM (SD), MultiMediaCard TM (MMC), Mini-SD, Micro-SD (T-flash), SDHC, SDXC, RS-MMC, Mobile-MMC, MMCPlus and MMC-micro
Support SD card clock 208MHz (max.) for SDR104 mode.
Support SD card clock 100MHz (max.) for SDR50 mode and 50MHz (max.) for DDR50 mode.
Support SD Lock/Unlock Function
Support SD Jukebox application (CPRM function)
Support hardware CRC (Cyclic Redundancy Check) function
Programmable clock rate for flash memory card interfaces
Integrated Fast 8051 microprocessor Realtek Semiconductor Corp. 1 V0.90 RTS5306E
External Serial Flash memory interface
On chip 3.3V and 1.2V regulators
On chip MOSFET components for direct power control of all types memory cards
Support Spread Spectrum Clock for SD/MMC to reduce EMI effect
32-pin QFN (5x5 mm) package for 1LUN solution Realtek Semiconductor Corp. 2 V0.90 RTS5306E 3. Block Diagram USB Controller HS/FS PHY SS PHY FIFO Memory Card Controller DMA SDXC/MMC 4-bit I/F PLL Power-on Reset Control Register 8051 MCU RAM 5V to 3.3V Regulator ROM 3.3V to 1.2V Regulator Realtek Semiconductor Corp. Serial Flash / EEPROM Interface 3 V0.90 RTS5306E 4. Pin Description Pin# 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 Name I/O Type Description USB3.0 SuperSpeed RX D+ USB3.0 SuperSpeed RX DUSB3.0 SuperSpeed TX D+ USB3.0 SuperSpeed TX D+ Analog 1.2V for USB3.0 Connect an external resistor (6.2K ± 1%) to the Reference GND Analog 3.3V power VBUS 5V power input 12Mhz Crystal oscillator input 12Mhz Crystal oscillator output Analog 1.2V power USB2.0 D- signal USB2.0 D+ signal VBUS 5V power input Digital 3.3V power Power output to SD/MMC Card Internal regulator for the SD card control signals. An external SDREG O capacitor should be connected. SD_D1 I/O SD/MMC Card Data 1 SD_D0 I/O SD/MMC Card Data 0 SD/MMC Card Clock Signal SD_CLK O SD_CMD I/O SD/MMC Card Command Signal SD_D3 I/O SD/MMC Card Data 3 SD_D2 I/O SD/MMC Card Data 2 SD Card Write Protection pin SD_WP I DV12S Power Digital 1.2V power EEDO/MOSI I/O Serial Data Output to EEPROM or Serial Flash EESK/SCK I/O Clock Signal to EEPROM or Serial Flash EECS/CS# I/O Chip Select to EEPROM or Serial Flash EEDI/MISO I/O Serial Data Input from EEPROM or Serial Flash GPIO0 I/O General purpose input/output SD/MMC Card Detection pin SD_CD# I VDD_RX Power 1.2V Power for USB3.0 RX SS_RX+ SS_RXSS_TX+ SS_TXUSB3_AV12 RREF AV33 VBUS XTLI XTLO USB2_AV12 DM DP VBUS D3V3 CARD_3V3 I I O O Power I Power I I O Power I/O I/O I Power O Realtek Semiconductor Corp. 4 V0.90 RTS5306E DV12S SD_WP SD_D2 SD_D3 SD_CMD SD_CLK SD_D0 SD_D1 SDREG 5. Pin Assignment 24 23 22 21 20 19 18 17 25 16 CARD_3V3 EEDO/MOSI 26 15 D3V3 EESK/SCK 27 14 VBUS EECS/CS# 28 13 DP 12 DM 11 USB2_AV12 10 XTLO 9 XTLI REALTEK The e-pad shall be connected to GND VDD_RX 32 1 2 3 4 SS_RX+ SS_RX- SS_TX+ SS_TX- 5 6 7 8 VBUS 31 AV33 SD_CD# RREF 30 EEDI/MISO 29 USB3_AV12 GPIO0 RTS5306E LLLLLLL GXXXVV The version number is shown in the location marked ‘VV’ and G means Green Package Realtek Semiconductor Corp. 5 V0.90 RTS5306E 6. Electrical Characteristics 6.1 Absolute Maximum Ratings Supply Voltage ……………………………………………………………………… –0.5V to +5.5V Operating Temperature Range ….………………………………………………….. 0°C to +70°C Latch up Current ……………………………………………………………………………… mA Electrostatic Discharge Voltage (HBM)………………………………………………………. KV 6.2 DC Characteristics Symbol Min. Typ. Max. Unit VDD Supply Voltage Description Conditions 4.5 5 5.5 V VIH Input Voltage High 2.0 VIL Input Voltage Low VOH Output Voltage High VOL Output Voltage Low 0.4 Cin Input Pin Capacitance 10 V 0.8 V V 3.0 V pF IDD Supply Current 8051 is running @ 6MHz (Without memory card) TBD mA ISUS Suspend Current D+ 1.5KΩ resistor is included TBD uA Realtek Semiconductor Corp. 6 V0.90 RTS5306E 7. Package Dimensions Plastic Quad Flat No-Lead Package 32 Leads 5x5mm2 Outline Realtek Semiconductor Corp. 7 V0.90 RTS5306E Symbol Min 0.80 0.00 A A1 A3 A4 b D/E D2/E2 e L Notes 0.18 3.25 0.30 Dimension in mm Nom 0.85 0.02 0.20 REF 0.10 REF 0.25 5.00 BSC 3.50 0.50 BSC 0.40 Max 0.90 0.05 Min 0.031 0.000 0.30 0.007 3.75 0.128 0.50 0.012 Dimension in inch Nom 0.033 0.001 0.008 REF 0.004 REF 0.010 0.020 BSC 0.138 0.020 BSC 0.016 Max 0.035 0.002 0.012 0.148 0.020 ： ：MILLIMETER(mm). REFERENCE DOCUMENTL：JEDEC MO-220. 1. CONTROLLING DIMENSION 2. Realtek Semiconductor Corp. 8 V0.90 RTS5306E 8. Ordering Information Part Number RTS5306E-GR Realtek Semiconductor Corp. Package QFN-32 Green package 9 Status Available V0.90
