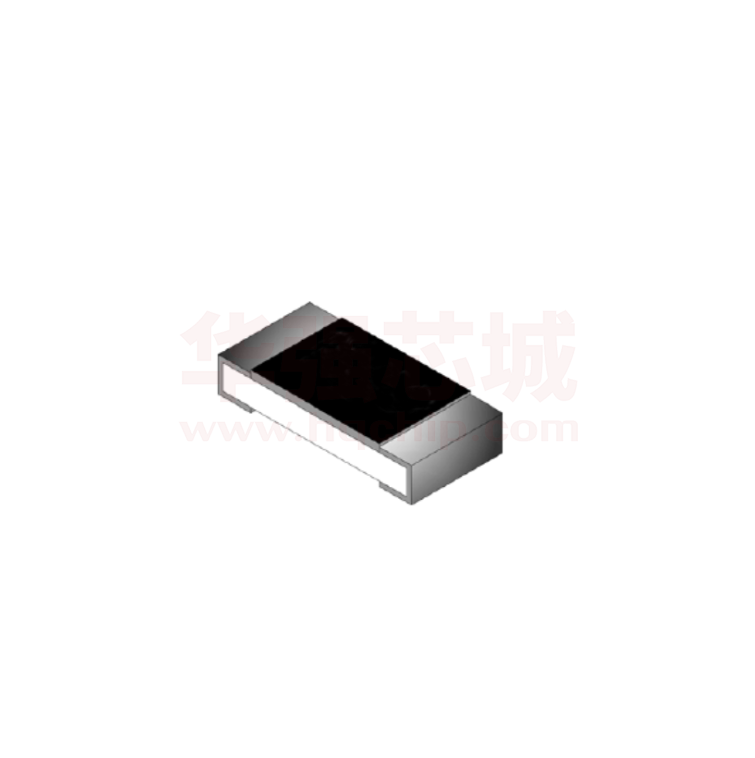

TR/0402FT3.15A-V

FEATURES : * 1005 [ 0402" Design ] * Normal Blow * RoHS-Compliant / Pb Free Product APPROVALS : * Recognized under the Component Program of U.L. Guide JDYX2, File No. E195833 0402FT-V SERIES ELECTRICAL CHARACTERISTICS : DIMENSIONS : 1.0 ±0.1 SURFACE MOUNT THIN FILM FUSE 0.5 ±0.05 0.2 ±0.1 0.2 ±0.1 0.25 ±0.1 0.25 ±0.1 % of Ampere Rating Opening Time 100% 4 hours Min. 200% 60 sec Max. 0.35 Max. AVERAGE TIME-CURRENT CURVES : TYPICAL LAND PATTERN : TIME IN SECONDS 0.475 0.5 0.55 Unit : mm CURRENT IN AMPERES SPECIFICATIONS : Typical Melting I2t Typical Resistance Value*1 Interrupting Rating at 10In (A2sec)*2 0402FT 0.315 A -V 315 mA 32 V 345 mΩ 50 A 0.00170 0402FT 0.5 A -V 500 mA 32 V 320 mΩ 35 A 0.00317 0402FT 0.8 A -V 800 mA 32 V 100 mΩ 35 A 0.00532 0402FT 1A -V 1 A 32 V 82 mΩ 35 A 0.00724 0402FT 1.25 A -V 1.25 A 32 V 57 mΩ 35 A 0.01344 0402FT 1.5 A -V 1.5 A 32 V 45 mΩ 35 A 0.01356 0402FT 1.6 A -V 1.6 A 32 V 44 mΩ 35 A 0.01672 0402FT 2A -V 2 A 32 V 27 mΩ 35 A 0.01983 0402FT 2.5 A -V 2.5 A 32 V 25 mΩ 35 A 0.03763 0402FT 3A -V 3 A 32 V 20 mΩ 35 A 0.05427 0402FT 3.15 A -V 3.15 A 32 V 18 mΩ 35 A 0.06304 0402FT 4A -V 4 A 32 V 14 mΩ 35 A 0.08960 Product Code Ampere Rating Voltage Rating DC NOTE : 10 16 1. Typical Resistance Value - measured with less than 10% of rated current. 2. Typical Melting I2t - Measured at 10 times rated current in rated voltage. 3. Ask PICO sales for the items not mentioned in this Catalog and/or for details.
