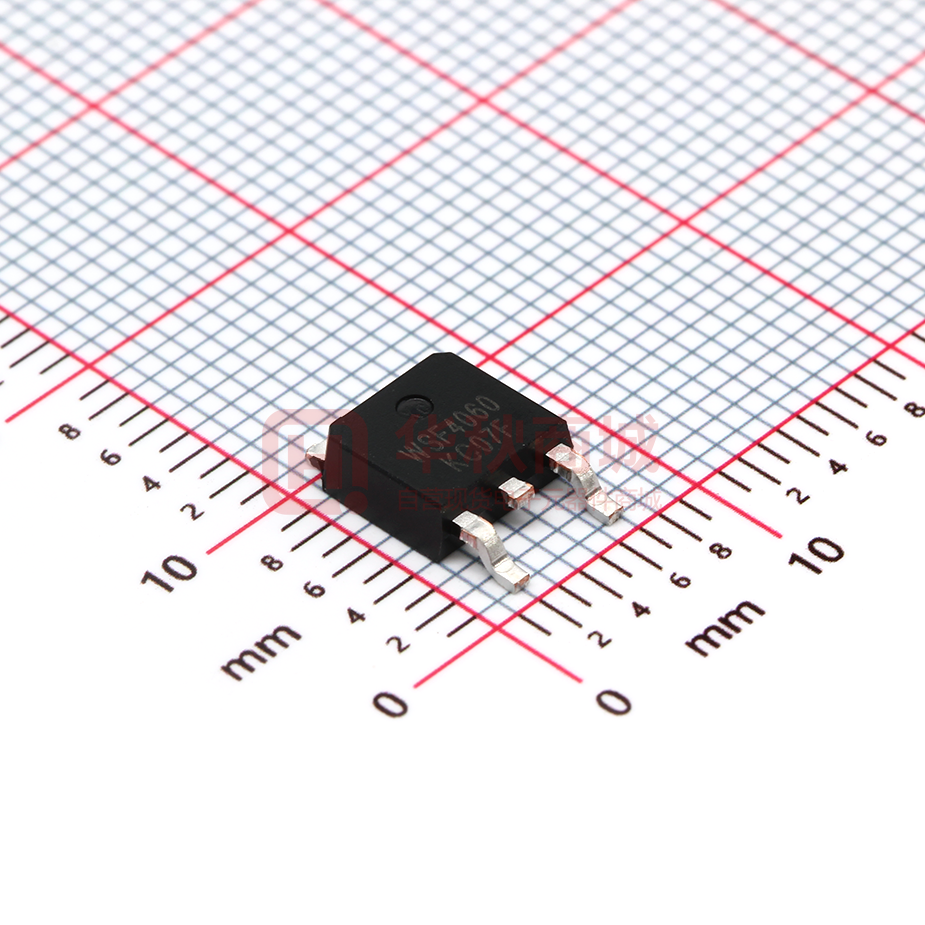

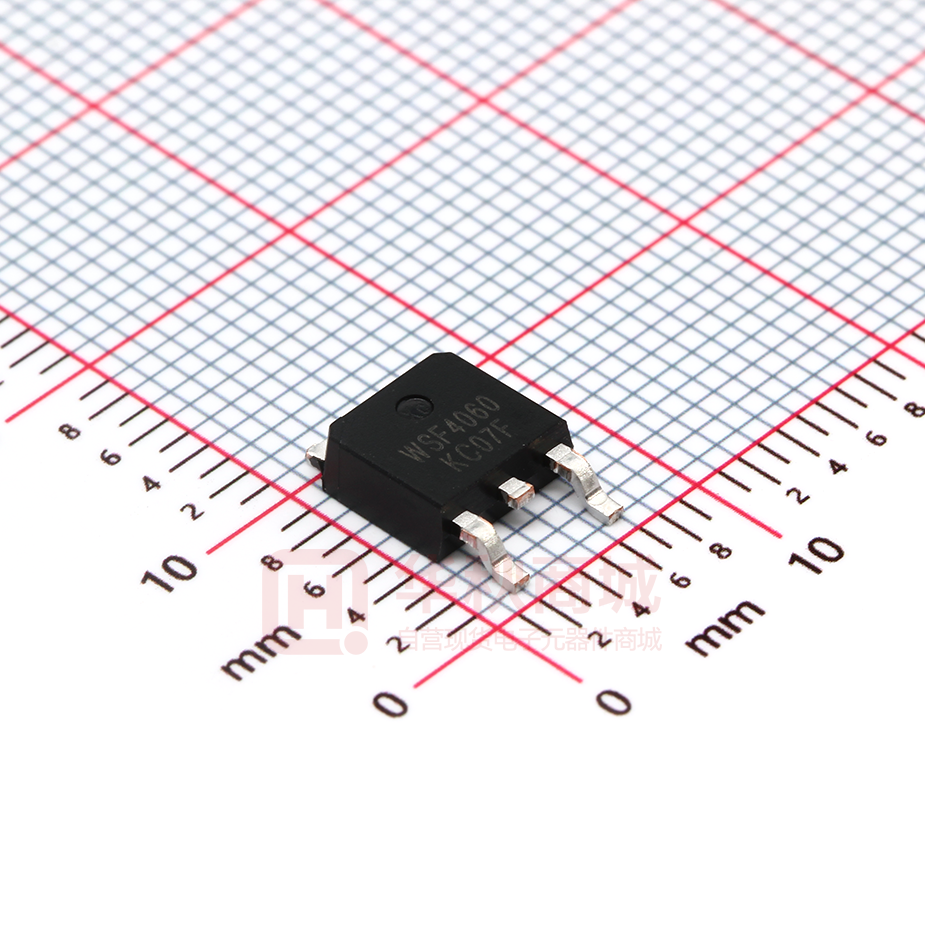

WSF4060

WSF4060 N-Ch MOSFET General Description Product Summery The WSF4060 is the highest performance trench N-Ch MOSFET with extreme high cell density , which provide excellent RDSON and gate charge for most of the synchronous buck converter applications . The WSF4060 meet the RoHS and Green Product requirement , 100% EAS guaranteed with full function reliability approved. BVDSS RDSON ID 40V 7.2mΩ 60A Applications z High Frequency Point-of-Load Synchronous Buck Converter z Networking DC-DC Power System Features z Power Tool Application z Advanced high cell density Trench technology TO-252 Pin Configuration z Super Low Gate Charge z Excellent CdV/dt effect decline z 100% EAS Guaranteed z Green Device Available Absolute Maximum Ratings Symbol Parameter Rating Units VDS VGS Drain-Source Voltage 40 V Gate-Source Voltage ±20 V ID@TC=25℃ Continuous Drain Current, VGS @ 10V 60 A ID@TC=100℃ Continuous Drain Current, VGS @ 10V 48 A 160 A 100 mJ IDM EAS a Pulsed Drain Current Single Pulse Avalanche Energyb IAS Avalanche Current 60 A PD@Ta=25℃ Total Power Dissipation 3.0 W TSTG Storage Temperature Range -55 to 150 ℃ TJ Operating Junction Temperature Range -55 to 150 ℃ Thermal Data Symbol Notes： Parameter Typ. RθJA Thermal Resistance Junction-Ambient RθJC 1 1 Thermal Resistance Junction-Case Max. Unit --- 50 ℃/W --- 2.5 ℃/W * Avalanche single pulse test and avalanche period time tav≦100μs, duty
