WSF40N10
N-Ch MOSFET
Product Summery
General Description
The WSF40N10 is the highest performance trench
N-Ch MOSFET with extreme high cell density ,
which provide excellent RDSON and gate charge
for most of the synchronous buck converter
applications .
BVDSS
RDSON
ID
100V
32mΩ
40A
Applications
The WSF40N10 meet the RoHS and Green
Product requirement , 100% EAS guaranteed
with full function reliability approved.
z High Frequency Point-of-Load Synchronous
Buck Converter
z Networking DC-DC Power System
Features
z Load Switch
z Advanced high cell density Trench technology

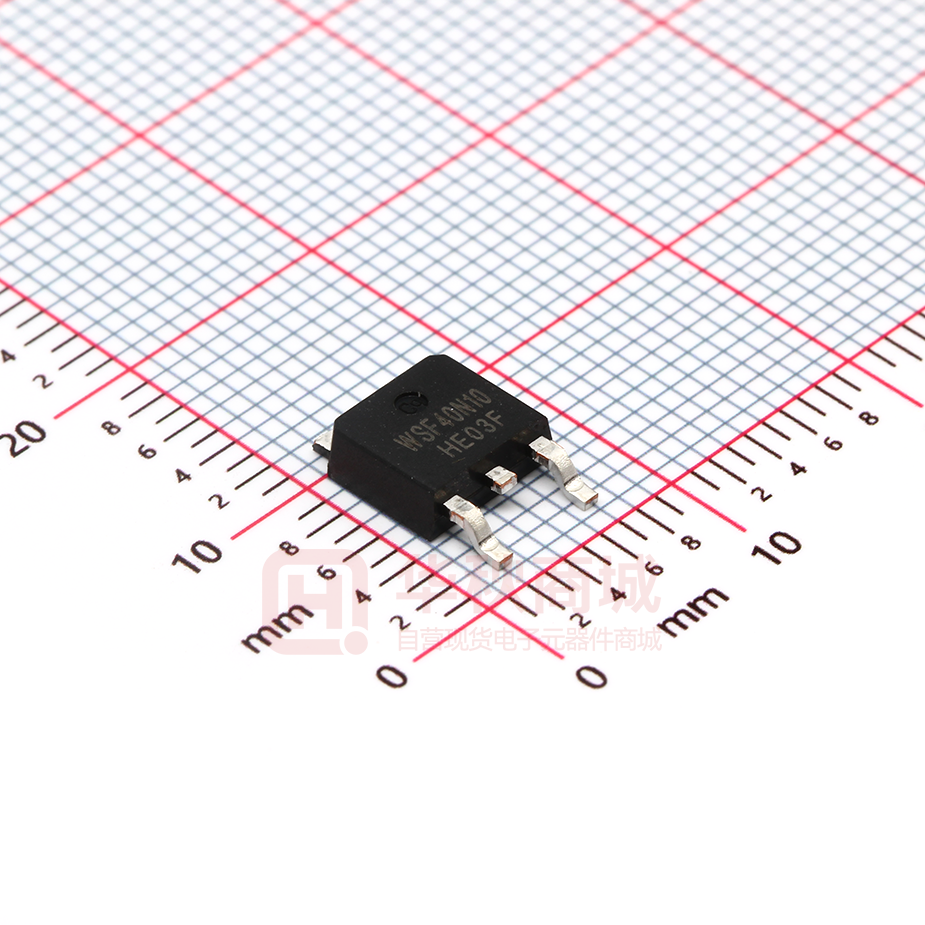

TO-252 Pin Configuration
z Super Low Gate Charge
z Excellent Cdv/dt effect decline
z Green Device Available
Absolute Maximum Ratings
Symbol
Parameter
VDS
VGS
ID@TC=25℃
ID@TC=100℃
ID@TA=25℃
ID@TA=70℃
IDM
Rating
Units
Drain-Source Voltage
100
V
Gate-Source Voltage
±20
V
1
40
A
1
30
A
1
4.2
A
1
3.4
A
45
A
Continuous Drain Current, VGS @ 10V
Continuous Drain Current, VGS @ 10V
Continuous Drain Current, VGS @ 10V
Continuous Drain Current, VGS @ 10V
Pulsed Drain Current
2
3
EAS
Single Pulse Avalanche Energy
43.3
mJ
IAS
Avalanche Current
27
A
4
52.1
W
4
PD@TC=25℃
Total Power Dissipation
PD@TA=25℃
Total Power Dissipation
2
W
TSTG
Storage Temperature Range
-55 to 150
℃
TJ
Operating Junction Temperature Range
-55 to 150
℃
Thermal Data
Symbol
Parameter
Typ.
RθJA
Thermal Resistance Junction-ambient
RθJC
1
www.winsok.tw
Thermal Resistance Junction-Case
Page 1
1
Max.
Unit
---
62
℃/W
---
2.4
℃/W
Dec.2014
WSF40N10
N-Ch MOSFET
Electrical Characteristics (TJ=25 ℃, unless otherwise noted)
Symbol
BVDSS
Parameter
Conditions
Drain-Source Breakdown Voltage
△BVDSS/△TJ BVDSS Temperature Coefficient
RDS(ON)
VGS(th)
Static Drain-Source On-Resistance2
Gate Threshold Voltage
Min.
Typ.
Max.
Unit
100
---
---
V
Reference to 25℃ , ID=1mA
---
0.098
---
V/℃
VGS=10V , ID=20A
---
32
38
---
40
58
2.0
3.0
4.0
V
---
-5.52
---
mV/℃
VDS=80V , VGS=0V , TJ=25℃
---
---
10
VDS=80V , VGS=0V , TJ=55℃
---
---
100
VGS=0V , ID=250uA
VGS=6.0V , ID=15A
VGS=VDS , ID =250uA
mΩ
△VGS(th)
VGS(th) Temperature Coefficient
IDSS
Drain-Source Leakage Current
IGSS
Gate-Source Leakage Current
VGS=±20V , VDS=0V
---
---
±100
nA
gfs
Forward Transconductance
VDS=5V , ID=20A
---
28.7
---
S
Rg
Gate Resistance
VDS=0V , VGS=0V , f=1MHz
---
1.6
3.2
Ω
Qg
Total Gate Charge (10V)
---
60
84
Qgs
Gate-Source Charge
---
9.7
14
Qgd
Gate-Drain Charge
---
11.8
16.5
21
Td(on)
VDS=80V , VGS=10V , ID=20A
Turn-On Delay Time
uA
nC
---
10.4
Rise Time
VDD=50V , VGS=10V , RG=3.3Ω
---
46
83
Turn-Off Delay Time
ID=20A
---
54
108
Fall Time
---
10
20
Ciss
Input Capacitance
---
3848
---
Coss
Output Capacitance
---
137
---
Crss
Reverse Transfer Capacitance
---
82
---
Min.
Typ.
Max.
Unit
13.4
---
---
mJ
Min.
Typ.
Max.
Unit
---
---
12
A
Tr
Td(off)
Tf
VDS=15V , VGS=0V , f=1MHz
ns
pF
Guaranteed Avalanche Characteristics
Symbol
EAS
Parameter
Conditions
5
Single Pulse Avalanche Energy
VDD=25V , L=0.1mH , IAS=15A
Diode Characteristics
Symbol
IS
Parameter
Conditions
1,6
Continuous Source Current
2,6
ISM
Pulsed Source Current
VSD
Diode Forward Voltage
trr
Reverse Recovery Time
Qrr
Reverse Recovery Charge
2
VG=VD=0V , Force Current
VGS=0V , IS=1A , TJ=25℃
IF=20A , dI/dt=100A/µs , TJ=25℃
---
---
45
A
---
---
1.2
V
---
30
---
nS
---
37
---
nC
Note :
1.The data tested by surface mounted on a 1 inch2 FR-4 board with 2OZ copper,t
