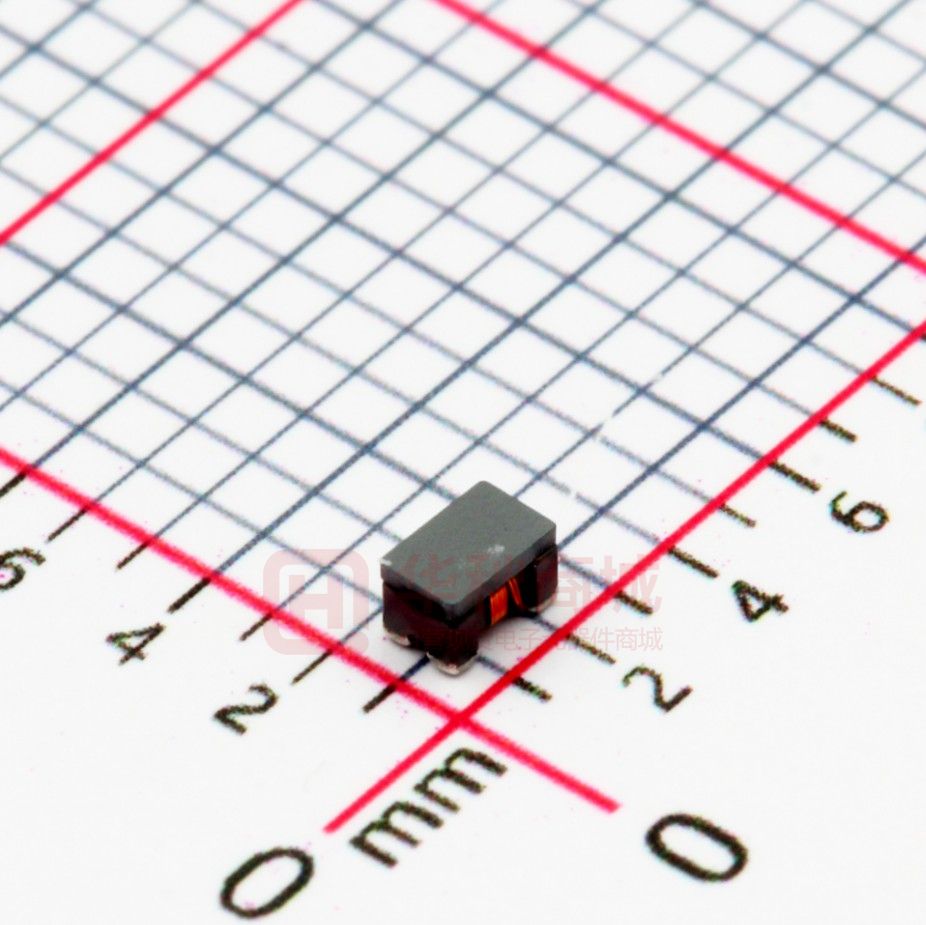

Wire Wound Chip Common Mode Choke Coil – SDCW Series Operating Temp. : -40℃~+85℃ FEATURES Winding type realizes small size and low profile Prevention of common mode noise at high frequency z 30Ω~2200Ω are optional for different noise level and signal frequency ● Excellent solderability ● ● APPLICATIONS ● ● ● USB2.0 of PC, peripheral equipments, small digital AV equipments, etc. LVDS lines of Note PC, LCD Audio lines PRODUCT IDENTIFICATION SDCW 2012 ① ② ① -2 -900 ③ ④ ② SDCW Type Winding Type Common Mode Choke Coil T F ⑤ ⑥ ③ External Dimensions (L×W) (mm) 2012 [0805] 2.0×1.2 3216 [1206] 3.2×1.6 Number of Lines 2 ⑥ ④ Example 900 ⑤ Impedance Nominal Value 90Ω Packing T Tape & Reel Hazardous Substance Free Products F SHAPE AND DIMENSIONS SDCW2012 Type 1.2±0.2 2.0±0.2 (2) (4) (3) (0.50) (0.50) Sunlord (0.45) (0.45) (1) Unit: mm 0.17 1.2±0.2 Recommended Land Pattern Specifications subject to change without notice. Please check our website for latest information. Revised 2014/04/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SHAPE AND DIMENSIONS SDCW3216 Type Unit: mm 0.22 2.0±0.2 1.8±0.2 Recommended Land Pattern 1.6±0.2 3.2±0.2 (2) (4) (3) (0.70) (0.70) (0.60) (0.60) (1) SPECIFICATIONS SDCW2012 TYPE Part Number Units Symbol SDCW2012-2-300TF SDCW2012-2-670TF SDCW2012-2-900TF SDCW2012-2-121TF SDCW2012-2-181TF SDCW2012-2-201TF SDCW2012-2-221TF SDCW2012-2-261TF SDCW2012-2-361TF SDCW2012-2-371TF SDCW2012-2-601TF SDCW2012-2-751TF SDCW2012-2-901TF SDCW2012-2-102TF Common Mode Impedance @100MHz Ω Z 30±25% 67±25% 90±25% 120±25% 180±25% 200±25% 220±25% 260±25% 360±25% 370±25% 600±25% 750±25% 900±25% 1000±25% Max. DC Resistance Ω DCR 0.20 0.25 0.35 0.30 0.35 0.40 0.40 0.40 0.45 0.45 0.55 0.70 0.80 0.80 Max. Rated Current mA Ir 450 400 330 370 330 300 300 300 280 280 200 180 150 150 Common Mode Impedance @100MHz Ω Z 90±25% 160±25% 260±25% 600±25% 1000±25% 2200±25% Max. DC Resistance Ω DCR 0.30 0.40 0.50 0.80 1.00 1.20 Max. Rated Current mA Ir 370 340 310 260 230 200 Rated Voltage Volts VDC 50 50 50 50 50 50 50 50 50 50 50 50 50 50 Min. Insulation Resistance MΩ IR 10 10 10 10 10 10 10 10 10 10 10 10 10 10 SDCW3216 TYPE Part Number Units Symbol SDCW3216-2-900TF SDCW3216-2-161TF SDCW3216-2-261TF SDCW3216-2-601TF SDCW3216-2-102TF SDCW3216-2-222TF Rated Voltage Volts VDC 50 50 50 50 50 50 Min. Insulation Resistance MΩ IR 20 10 10 10 10 10 ※: Products with other electrical characteristics can be provided upon customer’s request. Please contact your local sales. Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2014/04/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com EQUIVALENT CIRCUIT TYPICAL ELECTRICAL CHARACTERISTICS Impedance vs. Frequency SDCW2012 TYPE （30~360Ω） SDCW2012 TYPE （370~1000Ω） SDCW3216 TYPE Common Mode Common Mode Differential Mode Differential Mode Frequency（MHz） Frequency（MHz） SDCW3216 TYPE （90~2200Ω） Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2014/04/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com
