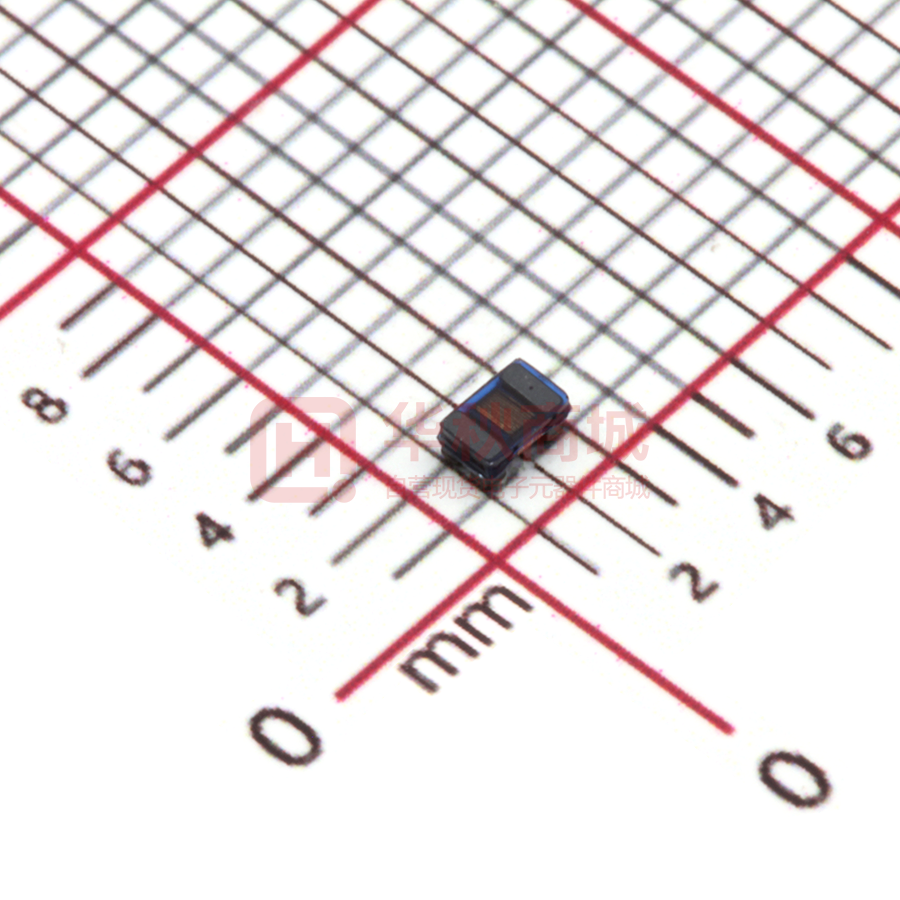

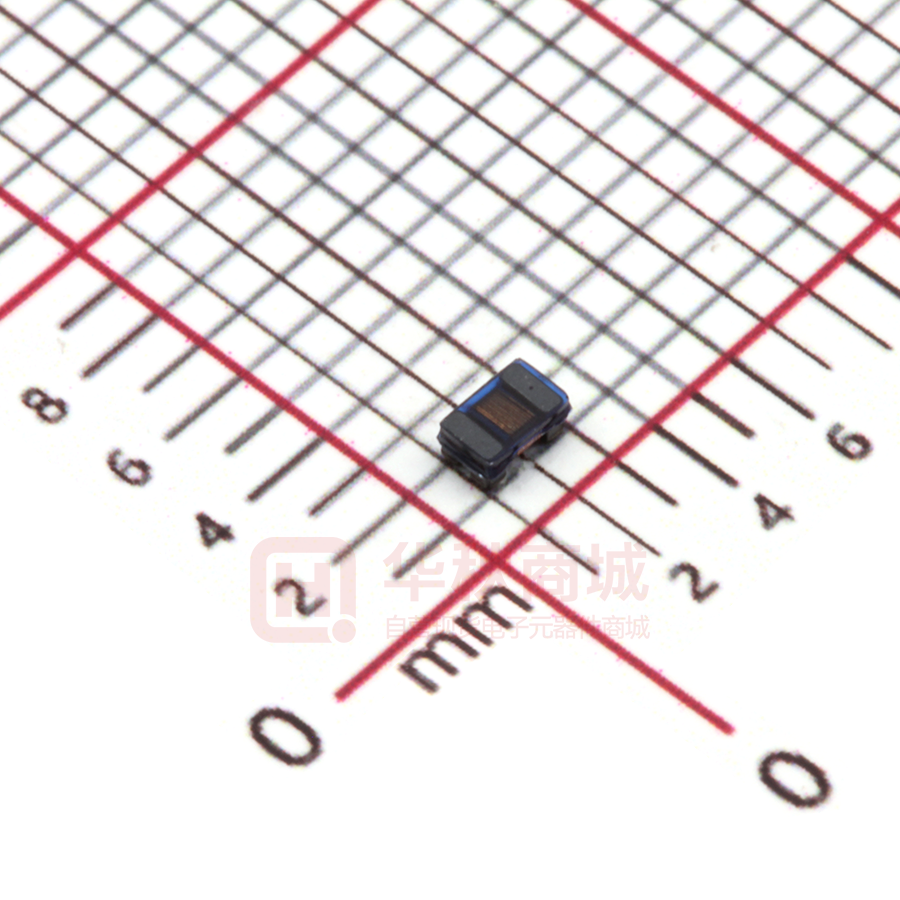

SDCW2012C-2-900TF

Wire Wound Chip Common Mode Choke Coil – SDCW-C Series Operating Temp. : -40℃~+85℃ FEATURES ● ● ● Winding type and low profile Prevention of common mode noise at high frequency 67Ω~180Ω are optional for different noise level and signal frequency APPLICATIONS ● ● USB2.0 of PC, peripheral equipments, small LVDS lines of Note PC, LCD PRODUCT IDENTIFICATION SDCW ① 2012 C -2 -900 T F ② ③ ④ ⑤ ⑥ ⑦ ① Type SDCW ③ ② Winding Type Common Mode Choke Coil Code (L×W) (mm) External Dimensions (L×W) (mm) 2012 [0805] 2.0×1.3 C Coating ④ Number of Lines 2 ⑦ ⑤ Example 900 Impedance Nominal Value 90Ω ⑥ Packing T Tape & Reel Hazardous Substance Free Products F SHAPE AND DIMENSIONS SDCW2012C TYPE Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2017/04/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SDCW2012-C TYPE Part Number Common Mode Impedance @100MHz Max. DC Resistance Max. Rated Current Rated Voltage Min. Insulation Resistance Units Symbol SDCW2012C-2-670TF SDCW2012C-2-900TF SDCW2012C-2-121TF SDCW2012C-2-181TF Ω Z 67±25% 90±25% 120±25% 180±25% Ω DCR 0.35 0.35 0.45 0.50 mA Ir 330 330 280 250 Volts VDC 50 50 50 50 MΩ IR 10 10 10 10 ※Products with other electrical characteristics can be provided upon customer’s request. Please contact your local sales. EQUIVALENT CIRCUIT TYPICAL ELECTRICAL CHARACTERISTICS Impedance vs. Frequency Frequency（MHz） Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2017/04/15 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com
