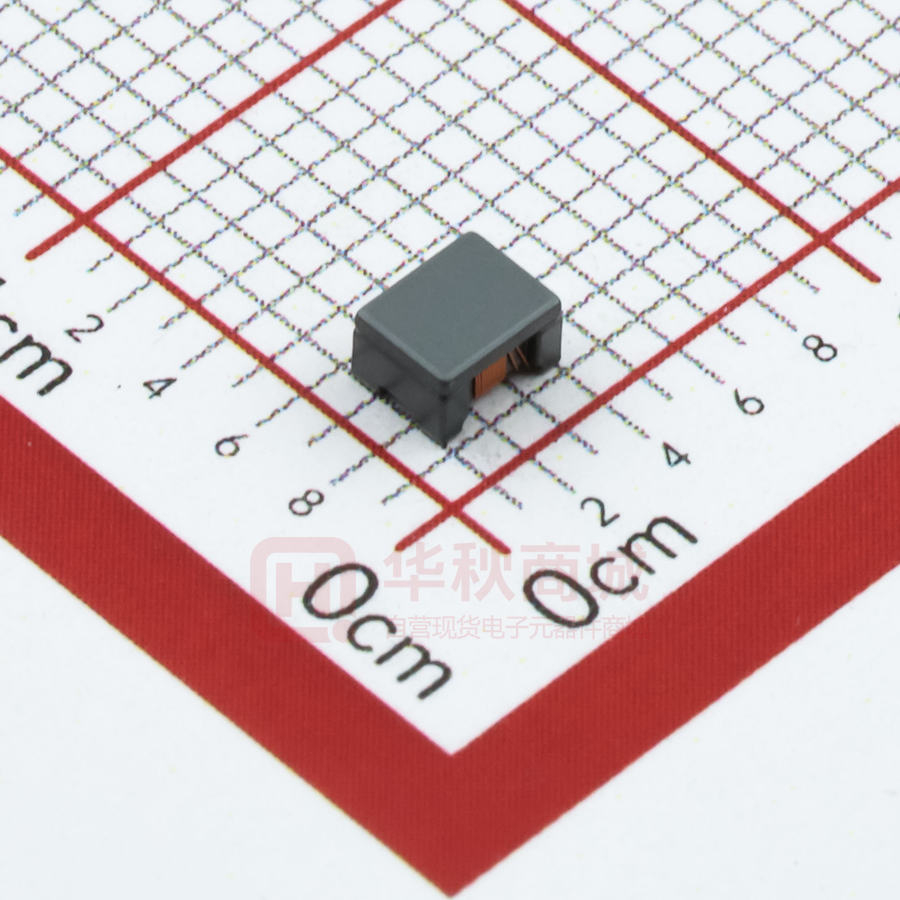

SDCW3225S-2-102TF

Wire Wound Chip Common Mode Choke Coil – SDCW-S Series Operating Temp. : -40℃~+85℃ FEATURES Prevention of common mode noise at high frequency 20Ω~1400Ω are optional for different noise level and signal frequency Excellent solderability ● ● ● ● APPLICATIONS USB2.0 of IEEE1394, PC, peripheral equipments, small digital AV equipments, etc. LVDS lines of Note PC, LCD Audio lines ● ● ● PRODUCT IDENTIFICATION SDCW 1608 S -2 -900 T F ① ② ③ ④ ⑤ ⑥ ⑦ ① ③ ② SDCW 分类 Type 绕线式片式共模扼流器 Winding Type Common Mode Choke Coil 外形尺寸(L×W) (mm) External Dimensions (L×W) (mm) 1210[0504] 1.2×1.0 1608[0603] 1.6×0.8 2520[1008] 2.5×2.0 3225[1210] 3.2×2.5 4532[1812] 4.5×3.2 ④ 引线数 Number of Lines 2 类型 Code S 标准 Standard L 大电流 For larger current ⑦ ⑤ ⑥ 阻抗 Impedance Example Nominal Value 900 90Ω 包装 Packing T 无有害物质产品 Hazardous Substance Free Products F 编带 Tape & Reel SHAPE AND DIMENSIONS Recommended Land Pattern Unit: mm Series SDCW1210 A 1.2±0.2 B 1.0±0.2 C 0.8±0.1 D Max. 0.10 E Typ. 0.36 F Typ. 0.33 a Typ. 0.50 b Typ. 1.55 c Typ. 1.00 d Typ. 0.30 SDCW1608 1.6±0.1 0.8±0.1 1.1±0.1 0.10 0.25 0.33 0.73 1.89 0.85 0.25 SDCW2520 2.5±0.2 2.0±0.2 1.2±0.2 0.20 0.60 0.45 1.20 3.20 2.00 0.60 SDCW3225 3.2±0.2 2.5±0.2 1.8±0.2 0.30 0.80 0.60 2.20 4.00 2.50 0.90 SDCW4532 4.5±0.2 3.2±0.2 2.8±0.2 0.50 1.10 0.80 2.70 5.10 3.20 1.00 Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2017/05/02 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SDCW1210S TYPE Part Number Common Mode Impedance @100MHz Max. DC Resistance Max. Rated Current Rated Voltage Min. Insulation Resistance Units Symbol SDCW1210S-2-200TF SDCW1210S-2-350TF SDCW1210S-2-600TF SDCW1210S-2-900TF SDCW1210S-2-161TF SDCW1210S-2-201TF SDCW1210S-2-361TF Ω Z 20±25% 35±25% 60±25% 90±25% 160±25% 200±25% 360±25% Ω DCR 0.15 0.18 0.30 0.30 0.40 0.40 0.55 mA Ir 500 430 400 400 260 250 250 Volts VDC 20 20 20 20 20 20 20 MΩ IR 10 10 10 10 10 10 10 Part Number Common Mode Impedance @100MHz Max. DC Resistance Max. Rated Current Rated Voltage Min. Insulation Resistance Units Symbol SDCW1608S-2-250TF SDCW1608S-2-600TF SDCW1608S-2-900TF SDCW1608S-2-141TF SDCW1608S-2-221TF Ω Z 25±25% 60±25% 90±25% 140±25% 220±25% Ω DCR 0.10 0.20 0.25 0.25 0.25 mA Ir 500 350 300 300 300 Volts VDC 20 20 20 20 20 MΩ IR 10 10 10 10 10 Part Number Common Mode Impedance @100MHz Max. DC Resistance Max. Rated Current Rated Voltage Min. Insulation Resistance Units Symbol SDCW2520S-2-301TF SDCW2520S-2-451TF SDCW2520S-2-601TF SDCW2520S-2-102TF Ω Z 300±25% 450±25% 600±25% 1000±25% Ω DCR 0.25 0.30 0.38 0.50 mA Ir 400 350 330 240 Volts VDC 50 50 50 50 MΩ IR 10 10 10 10 Part Number Common Mode Impedance @100MHz Max. DC Resistance Max. Rated Current Rated Voltage Min. Insulation Resistance Units Symbol SDCW3225S-2-800TF SDCW3225S-2-161TF SDCW3225S-2-271TF SDCW3225S-2-102TF SDCW3225L-2-601TF Ω Z 80±25% 160±25% 270±25% 1000±25% 600±25% Ω DCR 0.12 0.15 0.25 0.35 0.12 mA Ir 640 480 450 350 1000 Volts VDC 50 50 50 50 50 MΩ IR 10 10 10 10 10 Part Number Common Mode Impedance @100MHz Max. DC Resistance Max. Rated Current Rated Voltage Min. Insulation Resistance Units Symbol SDCW4532S-2-331TF SDCW4532S-2-601TF SDCW4532S-2-801TF Ω Z 330±25% 600±25% 800±25% Ω DCR 0.11 0.12 0.16 mA Ir 1100 1000 900 Volts VDC 50 50 50 MΩ IR 10 10 10 SDCW1608S TYPE SDCW2520S TYPE SDCW3225S TYPE SDCW4532S TYPE Sunlord Specifications subject to change without notice. Please check our website for latest information. Revised 2017/05/02 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com SPECIFICATIONS SDCW4532S TYPE Part Number Common Mode Impedance @100MHz Max. DC Resistance Max. Rated Current Rated Voltage Min. Insulation Resistance Units Symbol SDCW4532S-2-102TF SDCW4532S-2-142TF Ω Z 1000±25% 1400±25% Ω DCR 0.18 0.20 mA Ir 800 700 Volts VDC 50 50 MΩ IR 10 10 ※: Products with other electrical characteristics can be provided upon customer’s request. Please contact your local sales. EQUIVALENT CIRCUIT TYPICAL ELECTRICAL CHARACTERISTICS Impedance vs. Frequency SDCW1210S TYPE Frequency（MHz） SDCW2520S TYPE Frequency（MHz） SDCW1608S TYPE Frequency（MHz） SDCW3225S TYPE Frequency（MHz） SDCW4532S TYPE Sunlord Frequency（MHz） Specifications subject to change without notice. Please check our website for latest information. Revised 2017/05/02 Sunlord Industrial Park, Dafuyuan Industrial Zone, Guanlan, Shenzhen, China 518110 Tel: 0086-755-29832660 Fax: 0086-755-82269029 E-Mail: sunlord@sunlordinc.com
