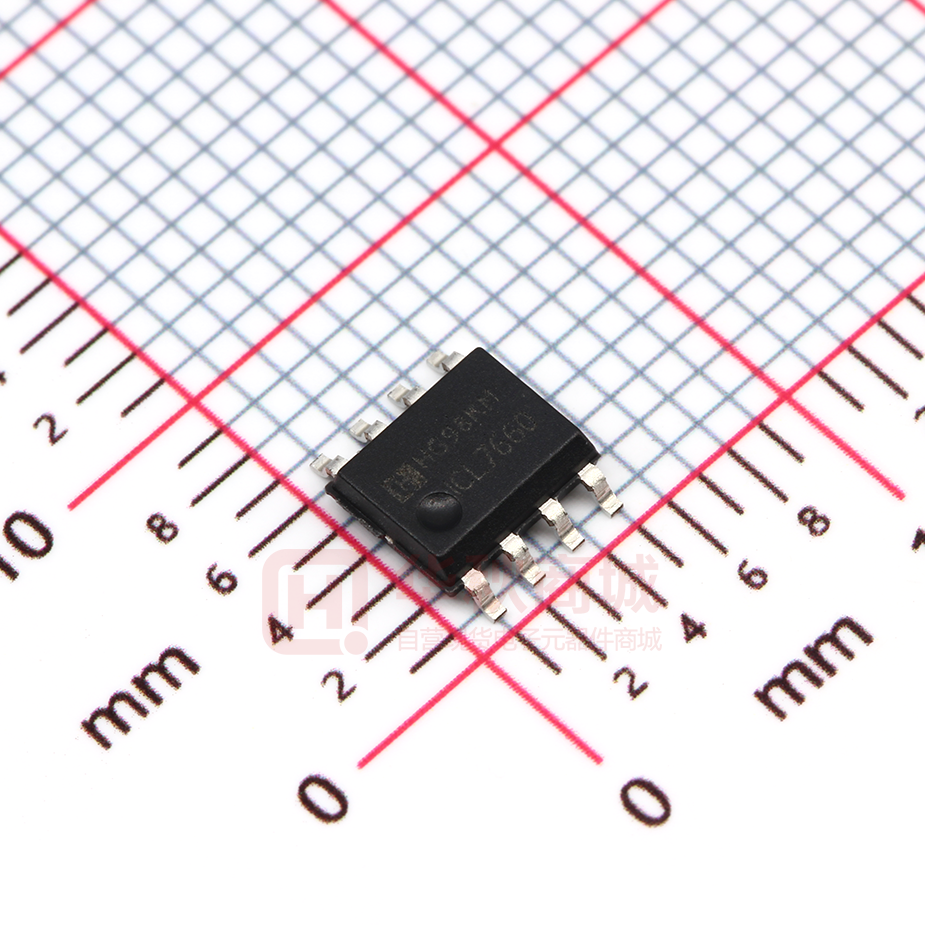

ICL7660M/TR

ICL7660 Charge Pump DC-to-DC Voltage Converter The ICL7660 charge pump voltage converter. It converts a +1.5V to +10V input to a corresponding –1.5V to –10V output using only two low–cost capacitors, eliminating inductors and their associated cost, size and EMI. The on–board oscillator operates at a nominal frequency of 10kHz. Operation below 10kHz (for lower supply current applications) is possible by connecting an external capacitor from OSC to ground (with pin 1 open). The ICL7660 is available in an 8–pin SOP package in extended temperature range. SOP–8 Features Converts +5V Supply to –5V Supply Wide Input Voltage Range: 1.5V to 10V Efficient Voltage Conversion: 99.9% Excellent Power Efficiency: 98% Low Power Supply: 80µA @ 5VIN Low Cost and Easy to Use – Only Two External Capacitors Required • Available in Small Outline (SO) Package • ESD Protection: ≥ 2.5kV • No Dx Diode Required for High Voltage Operation • • • • • • PIN CONFIGURATION (Top View) NC 1 CAP+ 2 8 V+ GND 3 CAP– 4 6 LV 7 OSC 5 VOUT Typical Applications • RS–232 Negative Bias • Display Bias • Data Aquisition Negative Supply Generation FUNCTIONAL BLOCK DIAGRAM V+ CAP+ 8 OSC LV 7 RC OSCILLATOR B2 2 VOLTAGE– LEVEL TRANSLATOR 4 CAP– 6 5 INTERNAL VOLTAGE REGULATOR VOUT LOGIC NETWORK ICL7660 3 GND http://www.hgsemi.com.cn 1 2018 JUN ICL7660 ABSOLUTE MAXIMUM RATINGS* Parameter Supply Voltage Value Unit +10.5 V V LV and OSC Inputs Voltage (Note 1.) V+ < 5.5V V+ > 5.5V –0.3 to (V+ + 0.3) (V+ – 5.5) to (V+ + 0.3) Current Into LV (Note 1.) V+ > 3.5V 20 Output Short Duration (VSUPPLY ≤ 5.5V) µA Continuous Power Dissipation (TA ≤ 70°C) Derate above 50°C 470 5.5 mW mW/°C °C Operating Temperature Range –40 to +85 Storage Temperature Range –65 to +150 °C +300 °C Lead Temperature (Soldering, 10 Seconds) * Maximum Ratings are those values beyond which damage to the device may occur. 1. Connecting any input terminal to voltages greater than V+ or less than GND may cause destructive latch–up. It is recommended that no inputs from sources operating from external supplies be applied prior to ”power up” of the ICL7660. ELECTRICAL CHARACTERISTICS (Specifications Measured Over Operating Temperature Range, V+ = 5V, COSC = 0, Test Circuit (Figure 1), unless otherwise noted. Symbol Characteristic R) Min Typ Max Unit — 80 180 µA I+ Supply Current (RL = V+H Supply Voltage Range, High (–40°C ≤ TA ≤ +85°C, RL = 10 kW, LV Open) 3.0 — 10 Supply Voltage Range, Low (–40°C ≤ TA ≤ +85°C, RL = 10 kW, LV to GND) 1.5 — 3.5 Output Source Resistance IOUT = 20mA, TA = 25°C IOUT = 20mA, 0°C ≤ TA ≤ +70°C IOUT = 20mA, –40°C ≤ TA ≤ +85°C V+ =2V, IOUT = 3 mA, LV to GND, 0°C ≤ TA ≤ +70°C — — — — 70 — — 150 100 120 130 300 FOSC Oscillator Frequency (Pin 7 Open) — 10 — kHz PEFF Power Efficiency (RL = 5kW) 95 98 — % VOUT EFF Voltage Conversion Efficiency 97 99.9 — % ZOSC Oscillator Impedance V+ = 2V V+ = 5V — — 1000 100 — — V+L ROUT V V W kW IS C1 10 mF *NOTE: + 1 8 2 7 3 6 4 5 IL V+ (+6 V) COSC* RL For large values of COSC (>1000 pF), the values of C1 and C2 should be increased to 100 mF. + VO C2 10 mF Figure 1. ICL7660 Test Circuit http://www.hgsemi.com.cn 2 2018 JUN ICL7660 APPLICATIONS INFORMATION Detailed Description can, however, degrade operation at low voltages. To improve low–voltage operation, the LV pin should be connected to GND, disabling the regulator. For supply voltages greater than 3.5V, the LV terminal must be left open to ensure latch–up–proof operation and prevent device damage. The ICL7660 contains all the necessary circuitry to implement a voltage inverter, with the exception of two external capacitors, which may be inexpensive 10 µF polarized electrolytic capacitors. Operation is best understood by considering Figure 2, which shows an idealized voltage inverter. Capacitor C1 is charged to a voltage, V+, for the half cycle when switches S1 and S3 are closed. (Note: Switches S2 and S4 are open during this half cycle.) During the second half cycle of operation, switches S2 and S4 are closed, with S1 and S3 open, thereby shifting capacitor C1 negatively by V+ volts. Charge is then transferred from C1 to C2, such that the voltage on C2 is exactly V+, assuming ideal switches and no load on C2. S1 Theoretical Power Efficiency Considerations In theory, a capacitive charge pump can approach 100% efficiency if certain conditions are met: (1) The drive circuitry consumes minimal power. (2) The output switches have extremely low ON resistance and virtually no offset. (3) The impedances of the pump and reservoir capacitors are negligible at the pump frequency. The ICL7660 approaches these conditions for negative voltage multiplication if large values of C1 and C2 are used. Energy is lost only in the transfer of charge between capacitors if a change in voltage occurs. The energy lost is defined by: S2 V+ C1 GND S3 S4 C2 E = 1/2 C1 (V12 — V22) VOUT = –VIN V1 and V2 are the voltages on C1 during the pump and transfer cycles. If the impedances of C1 and C2 are relatively high at the pump frequency (refer to Figure 2), compared to the value of RL, there will be a substantial difference in voltages V1 and V2. Therefore, it is not only desirable to make C2 as large as possible to eliminate output voltage ripple, but also to employ a correspondingly large value for C1 in order to achieve maximum efficiency of operation. Figure 2. Idealized Charge Pump Inverter The four switches in Figure 2 are MOS power switches; S1 is a P–channel device, and S2, S3 and S4 are N–channel devices. The main difficulty with this approach is that in integrating the switches, the substrates of S3 and S4 must always remain reverse–biased with respect to their sources, but not so much as to degrade their ON resistances. In addition, at circuit start–up, and under output short circuit conditions (VOUT = V+), the output voltage must be sensed and the substrate bias adjusted accordingly. Failure to accomplish this will result in high power losses and probable device latch–up. This problem is eliminated in the ICL7660 by a logic network which senses the output voltage (VOUT) together with the level translators, and switches the substrates of S3 and S4 to the correct level to maintain necessary reverse bias. The voltage regulator portion of the ICL7660 is an integral part of the anti–latch–up circuitry. Its inherent voltage drop http://www.hgsemi.com.cn Dos and Don’ts • Do not exceed maximum supply voltages. • Do not connect LV terminal to GND for supply voltages greater than 3.5V. • Do not short circuit the output to V+ supply for voltages above 5.5V for extended periods; however, transient conditions including start–up are okay. • When using polarized capacitors in the inverting mode, the + terminal of C1 must be connected to pin 2 of the ICL7660 and the + terminal of C2 must be connected to GND Pin 3. 3 2018 JUN ICL7660 V+ Simple Negative Voltage Converter Figure 3 shows typical connections to provide a negative supply where a positive supply is available. A similar scheme may be employed for supply voltages anywhere in the operating range of +1.5V to +10V, keeping in mind that pin 6 (LV) is tied to the supply negative (GND) only for supply voltages below 3.5V. The output characteristics of the circuit in Figure 3 are those of a nearly ideal voltage source in series with 70W. Thus, for a load current of –10mA and a supply voltage of +5V, the output voltage would be –4.3V. The dynamic output impedance of the ICL7660 is due, primarily, to capacitive reactance of the charge transfer capacitor (C1). Since this capacitor is connected to the output for only 1/2 of the cycle, the equation is: XC C1 10 mF + 1 8 2 7 3 6 4 5 VOUT + C2 10 mF Figure 3. Simple Negative Converter Parallel Devices Any number of ICL7660 voltage converters may be paralleled to reduce output resistance (Figure 4). The reservoir capacitor, C2, serves all devices, while each device requires its own pump capacitor, C1. The resultant output resistance would be approximately: + 2pf2C + 3.18W, 1 where f = 10kHz and C1 = 10µF. R OUT OUT (of ICL7660) + nR(number of devices) V+ C1 1 8 2 7 1 8 3 6 2 7 4 5 3 6 4 5 C1 RL + C2 Figure 4. Paralleling Devices Lowers Output Impedance Cascading Devices has generated the external clock frequency using TTL logic, the addition of a 10kW pull–up resistor to V+ supply is required. Note that the pump frequency with external clocking, as with internal clocking, will be 1/2 of the clock frequency. Output transitions occur on the positive–going edge of the clock. It is also possible to increase the conversion efficiency of the ICL7660 at low load levels by lowering the oscillator frequency. This reduces the switching losses, and is achieved by connecting an additional capacitor, COSC, as shown in Figure 7. Lowering the oscillator frequency will cause an undesirable increase in the impedance of the pump (C1) and the reservoir (C2) capacitors. To overcome this, increase the values of C1 and C2 by the same factor that the frequency has been reduced. For example, the addition of a 100pF capacitor between pin 7 (OSC) and pin 8 (V+) will lower the oscillator frequency to 1kHz from its nominal frequency of 10kHz (a multiple of 10), and necessitate a corresponding increase in the values of C1 and C2 (from 10µF to 100µF). The ICL7660 may be cascaded as shown (Figure 5) to produce larger negative multiplication of the initial supply voltage. However, due to the finite efficiency of each device, the practical limit is 10 devices for light loads. The output voltage is defined by: VOUT = –n (VIN) where n is an integer representing the number of devices cascaded. The resulting output resistance would be approximately the weighted sum of the individual ICL7660 ROUT values. Changing the ICL7660 Oscillator Frequency It may be desirable in some applications (due to noise or other considerations) to increase the oscillator frequency. This is achieved by overdriving the oscillator from an external clock, as shown in Figure 6. In order to prevent possible device latch–up, a 1kW resistor must be used in series with the clock output. In a situation where the designer http://www.hgsemi.com.cn 4 2018 JUN ICL7660 V+ 10 mF + 1 8 2 7 1 8 3 6 2 7 “1” 4 10 mF 5 + 6 3 “n” 4 VOUT* 5 10 mF + *NOTE: VOUT = –n V+ for 1.5 V ≤ V+ ≤ 10 V Figure 5. Increased Output Voltage by Cascading Devices V+ 10 mF + 1 8 2 7 3 6 4 5 V+ V+ 1 kW CMOS GATE VOUT C1 2 7 3 6 4 5 6 4 5 VOUT = (2 V+) – (2 VF) D2 + + C1 C2 Figure 9 combines the functions shown in Figures 3 and 8 to provide negative voltage conversion and positive voltage multiplication simultaneously. This approach would be, for example, suitable for generating +9V and –5V from an existing +5V supply. In this instance, capacitors C1 and C3 perform the pump and reservoir functions, respectively, for the generation of the negative voltage, while capacitors C2 and C4 are pump and reservoir, respectively, for the multiplied positive voltage. There is a penalty in this configuration which combines both functions, however, in that the source impedances of the generated supplies will be somewhat higher due to the finite impedance of the common charge pump driver at pin 2 of the device. COSC VOUT + 3 D1 Combined Negative Voltage Conversion and Positive Supply Multiplication V+ + 7 Figure 8. Positive Voltage Multiplier Figure 6. External Clocking 8 8 2 10 mF + 1 1 C2 Figure 7. Lowering Oscillator Frequency Positive Voltage Multiplication The ICL7660 may be employed to achieve positive voltage multiplication using the circuit shown in Figure 8. In this application, the pump inverter switches of the ICL7660 are used to charge C1 to a voltage level of V+ – VF (where V+ is the supply voltage and VF is the forward voltage drop of diode D1). On the transfer cycle, the voltage on C1 plus the supply voltage (V+) is applied through diode D2 to capacitor C2. The voltage thus created on C2 becomes (2 V+) – (2 VF), or twice the supply voltage minus the combined forward voltage drops of diodes D1 and D2. The source impedance of the output (VOUT) will depend on the output current, but for V+ = 5V and an output current of 10 mA, it will be approximately 60W. V+ + C1 1 8 2 7 3 6 4 5 + C2 VOUT = –(V+ – VF) D1 + C3 VOUT = (2 V+) – (2 VF) D2 + C4 Figure 9. Combined Negative Converter and Positive Muliplier http://www.hgsemi.com.cn 5 2018 JUN ICL7660 Efficient Positive Voltage Multiplication/Conversion switch–drive section will not operate until some positive voltage has been generated. An initial inefficient pump, as shown in Figure 9, could be used to start this circuit up, after which it will bypass the other (D1 and D2 in Figure 9 would never turn on), or else the diode and resistor shown dotted in Figure 10 can be used to ”force” the internal regulator on. Since the switches that allow the charge pumping operation are bidirectional, the charge transfer can be performed backwards as easily as forwards. Figure 10 shows a ICL7660 transforming –5V to +5V (or +5V to +10V, etc.). The only problem here is that the internal clock and VOUT = –V– + C1 10 mF 1 8 2 7 3 6 4 5 + 1 MW 10 mF V– INPUT Figure 10. Positive Voltage Conversion Voltage Splitting parallel, the output impedance is much lower than in the standard circuits, and higher currents can be drawn from the device. By using this circuit, and then the circuit of Figure 5, +15V can be converted (via +7.5V and –7.5V) to a nominal –15V, though with rather high series resistance (~250W). The same bidirectional characteristics used in Figure 10 can also be used to split a higher supply in half, as shown in Figure 11. The combined load will be evenly shared between the two sides. Once again, a high value resistor to the LV pin ensures start–up. Because the switches share the load in 50 mF RL1 V + *2 V OUT V) – 50 mF + – RL2 100 kW 100 kW 50 mF V+ + 1 8 2 7 3 6 4 5 1 MW + – V– Figure 11. Splitting a Supply in Half http://www.hgsemi.com.cn 6 2018 JUN ICL7660 TYPICAL PERFORMANCE CHARACTERISTICS 12 100 SUPPLY VOLTAGE (VOLTS) 98 POWER CONVERSION EFFICIENCY (%) 10 8 6 SUPPLY VOLTAGE RANGE 4 2 IOUT = 1 mA 96 94 92 90 IOUT = 15 mA 88 86 84 TA = +25°C V+ = +5 V 82 80 0 –55 –25 0 100 25 50 75 TEMPERATURE (°C) 125 100 10 k TA = +25°C 1k 100 10 0 1 5 2 3 4 6 SUPPLY VOLTAGE (VOLTS) 7 8 350 IOUT = 1 mA 300 250 200 150 V+ = +2 V 100 V+ = +5 V 50 0 –55 OSCILLATOR FREQUENCY (kHz) OSCILLATOR FREQUENCY (Hz) 10 k TA = +25°C V+ = +5 V 1k 100 10 10 100 1000 OSCILLATOR CAPACITANCE (pF) 10 k 20 0 25 50 75 TEMPERATURE (°C) 100 125 V+ = +5 V 18 16 14 12 10 8 6 –55 Figure 16. Frequency of Oscillation versus Oscillator Capacitance http://www.hgsemi.com.cn –25 Figure 15. Output Source Resistance versus Temperature Figure 14. Output Source Resistance versus Supply Voltage 1 10 k Figure 13. Power Conversion Efficiency versus Oscillator Frequency OUTPUT SOURCE RESISTANCE ( W ) OUTPUT SOURCE RESISTANCE ( W ) Figure 12. Operating Voltage versus Temperature 1k OSCILLATOR FREQUENCY (Hz) –25 0 25 50 75 TEMPERATURE (°C) 100 125 Figure 17. Unloaded Oscillator Frequency versus Temperature 7 2018 JUN ICL7660 0 5 –1 4 OUTPUT VOLTAGE (VOLTS) OUTPUT VOLTAGE (VOLTS) TYPICAL CHARACTERISTICS (Cont.) –2 –3 –4 –5 –6 –7 TA = +25°C LV OPEN –8 –9 –10 0 10 20 80 30 40 50 60 70 OUTPUT CURRENT (mA) 90 TA = +25°C V+ = +5 V 3 2 1 0 –1 –2 –3 SLOPE 55 W –4 –5 100 0 10 20 90 18 16 TA = +25°C V+ = +2 V 60 14 12 50 10 40 8 30 6 20 4 10 0 2 0 0 1.5 3.0 4.5 6.0 LOAD CURRENT (mA) 7.5 70 80 9.0 100 100 90 90 80 80 70 70 60 60 50 50 40 40 30 30 TA = +25°C V+ = +5 V 20 10 0 0 10 20 30 40 LOAD CURRENT (mA) 20 SUPPLY CURRENT (mA) 80 POWER CONVERSION EFFICIENCY (%) 100 70 30 40 50 60 LOAD CURRENT (mA) Figure 19. Output Voltage versus Load Current SUPPLY CURRENT (mA) POWER CONVERSION EFFICIENCY (%) Figure 18. Output Voltage versus Output Current 20 10 0 50 60 Figure 21. Supply Current and Power Conversion Efficiency versus Load Current Figure 20. Supply Current and Power Conversion Efficiency versus Load Current OUTPUT VOLTAGE (VOLTS) 2 TA = +25°C V+ = +2 V 1 0 –1 SLOPE 150 W –2 0 1 2 3 4 5 6 LOAD CURRENT (mA) 7 8 Figure 22. Output Voltage versus Load Current http://www.hgsemi.com.cn 8 2018 JUN
