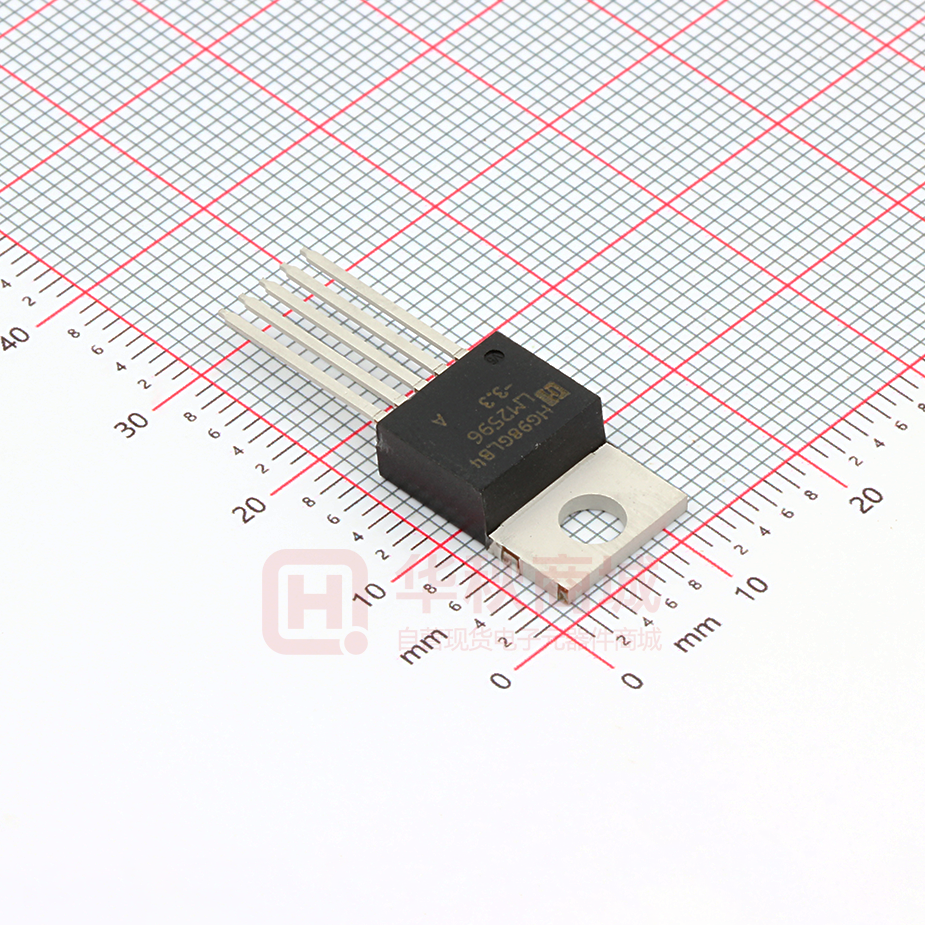

LM2596T-3.3

LM2596 LM2596 SIMPLE SWITCHER Power Converter 150 kHz 3A Step-Down Voltage Regulator General Description Features The LM2596 series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 3A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3V, 5V, 12V, and an adjustable output version. Requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation†, and a fixed-frequency oscillator. The LM2596 series operates at a switching frequency of 150 kHz thus allowing smaller sized filter components than what would be needed with lower frequency switching regulators. Available in a standard 5-lead TO-220 package with several different lead bend options, and a 5-lead TO-263 surface mount package. A standard series of inductors are available from several different manufacturers optimized for use with the LM2596 series. This feature greatly simplifies the design of switch-mode power supplies. Other features include a guaranteed ± 4% tolerance on output voltage under specified input voltage and output load conditions, and ± 15% on the oscillator frequency. External shutdown is included, featuring typically 80 µA standby current. Self protection features include a two stage frequency reducing current limit for the output switch and an over temperature shutdown for complete protection under fault conditions. n 3.3V, 5V, 12V, and adjustable output versions n Adjustable version output voltage range, 1.2V to 37V ± 4% max over line and load conditions n Available in TO-220 and TO-263 packages n Guaranteed 3A output load current n Input voltage range up to 40V n Requires only 4 external components n Excellent line and load regulation specifications n 150 kHz fixed frequency internal oscillator n TTL shutdown capability n Low power standby mode, IQ typically 80 µA n High efficiency n Uses readily available standard inductors n Thermal shutdown and current limit protection Typical Application Applications n Simple high-efficiency step-down (buck) regulator n On-card switching regulators n Positive to negative converter Note: †Patent Number 5,382,918. (Fixed Output Voltage Versions) http://www.hgsemi.com.cn 1 2018 JUN LM2596 Connection Diagrams and Ordering Information Bent and Staggered Leads, Through Hole Package 5-Lead TO-220 (T) Surface Mount Package 5-Lead TO-263 (S) 01258303 01258302 Order Number LM2596S-3.3, LM2596S-5.0, LM2596S-12 or LM2596S-ADJ See NS Package Number TS5B Order Number LM2596T-3.3, LM2596T-5.0, LM2596T-12 or LM2596T-ADJ See NS Package Number T05D Absolute Maximum Ratings If Military/Aerospace specified devices are required, please contact the National Semiconductor Sales Office/ Distributors for availability and specifications. Maximum Supply Voltage ON /OFF Pin Input Voltage 45V −0.3 ≤ V ≤+25V Power Dissipation Internally limited ESD Susceptibility HumanBodyModel S Package −0.3 ≤ V ≤ +25V Feedback Pin Voltage Output Voltage to Ground (Steady State) StorageTemperatureRange Lead Temperature −1V −65˚Cto+150˚C Vapor Phase (60 sec.) +215˚C Infrared (10 sec.) +245˚C T Package (Soldering, 10 sec.) +260˚C Maximum Junction Temperature +150˚C Operating Conditions 2kV Temperature Range Supply Voltage http://www.hgsemi.com.cn 2 −40˚C ≤ TJ ≤ +125˚C 4.5V to 40V 2018 JUN LM2596 LM2596-3.3 Electrical Characteristics Specifications with standard type face are for TJ = 25˚C, and those with boldface type apply over full Operating Temperature Range LM2596-3.3 Symbol Parameter Conditions Typ (Note 3) Limit (Note 4) Units (Limits) SYSTEM PARAMETERS (Note 5) Test Circuit Figure 1 VOUT η Output Voltage Efficiency 4.75V ≤ VIN ≤ 40V, 0.2A ≤ ILOAD ≤ 3A V IN = 12V, I LOAD = 3A 3.3 V 3.168/3.135 V(min) 3.432/3.465 V(max) % 73 LM2596-5.0 Electrical Characteristics Specifications with standard type face are for TJ = 25˚C, and those with boldface type apply over full Operating Temperature Range LM2596-5.0 Symbol Parameter Conditions Typ (Note 3) Limit (Note 4) Units (Limits) SYSTEM PARAMETERS (Note 5) Test Circuit Figure 1 VOUT η Output Voltage Efficiency 7V ≤ VIN ≤ 40V, 0.2A ≤ ILOAD ≤ 3A VIN = 12V, ILOAD = 3A 5.0 V 4.800/4.750 V(min) 5.200/5.250 V(max) 80 % LM2596-12 Electrical Characteristics Specifications with standard type face are for TJ = 25˚C, and those with boldface type apply over full Operating Temperature Range LM2596-12 Symbol Parameter Conditions Typ (Note 3) Limit (Note 4) Units (Limits) SYSTEM PARAMETERS (Note 5) Test Circuit Figure 1 VOUT η Output Voltage Efficiency http://www.hgsemi.com.cn 15V ≤ VIN ≤ 40V, 0.2A ≤ ILOAD ≤ 3A VIN = 25V, ILOAD = 3A 12.0 90 3 V 11.52/11.40 V(min) 12.48/12.60 V(max) % 2018 JUN LM2596 Specifications with standard type face are for TJ = 25˚C, and those with boldface type apply over full Operating Temperature Range LM2596-ADJ Symbol Parameter Conditions Typ (Note 3) Limit (Note 4) Units (Limits) SYSTEM PARAMETERS (Note 5) Test Circuit Figure 1 VFB Feedback Voltage 4.5V ≤ VIN ≤ 40V, 0.2A ≤ ILOAD ≤ 3A 1.230 V VOUT programmed for 3V. Circuit of Figure 1 η Efficiency VIN = 12V, VOUT = 3V, ILOAD = 3A 1.193/1.180 V(min) 1.267/1.280 V(max) 73 % All Output Voltage Versions Electrical Characteristics Specifications with standard type face are for TJ = 25˚C, and those with boldface type apply over full Operating Temperature Range. Unless otherwise specified, VIN = 12V for the 3.3V, 5V, and Adjustable version and VIN = 24V for the 12V version. ILOAD = 500 mA LM2596-XX Symbol Parameter Conditions Typ (Note 3) Limit (Note 4) Units (Limits) DEVICE PARAMETERS Ib fO VSAT DC ICL IL Feedback Bias Current Oscillator Frequency Saturation Voltage Adjustable Version Only, VFB = 1.3V (Note 6) IOUT = 3A (Notes 7, 8) Max Duty Cycle (ON) (Note 8) 100 (Note 9) 0 Current Limit Peak Current (Notes 7, 8) Quiescent Current nA (max) 127/110 kHz(min) 173/173 kHz(max) 1.4/1.5 V(max) kHz 1.16 Min Duty Cycle (OFF) Output Leakage Current nA 50/100 150 V % 4.5 Output = 0V (Notes 7, 9) Output = −1V (Note 10) IQ 10 A 3.6/3.4 A(min) 6.9/7.5 A(max) 50 µA(max) 30 mA(max) 10 mA(max) 2 (Note 9) mA 5 mA ISTBY Standby Quiescent Current ON/OFF pin = 5V (OFF) θJC Thermal Resistance TO-220 or TO-263 Package, Junction to Case 2 ˚C/W θJA TO-220 Package, Junction to Ambient (Note 11) 50 ˚C/W θJA TO-263 Package, Junction to Ambient (Note 12) 50 ˚C/W θJA TO-263 Package, Junction to Ambient (Note 13) 30 ˚C/W θJA TO-263 Package, Junction to Ambient (Note 14) 20 ˚C/W (Note 10) 80 µA 200/250 µA(max) ON/OFF CONTROL Test Circuit Figure 1 ON /OFF Pin Logic Input VIH Threshold Voltage VIL http://www.hgsemi.com.cn 1.3 V Low (Regulator ON) 0.6 V(max) High (Regulator OFF) 2.0 V(min) 4 2018 JUN LM2596 All Output Voltage Versions Electrical Characteristics (Continued) Specifications with standard type face are for TJ = 25˚C, and those with boldface type apply over full Operating Temperature Range. Unless otherwise specified, VIN = 12V for the 3.3V, 5V, and Adjustable version and VIN = 24V for the 12V version. ILOAD = 500 mA LM2596-XX Symbol IH Parameter ON /OFF Pin Input Current IL Conditions VLOGIC = 2.5V (Regulator OFF) VLOGIC = 0.5V (Regulator ON) Typ (Note 3) Limit (Note 4) Units (Limits) 5 µA 15 µA(max) 5 µA(max) 0.02 µA Note 1: Absolute Maximum Ratings indicate limits beyond which damage to the device may occur. Operating Ratings indicate conditions for which the device is intended to be functional, but do not guarantee specific performance limits. For guaranteed specifications and test conditions, see the Electrical Characteristics. Note 2: The human body model is a 100 pF capacitor discharged through a 1.5k resistor into each pin. Note 3: Typical numbers are at 25˚C and represent the most likely norm. Note 4: All limits guaranteed at room temperature (standard type face) and at temperature extremes (bold type face). All room temperature limits are 100% production tested. All limits at temperature extremes are guaranteed via correlation using standard Statistical Quality Control (SQC) methods. All limits are used to calculate Average Outgoing Quality Level (AOQL). Note 5: External components such as the catch diode, inductor, input and output capacitors, and voltage programming resistors can affect switching regulator system performance. When the LM2596 is used as shown in the Figure 1 test circuit, system performance will be as shown in system parameters section of Electrical Characteristics. Note 6: The switching frequency is reduced when the second stage current limit is activated. Note 7: No diode, inductor or capacitor connected to output pin. Note 8: Feedback pin removed from output and connected to 0V to force the output transistor switch ON. Note 9: Feedback pin removed from output and connected to 12V for the 3.3V, 5V, and the ADJ. version, and 15V for the 12V version, to force the output transistor switch OFF. Note 10: VIN = 40V. Note 11: Junction to ambient thermal resistance (no external heat sink) for the TO-220 package mounted vertically, with the leads soldered to a printed circuit board with (1 oz.) copper area of approximately 1 in2. Note 12: Junction to ambient thermal resistance with the TO-263 package tab soldered to a single printed circuit board with 0.5 in2 of (1 oz.) copper area. Note 13: Junction to ambient thermal resistance with the TO-263 package tab soldered to a single sided printed circuit board with 2.5 in2 of (1 oz.) copper area. Note 14: Junction to ambient thermal resistance with the TO-263 package tab soldered to a double sided printed circuit board with 3 in2 of (1 oz.) copper area on the LM2596S side of the board, and approximately 16 in2 of copper on the other side of the p-c board. See Application Information in this data sheet and the thermal model in Switchers Made Simple™ version 4.3 software. Typical Performance Characteristics Normalized Output Voltage http://www.hgsemi.com.cn (Circuit of Figure 1) Line Regulation 5 Efficiency 2018 JUN LM2596 Typical Performance Characteristics (Circuit of Figure 1) (Continued) Switch Saturation Voltage Switch Current Limit Dropout Voltage Operating Shutdown Minimum Operating Quiescent Current Quiescent Current Supply Voltage ON /OFF Threshold Voltage ON /OFF Pin Current (Sinking) Switching Frequency http://www.hgsemi.com.cn 6 2018 JUN LM2596 LM2596 SeriesBuckRegulatorDesignProcedure(FixedOutput) Conditions Inductor (Continued) Output Capacitor Through Hole Electrolytic Surface Mount Tantalum Output Load Max Input Inductance Inductor Panasonic Nichicon AVX TPS Sprague Voltage Current Voltage (µH) (#) HFQ Series PL Series Series 595D Series (V) (A) (V) (µF/V) (µF/V) (µF/V) (µF/V) 3.3 3 470/25 560/16 330/6.3 390/6.3 5 2 5 3 2 12 3 2 22 L41 7 22 L41 560/35 560/35 330/6.3 390/6.3 10 22 L41 680/35 680/35 330/6.3 390/6.3 40 33 L40 560/35 470/35 330/6.3 390/6.3 6 22 L33 470/25 470/35 330/6.3 390/6.3 10 33 L32 330/35 330/35 330/6.3 390/6.3 40 47 L39 330/35 270/50 220/10 330/10 8 22 L41 470/25 560/16 220/10 330/10 10 22 L41 560/25 560/25 220/10 330/10 15 33 L40 330/35 330/35 220/10 330/10 40 47 L39 330/35 270/35 220/10 330/10 9 22 L33 470/25 560/16 220/10 330/10 20 68 L38 180/35 180/35 100/10 270/10 40 68 L38 180/35 180/35 100/10 270/10 15 22 L41 470/25 470/25 100/16 180/16 18 33 L40 330/25 330/25 100/16 180/16 30 68 L44 180/25 180/25 100/16 120/20 40 68 L44 180/35 180/35 100/16 120/20 15 33 L32 330/25 330/25 100/16 180/16 20 68 L38 180/25 180/25 100/16 120/20 40 150 L42 82/25 82/25 68/20 68/25 FIGURE 2. LM2596 Fixed Voltage Quick Design Component Selection Table LM2596 SeriesBuckRegulatorDesignProcedure(AdjustableOutput) Output Voltage (V) Through Hole Output Capacitor Surface Mount Output Capacitor Panasonic Nichicon PL Feedforward AVX TPS Sprague Feedforward HFQ Series Series Capacitor Series 595D Series Capacitor (µF/V) (µF/V) (µF/V) (µF/V) 2 820/35 820/35 33 nF 330/6.3 470/4 4 560/35 470/35 10 nF 330/6.3 390/6.3 10 nF 6 470/25 470/25 3.3 nF 220/10 330/10 3.3 nF 9 330/25 330/25 1.5 nF 100/16 180/16 1.5 nF 12 330/25 330/25 1 nF 100/16 180/16 1 nF 15 220/35 220/35 680 pF 68/20 120/20 680 pF 24 220/35 150/35 560 pF 33/25 33/25 220 pF 28 100/50 100/50 390 pF 10/35 15/50 220 pF 33 nF FIGURE 3. Output Capacitor and Feedforward Capacitor Selection Table http://www.hgsemi.com.cn 7 2018 JUN LM2596 LM2596 SeriesBuckRegulatorDesignProcedure INDUCTOR VALUE SELECTION GUIDES (For Continuous Mode Operation) 01258326 01258324 FIGURE6.LM2596-12 FIGURE4.LM2596-3.3 01258327 01258325 FIGURE7.LM2596-ADJ FIGURE5.LM2596-5.0 http://www.hgsemi.com.cn 8 2018 JUN LM2596 Test Circuit and Layout Guidelines (Continued) Adjustable Output Voltage Versions where VREF = 1.23V Select R1 to be approximately 1 kΩ, use a 1% resistor for best stability. CIN — 470 µF, 50V, Aluminum Electrolytic Nichicon “PL Series” COUT — 220 µF, 35V Aluminum Electrolytic, Nichicon “PL Series” D1 — 5A, 40V Schottky Rectifier, 1N5825 L1 — 68 µH, L38 R1 — 1 kΩ, 1% CFF — See Application Information Section FIGURE 1. Standard Test Circuits and Layout Guides As in any switching regulator, layout is very important. Rapidly switching currents associated with wiring inductance can generate voltage transients which can cause problems. For minimal inductance and ground loops, the wires indicated by heavy lines should be wide printed circuit traces and should be kept as short as possible. For best results, external components should be located as close to the switcher lC as possible using ground plane construction or single point grounding. If open core inductors are used, special care must be taken as to the location and positioning of this type of inductor. Allowing the inductor flux to intersect sensitive feedback, lC groundpath and COUT wiring can cause problems. http://www.hgsemi.com.cn When using the adjustable version, special care must be taken as to the location of the feedback resistors and the associated wiring. Physically locate both resistors near the IC, and route the wiring away from the inductor, especially an open core type of inductor. (See application section for more information.) 9 2018 JUN LM2596 LM2596 Series Buck Regulator Design Procedure (Adjustable Output) PROCEDURE (Adjustable Output Voltage Version) EXAMPLE (Adjustable Output Voltage Version) Given: VOUT = Regulated Output Voltage VIN(max) = Maximum Input Voltage Given: VOUT = 20V VIN(max) = 28V ILOAD(max) = Maximum Load Current F = Switching Frequency (Fixed at a nominal 150 kHz). ILOAD(max) = 3A F = Switching Frequency (Fixed at a nominal 150 kHz). 1. Programming Output Voltage (Selecting R1 and R2, as shown in Figure 1 ) 1. Programming Output Voltage (Selecting R1 and R2, as shown in Figure 1 ) Use the following formula to select the appropriate resistor values. Select R1 to be 1 kΩ, 1%. Solve for R2. Select a value for R1 between 240Ω and 1.5 kΩ. The lower resistor values minimize noise pickup in the sensitive feedback pin. (For the lowest temperature coefficient and the best stability with time, use 1% metal film resistors.) R2 = 1k (16.26 − 1) = 15.26k, closest 1% value is 15.4 kΩ. R2 = 15.4 kΩ. 2. Inductor Selection (L1) A. Calculate the inductor Volt • microsecond constant E • T (V • µs), from the following formula: 2. Inductor Selection (L1) A. Calculate the inductor Volt • microsecond constant (E • T), where VSAT = internal switch saturation voltage = 1.16V and VD = diode forward voltage drop = 0.5V B. Use the E • T value from the previous formula and match it with the E • T number on the vertical axis of the Inductor Value Selection Guide shown in Figure 7. C. on the horizontal axis, select the maximum load current. D. Identify the inductance region intersected by the E • T value and the Maximum Load Current value. Each region is identified by an inductance value and an inductor code (LXX). E. Select an appropriate inductor from the four manufacturer’s part numbers listed in Figure 8. http://www.hgsemi.com.cn B. E • T = 34.2 (V • µs) C. ILOAD(max) = 3A D. From the inductor value selection guide shown in Figure 7, the inductance region intersected by the 34 (V • µs) horizontal L39. E. From the table in Figure 8, locate line L39, and select an bers. 10 2018 JUN LM2596 Block Diagram 01258321 FIGURE 12. Application Information PIN FUNCTIONS +VIN — This is the positive input supply for the IC switching regulator. A suitable input bypass capacitor must be present at this pin to minimize voltage transients and to supply the switching currents needed by the regulator. Ground — Circuit ground. Output — Internal switch. The voltage at this pin switches between (+VIN − VSAT) and approximately −0.5V, with a duty cycle of approximately VOUT/VIN. To minimize coupling to sensitive circuitry, the PC board copper area connected to this pin should be kept to a minimum. Feedback — Senses the regulated output voltage to complete the feedback loop. ON /OFF — Allows the switching regulator circuit to be shut down using logic level signals thus dropping the total input supply current to approximately 80 µA. Pulling this pin below a threshold voltage of approximately 1.3V turns the regulator on, and pulling this pin above 1.3V (up to a maximum of 25V) shuts the regulator down. If this shutdown feature is not needed, the ON /OFF pin can be wired to the ground pin or it can be left open, in either case the regulator will be in the ON condition. http://www.hgsemi.com.cn EXTERNAL COMPONENTS INPUT CAPACITOR CIN — A low ESR aluminum or tantalum bypass capacitor is needed between the input pin and ground pin. It must be located near the regulator using short leads. This capacitor prevents large voltage transients from appearing at the input, and provides the instantaneous current needed each time the switch turns on. The important parameters for the Input capacitor are the voltage rating and the RMS current rating. Because of the relatively high RMS currents flowing in a buck regulator’s input capacitor, this capacitor should be chosen for its RMS current rating rather than its capacitance or voltage ratings, although the capacitance value and voltage rating are directly related to the RMS current rating. The RMS current rating of a capacitor could be viewed as a capacitor’s power rating. The RMS current flowing through the capacitors internal ESR produces power which causes the internal temperature of the capacitor to rise. The RMS current rating of a capacitor is determined by the amount of current required to raise the internal temperature approximately 10˚C above an ambient temperature of 105˚C. The ability of the capacitor to dissipate this heat to the surrounding air will determine the amount of current the capacitor can safely sustain. Capacitors that are physically large and have a large surface area will typically have higher RMS current ratings. For a given capacitor value, a higher voltage electrolytic capacitor will be physically larger than a lower voltage capacitor, and thus be able to dissipate more heat to the surrounding air, and therefore will have a higher RMS current rating. 11 2018 JUN LM2596 Application Information (Continued) 01258336 01258337 FIGURE 21. Delayed Startup FIGURE 22. Undervoltage Lockout for Buck Regulator This circuit has an ON/OFF threshold of approximately 13V. UNDERVOLTAGE LOCKOUT Some applications require the regulator to remain off until the input voltage reaches a predetermined voltage. An undervoltage lockout feature applied to a buck regulator is shown in Figure 22, while Figure 23 and 24 applies the same feature to an inverting circuit. The circuit in Figure 23 fea01258338 for Inverting Regulator FIGURE 23. Undervoltage Lockout DELAYED STARTUP The circuit in Figure 21 uses the the ON /OFF pin to provide a time delay between the time the input voltage is applied and the time the output voltage comes up (only the circuitry pertaining to the delayed start up is shown). As the input voltage rises, the charging of capacitor C1 pulls the ON /OFF pin high, keeping the regulator off. Once the input voltage reaches its final value and the capacitor stops charging, and resistor R2 pulls the ON /OFF pin low, thus allowing the circuit to start switching. Resistor R1 is included to limit the maximum voltage applied to the ON /OFF pin (maximum of 25V), reduces power supply noise sensitivity, and also limits the capacitor, C1, discharge current. When high input ripple voltage exists, avoid long delay time, because this ripple can be coupled into the ON /OFF pin and cause problems. This delayed startup feature is useful in situations where the input power source is limited in the amount of current it can deliver. It allows the input voltage to rise to a higher voltage before the regulator starts operating. Buck regulators require less input current at higher input voltages. http://www.hgsemi.com.cn tures a constant threshold voltage for turn on and turn off (zener voltage plus approximately one volt). If hysteresis is needed, the circuit in Figure 24 has a turn ON voltage which is different than the turn OFF voltage. The amount of hysteresis is approximately equal to the value of the output voltage. If zener voltages greater than 25V are used, an additional 47 kΩ resistor is needed from the ON /OFF pin to the ground pin to stay within the 25V maximum limit of the ON /OFF pin. INVERTING REGULATOR The circuit in Figure 25 converts a positive input voltage to a negative output voltage with a common ground. The circuit operates by bootstrapping the regulator’s ground pin to the negative output voltage, then grounding the feedback pin, the regulator senses the inverted output voltage and regulates it. This example uses the LM2596-5.0 to generate a −5V output, but other output voltages are possible by selecting other output voltage versions, including the adjustable version. Since this regulator topology can produce an output voltage that is either greater than or less than the input voltage, the maximum output current greatly depends on both the input and output voltage. The curve shown in Figure 26 provides a guide as to the amount of output load current possible for the different input and output voltage conditions. 12 2018 JUN LM2596 Application Information This circuit has hysteresis (Continued) Regulator starts switching at VIN = 13V Regulator stops switching at VIN = 8V FIGURE 24. Undervoltage Lockout with Hysteresis for Inverting Regulator CIN — 68 µF/25V Tant. Sprague 595D 470 µF/50V Elec. Panasonic HFQ COUT — 47 µF/20V Tant. Sprague 595D 220 µF/25V Elec. Panasonic HFQ FIGURE 25. Inverting −5V Regulator with Delayed Startup be narrowed down to just a few values. Using the values shown in Figure 25 will provide good results in the majority of inverting designs. This type of inverting regulator can require relatively large amounts of input current when starting up, even with light loads. Input currents as high as the LM2596 current limit (approx 4.5A) are needed for at least 2 ms or more, until the output reaches its nominal output voltage. The actual time depends on the output voltage and the size of the output capacitor. Input power sources that are current limited or sources that can not deliver these currents without getting loaded down, may not work correctly. Because of the relatively high startup currents required by the inverting topology, the delayed startup feature (C1, R1 and R2) shown in Figure 25 is recommended. By delaying the regulator startup, the input capacitor is allowed to charge up to a higher voltage before the switcher begins operating. A portion of the high input current needed for startup is now supplied by the input capacitor (CIN). For severe start up conditions, the input capacitor can be made much larger than normal. FIGURE 26. Inverting Regulator Typical Load Current Because of differences in the operation of the inverting regulator, the standard design procedure is not used to select the inductor value. In the majority of designs, a 33 µH, 3.5A inductor is the best choice. Capacitor selection can also http://www.hgsemi.com.cn 13 2018 JUN LM2596 Application Information OFF. With the inverting configuration, some level shifting is required, because the ground pin of the regulator is no longer at ground, but is now setting at the negative output voltage level. Two different shutdown methods for inverting regulators are shown in Figure 27 and 28. (Continued) INVERTING REGULATOR SHUTDOWN METHODS To use the ON /OFF pin in a standard buck configuration is simple, pull it below 1.3V ( @25˚C, referenced to ground) to turn regulator ON, pull it above 1.3V to shut the regulator 01258342 FIGURE 27. Inverting Regulator Ground Referenced Shutdown 01258343 FIGURE 28. Inverting Regulator Ground Referenced Shutdown using Opto Device http://www.hgsemi.com.cn 14 2018 JUN
