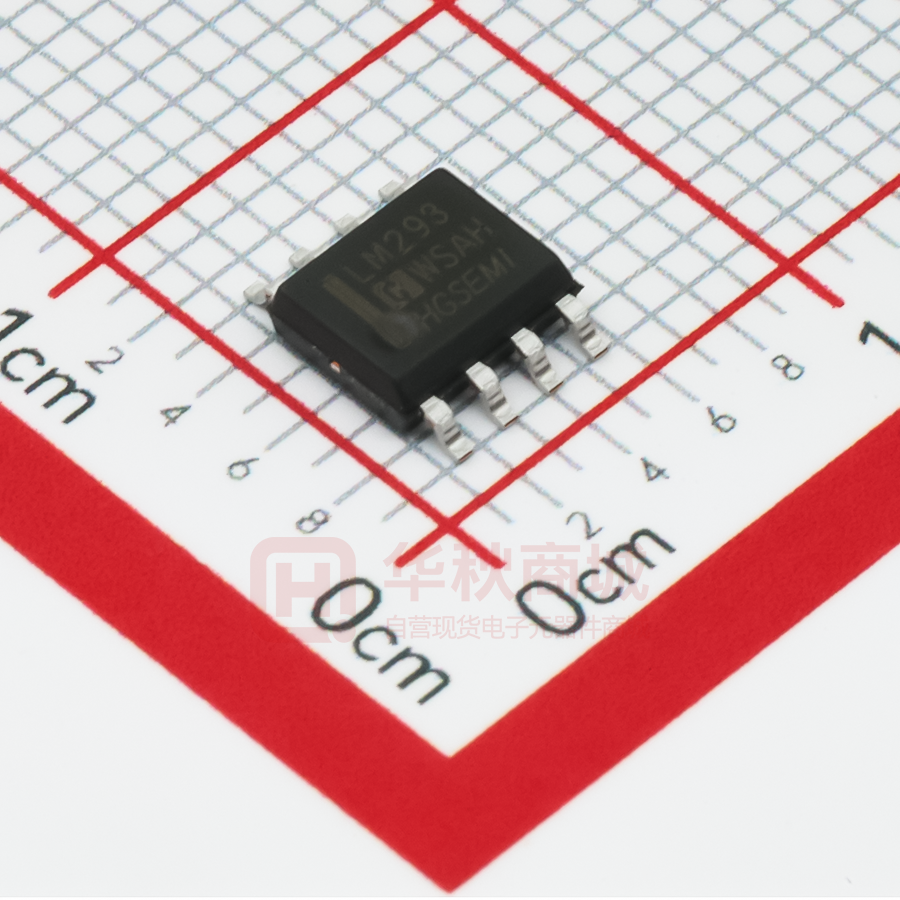

LM293M/TR

LM293 DUAL DIFFERENTIAL COMPARATOR „ DESCRIPTION The HGsemi LM293 consists of two independent voltage comparators, designed specifically to operate from a single power supply over a wide voltage range. SOP-8 „ FEATURES * Single or dual supply operation. * Wide operating supply range (VCC=2V ~ 36V or ±1 ~ ±18V) * Input common-mode voltage includes ground. * Low supply current drain ICC=0.8mA (Typical). * Low input bias current IBIAS=25nA (Typical). * Output compatible with TTL, DTL, and CMOS logic system. „ DIP-8 PIN DESCRIPTION http:www.hgsemi.com.cn OUT 1 1 8 IN 1(-) 2 7 IN 1(+) 3 6 IN 2(-) GND 4 5 IN 2(+) 1 Vcc OUT 2 2018 MAY LM293 „ „ BLOCK DIAGRAM ABSOLUTE MAXIMUM RATINGS PARAMETER Supply Voltage Differential Input Voltage Input Voltage SYMBOL VCC VI(DIFF) VIN DIP-8 SOP-8 Power Dissipation PD RATINGS ±18 or 36 UNIT V V V mW mW 36 -0.3 ~ +36 600 420 Operating Temperature Range TOPR -20 ~ +85 °C Storage Temperature Range TSTG -65 ~ +150 °C Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged. Absolute maximum ratings are stress ratings only and functional device operation is not implied. „ ELECTRICAL CHARACTERISTICS (VCC=5.0V, Ta=25°C, All voltage referenced to GND unless otherwise specified) PARAMETER SYMBOL Input Offset Voltage VI(OFF) Output Saturation Voltage Input Common Mode Voltage Large Signal Voltage Gain VSAT VI(CM) GV Power Supply Current ICC Input Offset Current Input Bias Current Output Sink Current II(OFF) II(BIAS) IO(SINK) Output Leakage Current IO(LEAK) Large Signal Response Time tR Response Time tR http:www.hgsemi.com.cn TEST CONDITIONS VCM=0V toVCC-1.5V VO(P)=1.4V, RS=0Ω VI(-)>1V, VI(+)=0V, ISINK=4mA VCC=30V VCC=15V, RL≧15KΩ RL=∝, VCC=30V RL=∝ VI(-)>1V, VI(+)=0V, Vo(p)
