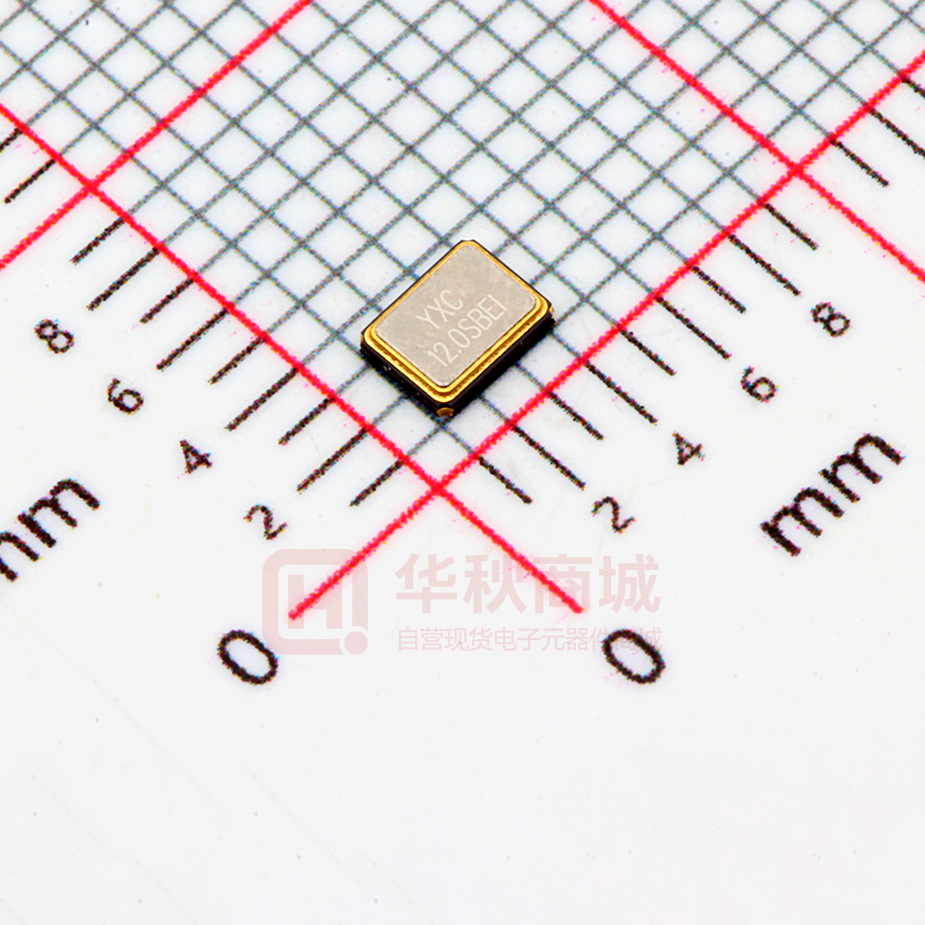

X322512MSB4SI

【晶振全系列独立与授权型供应商－深圳扬兴科技有限公司】 ｗｗｗ．ｙｘｃ．ｈｋ YSX321SL Features ． External dimensions: 3.2 x 2.5 x 0.8 mm. ． Frequency range: 11.0592MHz ~ 54MHz. C Y X X X X 0 . 12 ．High precision and high frequency stability. ．Extremely good for reducing EMI effect. ．RoHS Compliant / Pb Free. ． The best choice of Bluetooth, wireless communication set, DSC, PDA and mobile phone. Electrical Specifications YSX321SL Nominal Frequency Range 11.0592 ~ 54 MHz Vibration Mode AT Fundamental Load Capacitance 12 pF, 20 pF, or specify Remark : Speci mark : Speci Item / Type Frequency Tolerance (at 25 ℃) ± 10 ppm, ± 20 ppm, or specify Frequency Versus Temperature Characteristics ± 20 ppm, or specify Operating Temperature - 20 ~ + 70 ℃ , - 40 ~ + 85 ℃ , or specify Storage Temperature - 40 ~ + 85 ℃ , or specify Shunt Capacitance 7 pF Max. Level Of Drive 1 ~100 μW Max. (10 uW typical) Frequency Aging (at 25 ℃) ± 3 ppm / year Max. Insulation Resistance More Than 500MΩ at DC 100V Equivalent Series Resistance(ESR) Fundamental 11.0592 ~ 16 MHz 80 Ω Max. 16 ~ 20 MHz 60 Ω Max. 20 ~ 54 MHz 40 Ω Max. Dimensions YXC 12.0XXX Units: mm come visit our site http://www.yxc.hk 1/2 【晶振全系列独立与授权型供应商－深圳扬兴科技有限公司】 ｗｗｗ．ｙｘｃ．ｈｋ YSX321SL ★ PART NUMBER GUIDE 部件号示例 e.g. X322512MSB4 SC Quartz Crystal Resonator Dimensions Frequency Load Capacitance (Hz) (Pf) X 12M 3225 Frequency Stability Pin Overall (ppm) S ★ TAPING SPECIFICATION (Unit: mm) 4.0 YSX321SL =3.2×2..5 SMD SEAM TYPE 4 B Material Operating Temp. Range S C 编带规格 φ1.95 1.1 12 0° φ13 5.1 C B D SMD3225 G A F E A B C 178±2.0 8.03±0.3 D 3.81±0.10 3.04±0.10 E F G 3.84±0.1 1.54±0.10 62.0±1.0 3000 pcs per reel ★ REFLOW SOLDERING PROFILE 回流焊特性 Temperature (℃) 260℃ max 220℃ 180℃ ③ ① ② Times (S) Pb free reflow A ① Preheat 160~180℃ ② Primary heat 220℃ 60sec. max ③ Peak 10sec. max. 260℃ come visit our site http://www.yxc.hk 2/2 120sec. max
