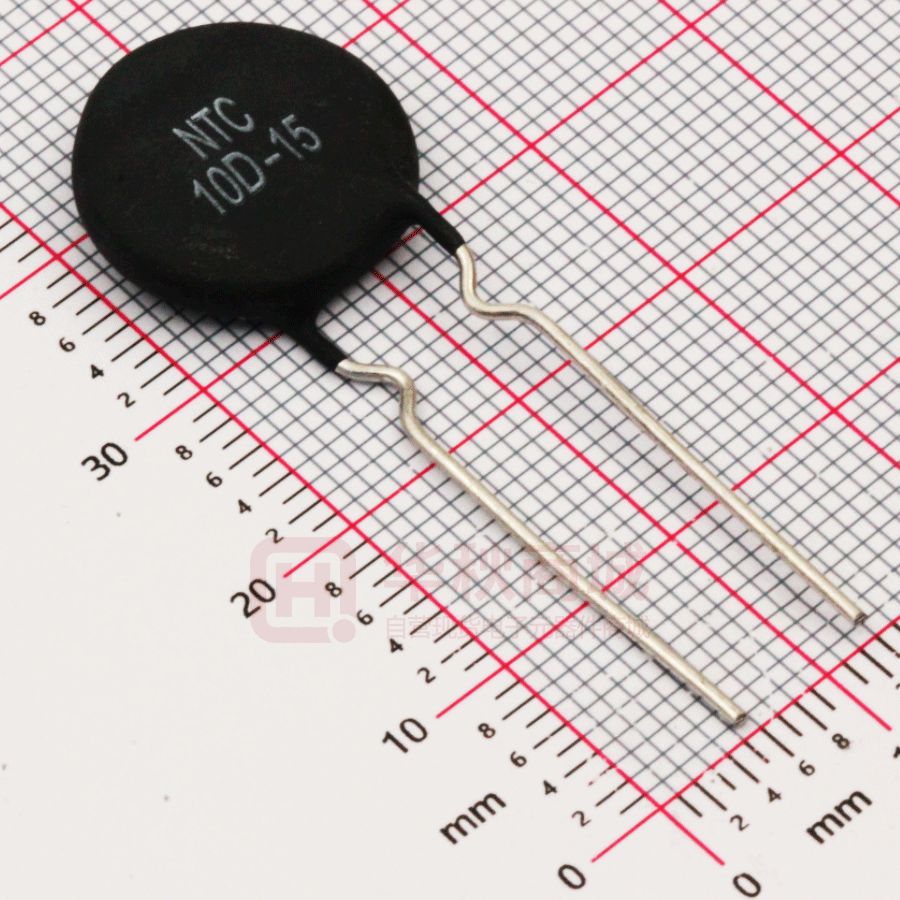

NTC 10D-15

NTC Thermistor Features This is a Negative Temperature Coefficient Resistor Whose resistance changes with ambient temperature changes. Thermistor comprises 2 or 4 kinds of metal oxides of iron, nickel,cobalt, manganese and copper, being shaped and Sintered at high temperature(1200℃ to 1500℃ ) Critical Technical Parameters of NTC Thermistor * Rt---Resistance Value at Zero-power It's a resistance which is got at a fixed temperature on a basis of a testing power which causes resistance to Vary in a range which can be ignored in relation to the total testing eror. * R25---Resistance Value at Rated Zero-power The design resistance of the thermistor usually refers to the resistance value got at Zero-power at 25℃ , which is usually indicated on the thermistor. * Max. steady state current.Imax. The maximum allowable continuous current passing through thermistor at 25℃. * Dissipation Coefficient δ It's the ratio of the changes with a thermistor dissipation power, in a pre-set ambient temperature, to the changes with the temperature. The formula is as below:δ = △P/ △T ,δ changes in response when the ambient temperature changes, within the ranges of the working temperature. Applications Conversion power supply, switch power, UPS power, Kinds of electric heter, electronic energy-saving lamps, electronic ballast etc all kinds of power cicuit proterction of electronic equipments, filament proterction of CRT, bulb and other lighting lamps. Part Numbering System NTC Negative Temperature Cofficient Resistor 10 D-13 Resistance Value:10Ω Diameter of Chip: Φ13 Circuit Protection System Specifications are subject to change without notice. Page:1 NTC Thermistor Electriacl Characteristics Thermal Time Constant Operating Temperature Range Ω A mW/°C Sec °C 6.5max 5D-5 5 1 6 20 -55 ~ +200 10D-5 10 0.7 6 20 -55 ~ +200 60D-5 60 0.3 6 18 -55 ~ +200 200 0.1 5D-7 5 2 6 18 -55 ~ +200 10 28 -55 ~ +200 D-7 Series Sensing NTC Thermistor 5±1 8D-7 8 1 9 27 -55 ~ +200 10 1 9 27 -55 ~ +200 12D-7 12 1 9 27 -55 ~ +200 16D-7 16 0.7 9 27 -55 ~ +200 22D-7 22 0.6 9 27 -55 ~ +200 33D-7 33 0.5 10 28 -55 ~ +200 200D-7 200 0.2 11 28 -55 ~ +200 5±1 0.6/0.5 8.5max 10D-7 5±1 5max 6.5max 25 D-5 Series Sensing NTC Thermistor 200D-5 Package Dimensions (mm) 25 Thermal Dissipation Constant 0.6/0.5 5.5max 8.5max 25 Max.Steady State Current At 25°C 25 Type Number Zero Power Resistance At 25°C 5±1 0.6±0.1 0.6±0.1 D-9 Series Sensing NTC Thermistor 4 11 35 -55 ~ +200 3 11 35 -55 ~ +200 5D-9 5 3 11 34 -55 ~ +200 6D-9 6 2 11 34 -55 ~ +200 8D-9 8 2 11 32 -55 ~ +200 9D-9 9 2 11 32 -55 ~ +200 10D-9 10 1 11 32 -55 ~ +200 12D-9 12 1 11 32 -55 ~ +200 16D-9 16 1 11 31 -55 ~ +200 20D-9 20 1 11 30 -55 ~ +200 22D-9 22 1 11 30 -55 ~ +200 30D-9 30 1 11 30 -55 ~ +200 33D-9 33 1 11 30 -55 ~ +200 50D-9 50 1 11 30 -55 ~ +200 60D-9 60 0.8 11 30 -55 ~ +200 80D-9 80 0.8 11 30 -55 ~ +200 120D-9 120 0.8 11 30 -55 ~ +200 200D-9 200 0.5 11 32 -55 ~ +200 400D-9 400 0.2 11 32 -55 ~ +200 Circuit Protection System 10.5max 7.5/5 5.5max 10.5max 0.6±0.1 7.5/5 25 3 4 25 3D-9 4D-9 0.6±0.1 Specifications are subject to change without notice. Page:2 NTC Thermistor Electriacl Characteristics Type Number Zero Power Resistance At 25°C Max.Steady State Current At 25°C Thermal Dissipation Constant Thermal Time Constant Operating Temperature Range Ω A mW/°C Sec °C Package Dimensions (mm) D-11 Series Sensing NTC Thermistor 5 13 43 -55 ~ +200 3D-11 3 5 13 43 -55 ~ +200 4D-11 4 4 13 44 -55 ~ +200 5D-11 5 4 13 45 -55 ~ +200 6D-11 6 3 13 45 -55 ~ +200 8D-11 8 3 14 47 -55 ~ +200 10D-11 10 3 14 47 -55 ~ +200 12D-11 12 2 14 48 -55 ~ +200 16D-11 16 2 14 50 -55 ~ +200 20D-11 20 2 15 52 -55 ~ +200 22D-11 22 2 15 52 -55 ~ +200 30D-11 30 1.5 15 52 -55 ~ +200 33D-11 33 1.5 15 52 -55 ~ +200 50D-11 50 1.5 15 52 -55 ~ +200 60D-11 60 1.5 15 52 -55 ~ +200 80D-11 80 1.2 15 52 -55 ~ +200 120D-13 120 1.2 16 65 -55 ~ +200 12.5max 5.5max 12.5max 7.5/5 0.8±0.05 25 2.5 25 2.5D-11 7.5/5 0.8±0.05 D-13 Series Sensing NTC Thermistor 7 13 60 -55 ~ +200 1.5 7 13 60 -55 ~ +200 2.5D-13 2.5 6 13 60 -55 ~ +200 3D-13 3 6 14 60 -55 ~ +200 4D-13 4 5 15 67 -55 ~ +200 5D-13 5 5 15 68 -55 ~ +200 6D-13 6 4 15 65 -55 ~ +200 7D-13 7 4 15 65 -55 ~ +200 8D-13 8 4 15 60 -55 ~ +200 10D-13 10 4 15 65 -55 ~ +200 12D-13 12 3 16 65 -55 ~ +200 15D-13 15 3 16 60 -55 ~ +200 16D-13 16 3 16 60 -55 ~ +200 20D-13 20 3 16 65 -55 ~ +200 30D-13 30 2.5 16 65 -55 ~ +200 47D-13 47 2 17 65 -55 ~ +200 120D-13 120 1.2 16 65 -55 ~ +200 Circuit Protection System 14.5max 7.5/5 6max 14.5max 0.8±0.05 7.5/5 25 1.3 1.5D-13 25 1.3D-13 0.8±0.05 Specifications are subject to change without notice. Page:3 NTC Thermistor Electriacl Characteristics Type Number Zero Power Resistance At 25°C Max.Steady State Current At 25°C Thermal Dissipation Constant Thermal Time Constant Operating Temperature Range Ω A mW/°C Sec °C Package Dimensions (mm) D-15 Series Sensing NTC Thermistor 8 18 68 -55 ~ +200 1.5D-15 1.5 8 18 69 -55 ~ +200 3D-15 3 7 18 76 -55 ~ +200 5D-15 5 6 20 76 -55 ~ +200 6D-15 6 5 20 80 -55 ~ +200 7D-15 7 5 20 80 -55 ~ +200 8D-15 8 5 20 80 -55 ~ +200 10D-15 10 5 20 75 -55 ~ +200 12D-15 12 5 21 75 -55 ~ +200 15D-15 15 4 21 85 -55 ~ +200 16D-15 16 4 21 70 -55 ~ +200 20D-15 20 4 21 86 -55 ~ +200 30D-15 30 3 21 75 -55 ~ +200 47D-15 47 3 21 86 -55 ~ +200 120D-15 120 1.8 22 87 -55 ~ +200 0.7D-20 0.7 11 24 89 -55 ~ +200 1.3D-20 1.3 9 24 88 -55 ~ +200 3D-20 3 8 24 88 -55 ~ +200 5D-20 5 7 24 87 -55 ~ +200 6D-20 6 6 25 103 -55 ~ +200 16.5max 7max 16.5max 7.5±0.1 25 1.3 25 1.3D-15 7.5±0.1 0.8±0.05 0.8±0.05 D-20 Series Sensing NTC Thermistor 105 -55 ~ +200 102 -55 ~ +200 12D-20 12 5 25 100 -55 ~ +200 16D-20 16 5 25 100 -55 ~ +200 D-25 Series Sensing NTC Thermistor 1D-25 1 12 30 120 -55 ~ +200 1.5D-25 1.5 10 30 121 -55 ~ +200 3D-25 3 9 32 124 -55 ~ +200 5D-25 5 8 32 125 -55 ~ +200 8D-25 8 7 33 125 -55 ~ +200 10D-25 10 7 32 125 -55 ~ +200 12D-25 12 6 32 126 -55 ~ +200 16D-25 16 6 35 126 -55 ~ +200 Circuit Protection System 7.5/10 7.5/10 1.0±0.05 26.5max 10 25 25 25 1.0±0.05 8max 26.5max 0.8 10 25 6 6 25 8 10 7max 22max 25 8D-20 10D-20 22max 0.8 Specifications are subject to change without notice. Page:4
