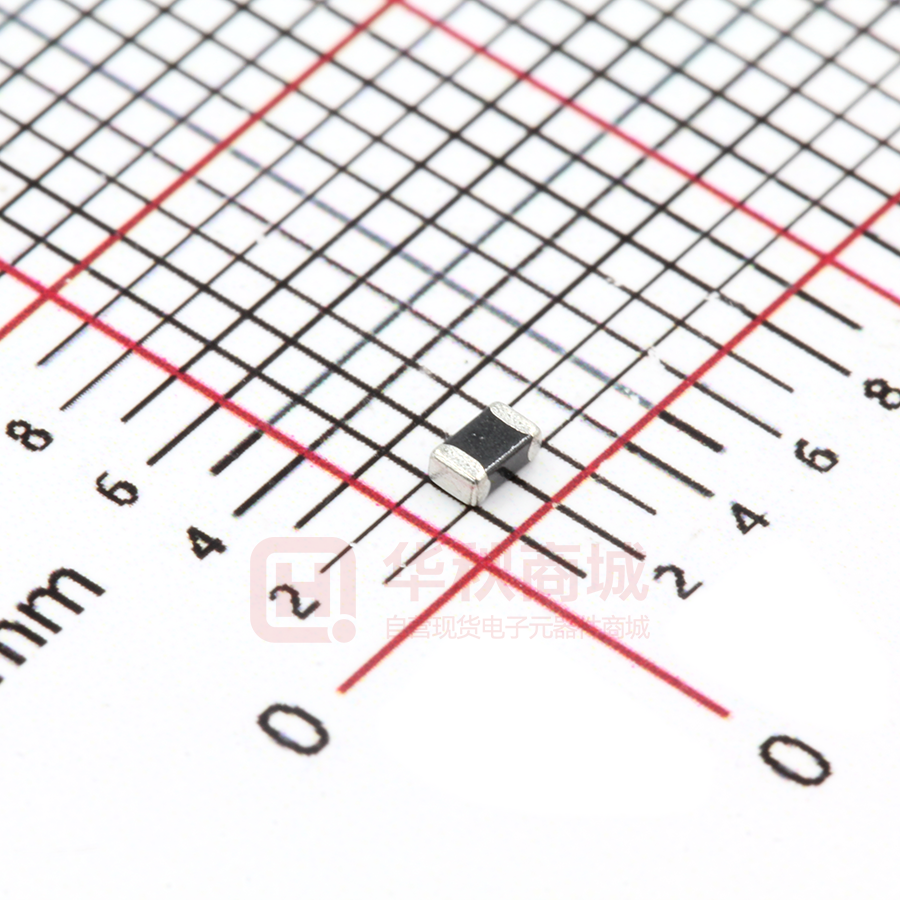

CMFB103F3970

NANJING SHIHENG ELECTRONICS CO., LTD. APPROVAL SHEET CUSTOMER PART NAME PART NUMBER DATE CMF Chip NTC Thermistor CMF B 103F3970 2016-05-03 CONFIRM CLIENT MANUFACTOR Quality Dep.： Produce Dep.： Engineering Dep.： Design： Check： JUXIAOLI ZUYU Approval： NANJING SHIHENG ELECTRONICS CO., LTD. Address：No.18 Jiangyang Road,Hushu Town,Jiangning District,, Nanjing, City. Postcode：211121 Http://www.shiheng.com.cn TEL：025-52121868 FAX：025-52122373 E-MAIL: sales@shiheng.com.cn Specification of SMD Chips Thermistor PART NO. : CMF B 103F3970 DIMENSION W T L1 L1 L 2012（0805） L(mm) W(mm) T(mm) L1(mm) 2.0±0.2 1.25±0.2 1.20max 0.20~0.60 Glass Sn Plating NI Plating Ag Electrode Thermistor ELECTRICAL CHARACTERISTICS Style Symbol Condition R25 T = 25 ± 0.1℃ 10KΩ ±1% B Constant B 25℃ to 85℃ 3970。K ±1% Thermal Time Constant T T = 25 ± 0.1℃ Approx. 7.5sec Thermal Dissipation Constant C T = 25 ± 0.1℃ Approx. 4mw/℃ Maximum Power Rating Pw T = 25 ± 0.1℃ 400 mW Operation Temp. Range -- -- Resistance at 25℃ Specification -40℃ ~ 125℃ ENVIRONMENTAL CHARACTERISTICS PERFORMANCE Life Humidity (Steady State) Thermal Shock Solderability Resistance to Soldering Heat Bending Strength Resistance to flexure of Substrate Insulation Resistance Dielectric Withstand Voltage TEST METHOD APPRAISE MIL – STD – 202F , Method 108A 1000 hours at 70℃ NTCWV intermittent MIL – STD – 202F . Method 103B 1000 hours at Temperature: 40℃ Humidity: 95% MIL – STD – 202F . Method 107 10 cycles, -40℃ to +125℃ MIL – STD – 202F . Method 208 235℃ for 2 seconds MIL – R – 55342D ,Para 4.7.7 Soldered to test board at 260℃ for 10 seconds JIS C 5202 5.7 Pressurizing rod at a rate at 1mm/sec for 1mm JIS C 5202 5.7 Pressurizing force shall be 3kg(min) MIL – STD – 202F . Method 302 DC250V For 10seconds MIL – STD – 202F . Method 301 DC250V For 10seconds Soldering Cooling (in air) Temperature(℃) 60 sec max 10 sec max ±3% Within ±3% 95% min . coverage Within ±3% Within ±3% Not Short 130~160℃ 1~3℃/sec Within Over 1000Mohm 230~240℃ 1~3℃/sec ±3% Over 3kg REFLOW SOLDERING PROFILE Preheat (in air) Within Time TAPING Taping Dimensions Dimension 0805 A 1.50 B 2.30 W 8.00 D 1.50 E 1.75 F 3.50 P 4.00 PO 2.00 4P 16.00 Unit : mm +0.05 1.08 -0.10 +0.05 1.85 -0.10 +0.05 8.00 -0.05 +0.10 1.50 -0.00 +0.05 1.75 -0.05 +0.05 3.50 -0.05 +0.05 4.00 -0.05 +0.05 2.00 -0.05 +0.05 16.00 -0.05 0603 +0.05 0.66 -0.10 +0.05 1.15 -0.10 +0.05 8.00 -0.05 +0.10 1.50 -0.00 +0.05 1.75 -0.05 +0.05 3.50 -0.05 +0.05 4.00 -0.05 +0.05 2.00 -0.05 +0.05 16.00 -0.05 0402 +0.03 -0.03 +0.03 -0.03 +0.05 -0.05 +0.10 -0.00 +0.05 -0.05 +0.05 -0.05 +0.05 -0.05 +0.05 -0.05 +0.05 -0.05 REEL DIMENSIONS B A B D C Unit: mm A B C D 178.0±1.0 60.0±1.0 9.0±0.1 13.0±0.1 ORDERING INFORMATION CMF B 103 F 3970 ① ② ③ ④ ⑤ 1. Series : CHIP NTC Thermistor. 2. Dimension : B ( 0805 ) , A ( 0603 ) , X ( 0402 ) 3. Resistance : 103 = 10,000 ohm 4. R Tolerance : F±1% ; H±3% ; J±5% 5. B value : 3970K Accessory : RESISTANCE-TEMPERATURE CHARACTERISTICS RESISTANCE-TEMPERATURE CHARACTERISTICS R-T Table Resistance@25℃ B Constant Temp ℃ -40 -39 -38 -37 -36 -35 -34 -33 -32 -31 -30 -29 -28 -27 -26 -25 -24 -23 -22 -21 -20 -19 -18 -17 -16 -15 -14 -13 -12 -11 -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 0 1 2 3 4 10.000 ㏀ 3970K Rmin ㏀ 320.911 300.530 281.572 263.929 247.502 232.201 217.941 204.646 192.244 180.671 169.867 159.775 150.344 141.529 133.284 125.570 118.350 111.589 105.255 99.319 93.754 88.535 83.637 79.040 74.723 70.668 66.857 63.275 59.905 56.736 53.752 50.944 48.298 45.806 43.457 41.242 39.154 37.183 35.323 33.567 31.908 30.341 28.860 27.460 26.136 Ravg ㏀ 335.745 314.213 294.198 275.584 258.265 242.142 227.126 213.135 200.093 187.929 176.580 165.987 156.094 146.852 138.213 130.136 122.579 115.508 108.887 102.687 96.876 91.430 86.323 81.531 77.035 72.813 68.848 65.123 61.621 58.328 55.231 52.317 49.574 46.990 44.557 42.264 40.102 38.064 36.141 34.326 32.613 30.996 29.468 28.024 26.660 ±1.0% (25℃/85℃) Rmax ㏀ 351.229 328.487 307.361 287.726 269.468 252.483 236.674 221.954 208.240 195.459 183.541 172.423 162.047 152.359 143.310 134.853 126.947 119.553 112.634 106.157 100.092 94.411 89.086 84.093 79.410 75.016 70.891 67.018 63.379 59.960 56.745 53.722 50.877 48.200 45.680 43.306 41.070 38.962 36.974 35.100 33.331 31.662 30.086 28.598 27.192 ±1.0% ΔR 4.611 4.542 4.473 4.405 4.337 4.270 4.203 4.137 4.071 4.006 3.941 3.877 3.813 3.750 3.687 3.625 3.563 3.501 3.440 3.380 3.319 3.260 3.200 3.141 3.083 3.025 2.967 2.910 2.853 2.796 2.740 2.685 2.629 2.574 2.520 2.466 2.412 2.359 2.306 2.253 2.201 2.149 2.097 2.046 1.995 -ΔR -4.418 -4.354 -4.291 -4.229 -4.167 -4.105 -4.043 -3.982 -3.922 -3.861 -3.802 -3.742 -3.683 -3.624 -3.566 -3.508 -3.450 -3.392 -3.335 -3.279 -3.222 -3.166 -3.111 -3.055 -3.000 -2.946 -2.891 -2.837 -2.783 -2.730 -2.677 -2.624 -2.572 -2.520 -2.468 -2.416 -2.365 -2.314 -2.263 -2.213 -2.163 -2.113 -2.064 -2.014 -1.966 ΔT(℃) 0.667 0.662 0.657 0.652 0.647 0.642 0.637 0.631 0.626 0.621 0.615 0.610 0.604 0.599 0.593 0.587 0.582 0.576 0.570 0.564 0.558 0.552 0.546 0.540 0.534 0.527 0.521 0.515 0.508 0.502 0.495 0.488 0.482 0.475 0.468 0.461 0.454 0.447 0.440 0.433 0.426 0.419 0.411 0.404 0.397 -0.639 -0.634 -0.630 -0.626 -0.621 -0.617 -0.612 -0.608 -0.603 -0.598 -0.593 -0.589 -0.584 -0.579 -0.574 -0.568 -0.563 -0.558 -0.553 -0.547 -0.542 -0.536 -0.531 -0.525 -0.519 -0.513 -0.508 -0.502 -0.496 -0.490 -0.483 -0.477 -0.471 -0.465 -0.458 -0.452 -0.445 -0.439 -0.432 -0.425 -0.419 -0.412 -0.405 -0.398 -0.391 R-T Table Resistance@25℃ B Constant Temp ℃ 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 10.000 ㏀ 3970K Rmin ㏀ 24.883 23.698 22.576 21.513 20.507 19.554 18.649 17.792 16.980 16.209 15.477 14.783 14.123 13.497 12.902 12.337 11.799 11.288 10.802 10.340 9.900 9.472 9.066 8.679 8.311 7.960 7.627 7.309 7.006 6.717 6.441 6.179 5.928 5.690 5.461 5.244 5.036 4.837 4.648 4.467 4.294 4.128 3.970 3.818 3.674 Ravg ㏀ 25.370 24.149 22.994 21.901 20.867 19.888 18.959 18.079 17.245 16.454 15.704 14.993 14.317 13.676 13.067 12.489 11.940 11.417 10.921 10.449 10.000 9.572 9.165 8.778 8.409 8.058 7.724 7.405 7.101 6.811 6.534 6.271 6.019 5.779 5.549 5.330 5.121 4.921 4.730 4.547 4.373 4.206 4.046 3.893 3.747 ±1.0% (25℃/85℃) Rmax ㏀ 25.863 24.607 23.419 22.295 21.231 20.225 19.271 18.368 17.513 16.702 15.933 15.204 14.512 13.856 13.233 12.642 12.080 11.547 11.040 10.558 10.100 9.672 9.265 8.878 8.508 8.156 7.821 7.501 7.196 6.905 6.628 6.363 6.110 5.868 5.638 5.417 5.207 5.006 4.813 4.629 4.453 4.285 4.124 3.970 3.822 ±1.0% ΔR 1.944 1.894 1.844 1.794 1.745 1.696 1.648 1.599 1.551 1.504 1.456 1.409 1.363 1.316 1.270 1.224 1.179 1.134 1.089 1.044 1.000 1.044 1.088 1.131 1.175 1.218 1.261 1.303 1.346 1.388 1.430 1.472 1.513 1.555 1.596 1.637 1.678 1.718 1.758 1.798 1.838 1.878 1.917 1.957 1.996 -ΔR -1.917 -1.869 -1.820 -1.773 -1.725 -1.678 -1.631 -1.584 -1.538 -1.491 -1.445 -1.400 -1.354 -1.309 -1.264 -1.219 -1.175 -1.131 -1.087 -1.043 -1.000 -1.043 -1.086 -1.128 -1.171 -1.213 -1.255 -1.296 -1.338 -1.379 -1.420 -1.460 -1.501 -1.541 -1.581 -1.620 -1.660 -1.699 -1.738 -1.776 -1.815 -1.853 -1.891 -1.929 -1.966 ΔT(℃) 0.389 0.382 0.374 0.367 0.359 0.351 0.343 0.335 0.327 0.319 0.311 0.303 0.295 0.287 0.279 0.270 0.262 0.253 0.245 0.236 0.228 0.239 0.251 0.263 0.275 0.286 0.298 0.310 0.323 0.335 0.347 0.359 0.372 0.384 0.397 0.410 0.422 0.435 0.448 0.461 0.474 0.487 0.500 0.514 0.527 -0.384 -0.377 -0.369 -0.362 -0.355 -0.347 -0.340 -0.332 -0.325 -0.317 -0.309 -0.301 -0.293 -0.285 -0.277 -0.269 -0.261 -0.253 -0.245 -0.236 -0.228 -0.239 -0.251 -0.262 -0.274 -0.285 -0.297 -0.309 -0.321 -0.333 -0.345 -0.357 -0.369 -0.381 -0.393 -0.405 -0.418 -0.430 -0.443 -0.455 -0.468 -0.481 -0.493 -0.506 -0.519 R-T Table Resistance@25℃ B Constant Temp ℃ 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 10.000 ㏀ 3970K Rmin ㏀ 3.534 3.402 3.275 3.154 3.037 2.926 2.819 2.717 2.619 2.524 2.434 2.348 2.265 2.185 2.109 2.035 1.965 1.897 1.832 1.769 1.709 1.652 1.596 1.543 1.492 1.442 1.395 1.349 1.305 1.263 1.222 1.183 1.145 1.109 1.074 1.040 1.008 0.976 0.946 0.917 0.889 0.862 0.836 0.810 0.786 ±1.0% (25℃/85℃) Ravg ㏀ 3.607 3.473 3.345 3.222 3.104 2.991 2.883 2.780 2.680 2.585 2.493 2.405 2.321 2.240 2.163 2.088 2.017 1.948 1.882 1.818 1.757 1.698 1.642 1.588 1.535 1.485 1.437 1.390 1.345 1.302 1.261 1.221 1.182 1.145 1.109 1.075 1.041 1.009 0.978 0.948 0.920 0.892 0.865 0.839 0.814 Rmax ㏀ 3.680 3.545 3.416 3.291 3.172 3.058 2.948 2.843 2.743 2.646 2.553 2.464 2.379 2.297 2.218 2.142 2.070 2.000 1.932 1.868 1.806 1.746 1.688 1.633 1.580 1.529 1.479 1.432 1.386 1.342 1.300 1.259 1.220 1.182 1.145 1.110 1.076 1.043 1.011 0.981 0.951 0.923 0.895 0.869 0.843 ±1.0% ΔR 2.035 2.073 2.112 2.150 2.188 2.226 2.263 2.301 2.338 2.375 2.412 2.449 2.485 2.522 2.558 2.594 2.629 2.665 2.701 2.736 2.771 2.806 2.841 2.875 2.910 2.944 2.978 3.012 3.046 3.079 3.113 3.146 3.179 3.212 3.245 3.277 3.310 3.342 3.374 3.406 3.438 3.470 3.502 3.533 3.564 -ΔR -2.004 -2.041 -2.078 -2.114 -2.151 -2.187 -2.223 -2.259 -2.294 -2.330 -2.365 -2.400 -2.435 -2.469 -2.504 -2.538 -2.572 -2.606 -2.639 -2.673 -2.706 -2.739 -2.772 -2.805 -2.837 -2.869 -2.901 -2.933 -2.965 -2.997 -3.028 -3.060 -3.091 -3.122 -3.152 -3.183 -3.213 -3.244 -3.274 -3.304 -3.334 -3.363 -3.393 -3.422 -3.451 ΔT(℃) 0.540 0.554 0.567 0.581 0.595 0.609 0.623 0.636 0.651 0.665 0.679 0.693 0.707 0.722 0.736 0.751 0.766 0.780 0.795 0.810 0.825 0.840 0.855 0.870 0.886 0.901 0.916 0.932 0.948 0.963 0.979 0.995 1.011 1.027 1.043 1.059 1.075 1.091 1.108 1.124 1.141 1.157 1.174 1.191 1.207 -0.532 -0.545 -0.558 -0.571 -0.585 -0.598 -0.611 -0.625 -0.638 -0.652 -0.666 -0.679 -0.693 -0.707 -0.721 -0.735 -0.749 -0.763 -0.777 -0.791 -0.806 -0.820 -0.835 -0.849 -0.864 -0.878 -0.893 -0.908 -0.923 -0.937 -0.952 -0.967 -0.983 -0.998 -1.013 -1.028 -1.044 -1.059 -1.075 -1.090 -1.106 -1.122 -1.137 -1.153 -1.169 R-T Table Resistance@25℃ B Constant Temp ℃ 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 10.000 ㏀ 3970K Rmin ㏀ 0.762 0.740 0.718 0.697 0.676 0.656 0.637 0.619 0.601 0.584 0.567 0.551 0.536 0.520 0.506 0.492 0.478 0.465 0.452 0.440 0.428 0.416 0.405 0.394 0.384 0.373 0.363 0.354 0.345 0.336 0.327 ±1.0% (25℃/85℃) Ravg ㏀ 0.790 0.767 0.744 0.722 0.701 0.681 0.662 0.643 0.624 0.607 0.589 0.573 0.557 0.541 0.526 0.512 0.498 0.484 0.471 0.458 0.446 0.434 0.422 0.411 0.400 0.390 0.379 0.369 0.360 0.351 0.342 Rmax ㏀ 0.818 0.794 0.771 0.749 0.728 0.706 0.687 0.667 0.648 0.630 0.612 0.595 0.579 0.563 0.547 0.532 0.518 0.504 0.490 0.477 0.464 0.452 0.440 0.429 0.417 0.406 0.396 0.386 0.376 0.366 0.357 ±1.0% ΔR 3.595 3.626 3.657 3.688 3.719 3.750 3.779 3.809 3.839 3.869 3.899 3.929 3.958 3.988 4.017 4.046 4.075 4.104 4.132 4.161 4.189 4.218 4.246 4.274 4.302 4.330 4.357 4.385 4.412 4.440 4.467 -ΔR -3.480 -3.509 -3.538 -3.566 -3.595 -3.624 -3.651 -3.679 -3.707 -3.735 -3.762 -3.790 -3.817 -3.844 -3.871 -3.898 -3.925 -3.951 -3.978 -4.004 -4.030 -4.056 -4.082 -4.108 -4.134 -4.160 -4.185 -4.210 -4.235 -4.261 -4.286 ΔT(℃) 1.224 1.241 1.258 1.275 1.293 1.310 1.327 1.345 1.362 1.380 1.397 1.415 1.433 1.451 1.469 1.487 1.505 1.523 1.542 1.560 1.578 1.597 1.615 1.634 1.653 1.672 1.691 1.710 1.729 1.748 1.767 -1.185 -1.201 -1.217 -1.233 -1.250 -1.266 -1.282 -1.299 -1.315 -1.332 -1.348 -1.365 -1.382 -1.399 -1.416 -1.433 -1.450 -1.467 -1.484 -1.501 -1.518 -1.536 -1.553 -1.571 -1.588 -1.606 -1.624 -1.641 -1.659 -1.677 -1.695
