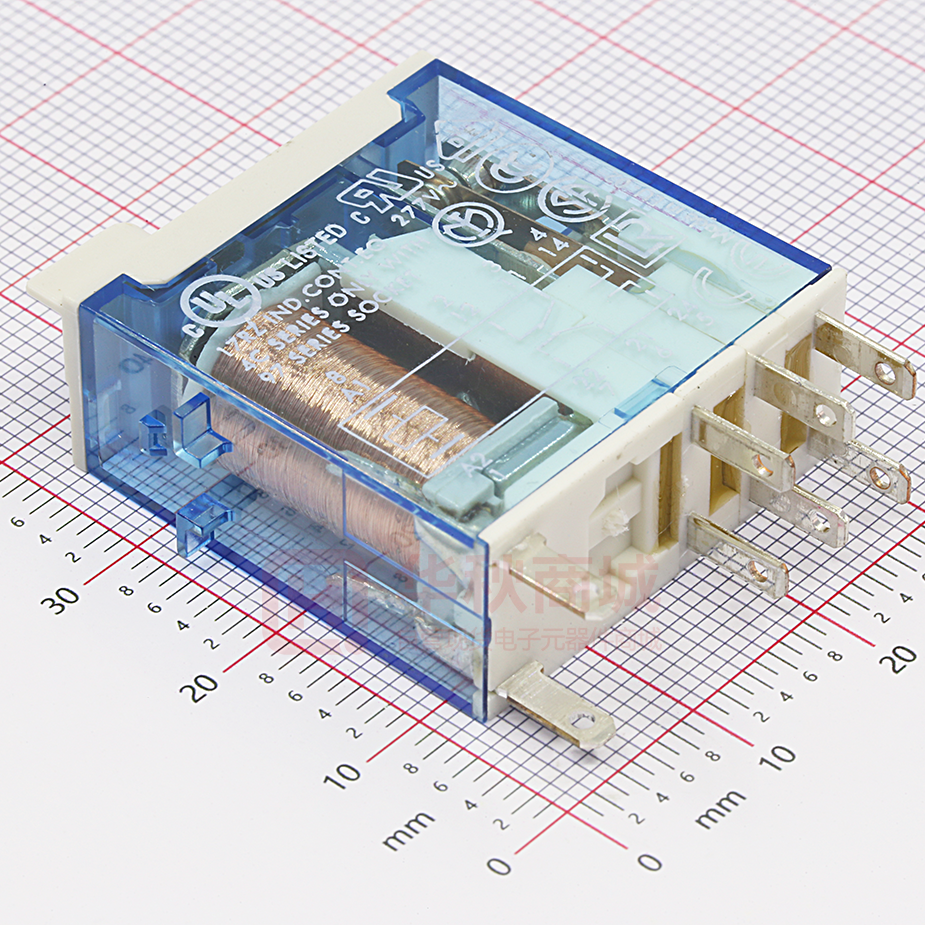

46 Series - Miniature industrial relays 8 - 16 A Features 46.61 46.52 1 & 2 Pole relay range 46.52 - 2 Pole 8 A 46.61 - 1 Pole 16 A Socket mount or direct connection via Faston connectors • AC coils & DC coils • Available with: lockable test button, mechanical indicator & LED indicator • 8 mm, 6 kV (1.2/50 µs) isolation, coil-contacts • Cadmium Free contacts • • • 2 Pole CO, 8 A Plug-in/Solder terminals • • 1 Pole CO, 16 A Plug-in/Faston 187 46.52 12.4 20 32.8 29 4.75 0.5 6.5 46.61 4.75 FOR UL HORSEPOWER AND PILOT DUTY RATINGS SEE “General technical information” page V Contact specification Contact configuration Rated current/Maximum peak current A Rated voltage/Maximum switching voltage V AC 2 CO (DPDT) 1 CO (SPDT) 8/15 16/25 250/440 250/440 Rated load AC1 VA 2,000 4,000 Rated load AC15 (230 V AC) VA 350 750 Single phase motor rating (230 V AC) kW Breaking capacity DC1: 30/110/220 V Minimum switching load A mW (V/mA) Standard contact material 0.37 0.55 6/0.5/0.15 12/0.5/0.15 300 (5/5) 300 (5/5) AgNi AgNi Coil specification Nominal voltage (UN) V AC (50/60 Hz) 12 - 24 - 48 - 110 - 120 - 230 - 240 V DC Rated power VA/W 12 - 24 - 48 - 110 - 125 1.2/0.5 1.2/0.5 AC (0.8...1.1)UN (0.8...1.1)UN DC (0.73...1.1)UN (0.73...1.1)UN Holding voltage AC/DC 0.8UN /0.4UN 0.8UN /0.4UN Must drop-out voltage AC/DC 0.2UN /0.1UN 0.2UN /0.1UN 10 · 106 10 · 106 Operating range Technical data Mechanical life AC/DC Electrical life at rated load AC1 Operate/release time cycles cycles ms Insulation between coil and contacts (1.2/50 µs)kV Dielectric strength between open contacts V AC Ambient temperature range Environmental protection °C 3 100 · 10 100 · 103 10/3 15/5 6 (8 mm) 6 (8 mm) 1,000 1,000 –40 ... +70 –40 ... +70 RT II RT II Approvals (according to type) 1 46 Series - Miniature industrial relays 8 - 16 A Ordering information Example: 46 series Miniature industrial relay, 1 CO (SPDT), 24 V DC coil, lockable test button and mechanical indicator. 4 6. 6 A B C D 1 . 9 . 0 2 4 . 0 0 4 0 A: Contact material 0 = AgNi 4 = AgSnO2 (46.61 only) 5 = AgNi + Au (5 µm) Series Type 5 = Spade/blade solder terminal (2.5x0.5)mm 6 = Spade/blade terminal Faston 187 (4.8x0.5)mm D: Special versions 0 = Standard C: Options 2 =Mechanical indicator 4 =Lockable test button + mechanical indicator 54 =Lockable test button + LED (AC) + mechanical indicator 74 =Lockable test button + double LED (DC non-polarized) + mechanical indicator B: Contact circuit 0 = CO (nPDT) No. of poles 1 = 1 pole, 16 A 2 = 2 poles, 8 A Coil version 9 = DC 8 = AC (50/60 Hz) Coil voltage See coil specifications Selecting features and options: only combinations in the same row are possible. Preferred selections for best availability are shown in bold. Type 46.52 46.61 Coil version AC - DC AC DC AC - DC AC DC A 0-5 0-5 0-5 0-4-5 0-4-5 0-4-5 B 0 0 0 0 0 0 C 2-4 54 74 2-4 54 74 D 0 / / 0 / / Special versions for Rail Applications on request Descriptions: Options C: Option 54 LED (AC) C: Option 74 LED (DC, non-polarized) 2 Lockable test button and mechanical flag indicator (0040, 0054, 0074) 1 2 3 The dual-purpose Finder test button can be used in two ways: Case 1) The plastic pip (located directly below the test button) remains intact. In this case, when the test button is pushed, the contacts operate. When the test button is released the contacts return to their former state. Case 2) The plastic pip is broken-off (using an appropriate cutting tool). In this case, (in addition to the above function), when the test button is pushed and rotated, the contacts are latched in the operating state, and remain so until the test button is rotated back to its former position. In both cases ensure that the test button actuation is swift and decisive. 46 Series - Miniature industrial relays 8 - 16 A Technical data Insulation according to EN 61810-1 1 pole 2 pole Nominal voltage of supply system V AC 230/400 Rated insulation voltage V AC 250 400 250 400 3 2 3 2 Pollution degree 230/400 Insulation between coil and contact set Type of insulation Reinforced (8 mm) Overvoltage category Rated impulse voltage kV (1.2/50 µs) Dielectric strength V AC Reinforced (8 mm) III III 6 6 4,000 4,000 Insulation between adjacent contacts Type of insulation — Basic Overvoltage category — III kV (1.2/50 µs) — 4 V AC — 2,000 Micro-disconnection Micro-disconnection 1,000/1.5 1,000/1.5 Burst (5...50)ns, 5 kHz, on A1 - A2 EN 61000-4-4 level 4 (4 kV) Surge (1.2/50 µs) on A1 - A2 (differential mode) EN 61000-4-5 level 3 (2 kV) Rated impulse voltage Dielectric strength Insulation between open contacts Type of disconnection Dielectric strength V AC/kV (1.2/50 µs) Conducted disturbance immunity Other data 46.61 Bounce time: NO/NC ms 46.52 2/6 1/4 Vibration resistance (10…150)Hz: NO/NC g 20/12 20/15 Shock resistance g 20 20 Power lost to the environment without contact current W 0.6 0.6 with rated current W 1.6 2 mm ≥ 5 Recommended distance between relays mounted on PCB Contact specification Resistive load - cosϕ = 1 Inductive load - cosϕ = 0.4 F 46 - Electrical life (AC) v contact current Type 46.61 Cycles Cycles F 46 - Electrical life (AC) v contact current Type 46.52 Resistive load - cosϕ = 1 Inductive load - cosϕ = 0.4 H 46 - Maximum DC1 breaking capacity • When switching a resistive load (DC1) having voltage and current values under the curve, an electrical life of ≥ 100·103 can be expected. • In the case of DC13 loads, the connection of a diode in parallel with the load will permit a similar electrical life as for a DC1 load. Note: the release time for the load will be increased. DC breaking current (A) 46.61 current limit 46.52 current limit DC voltage (V) 3 46 Series - Miniature industrial relays 8 - 16 A Coil specifications AC coil data DC coil data Nominal voltage UN V 12 24 48 110 125 Coil code 9.012 9.024 9.048 9.110 9.125 Operating range Umin V 8.8 17.5 35 80 91.2 Umax V 13.2 26.4 52.8 121 138 Resistance Rated coil consumption R I at UN Ω mA 300 40 1,200 20 4,800 10 23,500 4.7 32,000 3.9 Nominal voltage UN V 12 24 48 110 120 230 240 Coil code 8.012 8.024 8.048 8.110 8.120 8.230 8.240 Operating range Umin V 9.6 19.2 38.4 88 96 184 192 Umax V 13.2 26.4 52.8 121 132 253 264 Resistance Rated coil consumption R I at UN Ω mA 80 90 320 45 1,350 21 6,900 9.4 9,000 8.4 28,000 5 31,500 4.1 R 46 - DC coil operating range v ambient temperature R 46 - AC coil operating range v ambient temperature 1 - Max. permitted coil voltage. 2 - Min. pick-up voltage with coil at ambient temperature. 1 - Max. permitted coil voltage. 2 - Min. pick-up voltage with coil at ambient temperature. Accessories Flange mount adaptor for relays types 46.52 and 46.61 046.05 046.05 046.05 with relay 046.05 046.05 with relay 35 mm rail adaptor for relays types 46.52 and 46.61 046.07 046.07 046.07 with relay 046.07 046.07 with relay Sheet of marker tags for relays types 46.52 and 46.61 (72 tags), 6x12mm 060.72 4 060.72 97 Series - Sockets and accessories for 46 series relays 97.01 Approvals (according to type): 097.01 Screw terminal socket panel or 35 mm rail (EN 60715) mount For relay type Accessories Plastic retain and release clip (supplied with socket - packaging code SPA) Identification tag 8-way jumper link Modules (see table below) Timer modules (see table below) Technical data Rated current Dielectric strength Protection category Ambient temperature °C Screw torque Nm Wire strip length mm Max. wire size for 97.01 and 97.02 sockets mm2 AWG 97.01 (blue) 46.61 97.01.0 (black) 97.02 (blue) 46.52 97.02.0 (black) 097.01 095.18 (blue) 095.00.4 095.18.0 (black) 99.02 86.30 16 A - 250 V AC 8 A - 250 V AC 6 kV (1.2/50 µs) between coil and contacts IP 20 –40…+70 (see diagram L97) 0.8 8 solid wire stranded wire 1x6 / 2x2.5 1x4 / 2x2.5 1x10 / 2x14 1x12 / 2x14 Rated current (A) L 97 - Rated current vs ambient temperature (for 46.61 relay / 97.01 socket combination) 97.01 97.01 97.02 97.02 8-way jumper link for 97.01 and 97.02 sockets 095.18 (blue) Rated values 10 A - 250 V 095.18.0 (black) 095.18 86 series timer module 86.30 99.02 Approvals (according to type): DC Modules with non-standard polarity (+A2) on request. (12…24)V AC/DC; Bi-function: AI, DI; (0.05s…100h) 86.30.0.024.0000 (110...125)V AC; Bi-function: AI, DI; (0.05s…100h) 86.30.8.120.0000 (230...240)V AC; Bi-function: AI, DI; (0.05s…100h) 86.30.8.240.0000 Approvals (according to type): 99.02 coil indication and EMC suppression modules for 97.01 and 97.02 Diode (+A1, standard polarity) (6...220)V DC LED (6...24)V DC/AC LED (28...60)V DC/AC LED (110...240)V DC/AC LED + Diode (+A1, standard polarity) (6...24)V DC LED + Diode (+A1, standard polarity) (28...60)V DC LED + Diode (+A1, standard polarity) (110...220)V DC LED + Varistor (6...24)V DC/AC LED + Varistor (28...60)V DC/AC LED + Varistor (110...240)V DC/AC RC circuit (6...24)V DC/AC RC circuit (28...60)V DC/AC RC circuit (110...240)V DC/AC Residual current by-pass (110...240)V AC sockets 99.02.3.000.00 99.02.0.024.59 99.02.0.060.59 99.02.0.230.59 99.02.9.024.99 99.02.9.060.99 99.02.9.220.99 99.02.0.024.98 99.02.0.060.98 99.02.0.230.98 99.02.0.024.09 99.02.0.060.09 99.02.0.230.09 99.02.8.230.07 5 97 Series - Sockets and accessories for 46 series relays 97.51 Approvals (according to type): 097.01 Screwless terminal socket panel or 35 mm rail (EN 60715) mount For relay type Accessories Plastic retain and release clip (supplied with socket - packaging code SPA) Modules (see table below) Timer modules (see table below) Technical data Rated current Dielectric strength Protection category Ambient temperature °C Wire strip length mm Max. wire size for 97.51 and 97.52 sockets mm2 AWG 97.51 97.51 97.51 (blue) 46.61 97.51.0 (black) 97.52 (blue) 46.52 097.01 99.02 86.30 10 A - 250 V AC 8 A - 250 V AC 6 kV (1.2/50 µs) between coil and contacts IP 20 –25…+70 8 solid wire stranded wire 2x(0.2...1.5) 2x(0.2...1.5) 2x(24...18) 2x(24...18) 97.52 97.52 86 series timer module 86.30 99.02 Approvals (according to type): DC Modules with non-standard polarity (+A2) on request. 6 97.52.0 (black) (12…24)V AC/DC; Bi-function: AI, DI; (0.05s…100h) 86.30.0.024.0000 (110...125)V AC; Bi-function: AI, DI; (0.05s…100h) 86.30.8.120.0000 (230...240)V AC; Bi-function: AI, DI; (0.05s…100h) 86.30.8.240.0000 Approvals (according to type): 99.02 coil indication and EMC suppression modules for 97.51 and 97.52 Diode (+A1, standard polarity) (6...220)V DC LED (6...24)V DC/AC LED (28...60)V DC/AC LED (110...240)V DC/AC LED + Diode (+A1, standard polarity) (6...24)V DC LED + Diode (+A1, standard polarity) (28...60)V DC LED + Diode (+A1, standard polarity) (110...220)V DC LED + Varistor (6...24)V DC/AC LED + Varistor (28...60)V DC/AC LED + Varistor (110...240)V DC/AC RC circuit (6...24)V DC/AC RC circuit (28...60)V DC/AC RC circuit (110...240)V DC/AC Residual current by-pass (110...240)V AC sockets 99.02.3.000.00 99.02.0.024.59 99.02.0.060.59 99.02.0.230.59 99.02.9.024.99 99.02.9.060.99 99.02.9.220.99 99.02.0.024.98 99.02.0.060.98 99.02.0.230.98 99.02.0.024.09 99.02.0.060.09 99.02.0.230.09 99.02.8.230.07 97 Series - Sockets and accessories for 46 series relays PCB socket For relay type Technical data Rated values Dielectric strength Protection category Ambient temperature 97.11 Approvals (according to type): 97.11 (blue) 46.61 97.12 (blue) 46.52 12 A - 250 V (see diagram L97) 8 A - 250 V 6 kV (1.2/50 µs) between coil and contacts IP 20 °C –40…+70 Rated current (A) L 97 - Rated current vs ambient temperature (for 46.61 relay / 97.11 socket combination) 97.12 Approvals (according to type): 97.11 97.12 Copper side view Copper side view Packaging codes How to code and identify retaining clip and packaging options for sockets. Example: 9 7 . 0 1 S P A A Standard packaging SP Plastic retaining clip 9 7 . 0 1 Without retaining clip 7
