XL7036

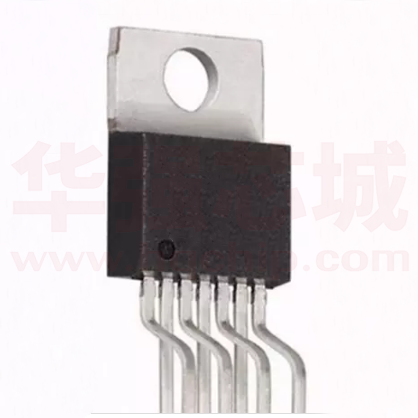

Datasheet 2.1A 150KHz 100V Buck DC to DC Converter XL7036 Features General Description „ „ „ „ „ „ „ „ „ „ „ „ „ „ The XL7036 is a 150KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 2.1A load with high efficiency, low ripple and excellent line and load regulation. Requiring a minimum number of external components, the regulator is simple to use and include internal frequency compensation and a fixed-frequency oscillator. Operation Voltage from 12V to 90V Maximum Duty Cycle up to 100% Minimum Drop Out 0.5V Adjust VOUT from 1.25V to 20V Max. IOUT=2.1A at VOUT=5V Max. IOUT=1A at VOUT=12V or 15V Max. output power less than 15W Fixed 150KHz Switching Frequency Internal Optimize HV Power MOSFET High efficiency up to 90% Excellent line and load regulation Built in output short Protection Function Built in current limit function TO220-7L package The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%. Applications „ „ Ebike Controller Power Supply Telecom / Networking Equipment Figure1. Package Type of XL7036 Rev 1.0 www.xlsemi.com 1 Datasheet 2.1A 150KHz 100V Buck DC to DC Converter XL7036 Pin Configurations Figure2. Pin Configuration of XL7036 (Top View) Table 1 Pin Description Pin Number Pin Name 1 FB 2 VREG 3 SW 4 VC 5 VIN 6 OGND 7 GND Description Feedback Pin (FB). Through an external resistor divider network, Feedback senses the output voltage and regulates it. The feedback threshold voltage is 1.25V. Supply Voltage Input Pin. A 10 µF ceramic decoupling capacitor is required. An external voltage between 7V and 9V can be applied to this pin to reduce internal power dissipation. Power Switch Output Pin (SW). Output is the switch node that supplies power to the output. Internal Voltage Regulator Bypass Capacity. In typical system application, The VC pin connect a 1uF capacitor to VIN. Supply Voltage Input Pin. XL7036 operates from 12V to 90V DC voltage. Bypass Vin to GND with a suitably large capacitor to eliminate noise on the input. Output Ground Pin. Ground Pin. Care must be taken in layout. This pin should be placed outside of the Schottky Diode to output capacitor ground path to prevent switching current spikes from inducing voltage noise into XL7036. The exposed PAD is GND. Rev 1.0 www.xlsemi.com 2 Datasheet 2.1A 150KHz 100V Buck DC to DC Converter XL7036 Function Block Figure3. Function Block Diagram of XL7036 Typical Application Circuit R3 for limit maximum output current, R3 choose 45.5 mohm in VOUT≤5V application; R3 choose 91 mohm in VOUT>5V application. Figure4. XL7036 Typical Application Circuit Rev 1.0 www.xlsemi.com 3 Datasheet 2.1A 150KHz 100V Buck DC to DC Converter XL7036 Ordering Information Order Information XL7036E1 Marking ID XL7036E1 Package Type TO220-7L Packing Type Supplied As 50 Units Per Tube XLSEMI Pb-free products, as designated with “E1” suffix in the par number, are RoHS compliant. Absolute Maximum Ratings（Note1） Parameter Symbol Vin VFB VSW PD Value -0.3 to 100 -0.3 to Vin -0.3 to Vin Internally limited Unit V V V mW VIN Pin Voltage FB Pin Voltage SW Pin Voltage Power Dissipation Thermal Resistance (TO220-7L) (Junction to Ambient, No Heatsink, Free Air) Maximum Junction Temperature Operating Junction Temperature Storage Temperature Lead Temperature (Soldering, 10 sec) ESD (HBM) RJA 30 ºC/W TJ TJ TSTG TLEAD -40 to 150 -40 to 125 -65 to 150 260 >3000 ºC ºC ºC ºC V Note1: Stresses greater than those listed under Maximum Ratings may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operation is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability. Rev 1.0 www.xlsemi.com 4 Datasheet 2.1A 150KHz 100V Buck DC to DC Converter XL7036 XL7036 Electrical Characteristics Ta = 25℃;unless otherwise specified. Symbol Parameter Test Condition Min. Typ. Max. Unit 1.225 1.25 1.275 V - 94 - % - 93 - % - 91 - % - 89 - % - 87 - % System parameters test circuit figure4 VFB FB Voltage ŋ Efficiency ŋ Efficiency ŋ Efficiency ŋ Efficiency ŋ Efficiency Vin =20V to 90V，Vout=15V Iload=0.1A to 1A Vin=24V ,Vout=15V Iout=1A Vin=36V ,Vout=15V Iout=1A Vin=48V ,Vout=15V Iout=1A Vin=60V ,Vout=15V Iout=1A Vin=72V ,Vout=15V Iout=1A Electrical Characteristics (DC Parameters) Vin = 48V, GND=0V, Vin & GND parallel connect a 33uf/100V capacitor; Iout=0.2A, Ta = 25℃; the others floating unless otherwise specified. Parameters Input operation voltage VIN UVLO VREG voltage Quiescent Supply Current Symbol Test Condition Vin Min. Typ. 12 Vin_uvlo 10 Vreg 8 Iq VFB =2V 120 Unit 90 V 11 V V 2.5 5 mA 150 180 KHz Oscillator Frequency Fosc Switch Current Limit IL VFB=0, R3=0.045Ω 2.22 Output Power PMOS Rdson Vin=48V, ISW=0.3A 160 Max. Duty Cycle DMAX VFB=0V 100 Rev 1.0 Max. A 200 mohm % www.xlsemi.com 5 Datasheet 2.1A 150KHz 100V Buck DC to DC Converter XL7036 Typical Performance Characteristics Quiescent Supply Current VS Temperature Quiescent Supply Current(mA) 5 VIN=48V 4 3 2 1 0 -50 -25 0 25 50 75 100 125 Temperature(℃) Figure5. Quiescent Current Curve Feedback Voltage Change VS Temperature 3.0 Feedback Voltage Change(%) 2.5 2.0 VIN=48V,VOUT=5V,IOUT=0.1A Normalized at TA=25℃ 1.5 1.0 0.5 0.0 -0.5 -1.0 -1.5 -2.0 -2.5 -3.0 -50 -25 0 25 50 75 100 125 Temperature(℃) Figure6. Feedback Voltage Curve Rev 1.0 www.xlsemi.com 6 Datasheet 2.1A 150KHz 100V Buck DC to DC Converter XL7036 Typical System Application (VOUT=15V, IOUT=0~1A) Figure7. XL7036 System Application (VIN=16V~90V, VOUT=15V, IOUT=0~1A) Efficiency VS Output current 100 95 90 85 80 75 Efficiency(%) 70 65 60 VIN=24V,VOUT=15V,IOUT=0.1A~1A VIN=36V,VOUT=15V,IOUT=0.1A~1A VIN=48V,VOUT=15V,IOUT=0.1A~1A VIN=60V,VOUT=15V,IOUT=0.1A~1A VIN=72V,VOUT=15V,IOUT=0.1A~1A VIN=84V,VOUT=15V,IOUT=0.1A~1A 55 50 45 40 35 30 25 20 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 Output current(A) Figure8. XL7036 System Application (Efficiency VS Output Current) Rev 1.0 www.xlsemi.com 7 Datasheet 2.1A 150KHz 100V Buck DC to DC Converter XL7036 Typical System Application (VOUT=5V, IOUT=0~2.1A) Figure9. XL7036 System Application (VIN=12V~90V, VOUT=5V, IOUT=0~2.1A) Efficiency VS Output current 95 90 85 80 75 Efficiency(%) 70 65 60 55 50 45 40 35 30 25 VIN=12V,VOUT=5V,IOUT=0.1A~2.1A VIN=24V,VOUT=5V,IOUT=0.1A~2.1A VIN=36V,VOUT=5V,IOUT=0.1A~2.1A VIN=48V,VOUT=5V,IOUT=0.1A~2.1A VIN=60V,VOUT=5V,IOUT=0.1A~2.1A VIN=72V,VOUT=5V,IOUT=0.1A~2.1A VIN=84V,VOUT=5V,IOUT=0.1A~2.1A 20 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.8 1.9 2.0 2.1 Output current(A) Figure10. XL7036 System Application (Efficiency VS Output Current) Rev 1.0 www.xlsemi.com 8 Datasheet 2.1A 150KHz 100V Buck DC to DC Converter XL7036 Package Information Package Information (TO220-7L) Rev 1.0 www.xlsemi.com 9 Datasheet 2.1A 150KHz 100V Buck DC to DC Converter XL7036 Important Notice XLSEMI reserve the right to make modifications, enhancements, improvements, corrections or other changes without notice at any time. XLSEMI does not assume any liability arising out of the application or use of any product described herein; neither does it convey any license under its patent rights, nor the rights of others. XLSEMI assumes no liability for applications assistance or the design of Buyers’ products. Buyers are responsible for their products and applications using XLSEMI components. To minimize the risks associated with Buyers’ products and applications, Buyers should provide adequate design and operating safeguards. XLSEMI warrants performance of its products to the specifications applicable at the time of sale, in accordance with the warranty in XLSEMI’s terms and conditions of sale of semiconductor products. Testing and other quality control techniques are used to the extent XLSEMI deems necessary to support this warranty. Except where mandated by applicable law, testing of all parameters of each component is not necessarily performed. For the latest product information, go to www.xlsemi.com. Rev 1.0 www.xlsemi.com 10
