1SS355

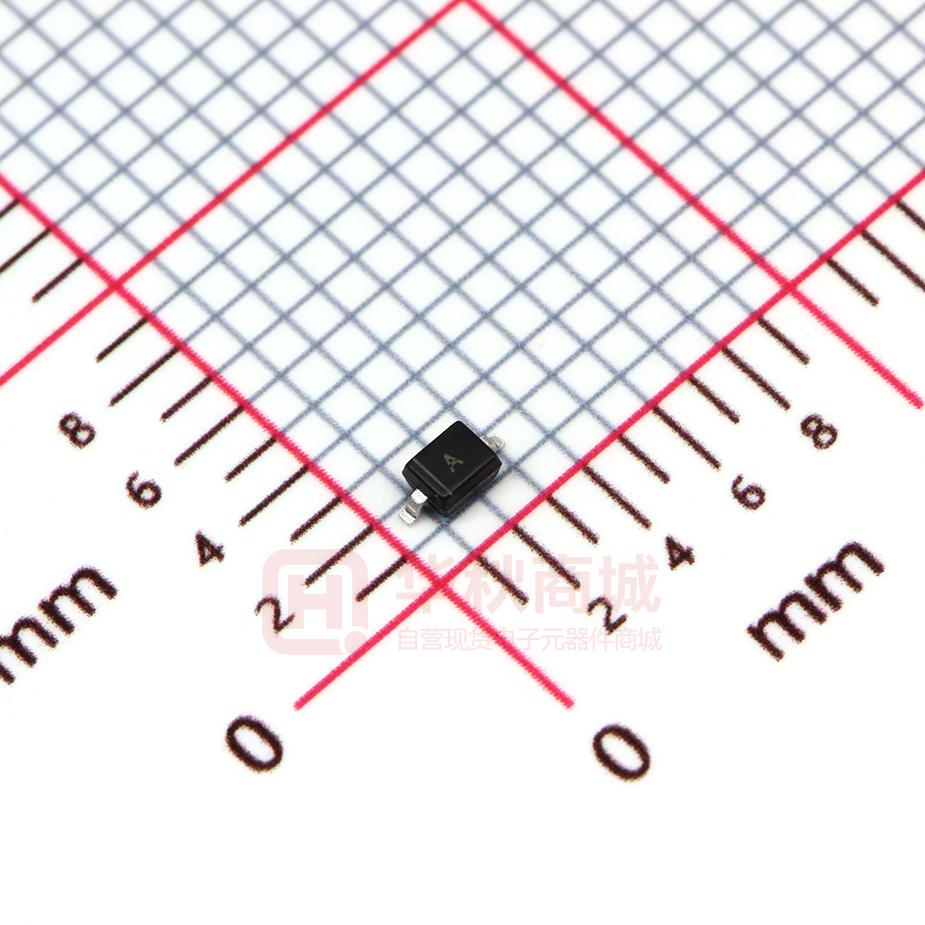

Plastic-Encapsulate Diodes 1SS355 FAST SWITCHING DIODES FEATURES Small surface mounting type. + - High Speed.(trr=1.2ns Typ.) High reliability with high surge current handling capability. SOD-323 MARKING: A MAXIMUM RATINGS (TA=25 unless otherwise noted) Symbol Value Units Non-Repetitive Peak reverse voltage VRM 90 V DC Blocking 80 V Forward Continuous Current VR IFM 225 mA Average Rectified Output Current IO 100 mA Surge current (1s) I surge 500 mA Junction temperature Tj 125 Storage temperature TSTG --55-125 Parameter ELECTRICAL CHARACTERISTICS (Tamb=25 Parameter Symbol unless otherwise specified) Min Typ Max Unit Conditions Forward voltage VF 1.2 V I F =100mA Reverse current IR 0.1 μA VR =80 V Capacitance between terminals CT 3 pF VR =0V,f=1MHz Reverse Recovery Time trr 4 ns IF= 10mA V=6 V R L=100 Ω GUANGDONG HOTTECH INDUSTRIAL CO,. LTD. Page:P2-P1 Plastic-Encapsulate Diodes 1SS355 Typical Characteristics Reverse Characteristics Forward Characteristics 1m 1 Forward Current, A 0.1m C C C C Ta=125 C Reverse current, A Ta=125 Ta=75 Ta=25 Ta=-25 100m 10m 1m 100 10 Ta=75 C 1 100n Ta=25 C 10n 10 1n 0 1.2 0.8 0.4 0 Forward Voltage, V 120 80 Reverse Voltage, V Capacitance between terminals characteristics Reverse Recovery Time Characteristics 3 10 VR=6V Reverse Recovery Time (ns) CT (pF) 40 2 1 0.2 Irr=1/10IR 2 1 0.1 0 4 8 12 14 0 10 20 30 Forward Current (mA) Reverse Voltage, VR ( V ) Surge Current Characteristics Surge Current (A) 100 Pulse Single Pulse 20 10 2 1 0.1 1 10 100 1000 10000 Pulse Width: Tw (ms) GUANGDONG HOTTECH INDUSTRIAL CO,. LTD. Page:P2-P2
